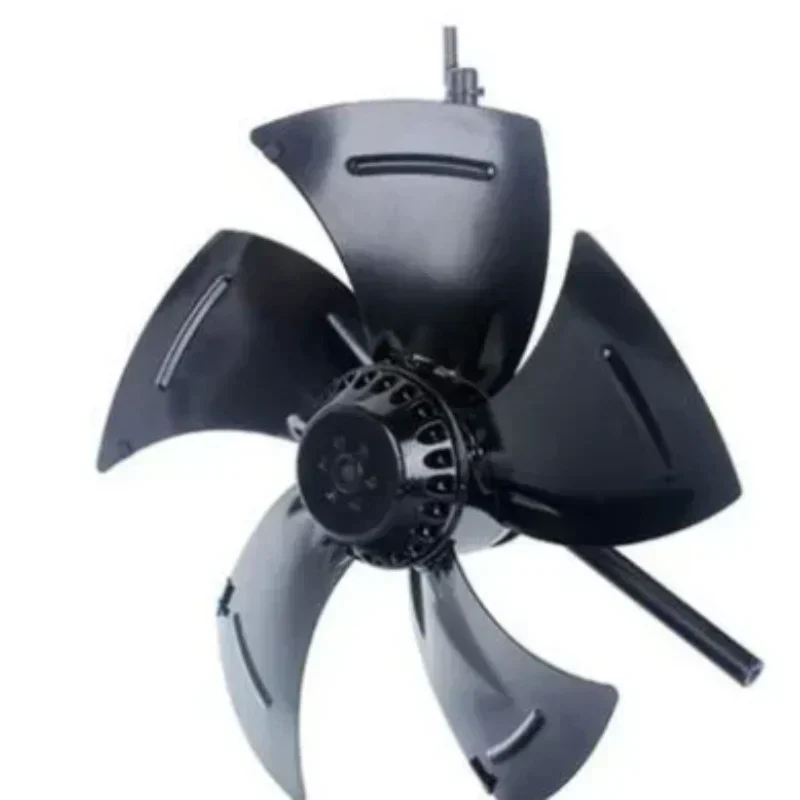

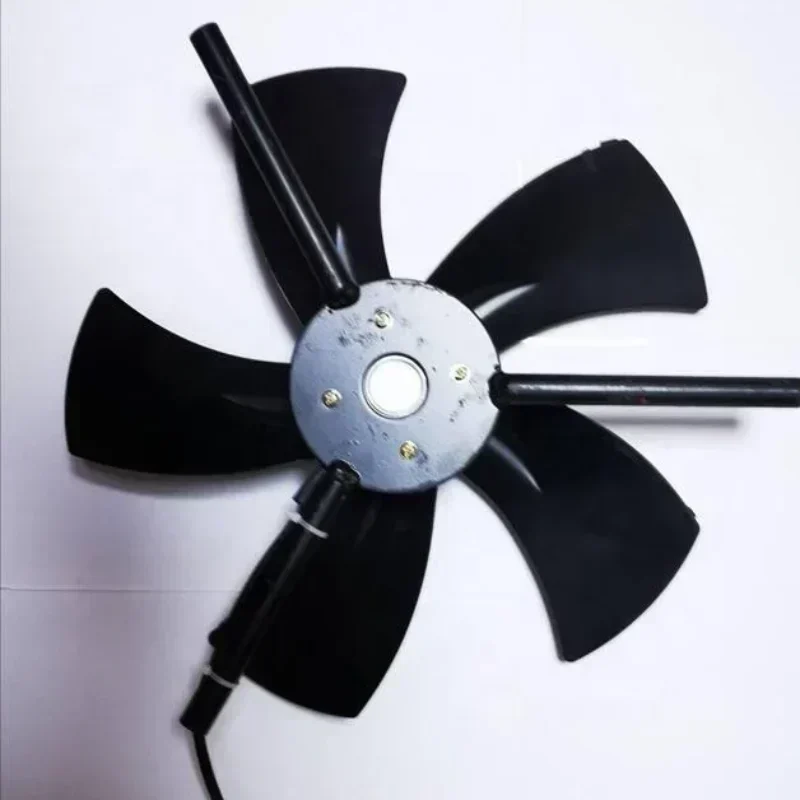

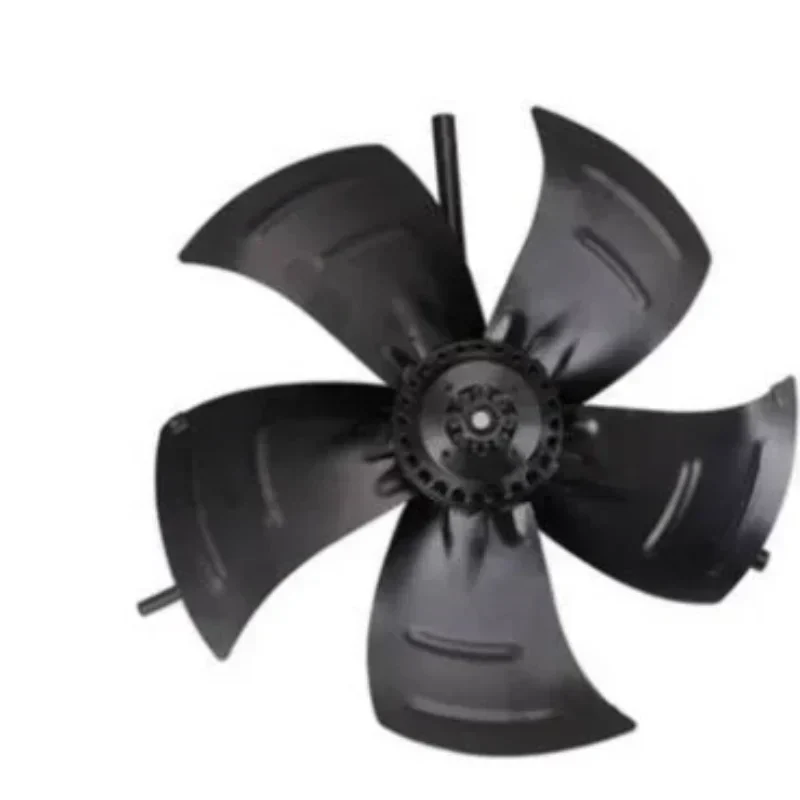

TONGxINDA G-132A 380V AC 40W 0.21A 1400RPM 880m3/h IP54 Frequency Conversion Motor Axial Fan
TONGxINDA G-132A 380V AC 40W 0.21A 1400RPM 880m3/h IP54 Frequency Conversion Motor Axial Fan
TONGxINDA G-132A 380V AC 40W 0.21A 1400RPM 880m3/h IP54 Frequency Conversion Motor Axial Fan
TONGxINDA G-132A 380V AC 40W 0.21A 1400RPM 880m3/h IP54 Frequency Conversion Motor Axial Fan

TONGxINDA G-132A 380V AC 40W 0.21A 1400RPM 880m3/h IP54 Frequency Conversion Motor Axial Fan

$38.19

SKU: 1600301868925

Description

The TONGXINDA G-132A is an industrial-grade axial cooling fan specifically engineered for frequency conversion motors. Designed to maintain optimal thermal equilibrium in variable frequency drive (VFD) systems, this unit prevents motor overheating during low-speed, high-torque operations. Built with a robust metal housing and aerodynamically optimized impeller blades, the G-132A ensures continuous, high-volume airflow in demanding manufacturing environments.

Technical Specifications:
Brand: TONGXINDA
Model Number: G-132A
Equipment Type: Frequency Conversion Motor Axial Cooling Fan
Operating Voltage: 380V AC (3-Phase)
Frequency: 50Hz
Power Consumption: 40W
Rated Current: 0.21A
Rotational Speed: 1400 RPM ± 5%
Maximum Airflow: 880 m³/h
Ingress Protection Rating: IP54 (Dust and Splash Resistant)
Operating Temperature Range: -15°C to +40°C
Noise Level: < 62 dB(A)
Mounting Diameter: Ø 132mm (Standardized for 132-frame motors)
Housing Material: Cold-rolled steel with anti-corrosion coating
Impeller Material: High-strength industrial alloy
Weight: 3.5 kg

Industrial Application:
The G-132A is critical for continuous-duty industrial applications where variable frequency motors drive conveyors, extruders, or heavy-duty pumps. In these scenarios, the primary motor’s internal cooling fan loses efficiency at reduced speeds. The independent 380V power supply of the G-132A guarantees a constant 880 m³/h airflow regardless of the main motor’s operational RPM, thereby extending the lifecycle of the stator windings and preventing thermal degradation of the insulation class.

Procurement & Integration:
This component guarantees strict Technical Compatibility with standard 132-frame frequency conversion motors. Sourced through Original Engineering channels, the fan ensures exact dimensional fit and electrical matching. We maintain an optimized Lead Time for this critical spare part to minimize facility downtime and support rapid MRO (Maintenance, Repair, and Operations) turnarounds.

Key Attributes
Voltage: 380V
Electric current type: AC
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Cast Iron
Customized support: OEM
After-sales service provided: Online support
Place of origin: China
Brand name: Tongxinda
Model number: G-132A
Type: Axial fan
Current: 0.21A
Power: 40W
Voltage: 380V
Frequency: 50HZ
Speed: 1400RPM
Air flow: 880m3/h
Wind pressure: 70Pa
Protection degree: IP54
Noise: 60dBA

Packaging and Delivery
Port of dispatch: Tianjin port
Selling Units: Single item

TONGxINDA G-132A 380V AC 40W 0.21A 1400RPM 880m3/h IP54 Frequency Conversion Motor Axial Fan

TONGxINDA G-132A 380V AC 40W 0.21A 1400RPM 880m3/h IP54 Frequency Conversion Motor Axial Fan

TONGxINDA G-132A 380V AC 40W 0.21A 1400RPM 880m3/h IP54 Frequency Conversion Motor Axial Fan

TONGxINDA G-132A 380V AC 40W 0.21A 1400RPM 880m3/h IP54 Frequency Conversion Motor Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
