Description

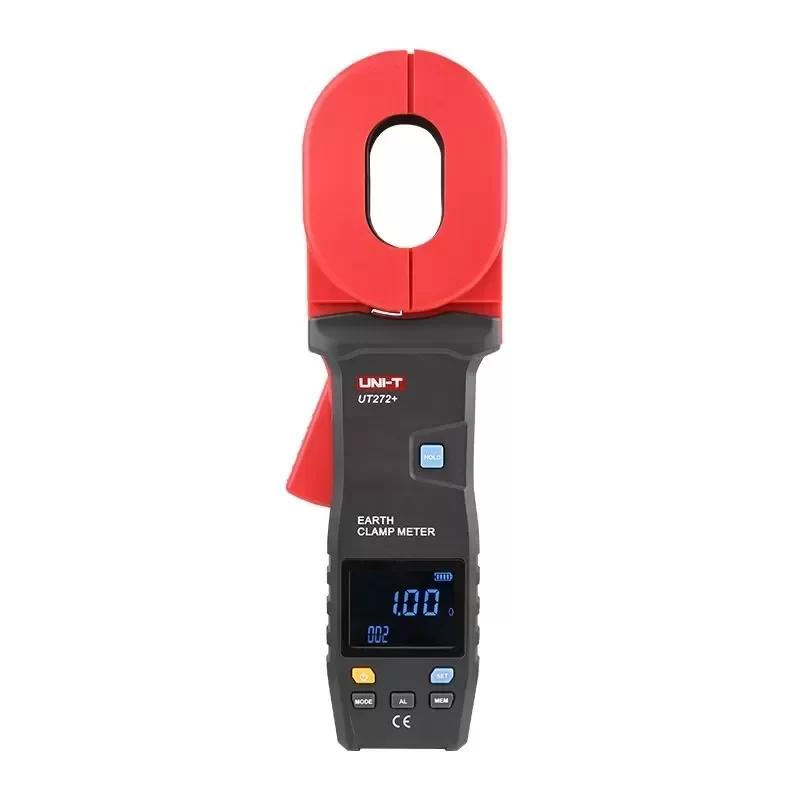

The UNI-T UT272+ is an advanced digital clamp earth resistance tester engineered for precision diagnostics of grounding systems. Utilizing Original Engineering from Uni-Trend, this instrument allows for rapid, non-contact measurement of earth resistance and leakage current without the need to disconnect ground lines or deploy auxiliary electrodes. It is designed to ensure Technical Compatibility with a wide range of industrial grounding architectures, providing critical safety data for electrical maintenance protocols.
TECHNICAL SPECIFICATIONS
Measurement Method: Mutual induction
Earth Resistance Range: 0.01Ω to 1200Ω
Resistance Resolution: 0.001Ω
Resistance Accuracy: ±1% to ±20% (range dependent)
Leakage Current Range: 0.00mA to 30.0A
Current Resolution: 0.01mA
Current Accuracy: ±2.5%
Jaw Capacity: Ø 32mm
Display Type: 4-digit LCD with backlight
Data Storage: 300 records
Alarm Function: Configurable audible and visual thresholds
Over-range Indication: OL symbol display
Interference Recognition: Automatic noise signal detection
Power Supply: 6V DC (4 x 1.5V AA alkaline batteries)
Auto Power Off: 5 minutes of inactivity
Safety Category: CAT III 300V
Certifications: CE, RoHS
Operating Temperature: -10°C to 55°C
Operating Humidity: 10% to 90% RH
Dimensions: 285mm x 85mm x 56mm
Weight: 1.18 kg
INDUSTRIAL APPLICATION
The UT272+ is purpose-built for telecommunications infrastructure, power grid substations, and petrochemical facilities where continuous operation is mandatory. In a cellular tower grounding audit, technicians utilize the Ø 32mm jaw to clamp directly onto the grounding down-conductor. This provides immediate verification of the earth loop resistance and detects parasitic leakage currents, preventing equipment damage from lightning strikes or electrical faults without interrupting service.
PROCUREMENT AND LIFECYCLE
Procuring this diagnostic tool ensures adherence to strict safety compliance standards. We maintain an optimized Lead Time for global distribution, ensuring rapid deployment for urgent maintenance schedules and facility audits.
Key Attributes
Max. Ac Current: 10 A
Max. DC Current: 10A
Measuring Voltage Range: No
Place of Origin: Guangdong, China
Model Number: UT272+
Brand Name: UNI-T
Dimensions: 47mm x 28.5mm
Display Type: LCD
Instrument Safety Rating: CAT III 600V
Max. Ac Voltage: Up To 600V
Max. DC Voltage: 20 V
Measuring Capacitance Range: No
Measuring Current Range: 10A
Measuring Inductance Range: No
Measuring Resistance Range: 1000Ω
Operating Temperature: -20 °C ~ 60 °C
Parameters Measured: Ground resistance
Weight: 1.18kg
Resistance Measurement: 1000Ω
Current Measurement: 1.00A-9.99A
Power: 1.5V battery (LR6) x 4
Display: 47mm x 28.5mm
Packaging and Delivery
Selling Units: Single item
Single package size: 39X32X13 cm
Single gross weight: 2.700 kg
