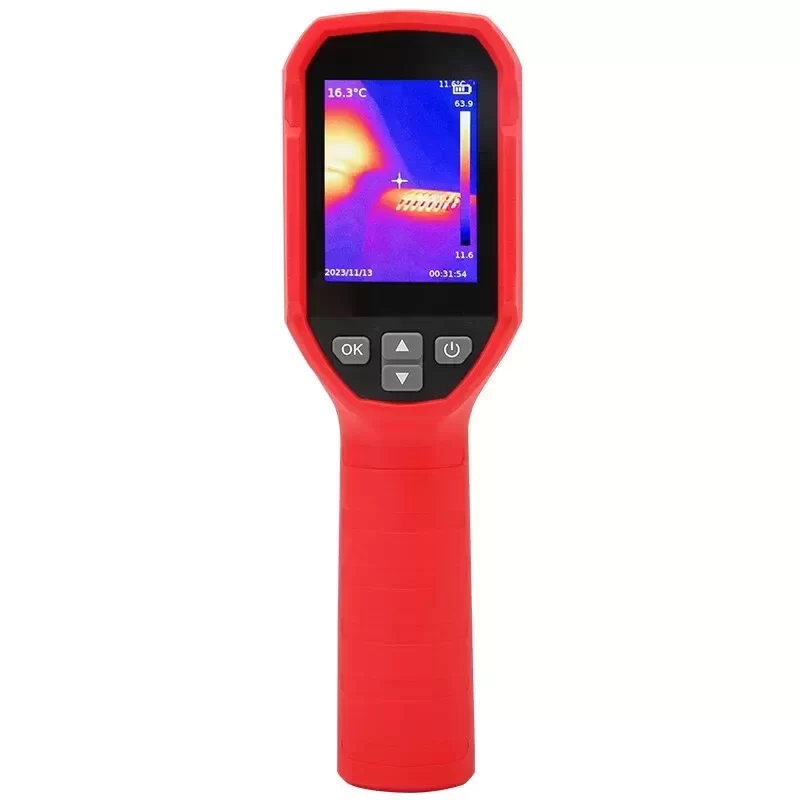

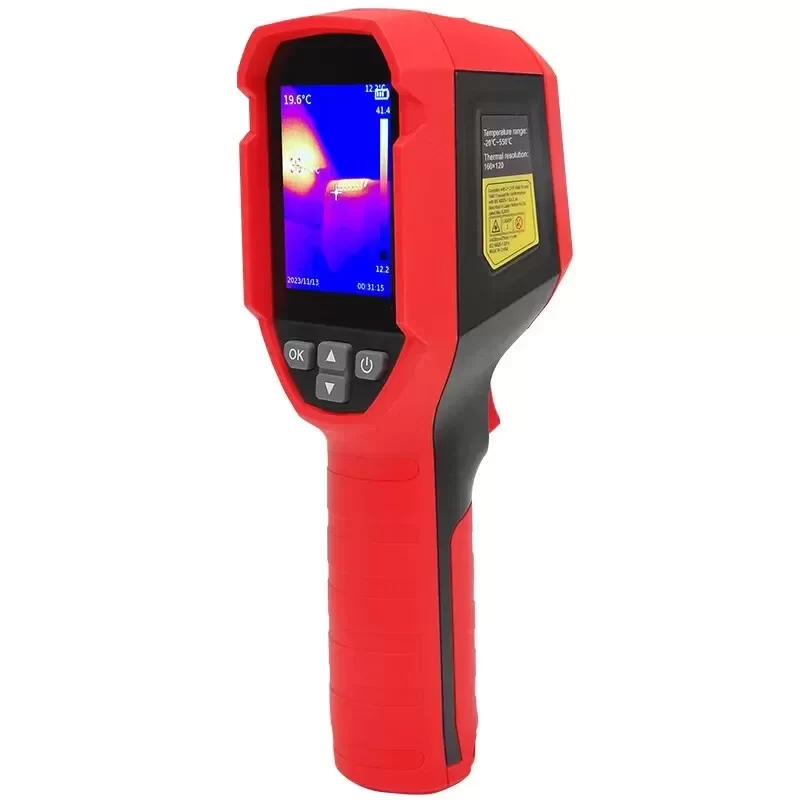

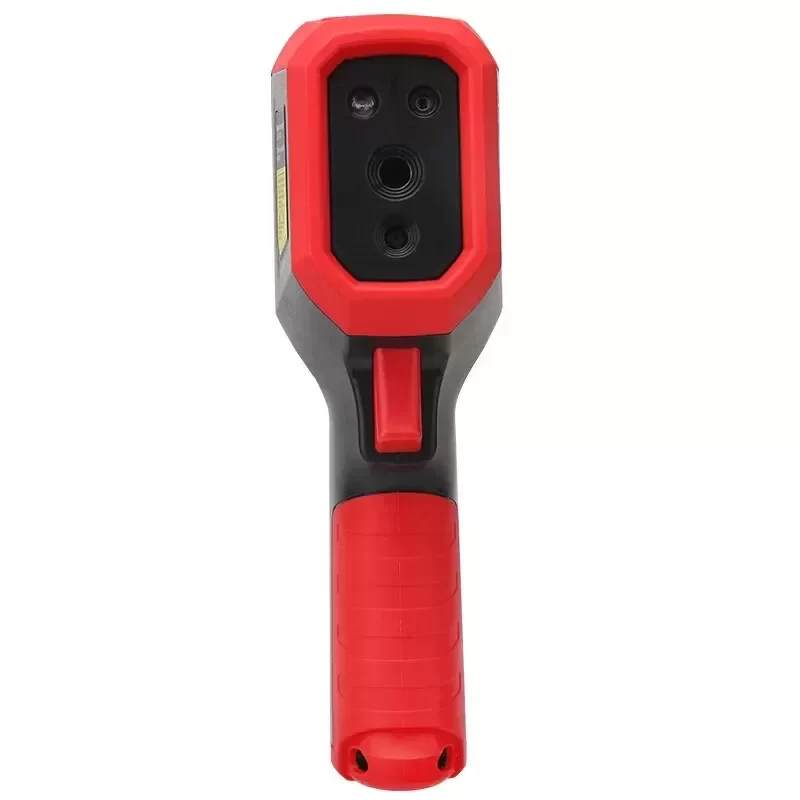

UNI-T UTi160S Infrared Thermal Imager Power Fault Detection Thermometer

Description

The UNI-T UTi160S is an industrial-grade infrared thermal imager engineered for precision power fault detection and predictive maintenance. Utilizing advanced uncooled focal plane array technology, this diagnostic instrument provides high-resolution thermal mapping to identify electrical resistance anomalies, mechanical friction, and thermal bridging before catastrophic failure occurs.

Technical Specifications:
Model: UTi160S
Manufacturer: UNI-T (Uni-Trend Technology)
IR Resolution: 160 x 120 pixels
Temperature Measurement Range: -20°C to 400°C
Thermal Sensitivity (NETD): < 50mK
Field of View (FOV): 56° x 42°
Spatial Resolution (IFOV): 6.1 mrad
Frame Rate: 25Hz
Emissivity: Adjustable 0.01 to 1.00
Measurement Accuracy: ±2°C or ±2%
Display: 2.4-inch TFT LCD
Color Palettes: Iron, Rainbow, White Hot, Black Hot, Red Hot
Data Interface: USB Type-C
Battery Type: 3.7V 2600mAh Rechargeable Lithium-ion
Operating Time: > 7 hours
Ingress Protection: IP54
Drop Resistance: 2 meters
Weight: 310g
Dimensions: 196mm x 63mm x 75mm
Certifications: CE, UKCA, RoHS

Industrial Application:
The UTi160S is specifically calibrated for high-voltage electrical infrastructure and heavy machinery diagnostics. By detecting micro-variations in surface temperature, it isolates loose connections, phase imbalances, and overloaded circuits in switchgear panels and transformers. This capability is critical for facility managers aiming to reduce unplanned downtime and mitigate fire risks in continuous-process manufacturing environments.

Procurement and Integration:
Backed by Original Engineering standards, the UTi160S ensures seamless Technical Compatibility with standard PC analysis software for comprehensive reporting. We maintain an optimized Lead Time for this diagnostic equipment to support urgent preventive maintenance schedules and facility audits globally.

Key Attributes
Place of Origin: Guangdong, China
Model Number: UTi160S
Brand Name: UNI-T
IR resolution (Pixels): 160 x 120
Thermal sensitivity(NETD): ≤60mK
Frame rate: ≤25Hz
Focus: Focus Free
Temperature measurement range: -20℃~550℃
Battery: Fixed Li-ion battery (3.7V 2600mAh)
Battery operation time: ≥8 hours
USB: Type-C

Packaging and Delivery
Selling Units: Single item
Single package size: 35X21X17 cm
Single gross weight: 3.000 kg
