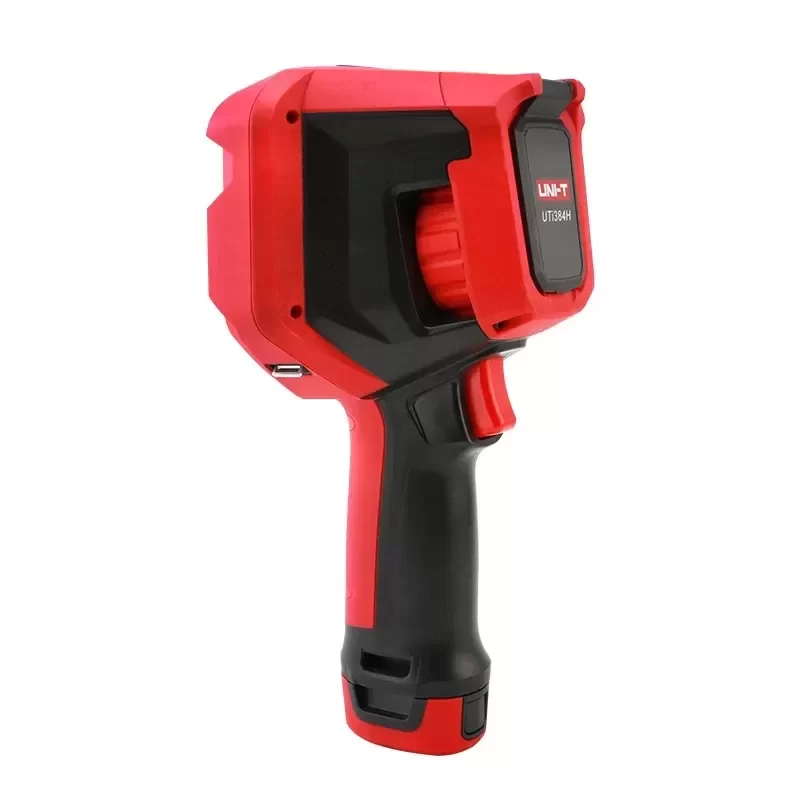

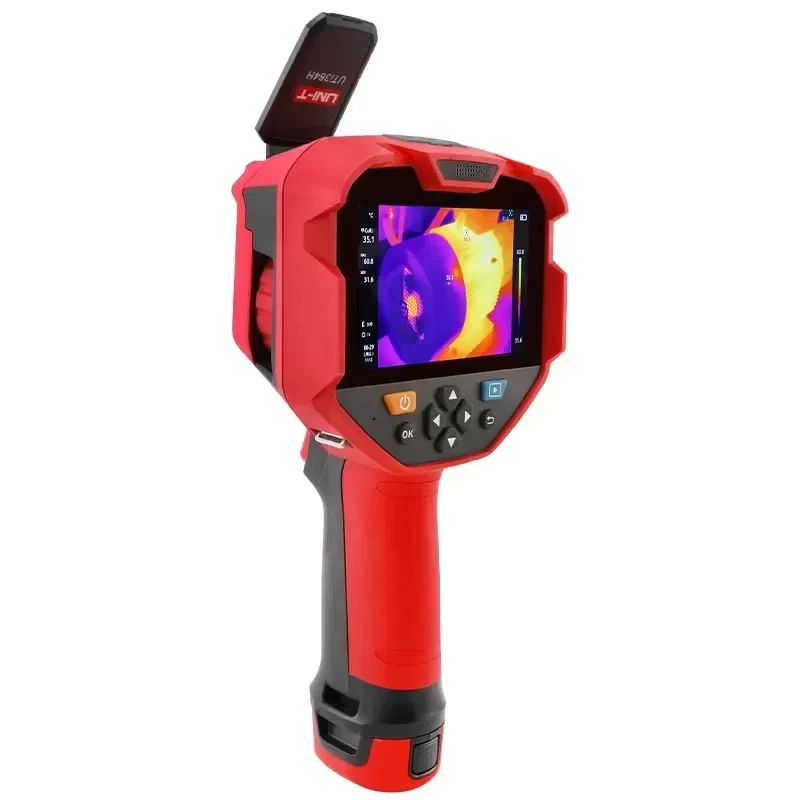

UNI-T UTi384H Infrared Thermal Imaging Camera UTi384J Intelligent Thermal Camera

Description

The UNI-T UTi384H and UTi384J are professional-grade infrared thermal imaging cameras designed for rigorous industrial diagnostics and predictive maintenance. Engineered to detect minute temperature differentials, these intelligent thermal cameras provide high-resolution thermal mapping to identify electrical faults, mechanical wear, and thermal bridging before catastrophic failure occurs. Built with Original Engineering standards, these units ensure precise thermal data acquisition in harsh environments.

Technical Specifications
Brand: UNI-T
Model: UTi384H / UTi384J
IR Resolution: 384 x 288 pixels
Temperature Measurement Range: -30°C to 650°C
Accuracy: ±2°C or ±2%
Thermal Sensitivity (NETD): < 50mK
Frame Rate: 25Hz
Field of View (FOV): 28° x 21°
Spatial Resolution (IFOV): 1.3 mrad
Emissivity: 0.01 to 1.00 adjustable
Display: 4.3-inch IPS Touch Screen
Image Modes: Thermal, Visual, Picture in Picture, Auto-Blending
Data Storage: 32GB Micro SD
Connectivity: Wi-Fi, USB Type-C
Protection Rating: IP54
Drop Resistance: 2 meters
Operating Temperature: -10°C to 50°C
Weight: 1.05 kg

Industrial Application
These thermal imaging cameras are critical for predictive maintenance in high-voltage electrical substations and heavy manufacturing facilities. By detecting abnormal heat signatures in transformers, switchgears, and rotating machinery, the UTi384H and UTi384J allow technicians to isolate high-resistance connections and friction points. This proactive diagnostic capability minimizes unplanned downtime and optimizes operational safety.

Lifecycle and Integration
Designed for seamless Technical Compatibility with enterprise asset management systems, the UTi384 series includes advanced PC analysis software for comprehensive reporting. We maintain an optimized Lead Time for these diagnostic instruments, ensuring your maintenance teams are equipped without delay.

Key Attributes
Thermal color palettes: Other
Place of Origin: Guangdong, China
Model Number: UTi384H
Brand Name: UNI-T
IR resolution (Pixels): 384 x 288
Display: 4.3 inches IPS (800 x 480)
Thermal sensitivity(NETD): ≤60mK
Emissivity: 0.01~1.00 adjustable (0.95 default)
Field of view(FOV): 28° x 21°

Packaging and Delivery
Selling Units: Single item
Single package size: 48X38X24 cm
Single gross weight: 6.000 kg
