V80E14MS2A3-57A611 Refrigerator fan Nidec
V80E14MS2A3-57A611 Refrigerator fan Nidec

V80E14MS2A3-57A611 Refrigerator fan Nidec

$7.86

SKU: 747710305703 Brand:

Description

The Nidec V80E14MS2A3-57A611 is an industrial-grade 8038 axial DC cooling fan engineered specifically for refrigeration thermal management, forced-air evaporator cooling, and condenser heat dissipation systems. Built to original engineering standards, this unit provides stable airflow under high static pressure resistance conditions within sub-ambient, moisture-heavy environments.

TECHNICAL SPECIFICATIONS
Manufacturer: Nidec Corporation
Model Number: V80E14MS2A3-57A611
Form Factor: 80 mm x 80 mm x 38 mm (8038)
Nominal Operating Voltage: 13.6 V DC
Operating Voltage Range: 10.8 V DC to 15.0 V DC
Rated Current: 0.18 A
Rated Input Power: 2.45 W
Nominal Speed: 3200 RPM ± 10%
Airflow Performance: 42.5 CFM (1.20 m³/min)
Static Pressure: 45 Pa (0.18 in-H2O)
Bearing System: Dual Precision Ball Bearings
Frame Material: UL 94V-0 Glass-Fiber Reinforced PBT
Impeller Material: UL 94V-0 Glass-Fiber Reinforced PBT
Motor Protection: Auto-Restart, Locked Rotor Protection, Reverse Polarity Protection
Dielectric Strength: 500 V AC at 50/60 Hz for 1 minute
Insulation Resistance: Minimum 10 MΩ at 500 V DC
Operating Temperature Range: -25 °C to +70 °C
Storage Temperature Range: -40 °C to +80 °C
Relative Humidity: Up to 95% RH (Non-Condensing / Conformal Coated Electronics)
Expected Service Life (L10): 70,000 Hours at 40 °C
Termination: Multi-lead wire harness with dedicated OEM connector
Weight: 145 g
Certifications: UL, CE, RoHS Compliant

ENGINEERING ARCHITECTURE & INTEGRATION
The internal electronics feature specialized conformal coating to prevent moisture condensation and corrosion across the stator poles and PCB tracks during defrost cycles. The dual ball bearing configuration maintains structural alignment and low acoustic emission across low-temperature operating regimes where standard lubrications fail. The integrated drive IC regulates rotational torque to maintain rated airflow even during standard input voltage fluctuations on the 13.6V DC bus.

INDUSTRIAL APPLICATION CONTEXT
Designed for commercial refrigeration units, medical cold storage chambers, refrigerated display cases, and localized forced-air heat exchangers. The unit directly resolves frozen coil airflow blockages by providing steady static pressure through dense fin-tube heat exchangers.

B2B PROCUREMENT & LOGISTICS
Technical Compatibility: Direct OEM replacement for systems requiring 80x80x38mm 13.6V DC forced convection assemblies.
Original Engineering: Authentic Nidec product matching OEM dimensional tolerances and electrical specifications.
Lead Time: In-stock standard units ship within 24 to 48 hours. Batch enterprise orders subject to production schedule confirmation.

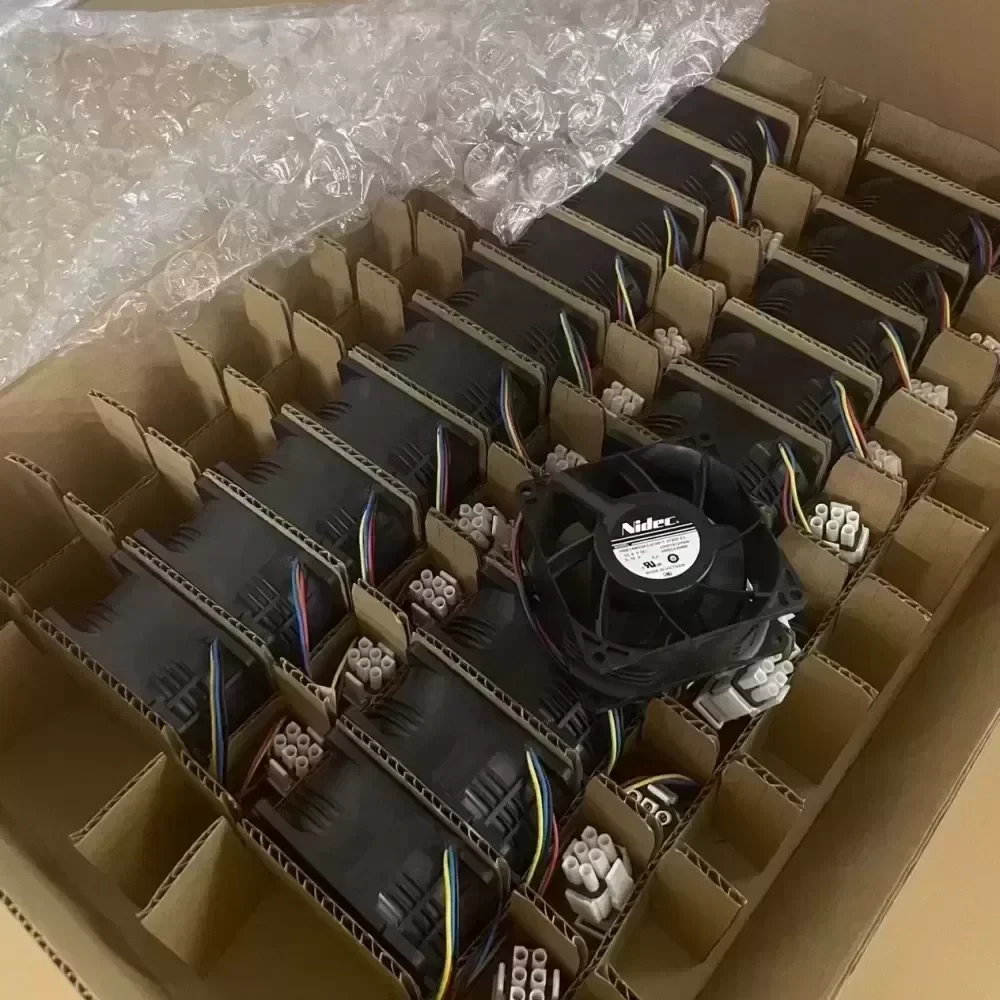

Packaging: Antistatic industrial tray packaging for safe transit and automated assembly integration.

V80E14MS2A3-57A611 Refrigerator fan Nidec

V80E14MS2A3-57A611 Refrigerator fan Nidec

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
