Description

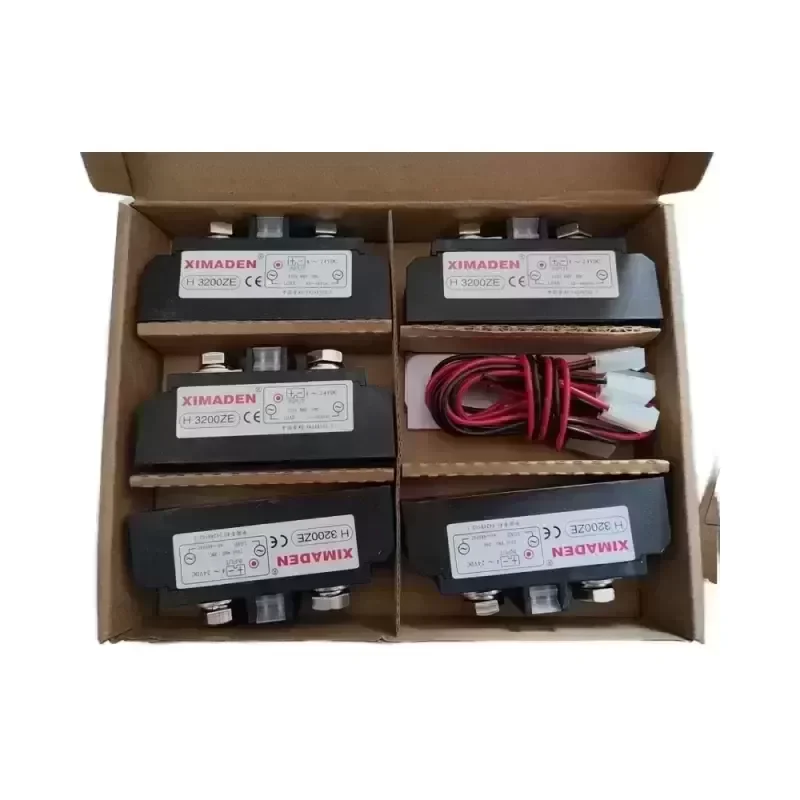

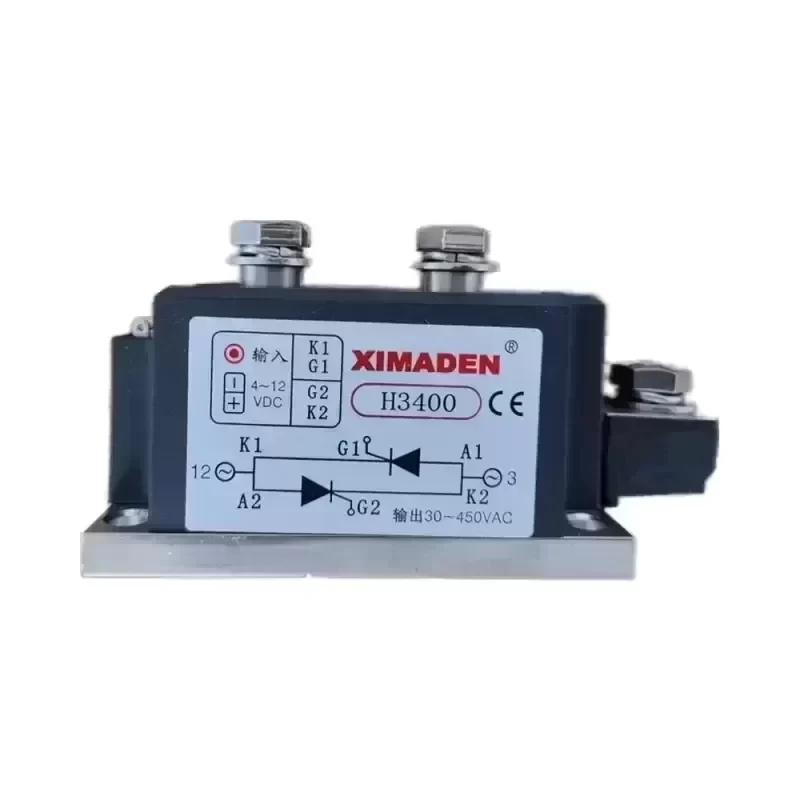

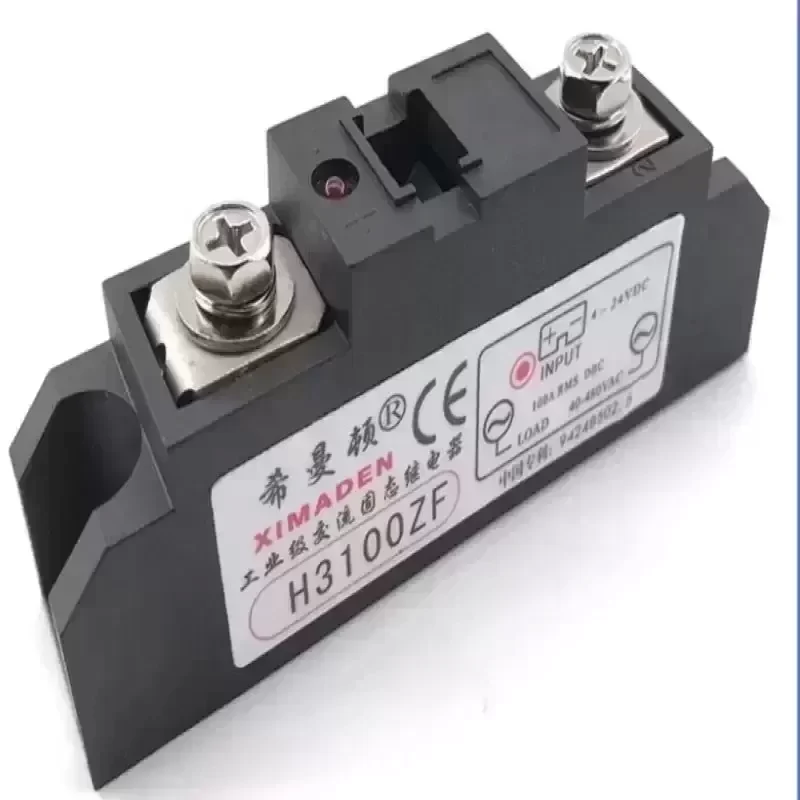

XIMADEN H3200ZE Solid State Relay (SSR) is an industrial-grade switching device engineered for high-precision thermal control in continuous, heavy-duty processing systems such as glass tempering furnaces and metallurgical heating systems.
TECHNICAL SPECIFICATIONS
Manufacturer: XIMADEN
Model Number: H3200ZE
Product Classification: High-Capacity Single-Phase Solid State Relay
Control Input Voltage: 3 to 32 VDC
Control Input Current: 6 to 35 mA
Nominal Load Voltage: 380 VAC
Operating Load Voltage Range: 24 to 480 VAC
Rated Continuous Load Current: 200 A
Switching Type: Zero-Cross Switching
Turn-On / Turn-Off Response Time: ≤ 10 ms (at 50/60 Hz cycle)
On-State Voltage Drop: ≤ 1.6 VAC at nominal rated current
Off-State Leakage Current: ≤ 5 mA
Non-Repetitive Peak Surge Current: 2200 A (10 ms half-cycle)
Dielectric Strength: ≥ 2500 VAC (Input to Output to Baseplate, 1 min)
Insulation Resistance: ≥ 1000 MΩ at 500 VDC
Operating Temperature Range: -30 °C to +75 °C
Storage Temperature Range: -40 °C to +100 °C
Baseplate Material: High-Conductivity Nickel-Plated Copper
Terminal Interface: Heavy-Duty Industrial M6/M8 Bolt Fasteners
Weight: 0.48 kg
Compliance and Certifications: CE, RoHS
APPLICATION & SYSTEM INTEGRATION
In glass tempering machinery, electric resistance heaters require continuous, rapid duty-cycle modulating via PID control loops to maintain strict thermal homogeneity across quartz or ceramic heating elements. Conventional electromechanical contactors fail under these high-frequency cycling conditions due to contact pitting, material fatigue, and arcing. The XIMADEN H3200ZE delivers silent, solid-state switching with zero-crossing synchronization, preventing electrical harmonics and voltage spikes across the three-phase distribution grid while extending heater element lifespan.
PROCUREMENT & COMPATIBILITY
Original Engineering standards ensure optimal heat transfer across the module baseplate when paired with industrial extruded heatsinks and forced-air cooling. Exact mechanical footprint and terminal geometry provide direct Technical Compatibility with existing glass machinery power distribution panels. Inquire with distribution for standardized Lead Time schedules on single-unit replacements or full-line furnace retrofits.
Key Attributes
Voltage: 380 V
Place of Origin: Henan, China
Weight: 0.5
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Brand Name: LEKKER
Warranty: 1 year
Product name: Solid State Relay, SSR
Brand: Gold, Ximaden, Chordn, etc, or as customer's machine
Specification: As customer's tempering furnace
Applications: For control cabinets of glass tempering furnace
Control Voltage: 3-32VDC
Control Current: 5-25mA
Reverse Voltage: 32VDC
Insulation Resistance: 500mΩ 500VDC
Leakage Current: 2500VAC
