Description
The Schneider Electric XS4P12AB120 is a high-performance inductive proximity sensor engineered for precision metallic object detection in demanding industrial environments. Manufactured in France, this 54mm cylindrical M12 sensor leverages advanced electromagnetic field technology to deliver reliable, contactless sensing. Designed with a durable Polybutylene Terephthalate (PBT) housing, the XS4P12AB120 ensures excellent resistance to mechanical impact and chemical exposure, maximizing operational lifespan in harsh factory settings.
Technical Specifications:
Manufacturer: Schneider Electric
Model Number: XS4P12AB120
Sensor Type: Inductive Proximity
Body Style: Cylindrical Threaded M12

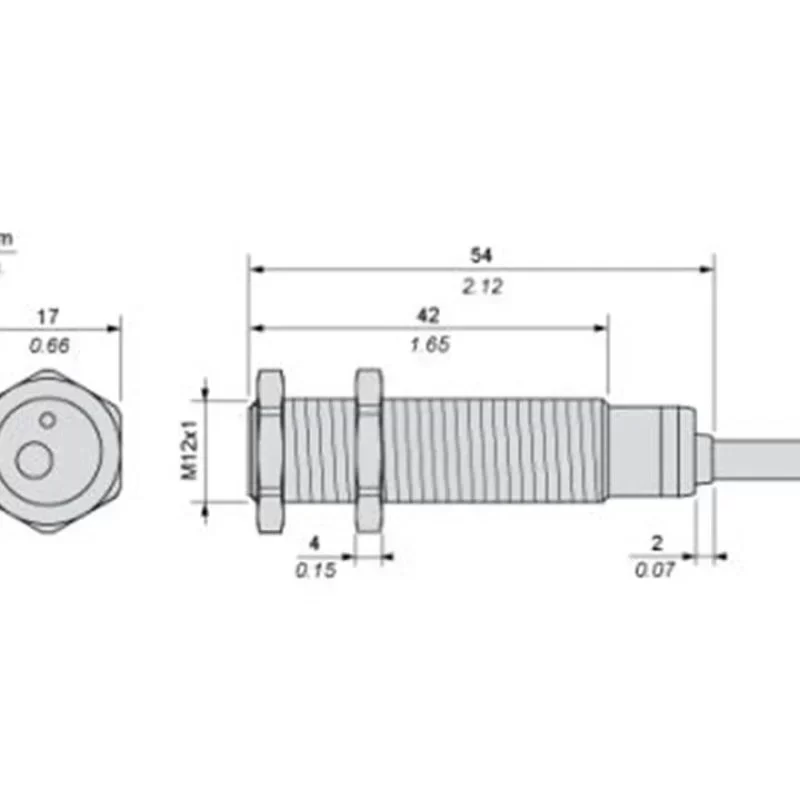

Dimensions: Ø 12 mm x 54 mm
Housing Material: PBT Plastic
Mounting Type: Non-flush Mountable
Nominal Sensing Distance (Sn): 4 mm
Wiring Configuration: 2-wire
Output Function: 1 NC (Normally Closed)
Supply Voltage: 12-24 V DC
Switching Frequency: <= 5000 Hz
Electrical Connection: Cable
Degree of Protection: IP68
Operating Temperature: -25°C to +70°C
Weight: 0.07 kg
Country of Origin: France
Industrial Application and Integration:
The XS4P12AB120 is specifically designed for high-speed automated packaging lines and material handling conveyors. Its non-flush mounting capability and 4mm sensing range make it ideal for detecting gear teeth, metal cams, or passing aluminum/steel components in space-constrained machinery. The 2-wire DC configuration simplifies integration into existing PLC architectures, reducing wiring complexity and installation time. By maintaining Original Engineering standards, this sensor guarantees seamless Technical Compatibility with legacy Telemecanique and modern Schneider control systems. Procurement of this exact model ensures minimal Lead Time for critical maintenance operations, preventing costly downtime in continuous-duty manufacturing cycles.
Key Attributes
Mounting Type: 1
Model Number: XS4P12AB120
Brand Name: Schneider
Usage: Position Sensor
Theory: Inductance Sensor
Description: 1
Type: Electric product
Place of Origin: France
Output: Switching Transducer
Description: Inductive proximity sensor
Product name: XS4P12AB120 54mm 12 to 24 V DC Schneider inductive proximity sensor
Size: 54 mm
Wiring technique: 2-wire
Discrete output function: 1 NC
Rated supply voltage: 12...24 V DC
Ambient temperature: -25...70 °C (operation)
Packaging and Delivery
Selling Units: Single item
Single package size: 10X6X8 cm
Single gross weight: 2.000 kg
