Description

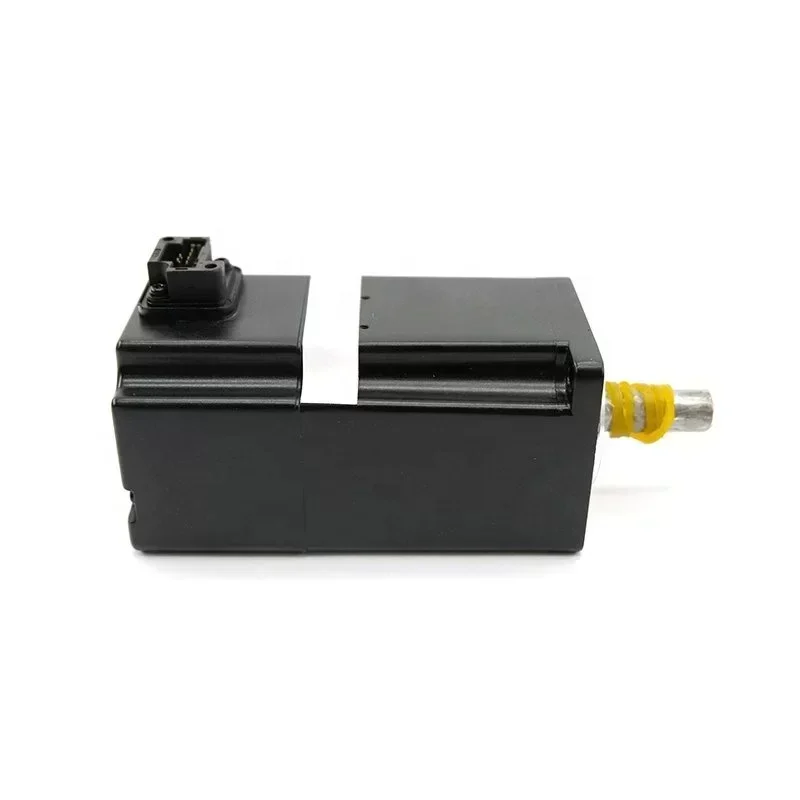

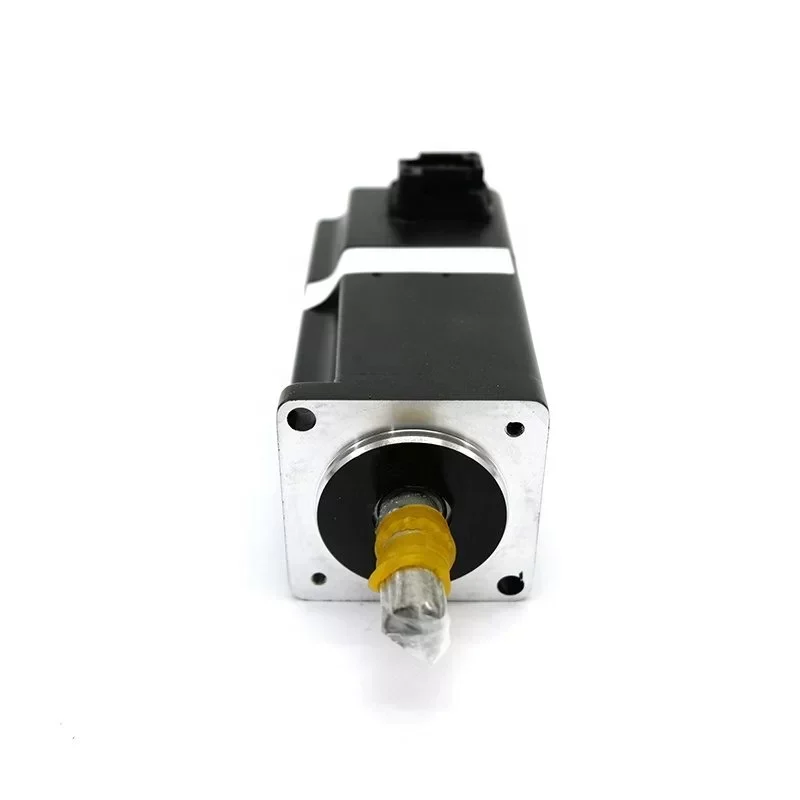

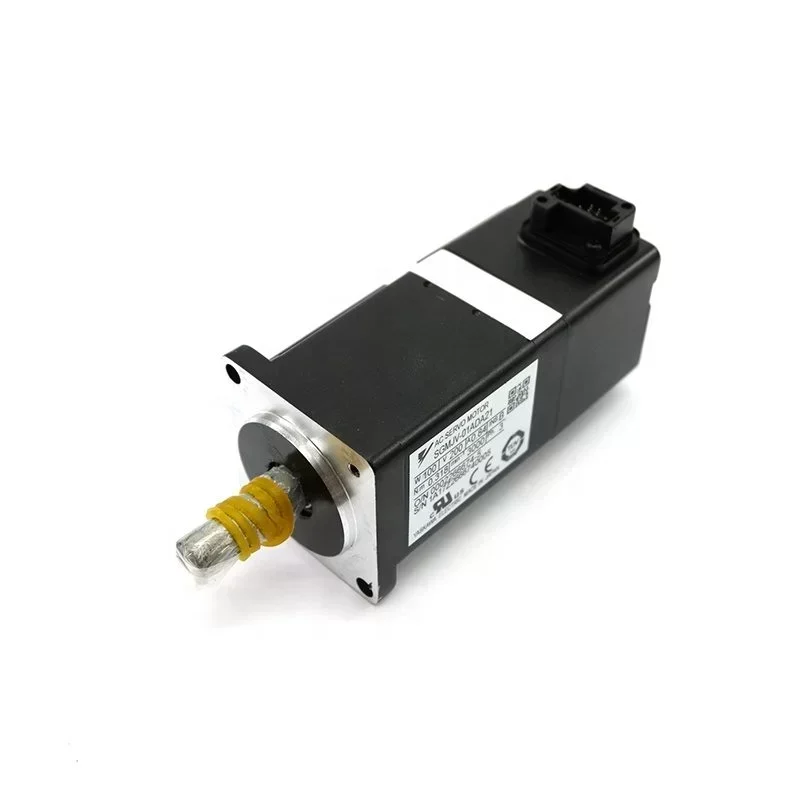

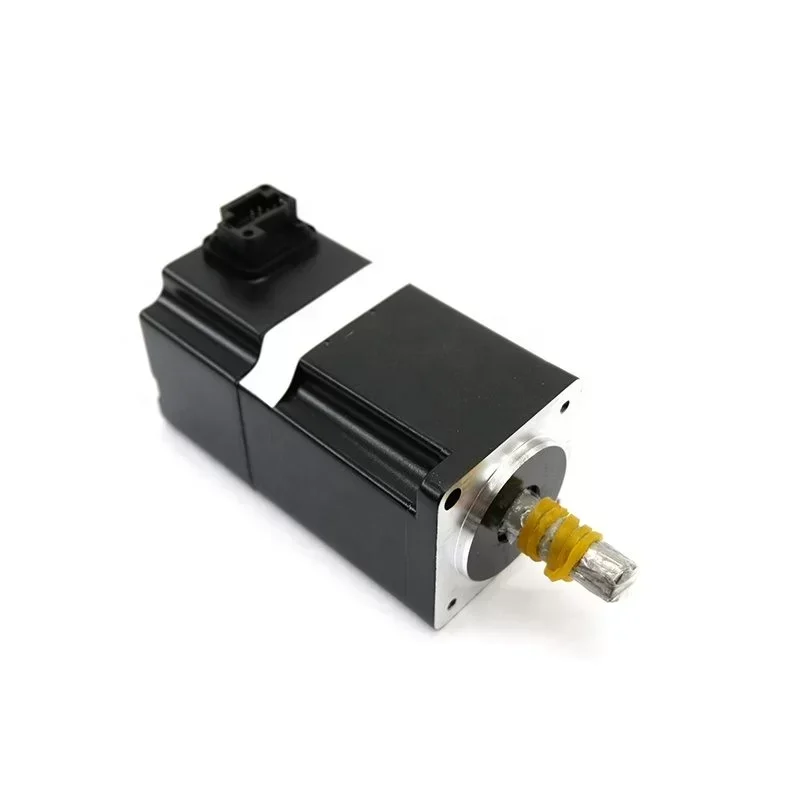

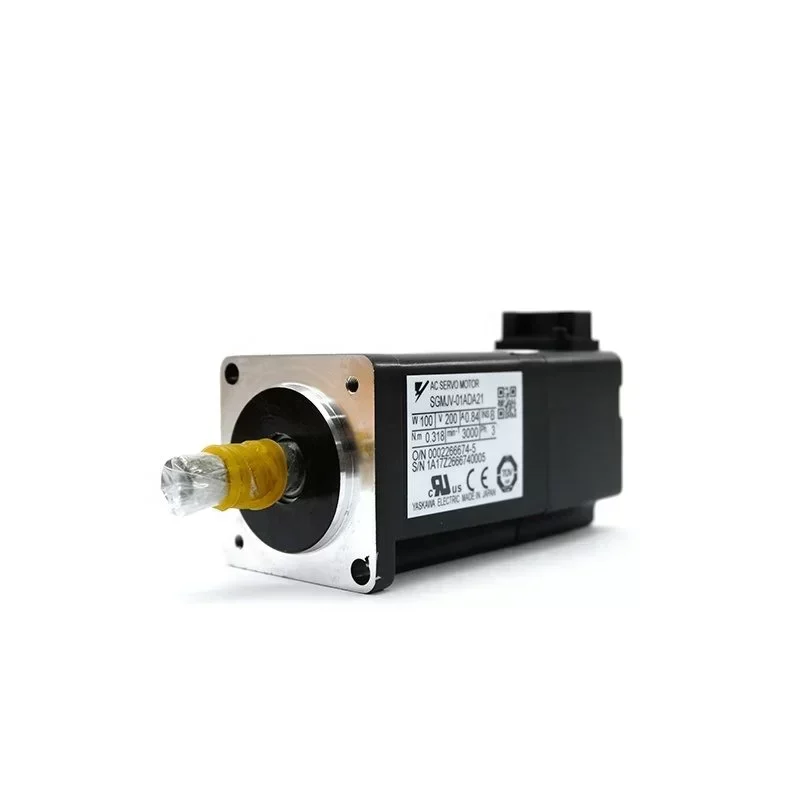

The Yaskawa SGMJV-01ADA21 is a high-performance, medium-inertia rotary servo motor engineered for the Sigma-5 servo drive platform. Utilizing Yaskawa Original Engineering, this motor delivers exceptional responsiveness and positioning accuracy in a compact form factor. It is designed to optimize dynamic performance in high-speed automation systems.
MODEL DECODING
Model Series: SGMJV Sigma-5
Rated Output: 100 W
Input Voltage: 200 VAC
Encoder Specification: 20-bit Incremental
Design Revision: Standard
Shaft End Specification: Straight with key and tap
Options: Without brake, with oil seal
TECHNICAL SPECIFICATIONS
Rated Output: 100 W
Rated Torque: 0.318 N·m
Instantaneous Peak Torque: 0.955 N·m
Rated Speed: 3000 min⁻¹
Maximum Speed: 6000 min⁻¹
Rated Current: 0.84 A (rms)
Instantaneous Maximum Current: 2.9 A (rms)
Rotor Moment of Inertia: 0.067 x 10⁻⁴ kg·m²
Encoder Resolution: 20-bit (1,048,576 pulses per revolution)
Enclosure Rating: IP65 (excluding shaft)
Thermal Class: Class B insulation
Operating Temperature: 0 to +40 °C
Operating Humidity: 20% to 80% RH
Weight: 0.7 kg
SYSTEM INTEGRATION & TECHNICAL COMPATIBILITY
This rotary servo motor features seamless Technical Compatibility with Yaskawa SGDV Sigma-5 servo amplifiers. The integrated high-resolution encoder provides precise feedback to the drive controller, ensuring minimal velocity ripple and exact trajectory execution.
INDUSTRIAL APPLICATION
The SGMJV-01ADA21 is highly optimized for high-speed pick-and-place electronic assembly machines. In these environments, the medium rotor inertia provides the ideal mechanical match for varying load conditions, preventing overshoot and reducing settling times. The built-in oil seal protects the internal motor components from cutting fluids and airborne lubricants, ensuring continuous operation in harsh industrial environments.
SUPPLY CHAIN & PROCUREMENT
Global Lead Time: Contact for current stock availability and expedited shipping options.
Product Authenticity: 100% genuine Yaskawa factory-new product.
Key Attributes
Application: Cnc Machine
Motor Type: Servo
Place of Origin: Japan
Model Number: SGMJV-01ADA21
Brand Name: Yaskawa
Product name: Yaskawa Servo Motor
Payment method: Western Union&T/T& Paypal
Quality: Original new
Payment term: All terms are accepted
Warranty: 3 Months for Used and 12 Months for New
Service: One-stop Service
Port of export: ShenZhen
MOQ: 1 Piece
Lead time: In stock
Package: With Carton Package
Packaging and Delivery
Selling Units: Single item
Single package size: 30X30X20 cm
Single gross weight: 3.000 kg
