Description

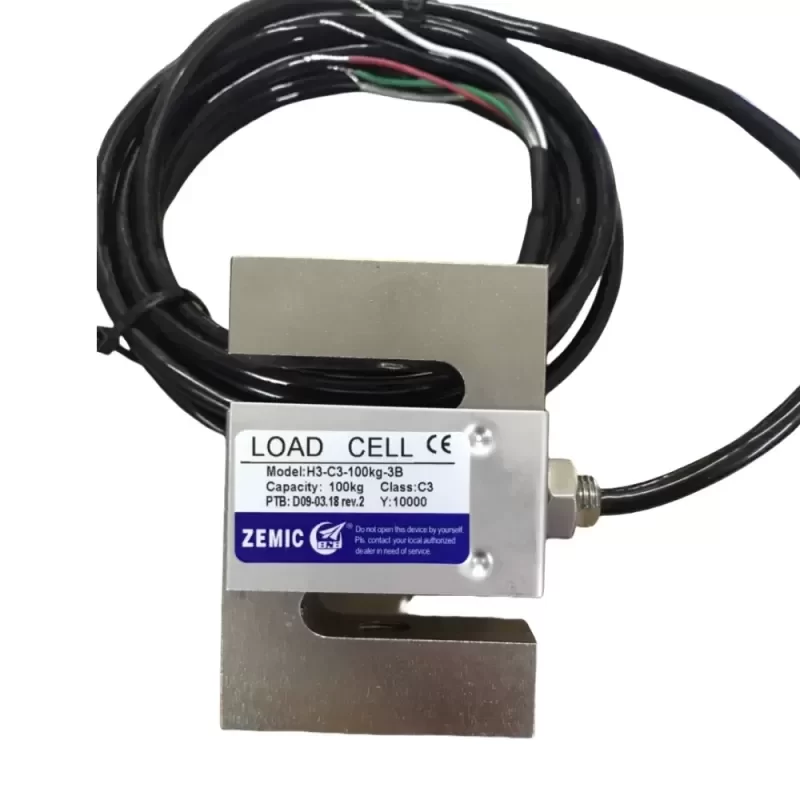

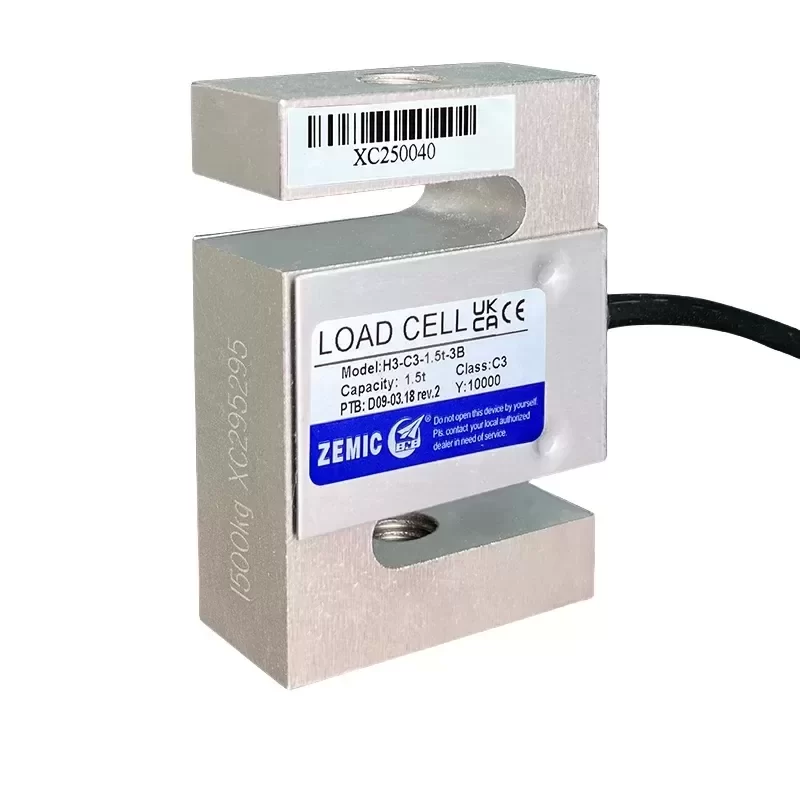

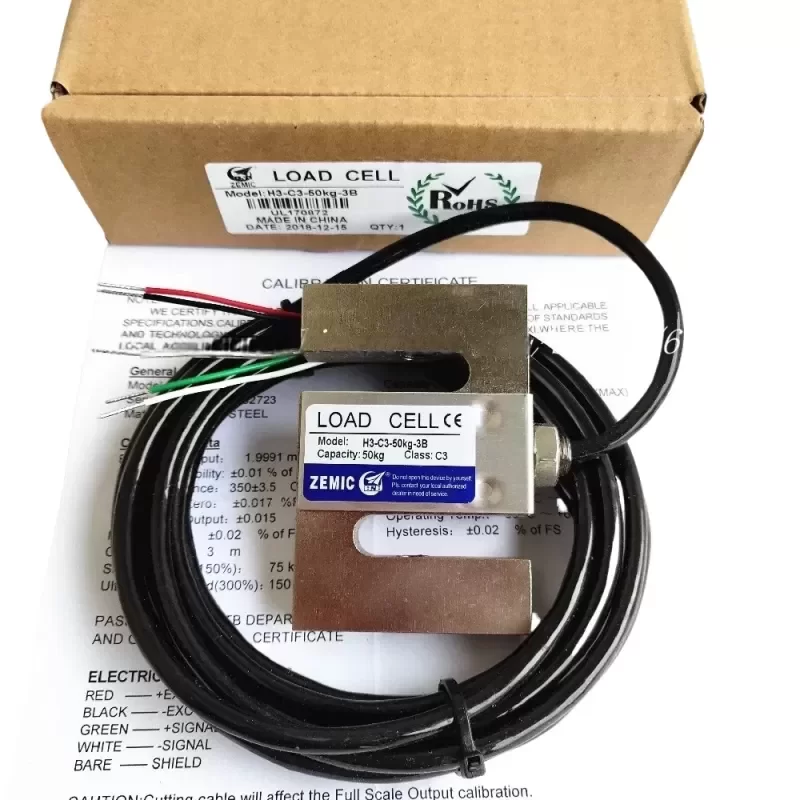

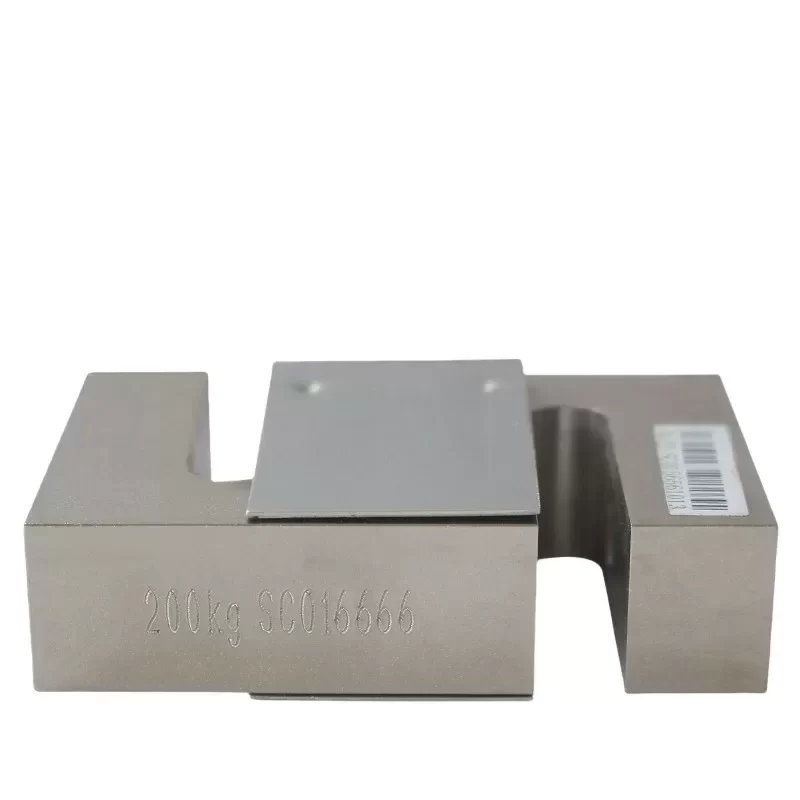

The Zemic H3-C3-500KG-3b is an industrial-grade S-Type load cell engineered for high-precision tension and compression measurement. Manufactured from nickel-plated alloy steel, this sensor delivers exceptional structural integrity and measurement stability in rigorous weighing applications.
Technical Specifications:
Brand: Zemic
Model: H3-C3-500KG-3b
Sensor Type: S-Type Tension and Compression Load Cell
Capacity: 500 KG
Accuracy Class: OIML R60 C3
Output Sensitivity: 2.0 ± 0.004 mV/V
Material: Nickel-Plated Alloy Steel
Protection Rating: IP67
Input Resistance: 350 ± 3.5 Ohms
Output Resistance: 351 ± 2.0 Ohms
Excitation Voltage: 5 to 12 VDC (18 VDC Maximum)
Safe Overload: 150% FS
Ultimate Overload: 300% FS
Operating Temperature: -35°C to +65°C
Compensated Temperature Range: -10°C to +40°C
Cable Length: 3 Meters
Certifications: OIML, CE, RoHS
Industrial Application:
Designed for dynamic and static load monitoring, the H3-C3-500KG-3b is critical for crane scales, hopper scales, batching systems, and electro-mechanical scale conversions. Its IP67 environmental sealing ensures reliable data transmission even in high-moisture or dust-heavy industrial environments, preventing zero-drift and signal degradation during continuous tension monitoring.
Procuring Original Engineering components guarantees Technical Compatibility with existing Zemic weighing architectures and instrumentation. We provide accurate Lead Time estimates for global distribution, ensuring minimal downtime for your critical measurement infrastructure and seamless integration into your current PLC or weighing terminal setups.
Key Attributes
Mounting Type: Manual installation
Manufacturing Date Code: 2024.11.20
Model Number: H3-C3
Brand Name: Original
Usage: Automation field
Accuracy: ±0.02%
Description: S-Type Force Sensor
Type: Load Cell
Place of Origin: Anhui, China
Series: Force Sensor
Features: S-Type Force Sensor
Theory: Resistont Sensor
Output: Analog Sensor
Description: Zemic H3-C3-500KG-3b Load Cells
Voltage - Supply: 220V
Capacity: 0.025t - 30t (25kg~30t; 100lb~20klb)
Maximum Voltage: 15VDC
Overall Accuracy: ±0.02%FS
Safe Overload: 150%
MOQ: 1 Pieces
Place of Origin: China
Material: Alloy steel material, nickel-plated
Size / Dimension: Original standard
Condition: 100%New Original
Delivery time: 3-5working Day
Packaging and Delivery
Selling Units: Single item
Single package size: 20X13X10 cm
Single gross weight: 0.674 kg
