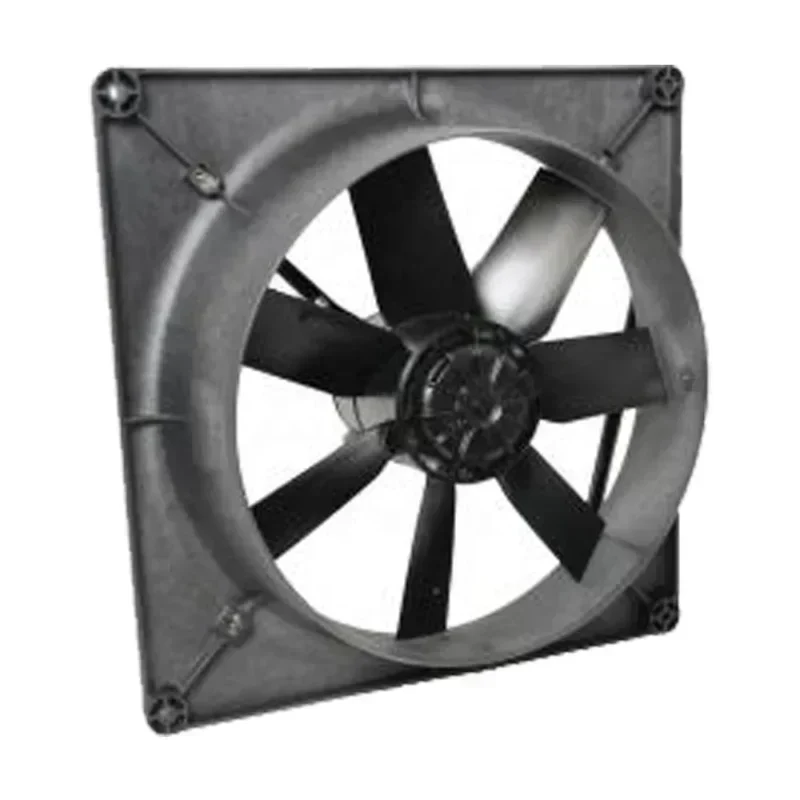

Ziehl-Abegg FC040-4EQ.4C.A7 400mm FC045-4EQ.4F.A7 450mm 230V AC 260W 380W Wall Mounted Air Conditioner Axial Fan

$354.00

SKU: 1600170542456 Brand:

Description

ZIEHL-ABEGG FC SERIES INDUSTRIAL AXIAL WALL FANS
Models: FC040-4EQ.4C.A7 and FC045-4EQ.4F.A7

PRODUCT OVERVIEW
The Ziehl-Abegg FC series represents premium German Original Engineering designed for demanding thermal management and ventilation tasks. Engineered with aerodynamically optimized aluminum blades and integrated external rotor AC motors, the FC040 and FC045 series deliver high volumetric flow rates against moderate-to-high static backpressure while maintaining low acoustic emissions. Featuring a square mounting wall plate (EQ design) with a calibrated aerodynamic bellmouth inlet, these assemblies ensure optimal laminar air intake directly across heat exchanger coils, condensing units, and wall-mounted commercial HVAC infrastructure.

MODEL STRING DECODING
FC: Axial fan product family with aerodynamically profiled blades
040 / 045: Nominal impeller diameter (400 mm / 450 mm)
4: 4-pole motor configuration (nominal 1400 RPM synchronous baseline)
E: 1-phase AC operation (single-phase capacitor motor, 230V)
Q: Square wall ring housing with integrated venturi inlet nozzle
4C / 4F: Stator length and aerodynamic blade angle configuration index
A7: Mechanical design variant, terminal box integration, and guard assembly

TECHNICAL SPECIFICATIONS: FC040-4EQ.4C.A7 (400 mm)
Nominal Impeller Diameter: Ø 400 mm
Nominal Supply Voltage: 1~ 230 V
Supply Frequency: 50 / 60 Hz
Input Electrical Power: 260 W
Rated Operating Current: 1.15 A
Rotational Speed: 1390 RPM
Maximum Air Volume: 4200 m³/h
Operating Capacitor Rating: 6.0 µF / 400 V
Motor Thermal Class: THCL 155 (Class F)
Enclosure Protection Rating: IP54
Direction of Airflow: Suction over motor (Form A)
Mounting Plate Dimension: 540 mm x 540 mm square
Operating Temperature Range: -40 °C to +70 °C
Bearings: Maintenance-free deep groove ball bearings
Weight: 7.8 kg

TECHNICAL SPECIFICATIONS: FC045-4EQ.4F.A7 (450 mm)
Nominal Impeller Diameter: Ø 450 mm
Nominal Supply Voltage: 1~ 230 V
Supply Frequency: 50 / 60 Hz
Input Electrical Power: 380 W
Rated Operating Current: 1.70 A
Rotational Speed: 1380 RPM
Maximum Air Volume: 5550 m³/h
Operating Capacitor Rating: 10.0 µF / 400 V
Motor Thermal Class: THCL 155 (Class F)
Enclosure Protection Rating: IP54
Direction of Airflow: Suction over motor (Form A)
Mounting Plate Dimension: 575 mm x 575 mm square
Operating Temperature Range: -40 °C to +65 °C
Bearings: Maintenance-free deep groove ball bearings
Weight: 9.6 kg

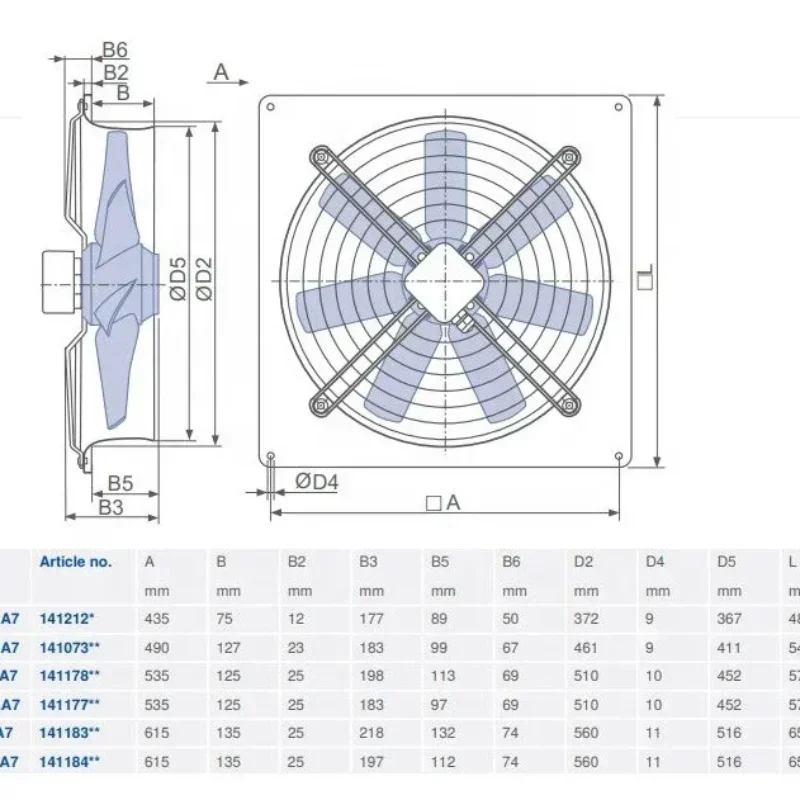

MECHANICAL & MATERIAL CONSTRUCTION
Blade Material: High-grade die-cast aluminum alloy
Wall Plate Construction: Deep-drawn galvanized sheet steel with corrosion-resistant powder coat
Protective Guard: Phosphated steel wire with black plastic coating
Motor Housing: Die-cast aluminum with integrated heat dissipation fins
Balancing Quality: G 6.3 dynamically balanced according to ISO 1940
Motor Protection: Integrated thermal contact (TB/TK) leads brought out for external overload relay connection

CRITICAL INDUSTRIAL APPLICATION SCENARIO
These axial fan configurations solve severe heat dissipation challenges in outdoor split-system condenser units and commercial cold room refrigeration condensing skids operating in elevated ambient conditions up to +70 °C. Standard ventilation fans often encounter thermal motor trip-outs and severe aerodynamic stalling under high external static pressures across multi-row finned heat exchangers. The FC040 and FC045 units mitigate this through their precision-curved blade geometry and contoured inlet plate, which prevents tip vortex stall and ensures continuous heat rejection during peak thermal loads without exceeding motor winding limits.

SYSTEM INTEGRATION & PROCUREMENT
Technical Compatibility: Direct drop-in mechanical and electrical replacement for legacy Ziehl-Abegg, EBM-Papst, and standard DIN-compliant square plate HVAC condenser fan cutouts.
Lead Time: Standard configurations maintained under regional dispatch stock; project-scale batch quantities available with expedited industrial supply chain routing.
Certifications: CE, VDE, UKCA, EAC, RoHS compliant.

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Type: Ac axial fan
Warranty: 1 Year
Power Source: Electric
Blade material: Cast Iron
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: ZIEHL-ABEGG
Model number: FC045-4EQ.4F.A7
Type: Axial Fan
Nominal voltage: 230 V
Bearing Type: Ball Bearing
Power consumption: 260 /380 W
Speed: 1365 /1370 (r/min)
Application: General industry
Current: 1.2A /1.9 A

Packaging and Delivery
Selling Units: Single item
Single package size: 55X55X40 cm
Single gross weight: 30.000 kg

Ziehl-Abegg FC040-4EQ.4C.A7 400mm FC045-4EQ.4F.A7 450mm 230V AC 260W 380W Wall Mounted Air Conditioner Axial Fan

Ziehl-Abegg FC040-4EQ.4C.A7 400mm FC045-4EQ.4F.A7 450mm 230V AC 260W 380W Wall Mounted Air Conditioner Axial Fan

Ziehl-Abegg FC040-4EQ.4C.A7 400mm FC045-4EQ.4F.A7 450mm 230V AC 260W 380W Wall Mounted Air Conditioner Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
