Description

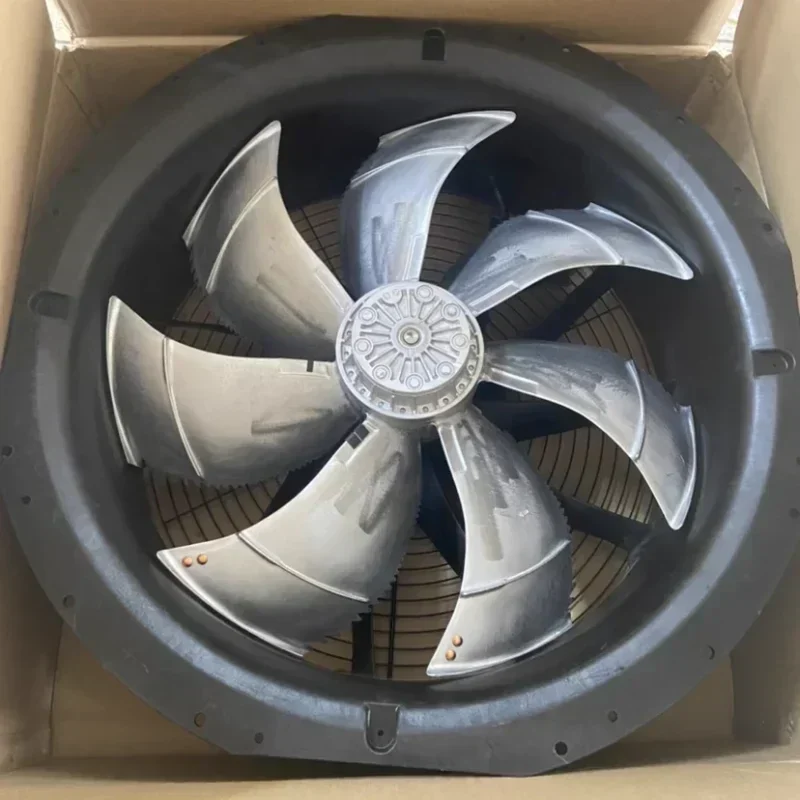

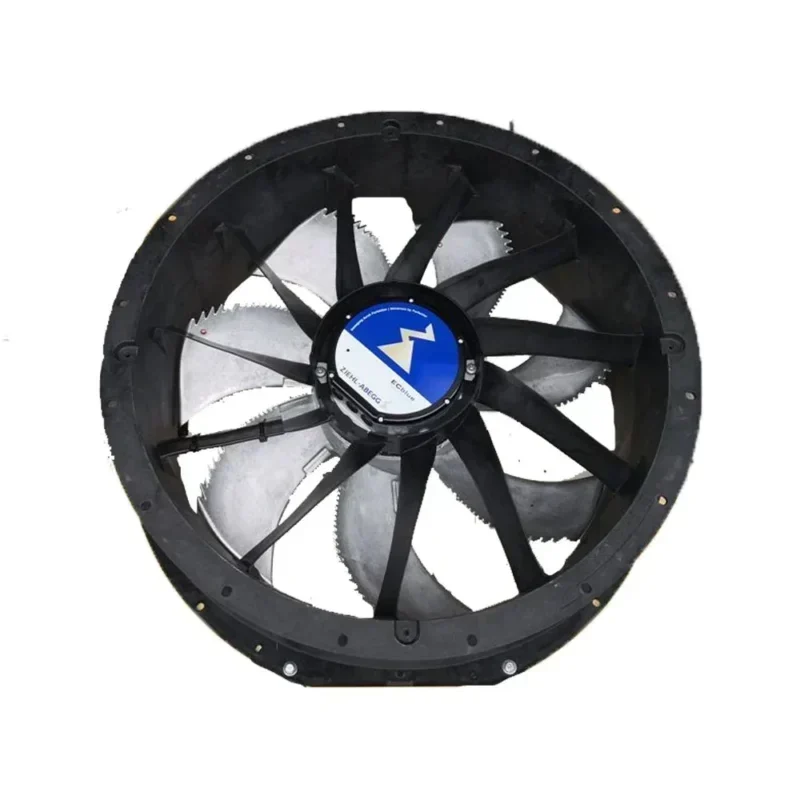

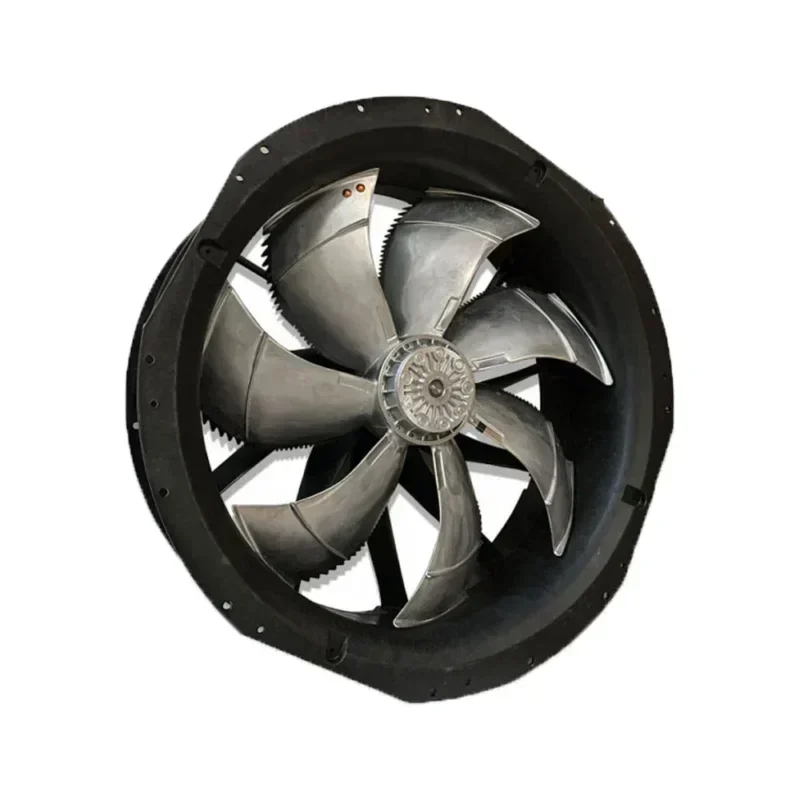

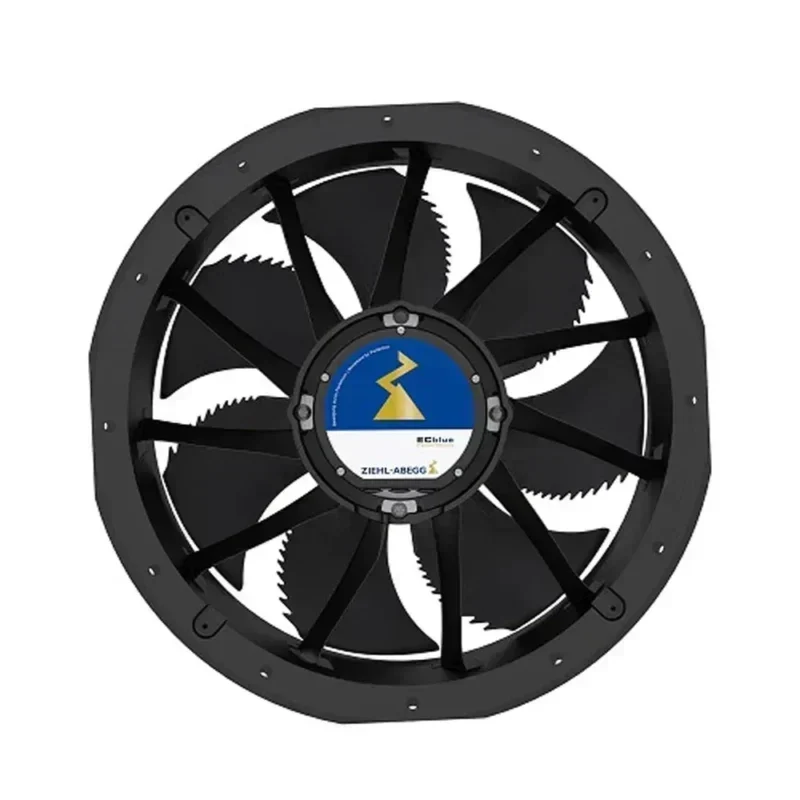

The Ziehl-Abegg ZN071-SDL.6F.V7P1 is a high-performance, 710 mm external-rotor axial cooling fan engineered specifically for demanding commercial refrigeration, air conditioning, and industrial process cooling systems. Built with Ziehl-Abegg Original Engineering standards, this fan combines a bionic sickle-blade aerodynamic profile with an integrated 6-pole, three-phase external rotor motor. The direct-drive integration eliminates mechanical transmission losses, reduces overall unit depth, and minimizes vibrational wear, ensuring optimal acoustic efficiency and extended operational life in continuous-duty installations.
TECHNICAL SPECIFICATIONS
Manufacturer: Ziehl-Abegg
Model Number: ZN071-SDL.6F.V7P1
Nominal Impeller Diameter: Ø 710 mm
Motor Type: 3-Phase AC External Rotor Motor
Nominal Voltage: 3~ 400V (Delta connection)
Supply Voltage Tolerance: ±10%
Operating Frequency: 50 Hz
Nominal Power Input: 980 W
Rated Operating Current: 2.80 A
Nominal Rotational Speed: 900 RPM
Number of Poles: 6-Pole
Airflow Direction: Direction V (Suction over mounting struts)
Blade Design: Bionic sickle-profile blades with serrated trailing edges
Number of Blades: 7
Impeller Material: Die-cast aluminum alloy with anti-corrosive coating
Guard Grille Material: Steel wire, powder-coated in RAL 9005
Dynamic Balancing: ISO 1940 Grade G 6.3
Thermal Class: Class 155 (THCL 155 / Class F)
Ingress Protection: IP54
Motor Protection: Integrated thermal contacts (TK leads for external trip relay)
Bearing Construction: Sealed, heavy-duty deep groove ball bearings
Permissible Ambient Temperature: -40 °C to +70 °C
Electrical Termination: Integrated terminal box / lead-out wiring
Weight: 24.8 kg
Compliance & Certifications: CE, ErP 2015, ISO 5801, RoHS
SYSTEM INTEGRATION AND TECHNICAL COMPATIBILITY
Designed for straightforward mechanical and electrical retrofit capability, the ZN071-SDL.6F.V7P1 delivers extensive Technical Compatibility with major OEM condensing units, chillers, and evaporators. The standardized mounting basket and perimeter bolt circle allow direct bolt-in replacement without sheet-metal alterations. The 400V three-phase winding supports both fixed-speed mains operation and variable speed regulation via voltage-reduction controllers or frequency converters equipped with all-pole sinusoidal filters. Integrated thermal contacts provide direct hardware-level trip signals to protect against phase imbalance, motor stall, and high-ambient overheating.
CRITICAL APPLICATION SCENARIOS
This axial fan assembly is optimized for environments where low acoustic signatures and high air volumes against medium static backpressures are essential. Key applications include:
– Air-cooled liquid chillers and commercial refrigeration condensing units
– Supermarket central rack condensers and evaporative fluid coolers
– Data center precision air conditioning and dry cooling modules
– Industrial heat pump outdoor heat exchangers
– Process cooling loops operating in aggressive ambient conditions
PROCUREMENT, SPARE PARTS, AND LEAD TIME
To support mission-critical maintenance and prevent system downtime in industrial refrigeration circuits, this unit is supplied as a factory-certified replacement assembly. For detailed engineering submittals, electrical schematics, bulk volume inquiries, and confirmed delivery Lead Time, consult our technical application engineering team.
Key Attributes
Voltage: 400V
Mounting type: Free Standing
Type: Ac axial fan
Warranty: 1 Year
Power Source: Electric
Blade material: Stainless Steel
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ziehl-Abegg
Model number: ZN071-SDL.6F.V7P1
Voltage: 400V
Current type: AC
Frequency: 50HZ
King of one: Axial Fan
IP rating: IP54
Kind: Axial Flow Fan
Packaging and Delivery
Selling Units: Single item
Single package size: 110X110X40 cm
Single gross weight: 55.000 kg
