$2.14

SKU: 836152842251 Brand:

Description

The NMB 05015SS-24R-WL is a high-performance 50 mm x 15 mm industrial brushless DC cooling fan built with Original Engineering standards by MinebeaMitsumi. Engineered specifically for continuous thermal dissipation in enclosed power electronics, this unit provides high aerodynamic static pressure to clear thermal hotspots across inverter modules, power converters, and automation controllers.

Model Decoding:
Series Prefix (05015): 50 mm Width x 50 mm Height x 15 mm Depth
Frame Construction (SS): Standard Flange Structural Profile
Rated Voltage (24): 24 V DC Operating Base
Speed Tier (R): High-Output Flow Rating
Termination (WL): Wire Lead Configuration

Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Number: 05015SS-24R-WL
Frame Dimensions: 50 mm x 50 mm x 15 mm
Rated Operating Voltage: 24 V DC
Operating Voltage Range: 18.0 V DC to 26.4 V DC
Rated Operating Current: 0.12 A
Power Input: 2.88 W
Nominal Speed: 6200 RPM
Maximum Airflow: 13.8 CFM (0.39 m³/min)
Maximum Static Pressure: 62.0 Pa (0.249 in H2O)
Acoustic Noise Rating: 36.0 dBA
Bearing System: Dual Precision Miniature Ball Bearings
Frame Material: Reinforced PBT Thermoplastic (UL94V-0)
Impeller Material: Reinforced PBT Thermoplastic (UL94V-0)
Motor Topology: Brushless DC Motor with Auto-Restart Protection
Polarity Protection: Integrated Reverse Polarity Protection
Insulation Resistance: 10 MΩ minimum at 500 V DC
Dielectric Strength: 700 V AC for 1 minute
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -40 °C to +75 °C
Life Expectancy (L10): 70,000 hours at 40 °C
Lead Wire Interface: UL1061 AWG26 Leads (Red: Positive, Black: Negative)
Weight: 28 g
Compliance: RoHS Compliant, CE, UL Recognized, CSA Certified

Technical Compatibility and Application Scope:
Designed to maintain operational thresholds in dense electrical enclosures, the 05015SS-24R-WL excels when mounted directly adjacent to IGBT bridge modules, switching power supplies (SMPS), servo drive amplifiers, and variable frequency drives (VFDs). The compact 15 mm profile allows direct slot-in replacement within restricted chassis spaces where component density impedes natural convection. Technical Compatibility with native 24 V DC control loops eliminates the need for auxiliary voltage regulators.

Supply Chain and Commercial Data:
Component Condition: Brand New, Unused Surplus
Inventory Batch Size: 6000 Units
Lead Time: Immediate Dispatch Available for Full Lot or Staged Call-Offs

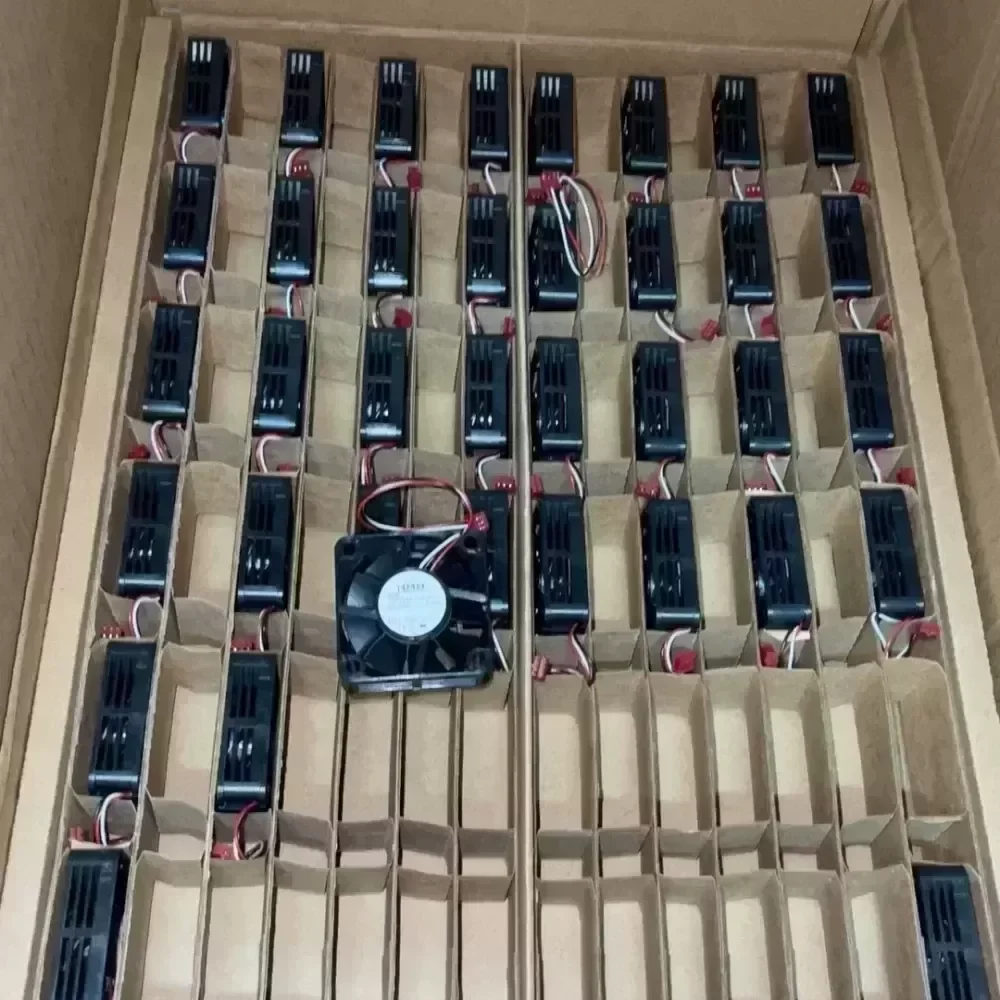

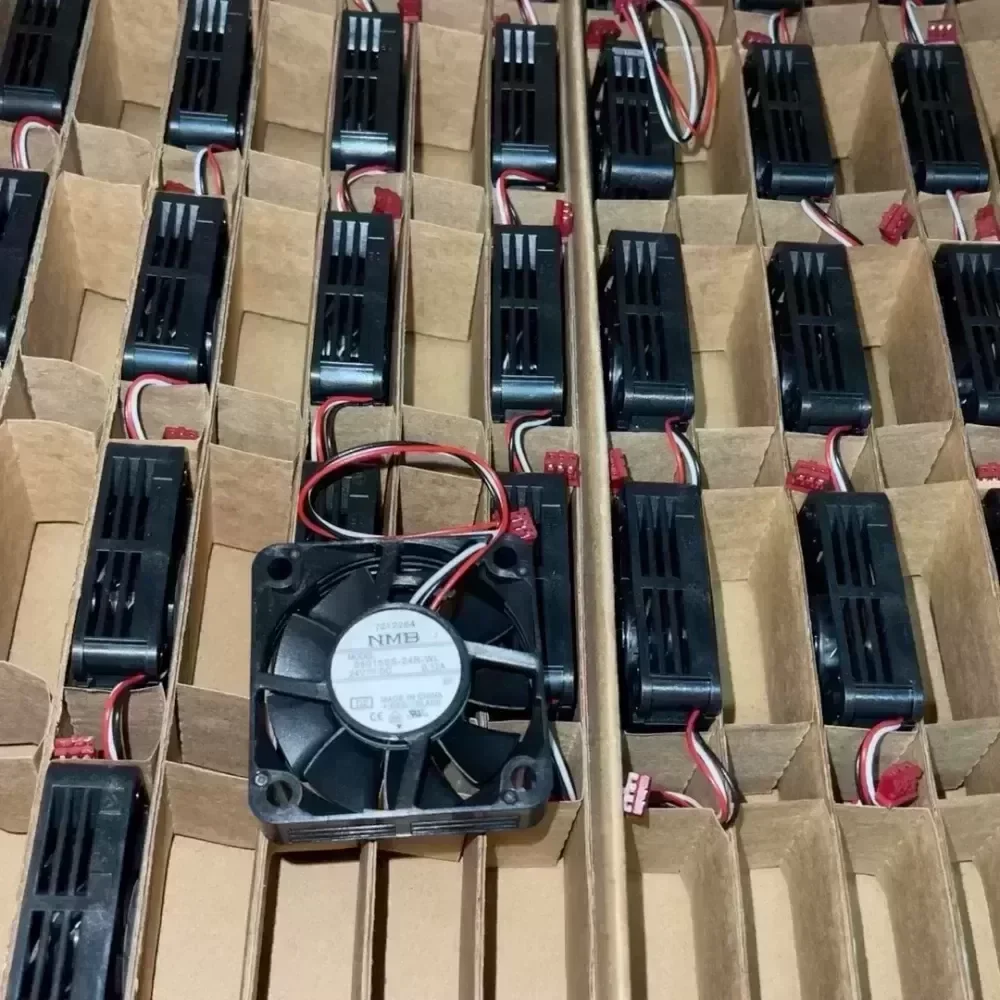

Packaging: Industrial Master Packaging / Anti-Static Trays

05015SS-24R-WL NMB fan

05015SS-24R-WL NMB fan

05015SS-24R-WL NMB fan

05015SS-24R-WL NMB fan

05015SS-24R-WL NMB fan

05015SS-24R-WL NMB fan

05015SS-24R-WL NMB fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
