$8.57

SKU: 934095373225 Brand:

Description

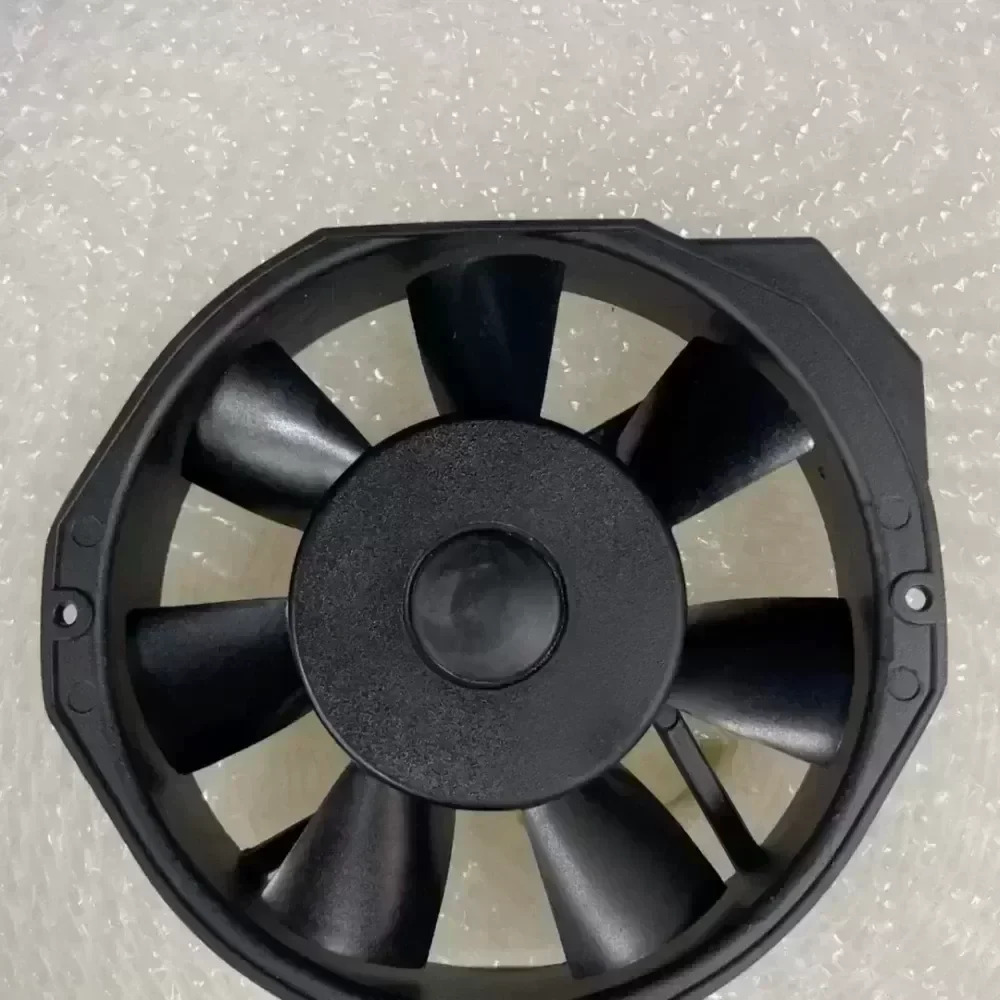

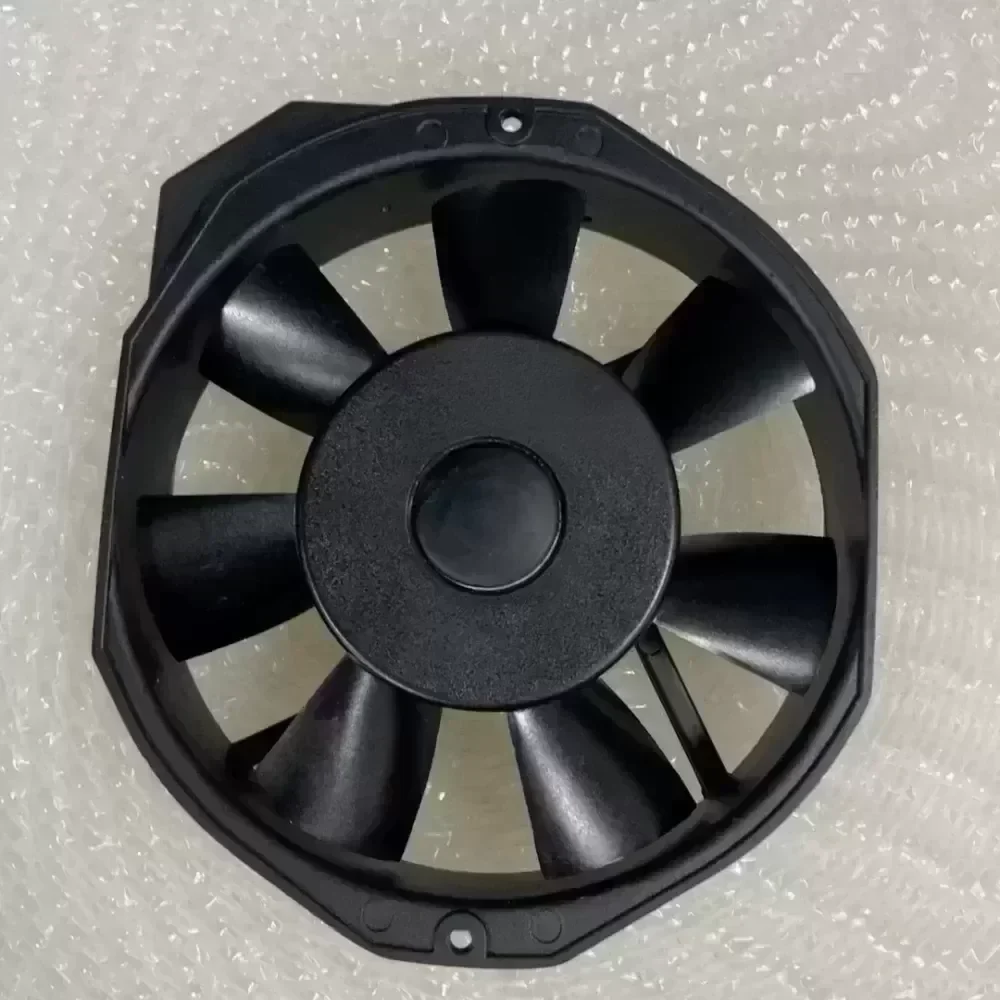

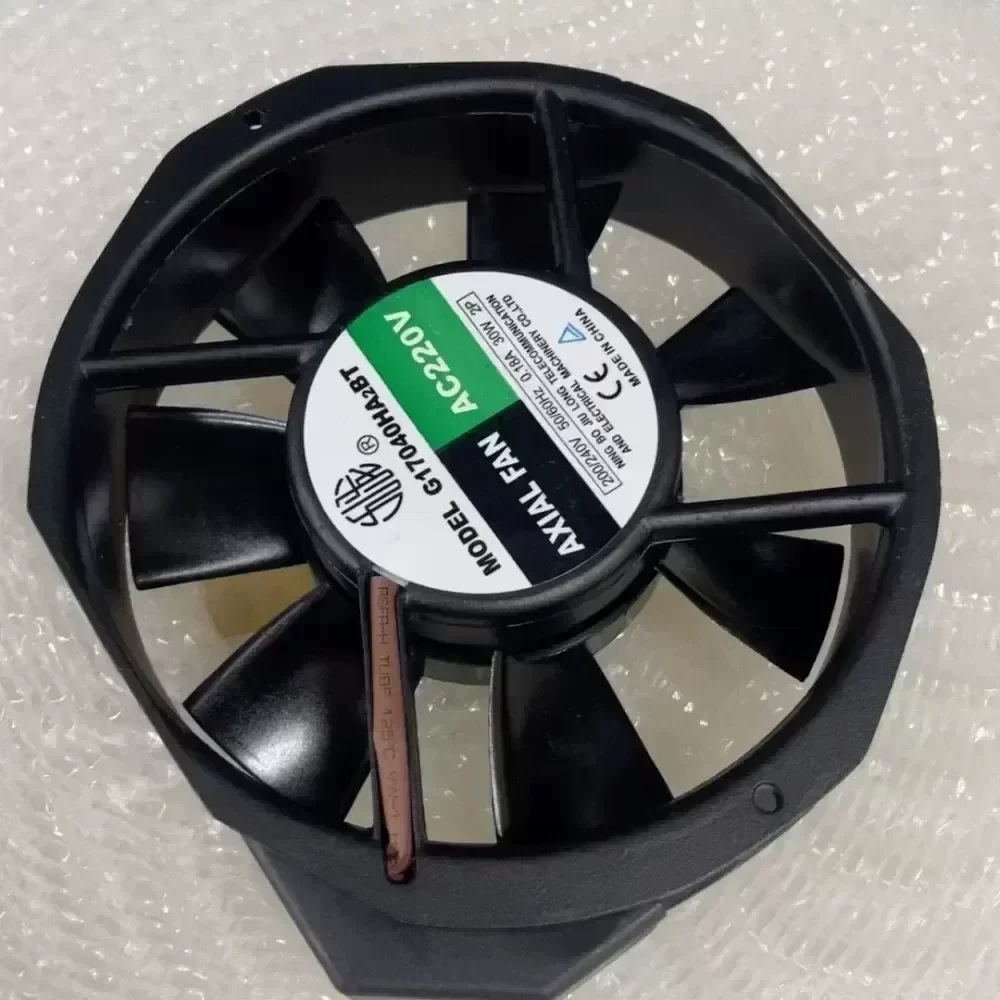

The Jiulong G17040HA2BT is a heavy-duty AC axial cooling fan engineered for forced-air thermal management across industrial automation enclosures, telecom racks, server cabinets, and power distribution infrastructure. Built with an all-metal housing and impeller assembly, this unit delivers high-volume airflow under continuous duty cycles, ensuring operational stability in demanding thermal environments.

Technical Specifications:
Manufacturer: Jiulong
Model Number: G17040HA2BT
Fan Type: AC Axial Enclosure Fan
Motor Architecture: 2-Pole Shaded Pole / Capacitor-Assisted Induction Motor
Bearing Configuration: High-Precision Dual Ball Bearings
Frame Dimensions: 172 mm x 150 mm x 40 mm (Outer Profile Ø 150 mm cutout)
Frame Material: Die-Cast Aluminum Alloy (Corrosion-Resistant Black Coating)
Impeller Material: All-Metal Pressed Steel (Anti-Vibration Balanced)
Rated Voltage: 220V AC
Operational Voltage Range: 180V to 240V AC
Rated Frequency: 50 / 60 Hz
Rated Input Current: 0.18 A
Rated Power Consumption: 30 W
Rotational Speed: 2600 RPM (50 Hz) / 2900 RPM (60 Hz) ± 10%
Airflow Volume: 195 CFM / 331 m³/h (50 Hz), 225 CFM / 382 m³/h (60 Hz)
Static Pressure: 13.5 mmH2O / 132 Pa
Noise Rating: 52 dBA (50 Hz) / 56 dBA (60 Hz)

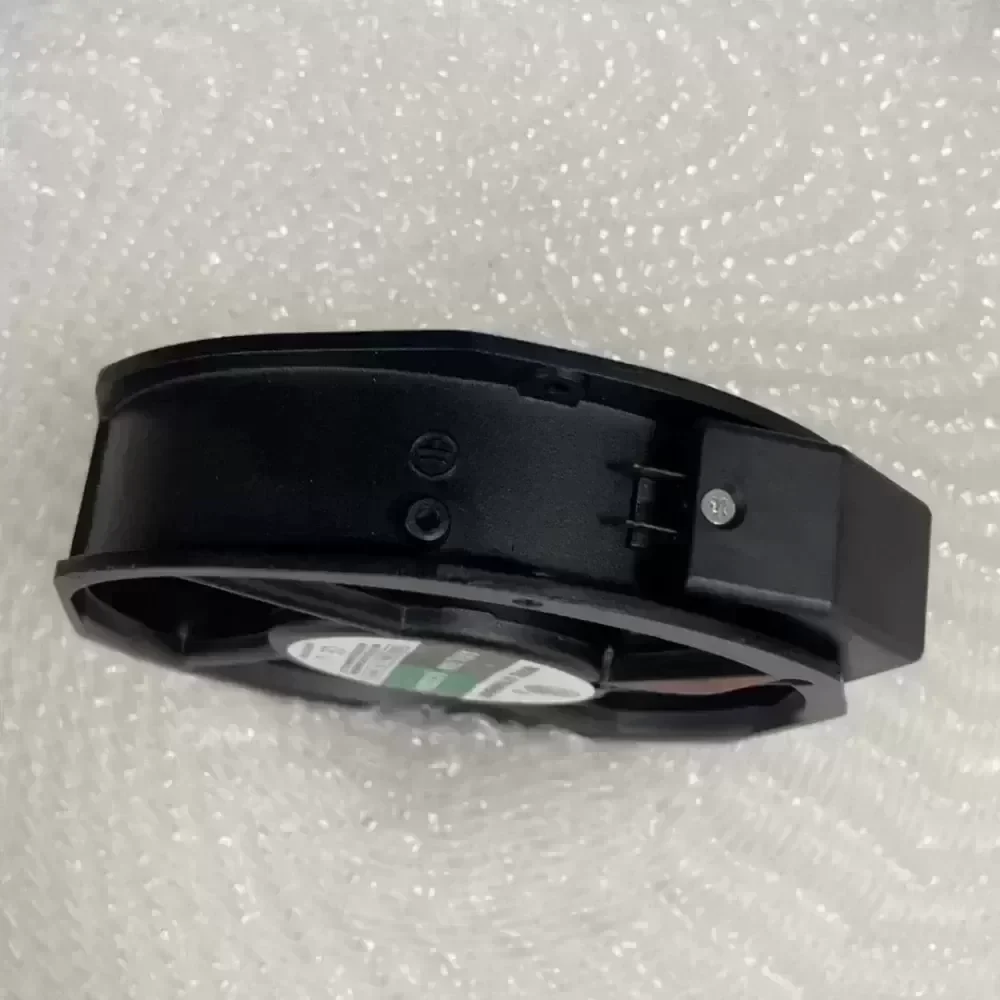

Connection Interface: 2-Pin Terminal Lug Terminations
Insulation Class: Class B (Rated to 130°C)
Dielectric Strength: 1500V AC at 0.5 mA 50/60 Hz for 1 Minute
Insulation Resistance: Minimum 100 MΩ at 500V DC
Operating Temperature Range: -20°C to +70°C
Storage Temperature Range: -40°C to +85°C
Operational Lifespan: 50000 Hours L10 at 40°C
Weight: 840 g
Certifications: CE, RoHS Compliant

Technical Compatibility and Application Scope:
The G17040HA2BT delivers Original Engineering standards for direct replacement and OEM integration within 19-inch EIA-310 compliant equipment racks, CNC control panels, inverter enclosures, VFD drive cabinets, and UPS systems. Its all-metal blade and chassis design eliminates blade degradation under high heat, providing critical localized exhaust over heat sinks and power components.

Supply and Integration:
Lead Time: Stock units available for immediate dispatch; scaled quantities available for scheduled OEM line delivery.

Jiulong axial fan G17040HA2BT 220V 30W

Jiulong axial fan G17040HA2BT 220V 30W

Jiulong axial fan G17040HA2BT 220V 30W

Jiulong axial fan G17040HA2BT 220V 30W

Jiulong axial fan G17040HA2BT 220V 30W

Jiulong axial fan G17040HA2BT 220V 30W

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
