$6.43

SKU: 901054017413 Brand:

Description

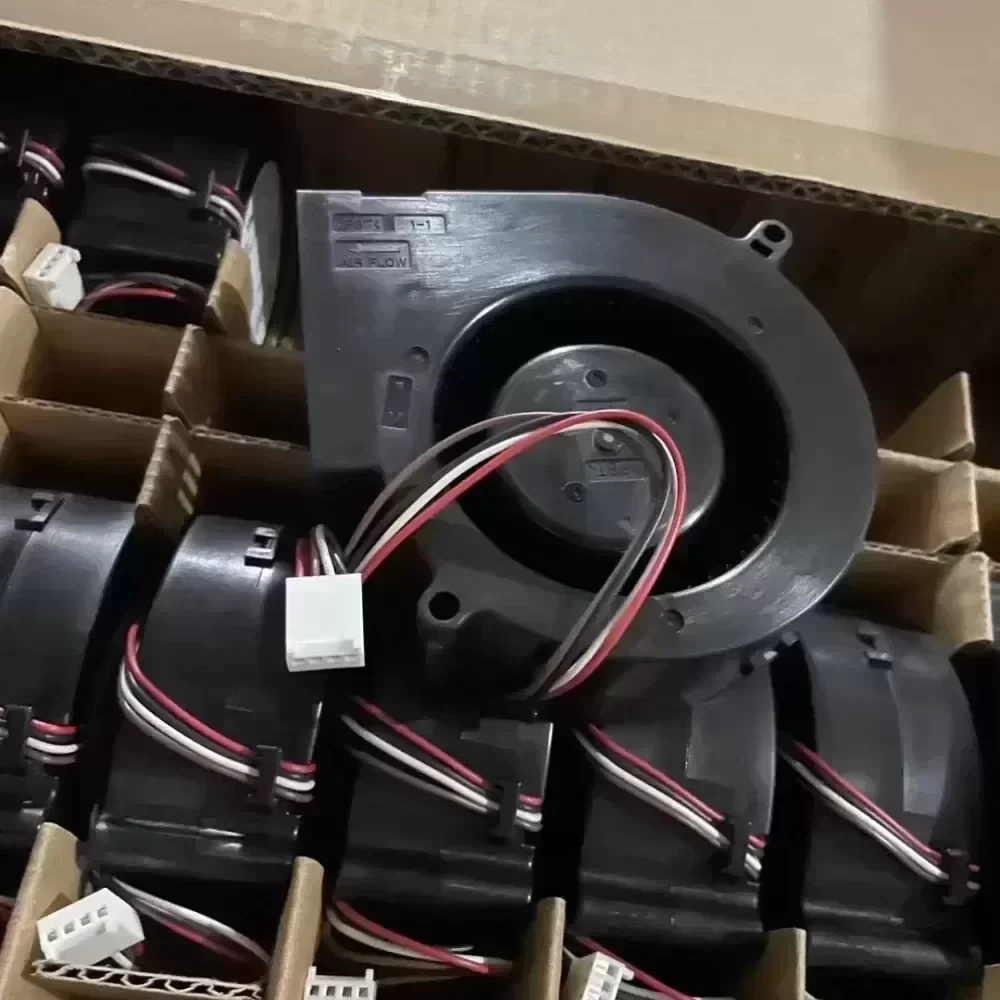

The NMB 09533GS-24K-BUD is an industrial-grade 24V DC centrifugal blower developed for high-performance localized thermal mitigation. Driven by MinebeaMitsumi original engineering, this component features a high-torque brushless DC motor coupled with precision-machined dual ball bearings. Designed to deliver focused, directional airflow across high-impedance thermal loads, this blower prevents thermal throttling and component degradation in sealed or space-constrained electronic assemblies.

Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Designation: 09533GS-24K-BUD
Component Class: DC Centrifugal Blower
Nominal Voltage: 24 V DC
Operating Voltage Range: 12.0 V to 27.6 V DC
Rated Running Current: 0.19 A
Input Power Consumption: 4.56 W
Nominal Speed: 2800 RPM (±10%)
Maximum Airflow: 22.6 CFM (0.64 m³/min)
Maximum Static Pressure: 180 Pa (0.72 in H2O)
Bearing Assembly: Dual Precision Stainless Steel Ball Bearings
Acoustic Noise Level: 46.5 dBA
Frame Material: Glass-Filled PBT Thermoplastic (UL94V-0 Rated)
Impeller Material: Glass-Filled PBT Thermoplastic (UL94V-0 Rated)
Motor Protection: Polarity Reverse Protection and Auto Restart
Dielectric Withstand Voltage: 500 V AC for 1 Minute
Insulation Resistance: 10 MΩ or higher at 500 V DC
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -40 °C to +75 °C
Expected Service Life (L10): 70000 Hours at 40 °C
Physical Dimensions: 97 mm x 94 mm x 33 mm
Mounting Orientation: Multi-Axis All-Angle Operation
Weight: 160 g
Country of Manufacture: Cambodia

Target Application and Thermal Management Role:
Standard axial cooling fans exhibit severe performance loss when encountering high system backpressure. The 09533GS-24K-BUD provides a focused static pressure curve tailored for dense liquid cooling radiators, compact industrial IPC chassis, high-power server racks, optical transceivers, and medical analytical devices. Its radial discharge architecture allows engineers to channel forced air directly through restrictive micro-channel heatsinks and convoluted ductwork, maintaining continuous system uptime under elevated ambient conditions.

Procurement and Supply Chain Assurance:
Technical Compatibility: Standard 9733 footprint drop-in replacement for industrial 24V cooling loops
Condition: 100% Brand New Authentic Component
Lead Time: Immediate dispatch from verified warehouse reserves
Commercial Compliance: Standard enterprise tax invoicing provided for audit-compliant corporate procurement

09533GS-24K-BUD NMB blower

09533GS-24K-BUD NMB blower

09533GS-24K-BUD NMB blower

09533GS-24K-BUD NMB blower

09533GS-24K-BUD NMB blower

09533GS-24K-BUD NMB blower

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
