$8.57

SKU: 901459304301 Brand:

Description

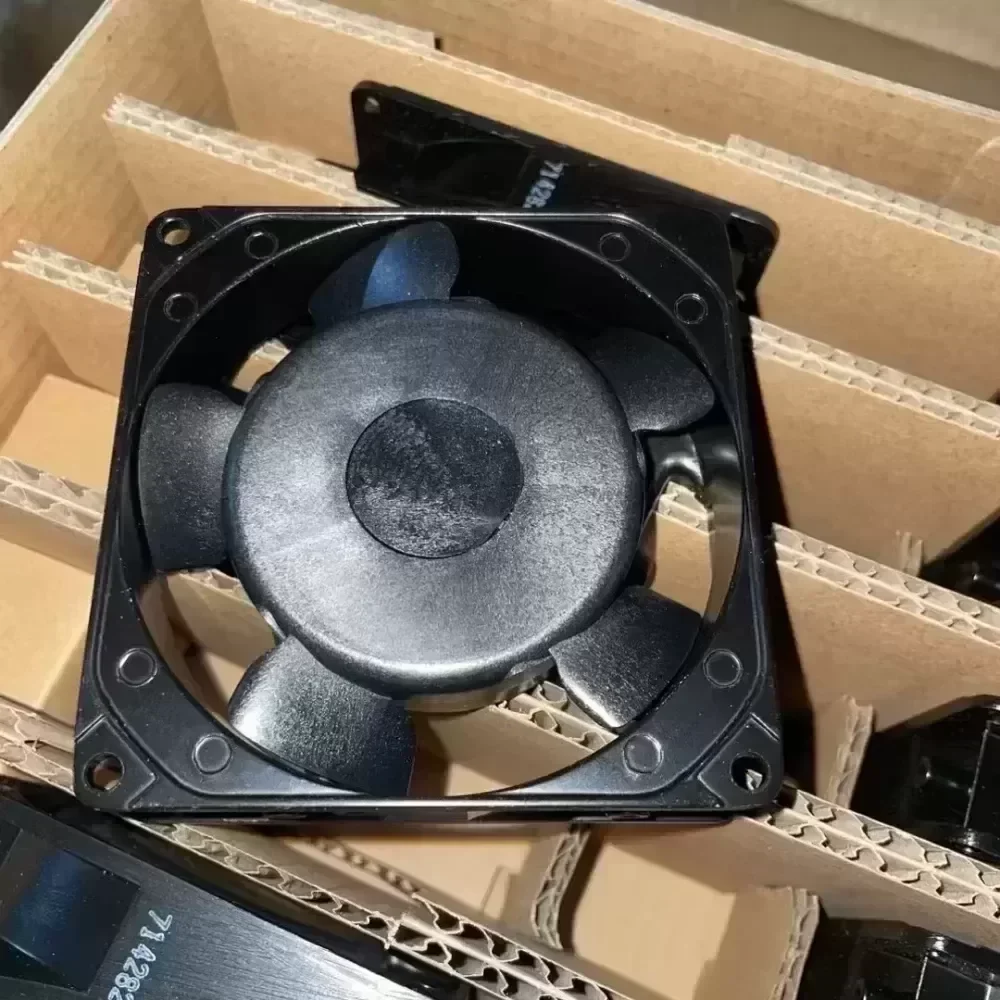

The NMB 09225PB-A1L-EA is a commercial-grade 92mm x 92mm x 25mm AC axial fan engineered by MinebeaMitsumi for high-reliability thermal management across industrial control cabinets, power conversion systems, and medical instrumentation. Built with an aluminum die-cast frame and dual precision ball bearings, this unit delivers consistent forced-air cooling in continuous-duty duty cycles with superior MTBF.

Model Number Decoding
092: 92 mm Frame Size (Nominal Width/Height)
25: 25 mm Frame Thickness
P: Standard AC Axial Fan Series Architecture
B: Dual Precision Ball Bearing System
A1: 115V AC Operating Voltage Class
L: Low/Medium Speed Aerodynamic Profile
EA: Impedance Protected Motor with Standard Lead Wire Interface

Technical Specifications
Brand: NMB Technologies (MinebeaMitsumi)

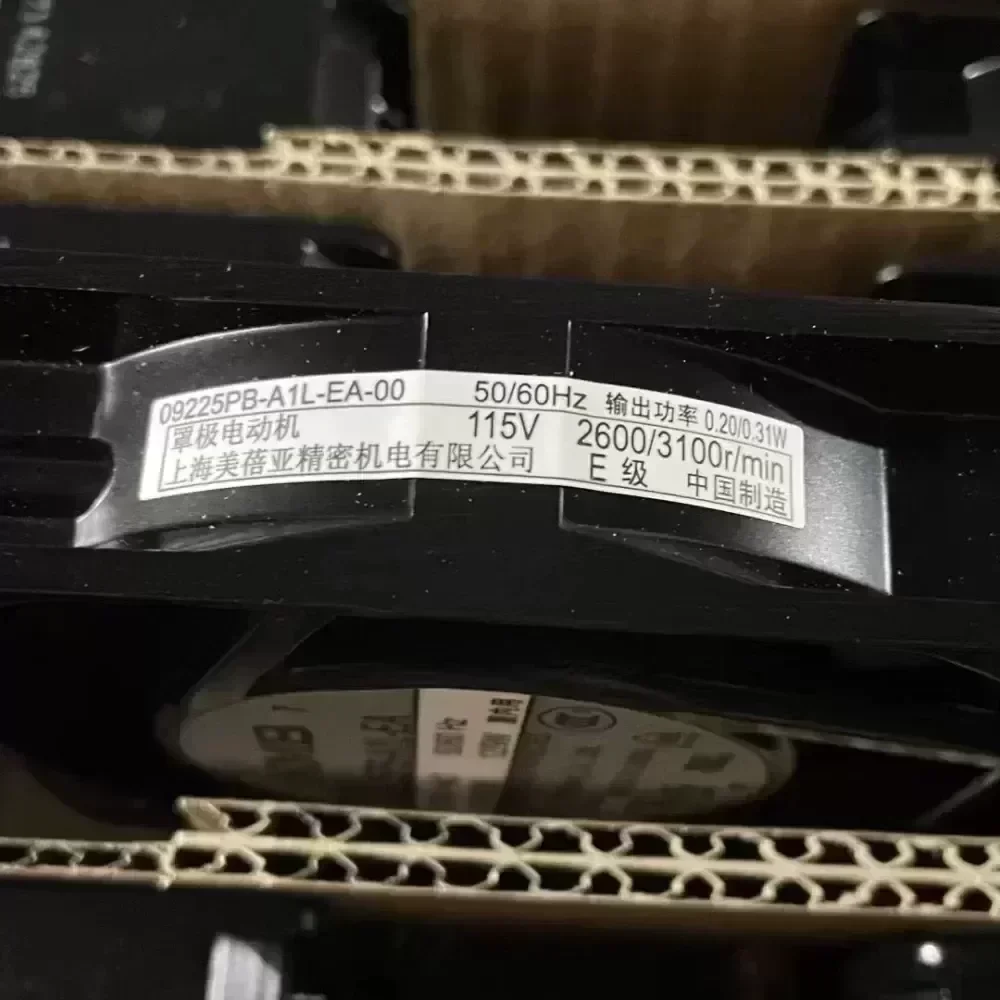

Model Number: 09225PB-A1L-EA
Product Type: AC Axial Compact Cooling Fan
Nominal Voltage: 115V AC
Operating Voltage Range: 100V AC to 125V AC
Supply Frequency: 50/60 Hz
Rated Input Power: 12.0 W (50 Hz) / 9.0 W (60 Hz)
Rated Current: 0.13 A (50 Hz) / 0.10 A (60 Hz)
Nominal Speed: 2100 RPM (50 Hz) / 2600 RPM (60 Hz)
Maximum Airflow: 0.85 m³/min (30.0 CFM) at 50 Hz / 1.05 m³/min (37.0 CFM) at 60 Hz
Maximum Static Pressure: 24.5 Pa (0.10 in H2O) / 34.3 Pa (0.14 in H2O)
Acoustic Noise Level: 30 dBA (50 Hz) / 34 dBA (60 Hz)
Bearing Type: Dual Shielded Precision Ball Bearings
Motor Architecture: Shaded Pole Induction Motor
Motor Protection: Impedance Protected (Auto-Shutoff / Burnout Prevention)
Insulation Resistance: 100 MΩ minimum at 500V DC
Dielectric Strength: 1500V AC for 1 minute
Insulation Class: Class A (UL Recognized / CSA Certified)
Frame Material: Precision Aluminum Die-Cast (Black Coating)
Impeller Material: Reinforced Thermoplastic PBT (UL94V-0 Rated)
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -40 °C to +70 °C
Expected Service Life: 50000 Hours (L10 Life at 25 °C)
Mounting Hole Diameter: Ø 4.3 mm (±0.2 mm)
Dimensions: 92 mm x 92 mm x 25 mm
Weight: 280 g
Electrical Interface: UL 1007 AWG 22 Stripped Lead Wires

Industrial Applications and Engineering Compatibility
The 09225PB-A1L-EA addresses critical thermal throttling issues in enclosed industrial automation enclosures, variable frequency drives (VFDs), server rack sub-racks, and linear power supplies where reliable heat dissipation prevents component degradation. Its impedance-protected motor guarantees fail-safe operation against rotor locking, while the rigid aluminum housing resists structural distortion under elevated ambient temperatures.

Procurement and Lifecycle Support
Original Engineering: Authentic NMB MinebeaMitsumi component ensuring full adherence to OEM factory tolerances and safety certifications.
Technical Compatibility: Direct drop-in replacement for standard 9225 AC industrial fan mountings.
Lead Time: In-stock inventory dispatched within 24 to 48 hours for immediate MRO maintenance and volume batch integration.

09225PB-A1L-EA NMB 115V fan

09225PB-A1L-EA NMB 115V fan

09225PB-A1L-EA NMB 115V fan

09225PB-A1L-EA NMB 115V fan

09225PB-A1L-EA NMB 115V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
