$2.86

SKU: 900319803062 Brand:

Description

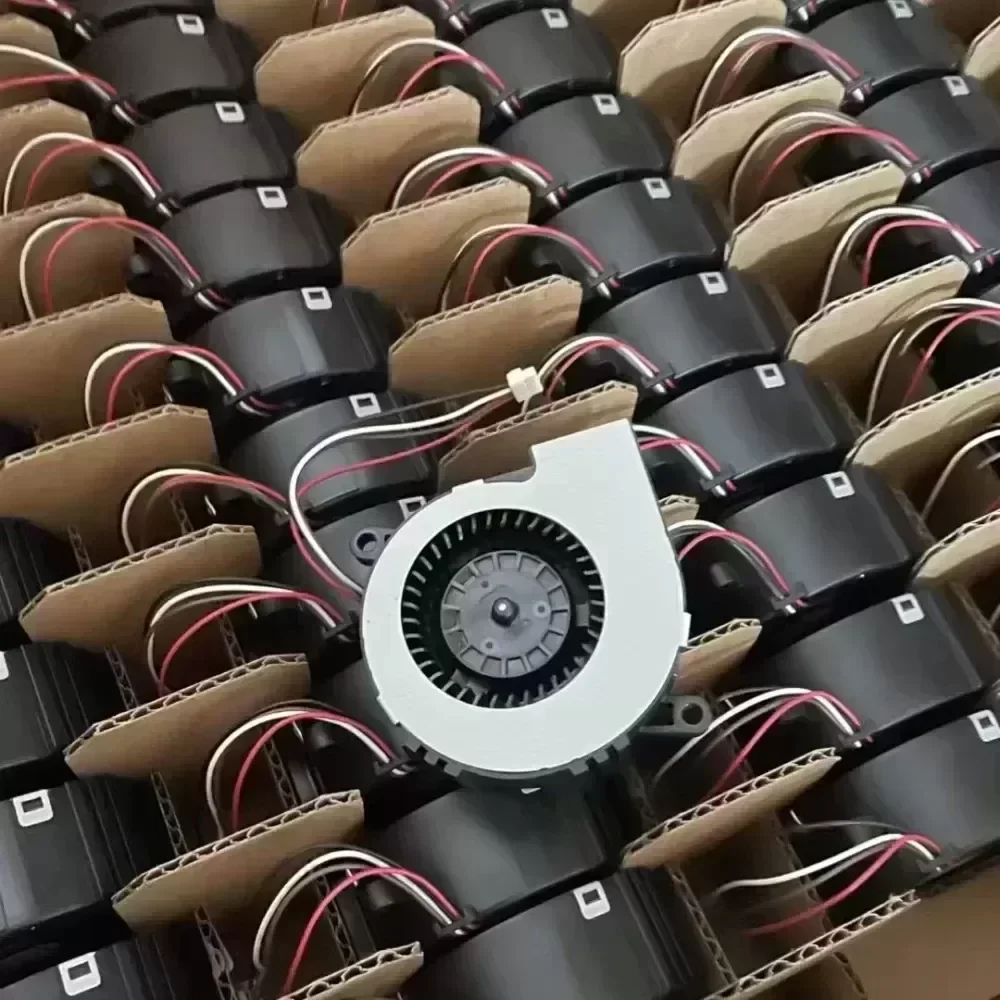

NMB 06023GS-24Q-BU High-Pressure DC Centrifugal Blower, Engineered by MinebeaMitsumi (NMB Technologies), the 06023GS-24Q-BU is an industrial-grade centrifugal blower designed to overcome system impedance in tightly constrained electronic enclosures. Manufactured under strict Original Engineering tolerances, this unit combines high static pressure delivery with a compact form factor to maintain continuous thermal stability in critical industrial assemblies.

Model Code Decoding:
Series Frame: 060 (60 mm nominal height/width)
Casing Depth: 23 (23 mm thickness)
Component Architecture: GS (High-performance DC Blower Series)
Voltage Rating: 24 (24 V DC input)
Configuration Specification: Q (Standard wiring and housing logic)
Speed Tier: BU (Maximum performance RPM class)

Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)
Part Number: 06023GS-24Q-BU
Product Category: Centrifugal DC Blower
Frame Dimensions: 60 mm x 60 mm x 23 mm
Nominal Voltage: 24 V DC
Operating Voltage Range: 18.0 V to 26.4 V DC
Rated Current: 0.30 A
Rated Input Power: 7.20 W
Nominal Speed: 5200 RPM
Maximum Airflow: 0.34 m³/min (12.0 CFM)
Maximum Static Pressure: 290 Pa (1.16 in H2O)
Bearing System: Dual Precision Ball Bearings
Frame Material: Reinforced PBT Plastic (UL 94V-0)
Impeller Material: Glass-Filled PBT Plastic (UL 94V-0)
Electrical Connection: UL1061 AWG26 Lead Wires
Dielectric Strength: 500 V AC for 1 minute
Insulation Resistance: 10 MΩ minimum at 500 V DC
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -40 °C to +75 °C
Expected Service Life (L10): 70,000 Hours at 40 °C
Weight: 65 g
Regulatory Compliance: RoHS, CE, UL/cUL Recognized

Industrial Application Profile:
The 06023GS-24Q-BU solves airflow stagnation issues in thermal zones with extreme backpressure. While conventional axial fans suffer severe aerodynamic stall when facing dense circuit boards, this centrifugal unit forces focused, laminar airflow through narrow heat-sink fins, 1U/2U server power supplies, telecom base-station transceivers, and medical analytical instrumentation. The high static pressure characteristic guarantees reliable heat transfer across enclosed ducting systems.

Procurement and Integration:
Ensuring direct Technical Compatibility with existing OEM drop-in footprints, these factory-new units offer a dependable solution for maintenance overhauls and series production. Immediate dispatch capability provides accelerated Lead Time fulfillment for tier-1 manufacturing and legacy system servicing.

06023GS-24Q-BU NMB blower

06023GS-24Q-BU NMB blower

06023GS-24Q-BU NMB blower

06023GS-24Q-BU NMB blower

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
