Description

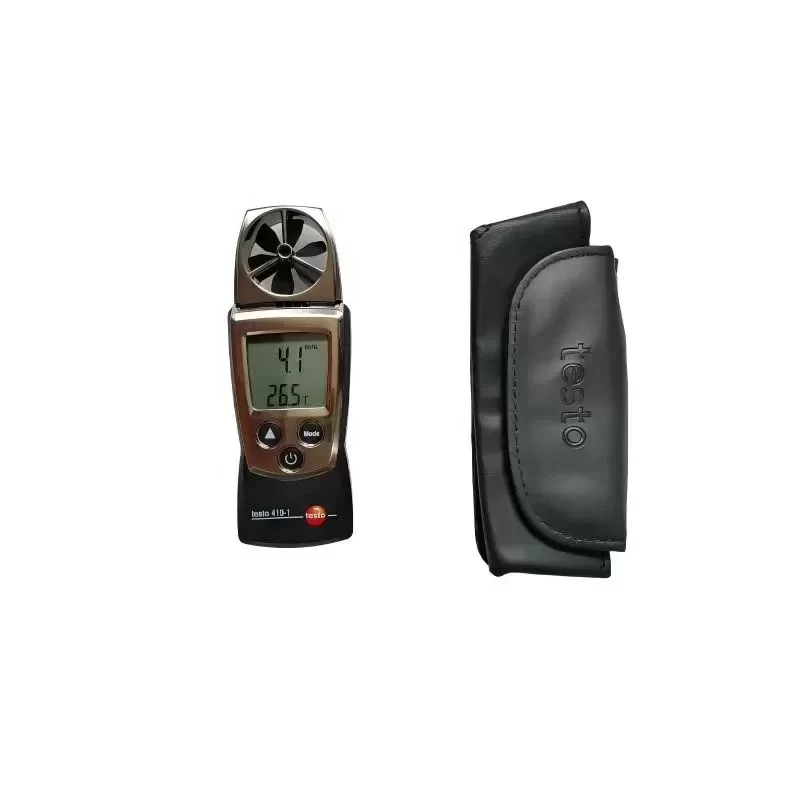

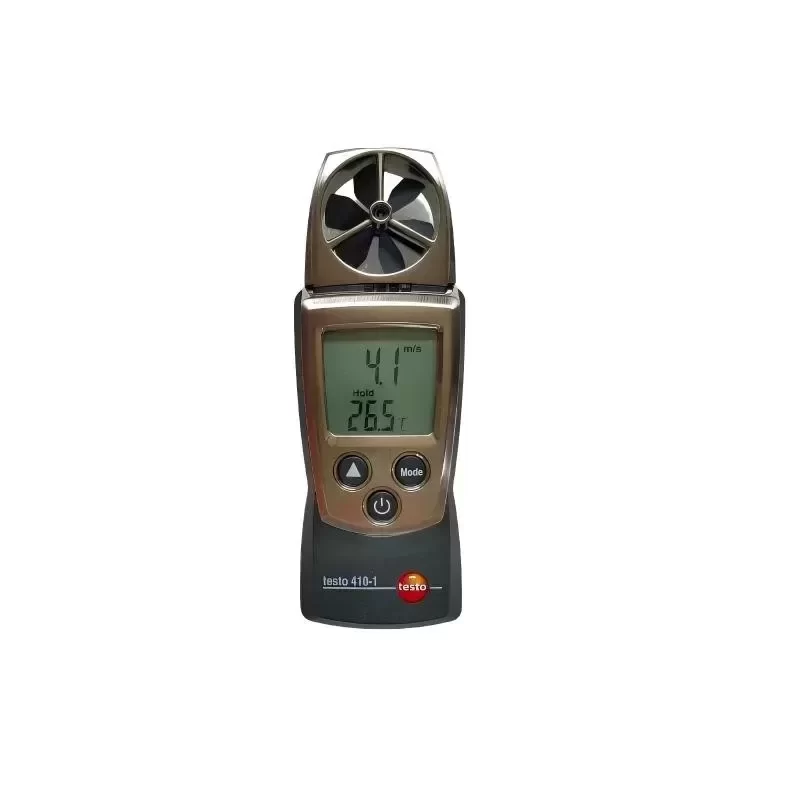

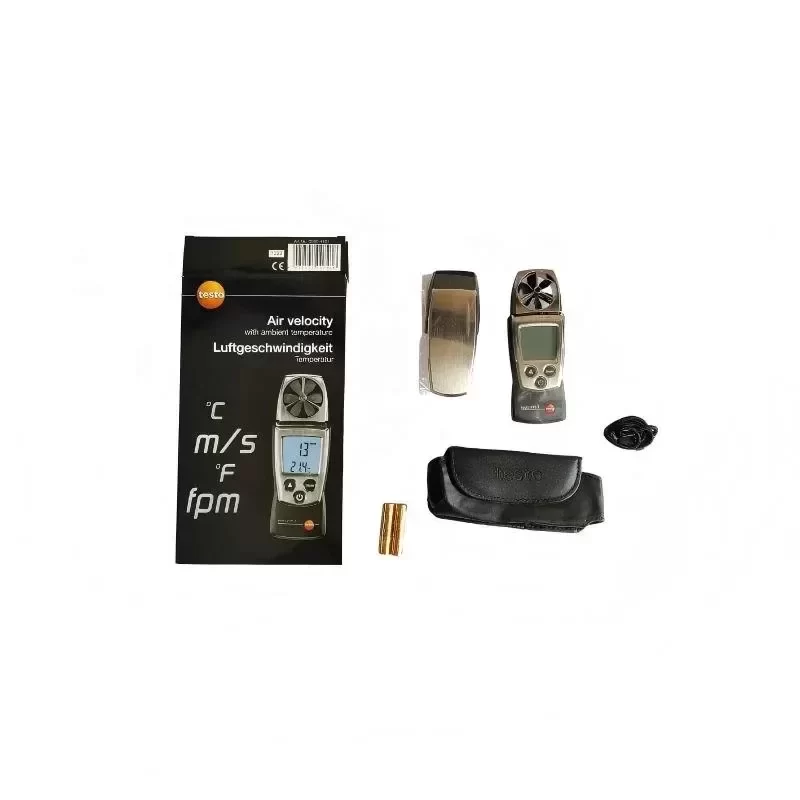

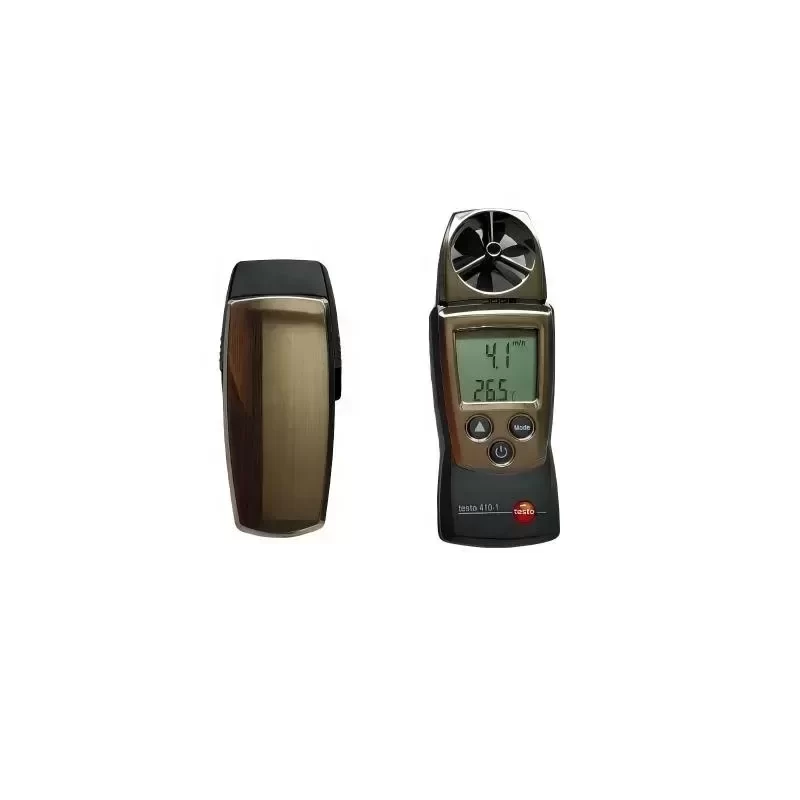

The Testo 410-1 (Part Number 0560 4101) is a precision-engineered pocket-sized vane anemometer designed for the rapid measurement of air flow velocity and temperature at air outlets. This instrument integrates a permanent 40mm vane sensor with Testo’s proprietary NTC temperature sensor technology to provide simultaneous readings of air speed and ambient thermal conditions.
Technical Specifications:
Flow Velocity Measuring Range: 0.4 to 20 m/s
Flow Velocity Accuracy: ±(0.2 m/s + 2% of mv)
Flow Velocity Resolution: 0.1 m/s
Temperature Measuring Range: -10 to +50 °C
Temperature Accuracy: ±0.5 °C
Temperature Resolution: 0.1 °C
Units of Measurement: m/s, km/h, fpm, mph, kts, Beaufort, °C, °F, wind chill
Sensor Diameter: 40 mm
Operating Temperature: -10 to +50 °C
Storage Temperature: -20 to +70 °C
Battery Type: 2 x AAA batteries
Battery Life: 100 hours (average, without display light)
Protection Class: IP10
Dimensions: 133 x 46 x 25 mm (including protective cap)
Weight: 110 g (including batteries and protective cap)
Advanced Features and Logic:
Integrated 40mm Vane: Optimized for spot measurements at ventilation grilles and air outlets.
Timed Mean Value Calculation: Provides an automated average of flow velocity over a specific duration for stabilized data reporting.
Max/Min and Hold Function: Enables the capture of peak values and freezing of current readings for manual logging.
Wind Chill Calculation: Automatically calculates the perceived temperature in outdoor environments based on wind speed and thermal data.
Backlit Display: High-contrast digital output ensures readability in low-light industrial HVAC environments.
Industrial Application and Technical Compatibility:
The Testo 410-1 is critical for HVAC technicians conducting initial system balancing and routine maintenance checks. Its compact form factor allows for immediate verification of airflow consistency across multiple diffusers, identifying blockages or pressure imbalances within ducting systems. The Original Engineering of the 410 series ensures long-term calibration stability and high repeatability in field conditions.
Inventory and Logistics:
Condition: Brand New, Original Factory Packaging
Lead Time: Immediate dispatch from stock
Technical Compatibility: Compatible with all standard HVAC ventilation monitoring protocols and ISO certification requirements for indoor air quality (IAQ) assessments.
Key Attributes
Resolution: 0.1 m/s
Temperature Range: -10℃~45℃
Type: Vane Anemometer
Place of Origin: China
Material: Plastic
Starting Wind Speed: 0.1 m/s
Wind Speed Unit Selection: OBM, ft/min
Packaging: Paper Bag
Model Number: 410-1
Brand Name: Testo
Model: 410-1
Airflow - Vane Measuring range: 100 to 4000 fpm
Accuracy: ±(40 fpm + 2% of rdg.)
Resolution: 1 fpm
Operating temperature: 14 to 122 °F (-10 to +50 °C)
Battery type: 2 AAA Batteries
NTC Measuring range: 14 to 122 °F (-10 to +50 °C)
Accuracy.: ±0.9 °F (±0.5 °C)
Packaging and Delivery
Selling Units: Single item
Single package size: 25X13X10 cm
Single gross weight: 1.000 kg
