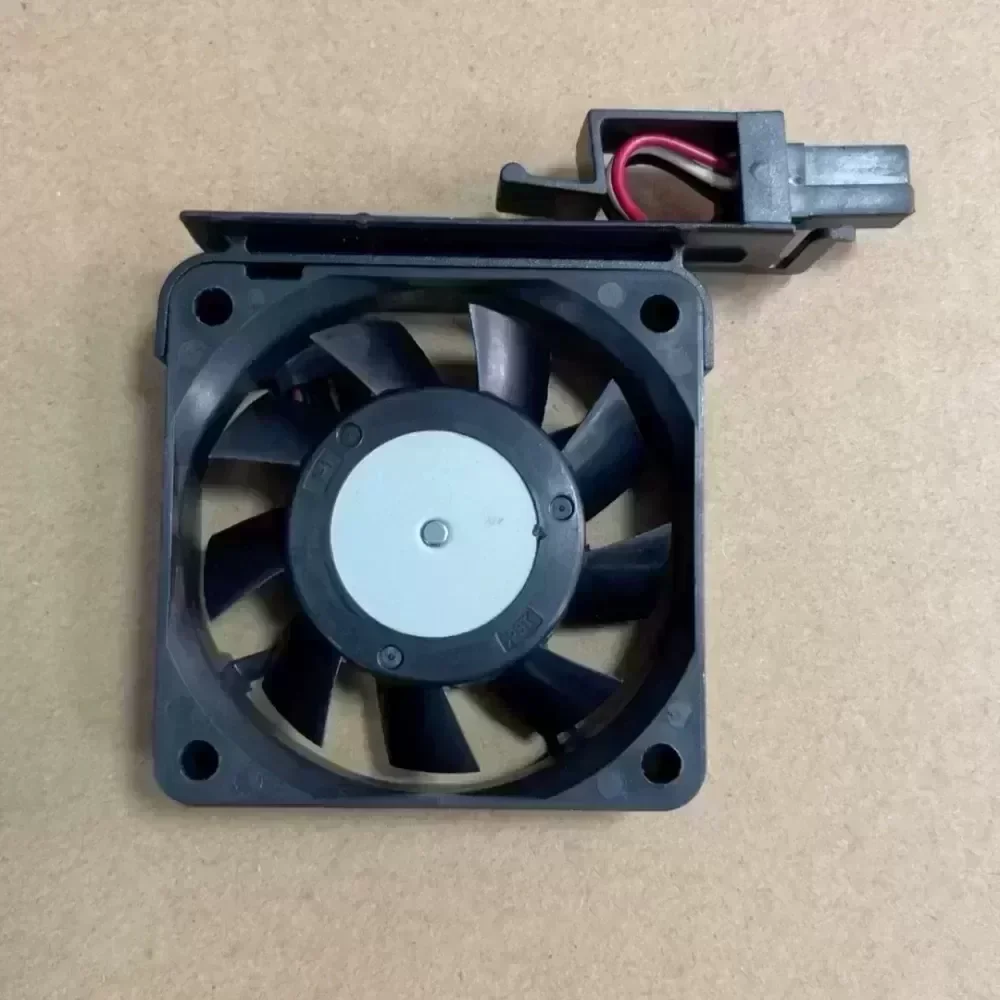

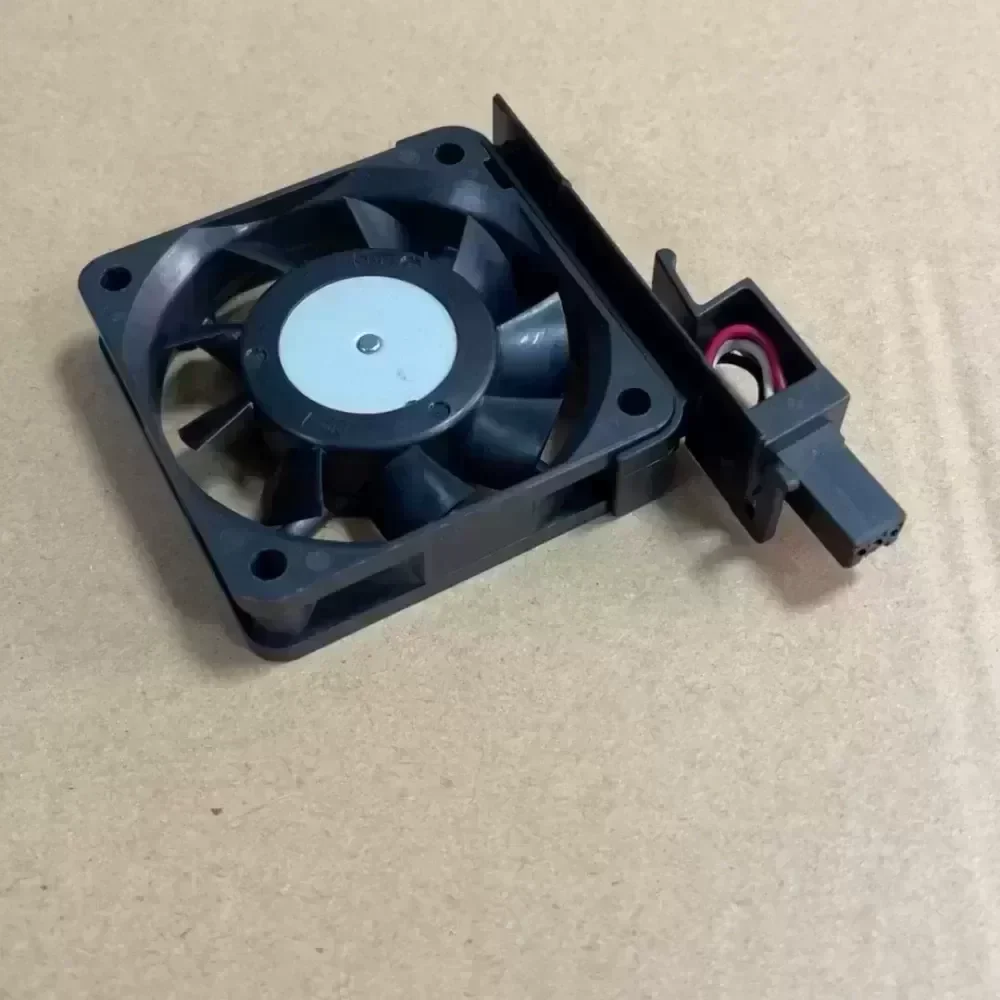

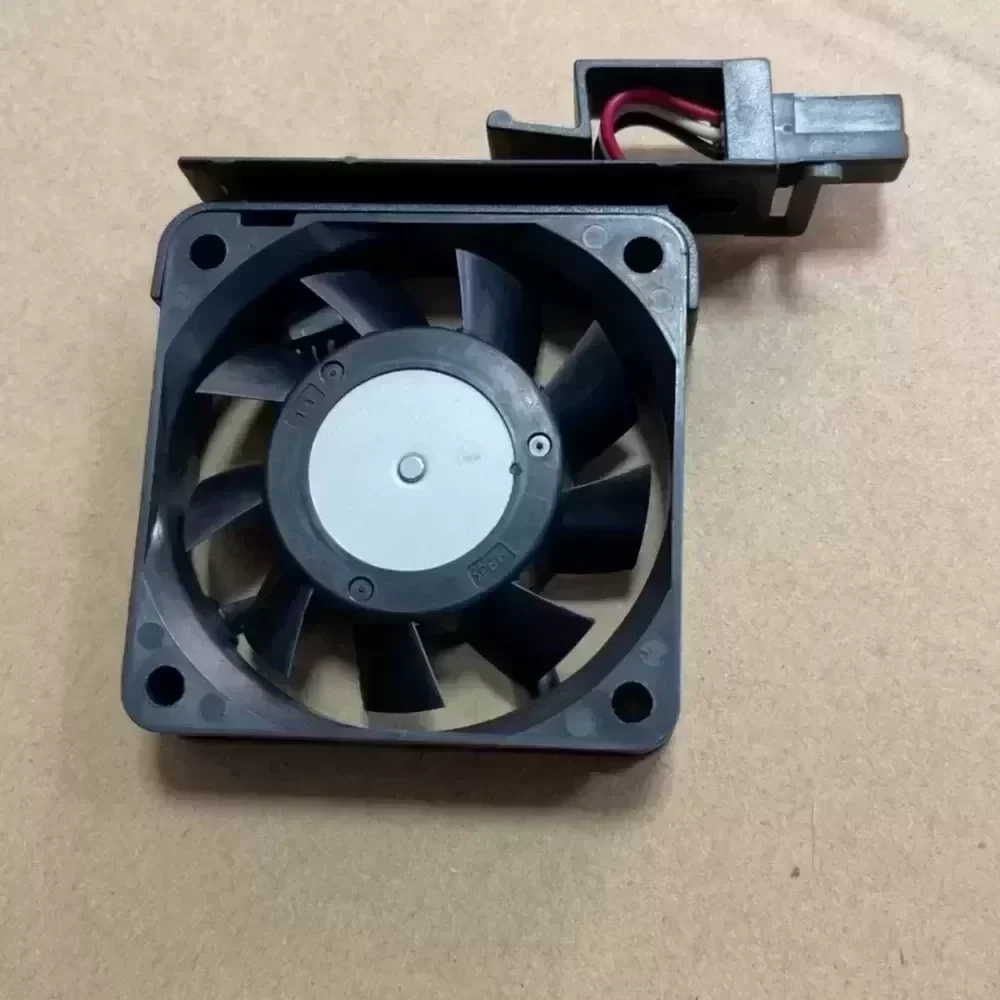

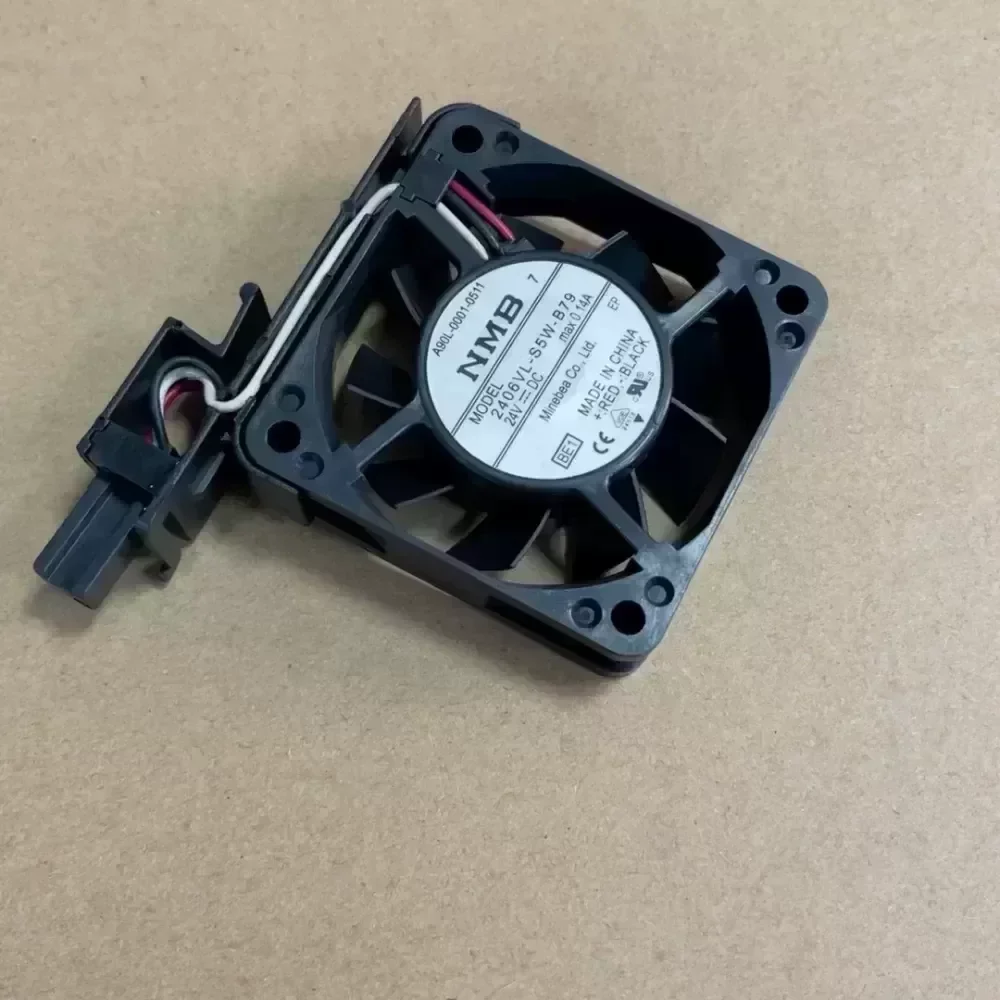

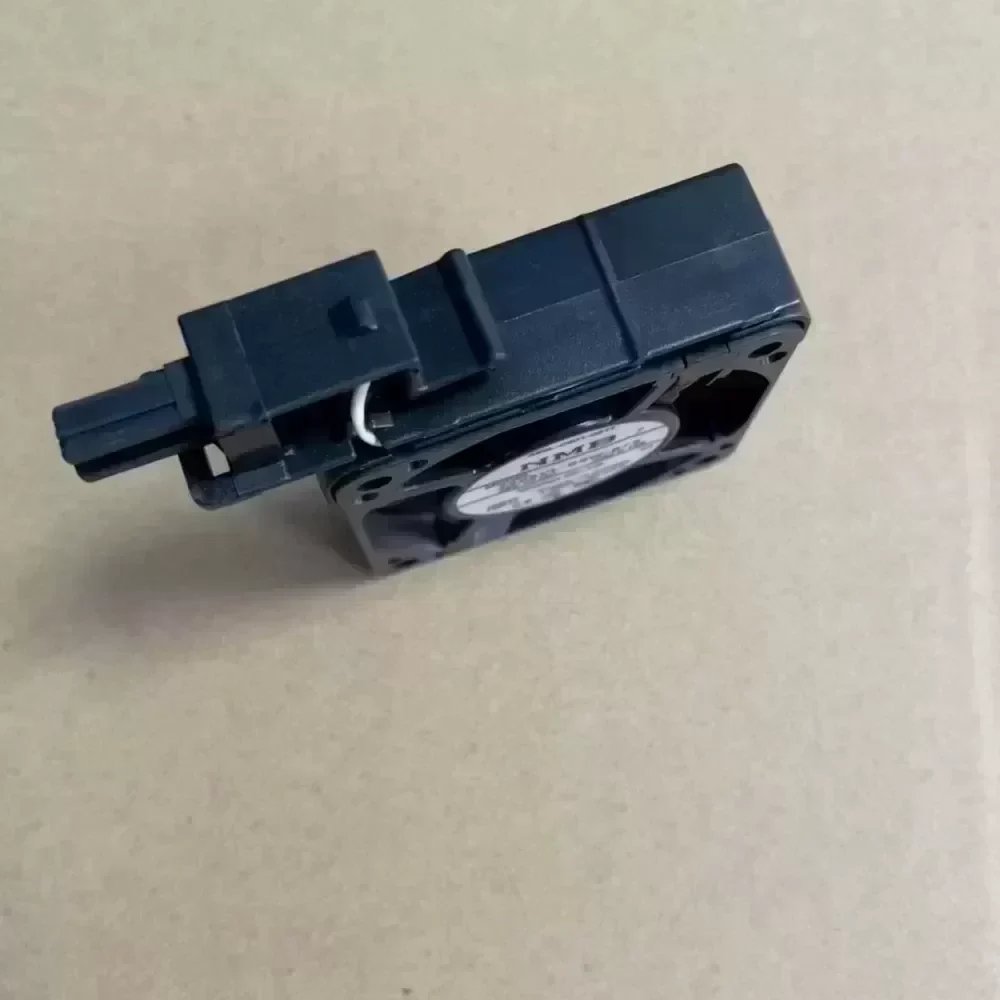

2406VL-S5W-B79 NMB Fanuc fan

$12.86

SKU: 900246927389 Brand:

Description

The NMB 2406VL-S5W-B79 (Fanuc OEM Part Number: A90L-0001-0511) is an authentic axial cooling fan engineered specifically for high-reliability thermal management across Fanuc industrial automation hardware. Designed under strict Original Engineering specifications, this cooling unit provides forced-air convection across sensitive semiconductor power modules, preventing thermal throttling and inverter bridge failures in continuous CNC production environments.

TECHNICAL SPECIFICATIONS
Manufacturer: NMB Technologies / Fanuc
Model Number: 2406VL-S5W-B79
OEM Part Number: A90L-0001-0511
Frame Dimensions: 60 mm x 60 mm x 15 mm
Rated Voltage: 24 V DC
Operating Voltage Range: 18.0 V DC to 27.6 V DC
Rated Current: 0.14 A
Power Input: 3.36 W
Rotational Speed: 5000 RPM
Maximum Airflow: 0.52 m³/min (18.3 CFM)
Static Pressure: 48 Pa
Bearing Type: Dual Precision Ball Bearings
Frame Material: Reinforced PBT Plastic (UL94V-0)
Impeller Material: Reinforced PBT Plastic (UL94V-0)
Acoustic Noise Level: 34 dBA
Lead Wire Interface: 3-Pin Dedicated Fanuc Keyed Connector
Signal Output: Integrated Tachometer / Speed Sensor Circuit
Operating Temperature: -10 °C to +70 °C
Storage Temperature: -40 °C to +70 °C
Life Expectancy (L10): 70,000 Hours at 40 °C
Weight: 45 g
Certifications: UL, CSA, CE, RoHS Compliant

TECHNICAL COMPATIBILITY & SYSTEM INTEGRATION
This cooling unit provides exact-fit Technical Compatibility with a broad range of Fanuc components, including:
– Fanuc Alpha i Series Servo Amplifier Modules (SVM)
– Fanuc Alpha i Series Spindle Amplifier Modules (SPM)
– Fanuc Alpha i Series Power Supply Modules (PSM)
– Fanuc CNC Control Enclosures (0i-MC, 0i-MD, 0i-MF, 30i, 31i Series)

INDUSTRIAL APPLICATION SCENARIO
In modern CNC machining centers, drive amplifiers operate within sealed electrical cabinets subject to ambient factory temperatures and heavy duty-cycle loads. Failure of a cooling fan quickly leads to over-temperature alarms (e.g., Fanuc Alarm 441, ALM 444, or internal heatsink over-temp warnings), shutting down the entire machine tool. The 2406VL-S5W-B79 integrates a third-wire tachometer output that continuously communicates fan RPM status back to the Fanuc mainboard. Utilizing precision dual ball bearings, this unit resists continuous vibration and grease contamination, ensuring optimal thermal dissipation from internal IGBT arrays and power conversion circuitry.

LOGISTICS & PROCUREMENT
Condition: 100% Brand New Original Engineering Stock
Lead Time: In-stock units ship within 24 hours via express industrial courier
Packaging: Anti-static protective enclosure packaging

2406VL-S5W-B79 NMB Fanuc fan

2406VL-S5W-B79 NMB Fanuc fan

2406VL-S5W-B79 NMB Fanuc fan

2406VL-S5W-B79 NMB Fanuc fan

2406VL-S5W-B79 NMB Fanuc fan

2406VL-S5W-B79 NMB Fanuc fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
