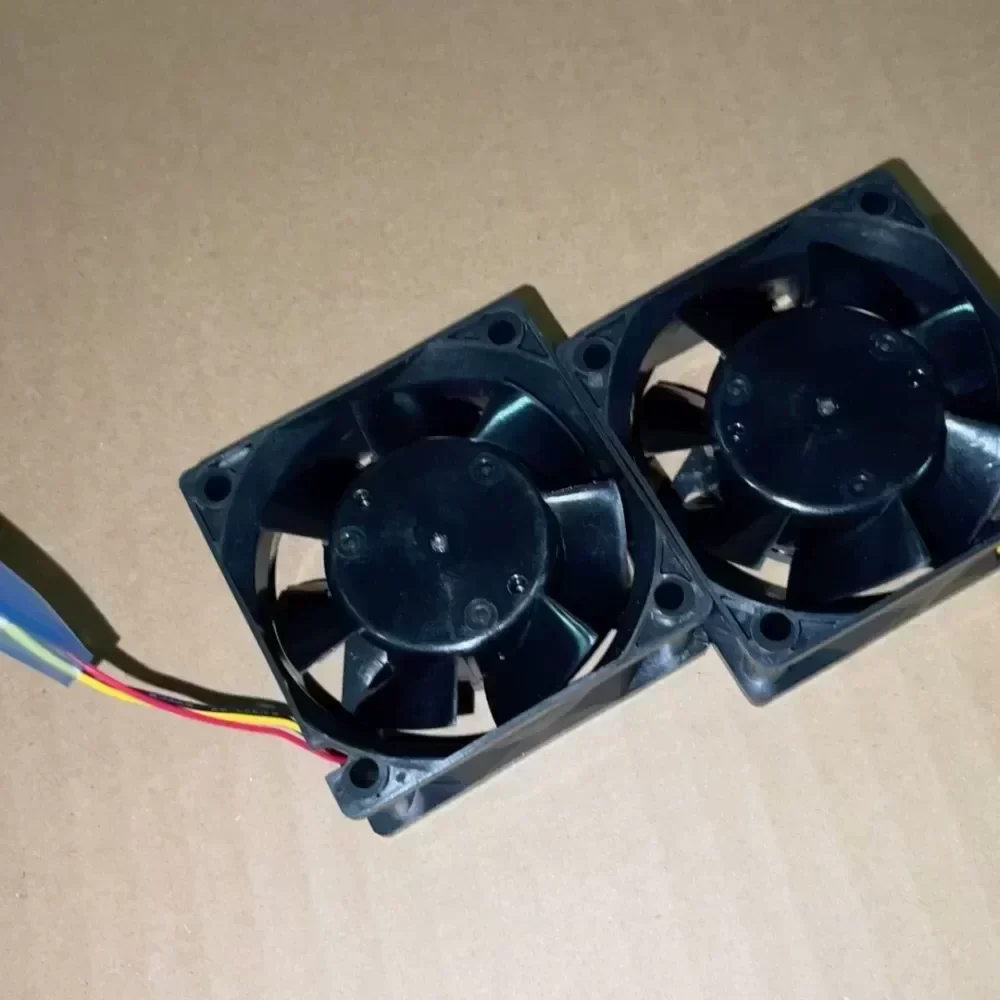

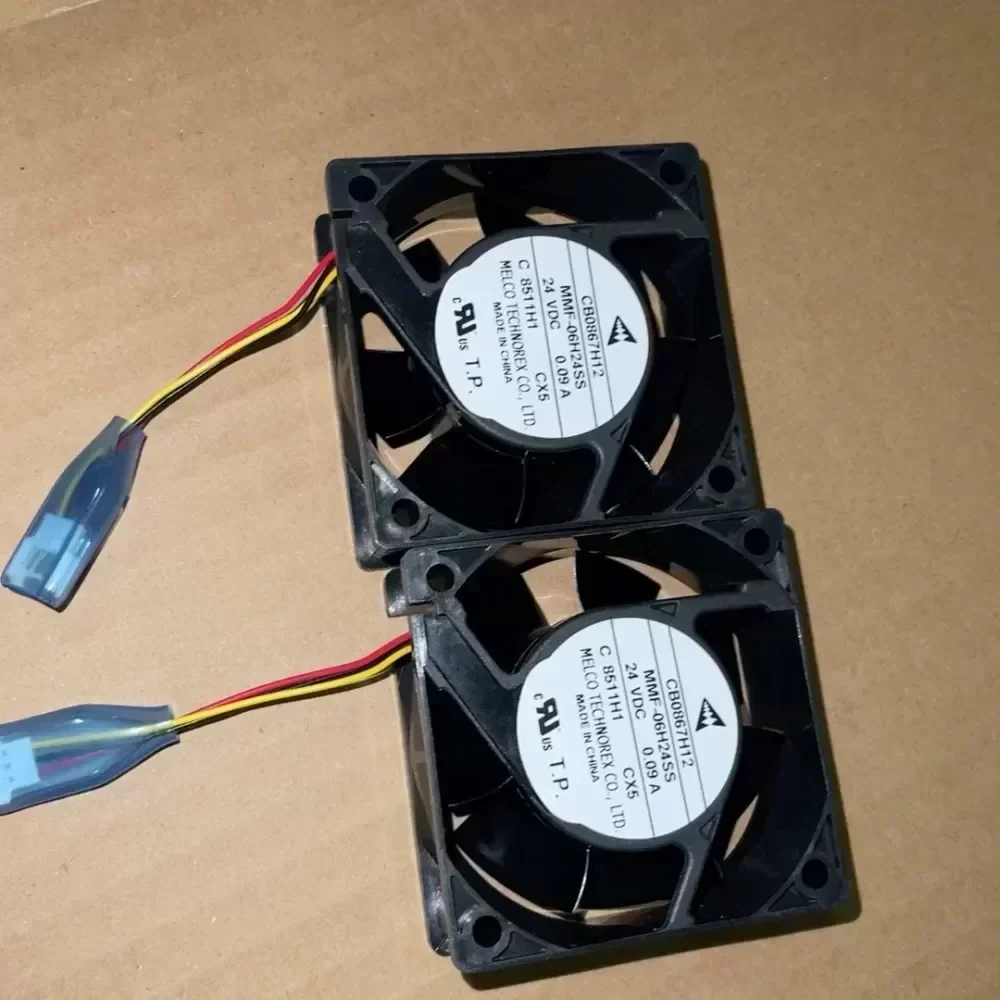

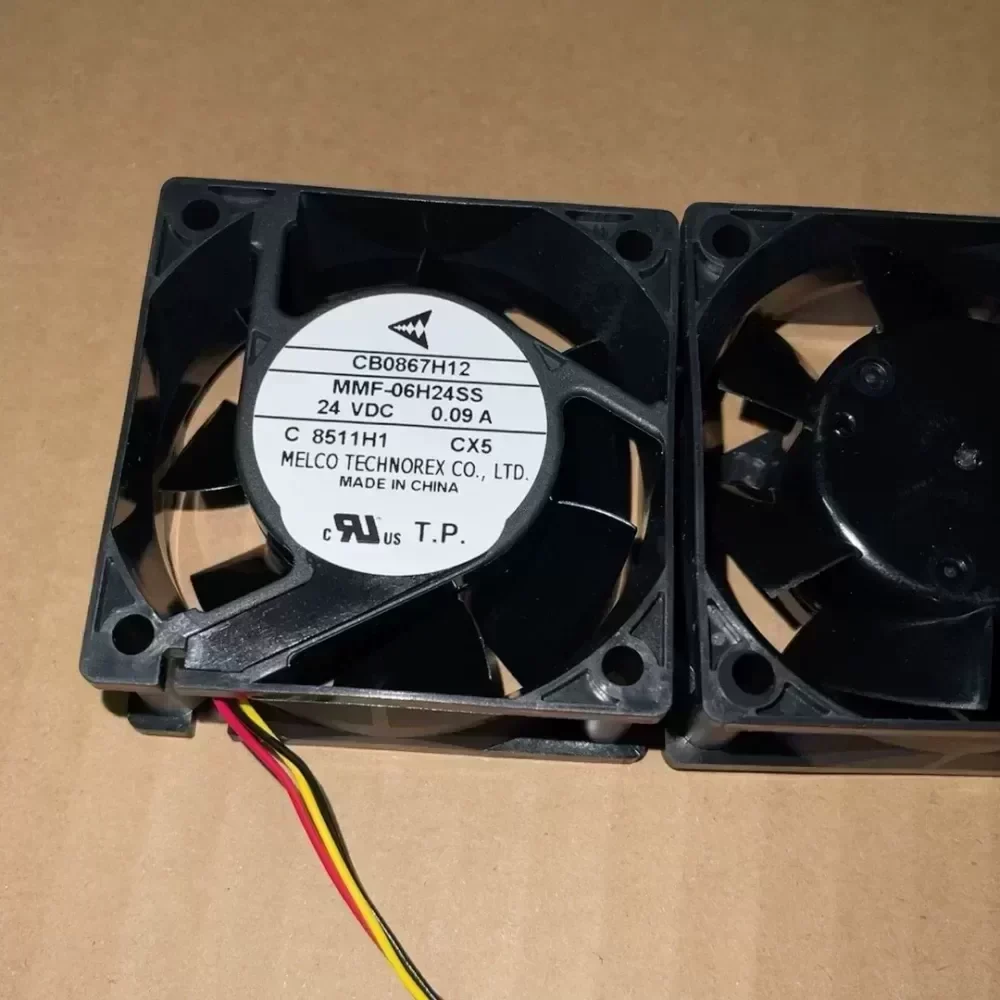

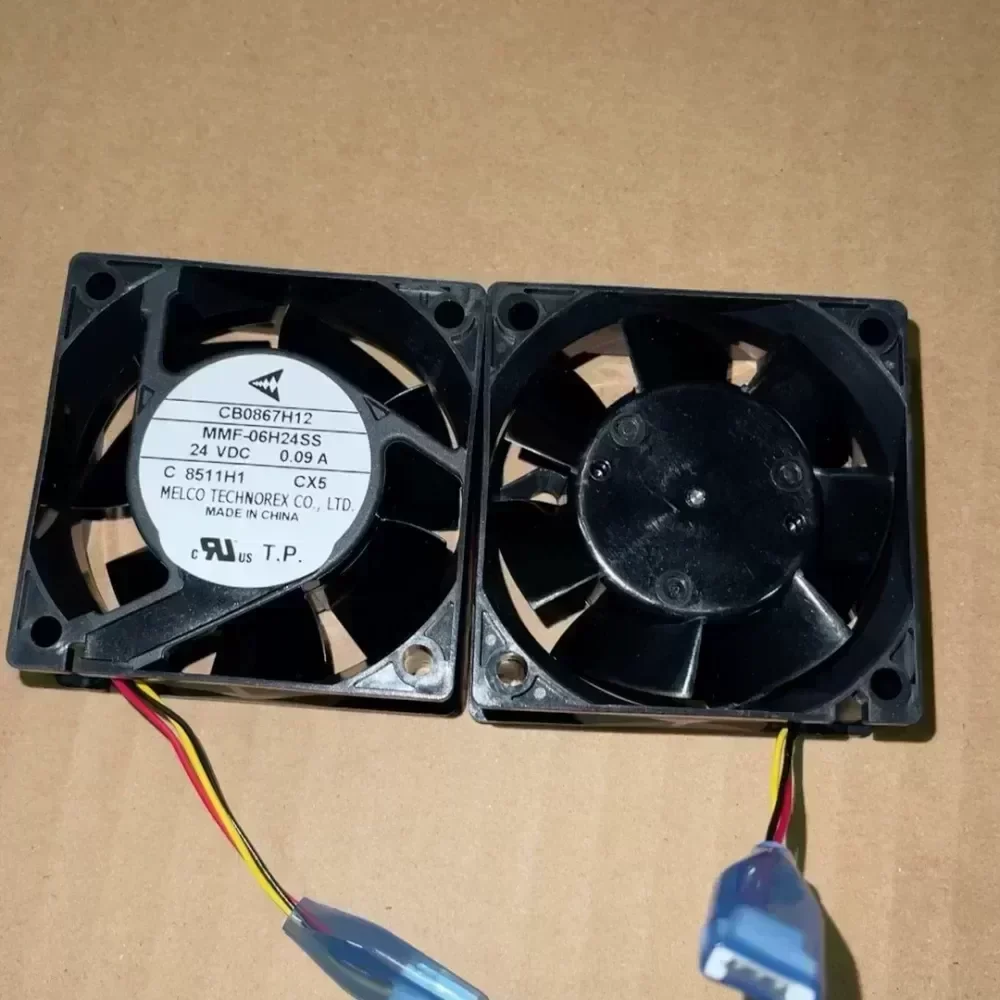

MMF-06H24SS-Cx5 MELCO Technorex fan

$6.57

SKU: 900233992126 Brand:

Description

The Melco Technorex MMF-06H24SS-CX5 is an industrial-grade DC axial cooling fan engineered specifically for thermal management in mission-critical power electronics. Manufactured under Mitsubishi Electric Original Engineering standards, this compact 60 mm x 60 mm x 25 mm cooling unit is widely deployed across industrial automation architectures, primarily serving as the factory-specified heatsink cooling component for Mitsubishi Variable Frequency Drives (including FR-A700, FR-F700, FR-E700, and FR-A800 series) and MELSERVO amplifier platforms. It provides dedicated forced-air cooling over power semiconductors (IGBT modules) and internal DC bus capacitors to prevent thermal derating and over-temperature shutdown.

MODEL DECODING AND ARCHITECTURE
Brand: Melco Technorex (Mitsubishi Electric Group)
Series: MMF (Melco Mini Fan Series)
Frame Size: 06 (60 mm x 60 mm)
Performance Grade: H (High Airflow / High Static Pressure Curve)
Nominal Operating Voltage: 24 (24V DC nominal)
Bearing / Sensor Architecture: SS (Dual Precision Ball Bearing with Integral Rotor Speed/Lock Detection)
Termination Variant: CX5 (Dedicated 3-pin harness and connector configuration for inverter motherboard integration)

TECHNICAL SPECIFICATIONS
Frame Dimensions: 60 mm x 60 mm x 25 mm
Rated Operating Voltage: 24V DC
Operating Voltage Range: 14.0V DC to 27.6V DC
Rated Operating Current: 0.09 A
Power Consumption: 2.16 W
Rotational Speed: 4,800 RPM (±10%)
Maximum Volumetric Airflow: 0.70 m³/min (24.7 CFM)
Maximum Static Pressure: 48.0 Pa
Acoustic Noise Level: 33.0 dB(A)
Bearing Architecture: Dual Shielded Precision Ball Bearings
Expected Operating Lifetime (L10): 60,000 Hours @ 40 °C
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -30 °C to +80 °C
Frame and Impeller Material: PBT Thermoplastic (UL 94V-0 Flame Retardant)

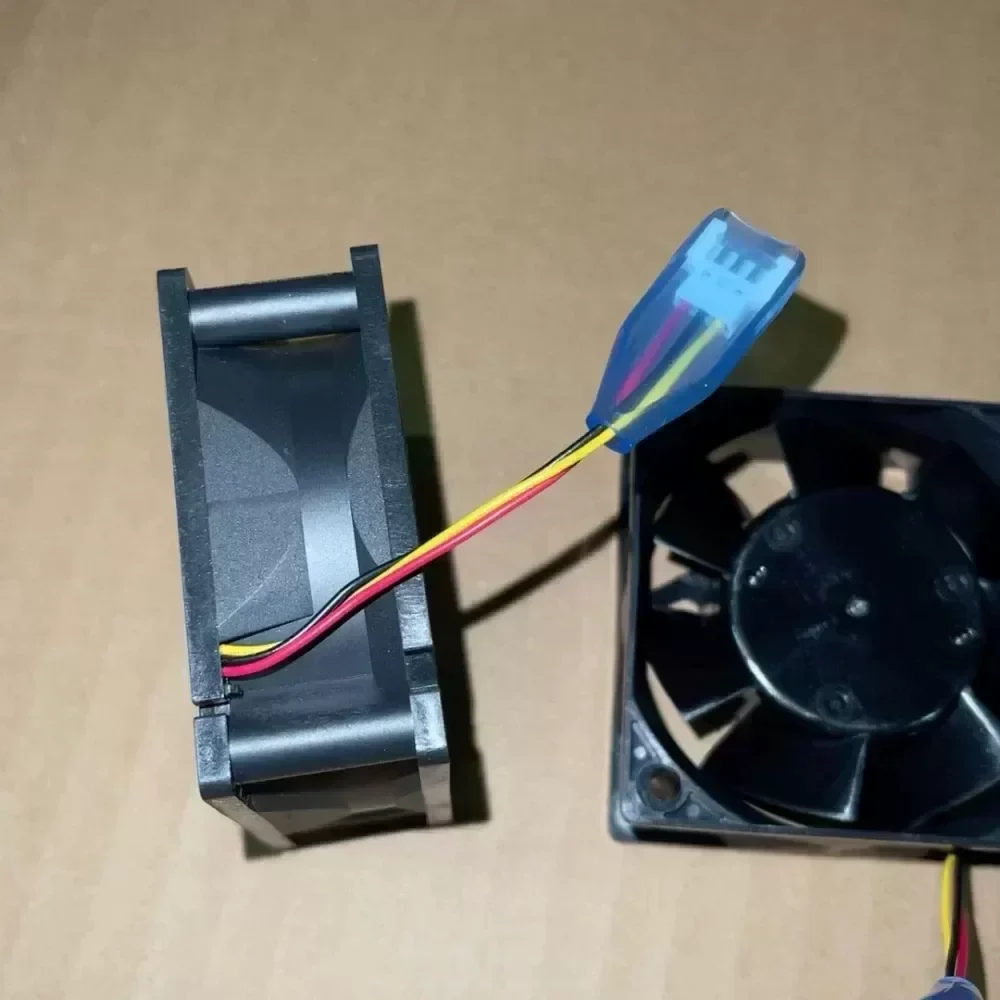

Termination: 3-Wire Dedicated Industrial Connector Lead
Dielectric Strength: 500V AC for 1 minute (50/60 Hz between frame and terminal)
Insulation Resistance: 10 MΩ minimum at 500V DC
Weight: 85 g

APPLICATION AND PROBLEM PREVENTION
In high-demand industrial VFD installations, fan degradation directly results in elevated junction temperatures across power module bridges, triggering instantaneous inverter trip codes (e.g., Mitsubishi FN / OHT fault registers) and unscheduled production stoppage. The MMF-06H24SS-CX5 features high-static-pressure aerodynamic profiling capable of overcoming dense heatsink fin resistance within sealed IP20/IP54 drive chassis. Integrating the factory-specified SS-CX5 tachometer feedback allows continuous drive logic monitoring, ensuring immediate thermal protection and maintaining long-term drive reliability.

SUPPLY CHAIN AND PROCUREMENT

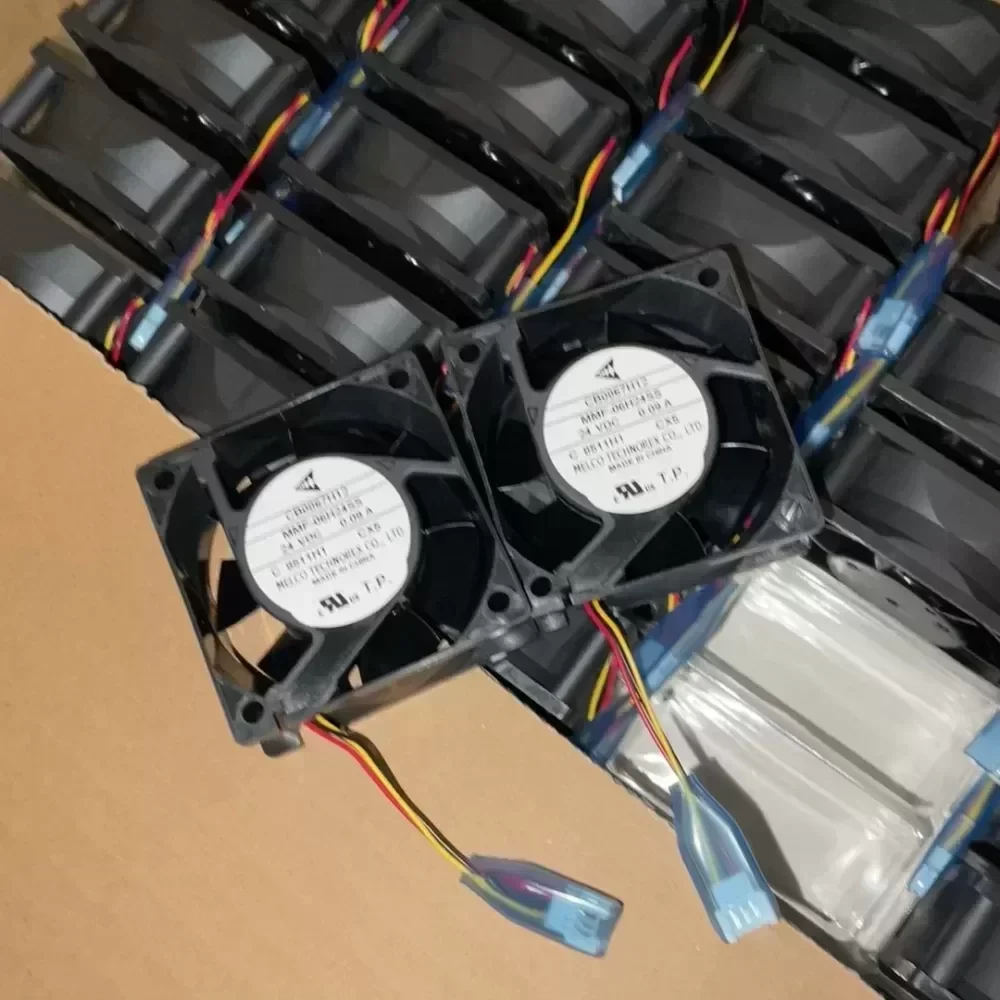

Part Condition: Brand New Factory Stock
Lead Time: Dispatched within 24 hours of technical order confirmation
Packaging: Industrial electrostatic-safe packaging

MMF-06H24SS-Cx5 MELCO Technorex fan

MMF-06H24SS-Cx5 MELCO Technorex fan

MMF-06H24SS-Cx5 MELCO Technorex fan

MMF-06H24SS-Cx5 MELCO Technorex fan

MMF-06H24SS-Cx5 MELCO Technorex fan

MMF-06H24SS-Cx5 MELCO Technorex fan

MMF-06H24SS-Cx5 MELCO Technorex fan

MMF-06H24SS-Cx5 MELCO Technorex fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
