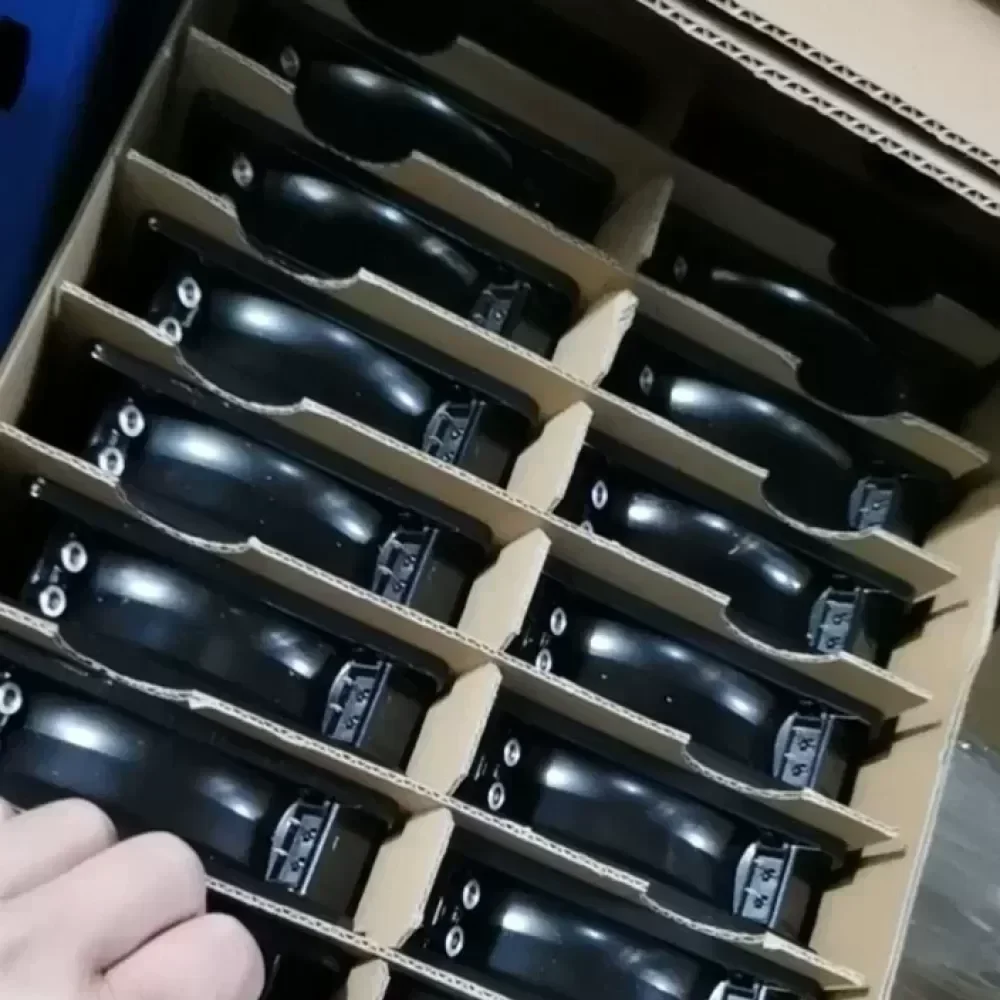

New EBM 4650N 12038/220V all-metal heat dissipation
New EBM 4650N 12038/220V all-metal heat dissipation
New EBM 4650N 12038/220V all-metal heat dissipation

New EBM 4650N 12038/220V all-metal heat dissipation

$11.43

SKU: 692413376243 Brand:

Description

The ebm-papst 4650N is a high-performance AC axial fan engineered for industrial-grade thermal management. This unit features a robust all-metal construction, utilizing a die-cast aluminum housing and a metal impeller to ensure structural integrity in high-temperature environments. Designed for continuous operation, it is a critical component for server chassis, power supply cooling, and industrial control cabinets.

Technical Specifications:
Manufacturer: ebm-papst
Model Series: 4600N
Part Number: 4650N
Airflow: 160.0 m³/h
Nominal Voltage: 230 VAC
Frequency: 50 Hz
Power Consumption: 19.0 W
Nominal Speed: 2650 RPM
Sound Pressure Level: 46 dB(A)
Bearing Type: Sintec Sleeve Bearing System
Direction of Rotation: Clockwise, viewed toward rotor
Direction of Airflow: Exhaust over struts

Mechanical and Material Data:
Dimensions: 119 x 119 x 38 mm
Weight: 0.550 kg
Housing Material: Die-cast aluminum
Impeller Material: Sheet steel, painted black
Electrical Connection: 2 flat plugs 2.8 x 0.5 mm
Motor Protection: Protected from overload by impedance protection

Environmental and Safety Standards:
Operating Temperature Range: -10 °C to +55 °C
Service Life (L10 at 40 °C): 37,500 hours
Service Life (L10 at maximum temperature): 27,500 hours
Approvals: VDE, CSA, UL, CE
IP Rating: IP20

Industrial Application:
The 4650N is optimized for high-density electronic enclosures where heat dissipation is critical for component longevity. Its all-metal design prevents blade deformation under thermal stress, making it the standard for Original Engineering in telecommunications and heavy-duty power conversion systems. Technical Compatibility is guaranteed for standard 120mm mounting patterns. This product is available with an optimized Lead Time for maintenance and repair operations (MRO) to minimize system downtime.

New EBM 4650N 12038/220V all-metal heat dissipation

New EBM 4650N 12038/220V all-metal heat dissipation

New EBM 4650N 12038/220V all-metal heat dissipation

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
