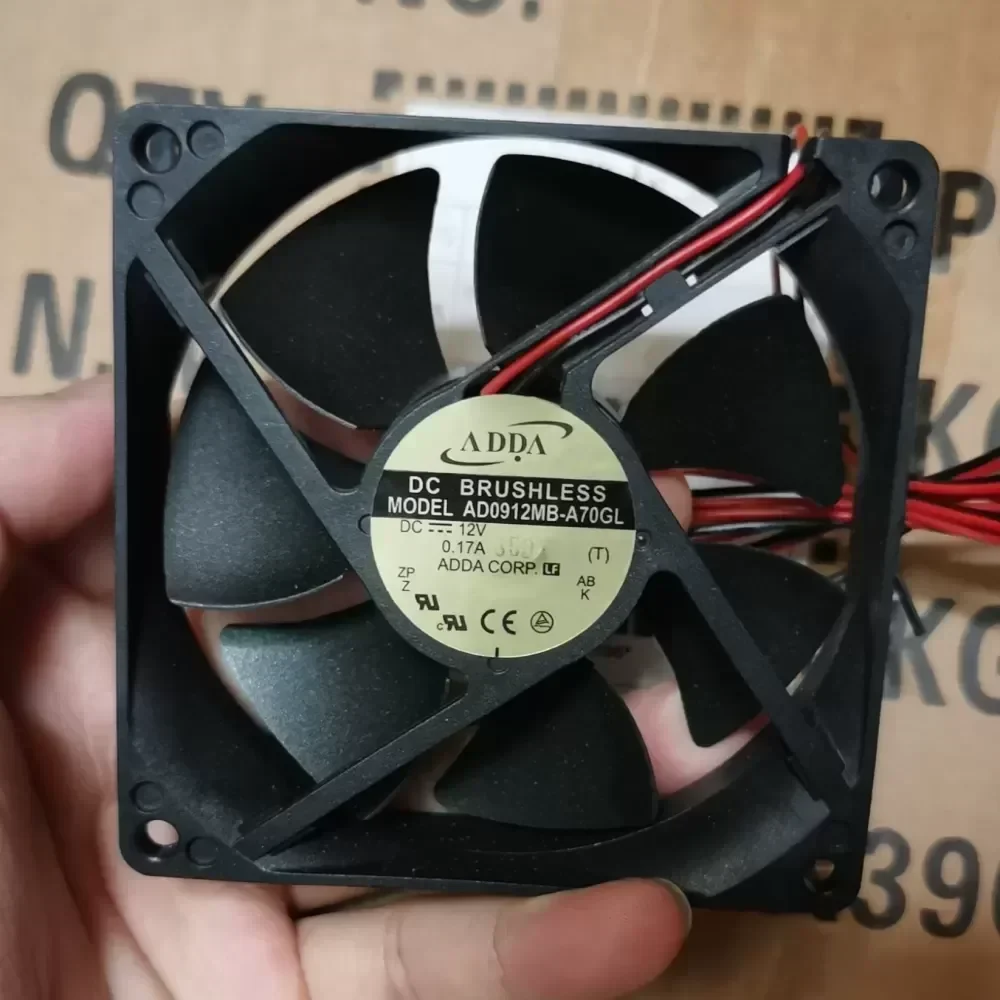

AD0912HB-A70GL ADDA 9225 12V fan
AD0912HB-A70GL ADDA 9225 12V fan
AD0912HB-A70GL ADDA 9225 12V fan

AD0912HB-A70GL ADDA 9225 12V fan

$2.86

SKU: 681070910597 Brand:

Description

The ADDA AD0912HB-A70GL is a high-performance 92mm axial cooling fan engineered for continuous duty in industrial enclosures, server cabinets, and telecommunications infrastructure. Utilizing a precision dual-ball bearing system, this model is designed to provide superior thermal management and extended MTBF (Mean Time Between Failures) in demanding environments.

Technical Specifications:
Manufacturer: ADDA Corporation
Model Number: AD0912HB-A70GL
Frame Size: 92mm x 92mm x 25mm
Bearing Type: Dual Ball Bearing
Rated Voltage: 12V DC
Operating Voltage Range: 10.8V to 13.2V DC
Rated Current: 0.25A
Input Power: 3.00W
Rated Speed: 2900 RPM
Maximum Airflow: 51.2 CFM (1.450 m³/min)
Static Pressure: 0.150 in-H2O (37.3 Pa)
Noise Level: 36.5 dB(A)
Termination: 2-Wire Lead (UL1007 AWG#24)
Weight: 95g

Material and Environmental Construction:
Housing Material: Reinforced Thermoplastic PBT (UL 94V-0)
Impeller Material: Reinforced Thermoplastic PBT (UL 94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Dielectric Strength: 500 VAC for 1 minute
Insulation Resistance: 10M Ohm at 500V DC
Safety Certifications: UL, CUL, TUV, CE, RoHS Compliant

Industrial Application and Technical Compatibility:
The AD0912HB-A70GL is specifically optimized for high-density electronic packaging where airflow resistance is significant. Its high static pressure curve makes it an ideal choice for cooling heatsinks in industrial power supplies and frequency converters. The dual-ball bearing architecture ensures horizontal or vertical mounting versatility without the lifespan degradation common in sleeve bearing alternatives. Original Engineering standards guarantee seamless integration into existing 9225-series mounting patterns, ensuring minimal Lead Time during maintenance cycles or system upgrades.

AD0912HB-A70GL ADDA 9225 12V fan

AD0912HB-A70GL ADDA 9225 12V fan

AD0912HB-A70GL ADDA 9225 12V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
