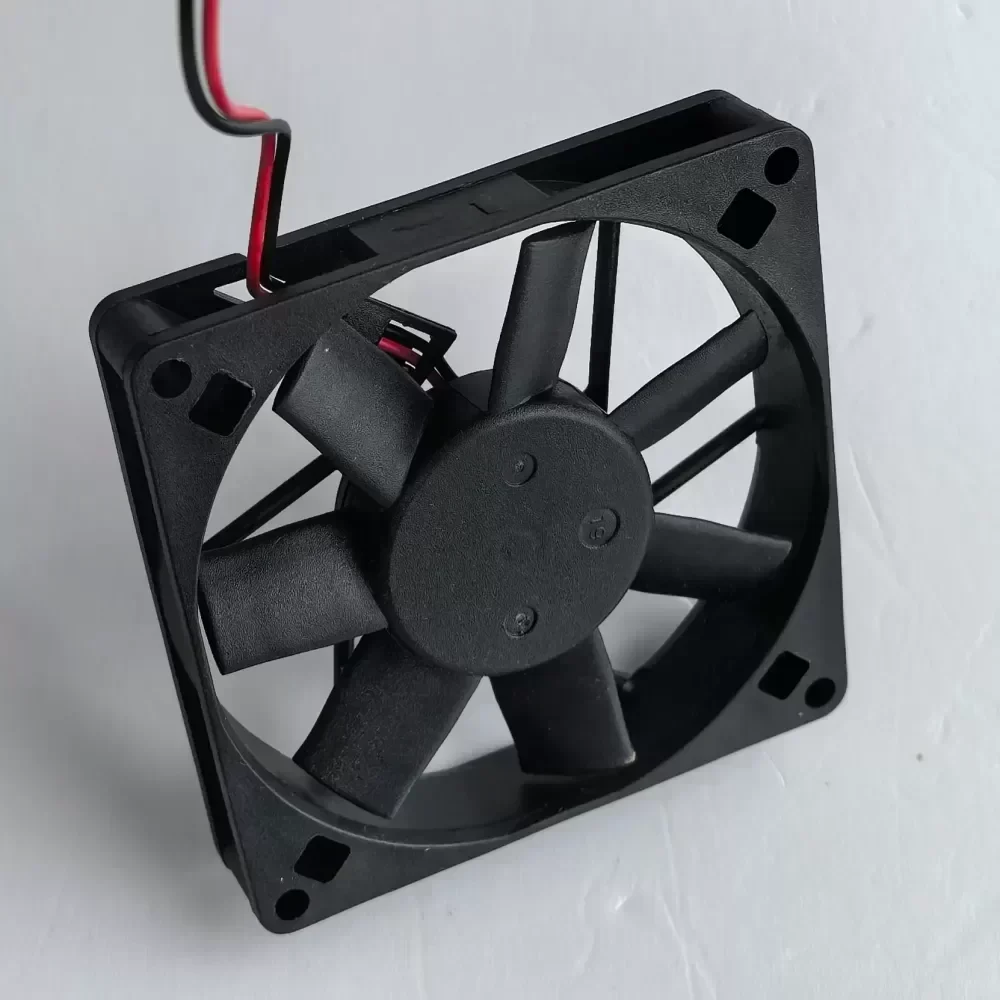

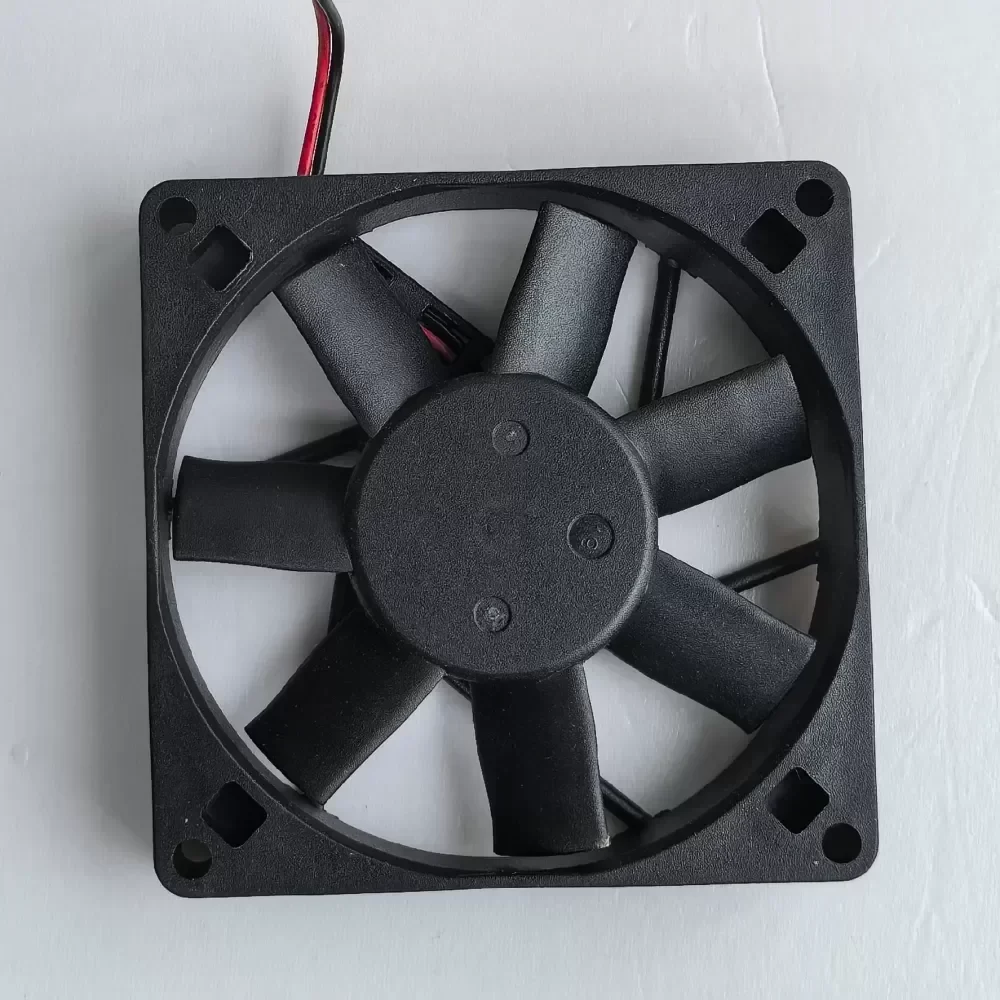

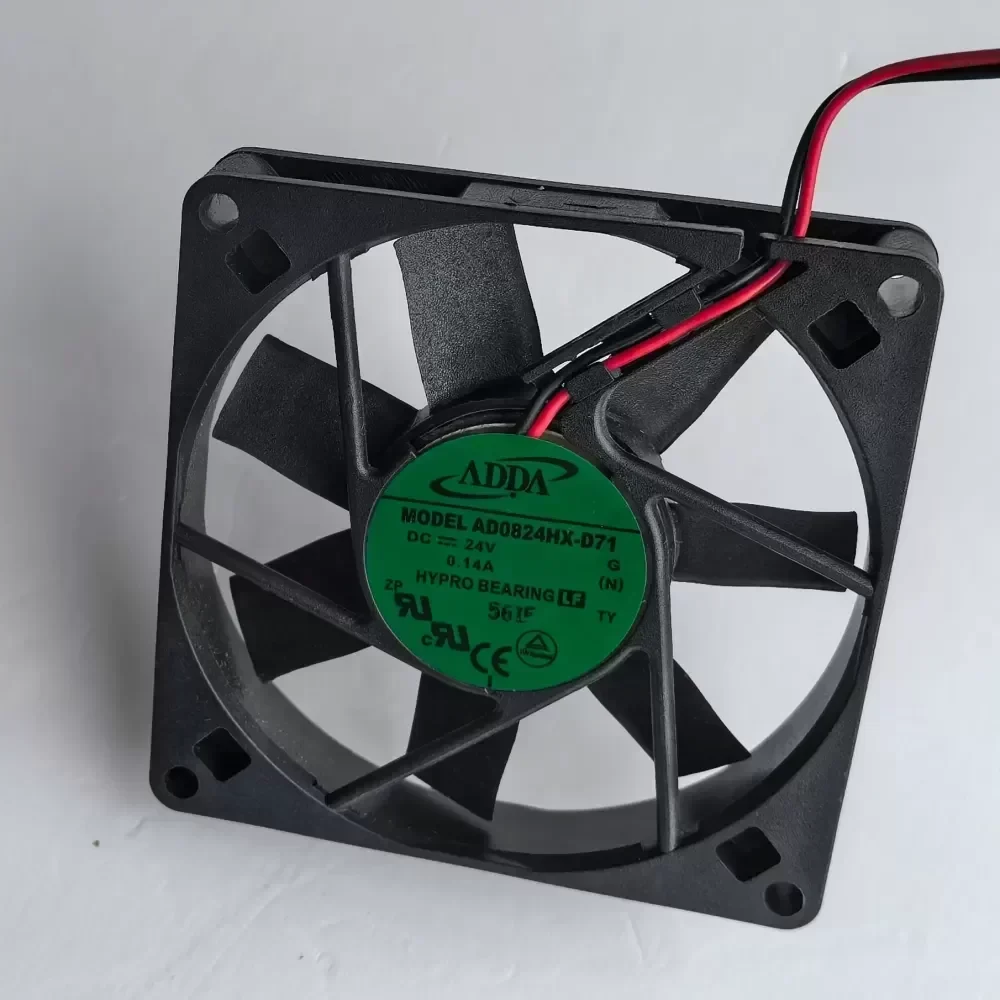

The ADDA AD0824HX-D71 is a high-performance industrial axial cooling fan engineered for continuous duty cycles in high-demand power electronics. As an original engineering component from ADDA’s high-speed series, this 8015 frame size fan is specifically optimized for inverter cooling and compact thermal management systems where space-to-performance ratios are critical.

Technical Specifications:
Manufacturer: ADDA Corporation
Model Number: AD0824HX-D71
Frame Size: 80mm x 80mm x 15mm
Bearing Type: Hypro Bearing (Enhanced Long-Life System)
Rated Voltage: 24V DC
Operating Voltage Range: 20.4V to 27.6V DC
Rated Current: 0.15 A
Power Consumption: 3.60 W
Rated Speed: 3200 RPM
Maximum Airflow: 35.5 CFM (cubic feet per minute)
Static Pressure: 0.145 In H2O
Noise Level: 36.2 dB(A)
Termination: 2-Wire Lead (UL1007 AWG24)
Weight: 62g

Material and Environmental Construction:
Frame Material: Reinforced PBT Thermoplastic (UL94V-0)
Impeller Material: Reinforced PBT Thermoplastic (UL94V-0)
Insulation Resistance: 10M Ohm at 500V DC between housing and terminal
Dielectric Strength: 5mA Max at 500V AC for 60 seconds
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Expected Life: 50,000 hours at 25°C

Industrial Application and Technical Compatibility:
The AD0824HX-D71 is designed for critical thermal regulation in variable frequency drives (VFDs), solar inverters, and industrial power supplies. Its 15mm slim profile allows for high-density component mounting while maintaining the static pressure required to overcome heat sink impedance. This model is a direct replacement for OEM cooling modules in automation cabinets where maintaining precise operating temperatures is essential for preventing thermal throttling and extending the lifecycle of semiconductor components.

Logistics and Quality Assurance:
Condition: New Original Engineering Grade
Lead Time: Immediate dispatch available for standard inventory levels
Compliance: RoHS Compliant, CE Certified, UL/CUL Recognized

AD0824 Hx-D71 ADDA 8015/24V fan

AD0824 Hx-D71 ADDA 8015/24V fan

AD0824 Hx-D71 ADDA 8015/24V fan

AD0824 Hx-D71 ADDA 8015/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
