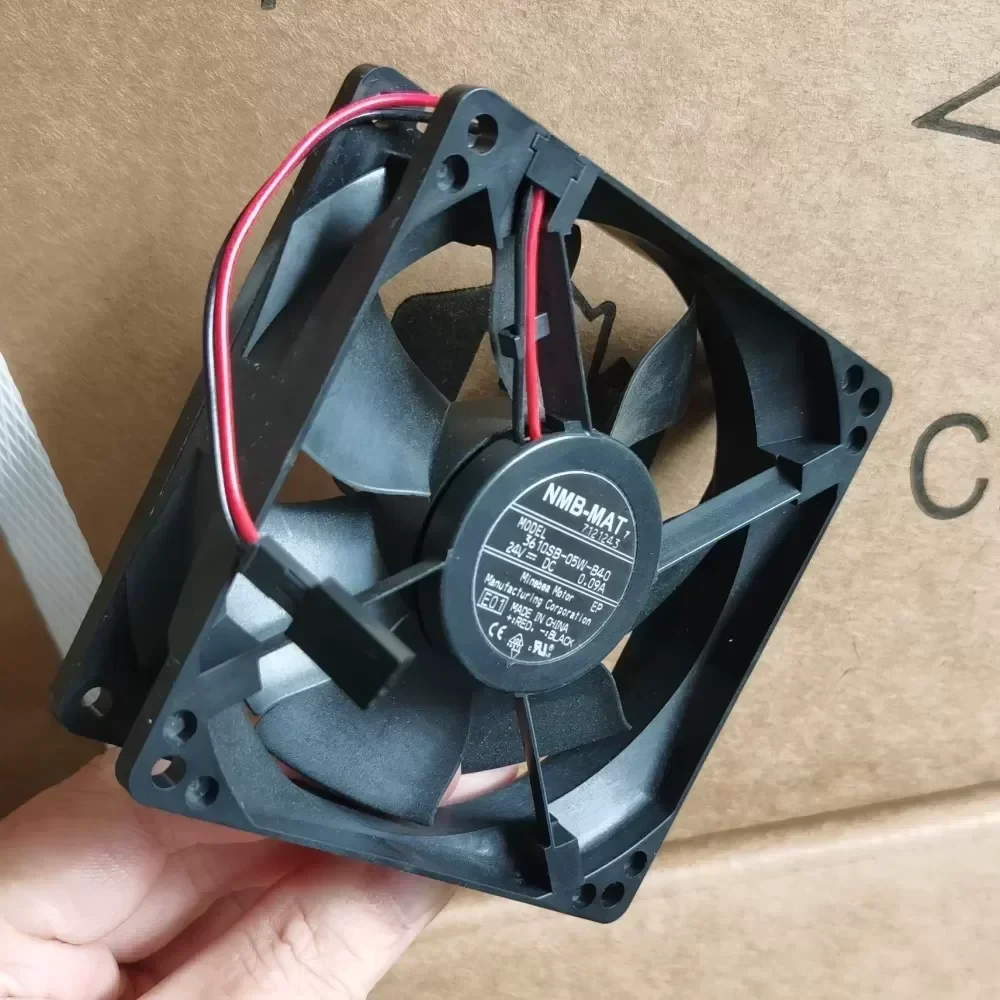

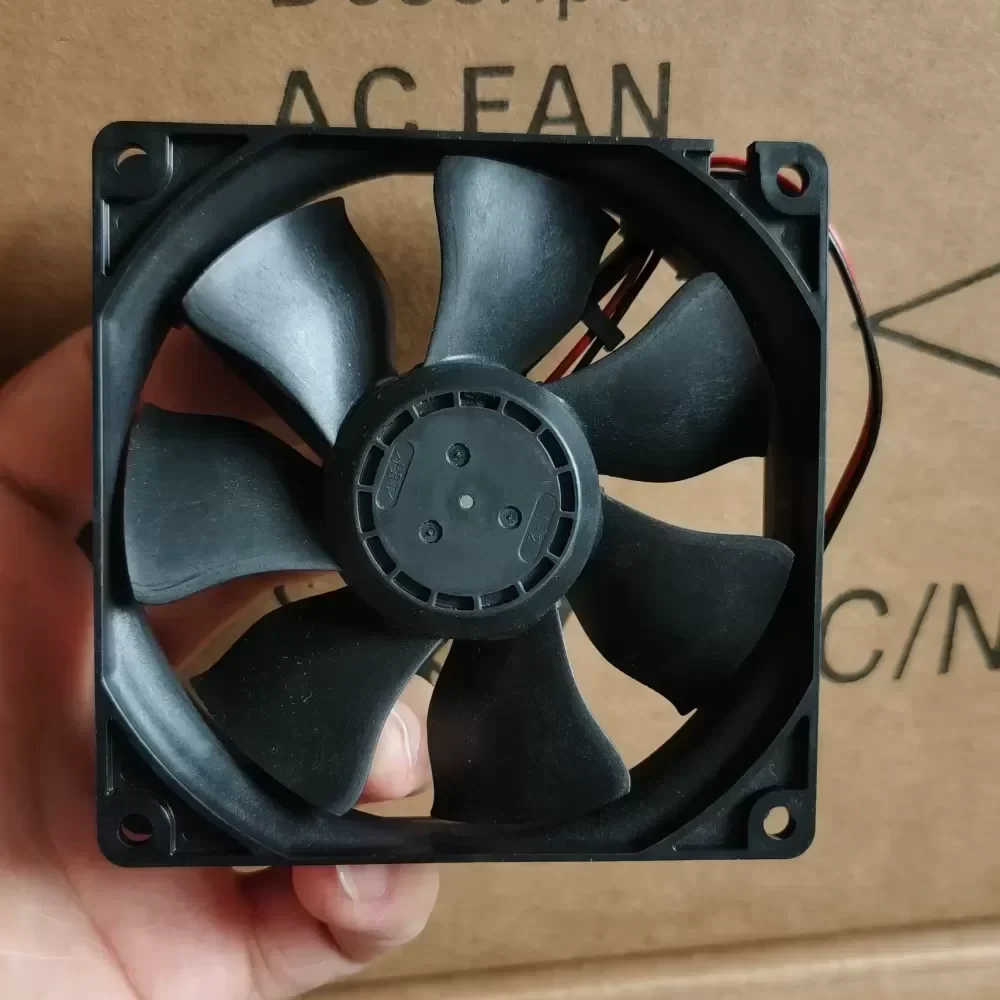

New NMB 3610SB-05W-B40 9225
New NMB 3610SB-05W-B40 9225
New NMB 3610SB-05W-B40 9225

New NMB 3610SB-05W-B40 9225

$2.57

SKU: 676833934216 Brand:

Description

The NMB Technologies 3610SB-05W-B40 is a high-reliability DC axial cooling fan engineered for demanding industrial environments. Designed with precision Original Engineering, this 92x92x25mm component delivers optimal thermal management for continuous-duty applications. With excellent Technical Compatibility across various inverter and power supply architectures, this fan ensures stable airflow while maintaining a low acoustic profile. Our streamlined supply chain guarantees minimal Lead Time for critical maintenance and production schedules.

Technical Specifications
Brand: NMB Technologies (MinebeaMitsumi)
Model: 3610SB-05W-B40
Fan Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 25mm (Ø 92mm)
Operating Voltage: 24V DC
Operating Voltage Range: 10.0V to 27.6V DC
Nominal Current: 0.11 A
Input Power: 2.64 W
Rated Speed: 2850 RPM ± 10%
Maximum Airflow: 45.2 CFM (1.28 m³/min)
Static Pressure: 30.0 Pa
Acoustic Noise: 35.5 dB(A)
Bearing System: Precision Dual Ball Bearing
Termination: Lead Wires (2-Wire, AWG 24)
Housing Material: Black Plastic (UL94V-0)
Impeller Material: Black Plastic (UL94V-0)
Weight: 95 g
Operating Temperature: -10°C to +70°C
Insulation Resistance: 10M Ohm min. at 500V DC
Dielectric Strength: 500V AC for 1 minute
Life Expectancy: 100,000 hours at 25°C

Industrial Application
The 3610SB-05W-B40 is specifically designed for integration into Variable Frequency Drives (VFDs), industrial inverters, and telecommunication enclosures. In these scenarios, power conversion components generate localized heat that can degrade system efficiency and lifespan. The precision dual ball bearing system ensures 24/7 operational stability in high-vibration environments, while the optimized impeller geometry provides high static pressure to push air through densely packed heat sinks. Its silent operation profile makes it exceptionally suited for control cabinets located in noise-sensitive factory floors or medical equipment rooms.

New NMB 3610SB-05W-B40 9225

New NMB 3610SB-05W-B40 9225

New NMB 3610SB-05W-B40 9225

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
