$5.43

SKU: 954684596742 Brand:

Description

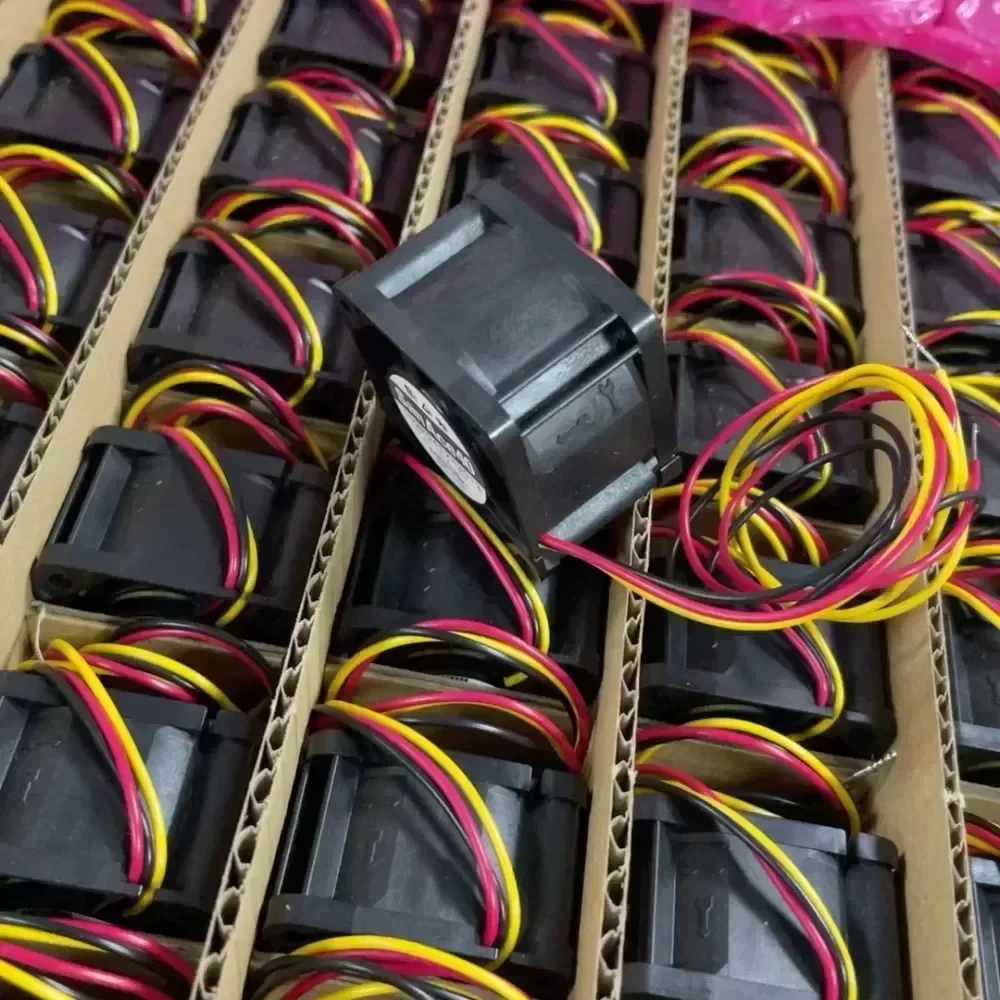

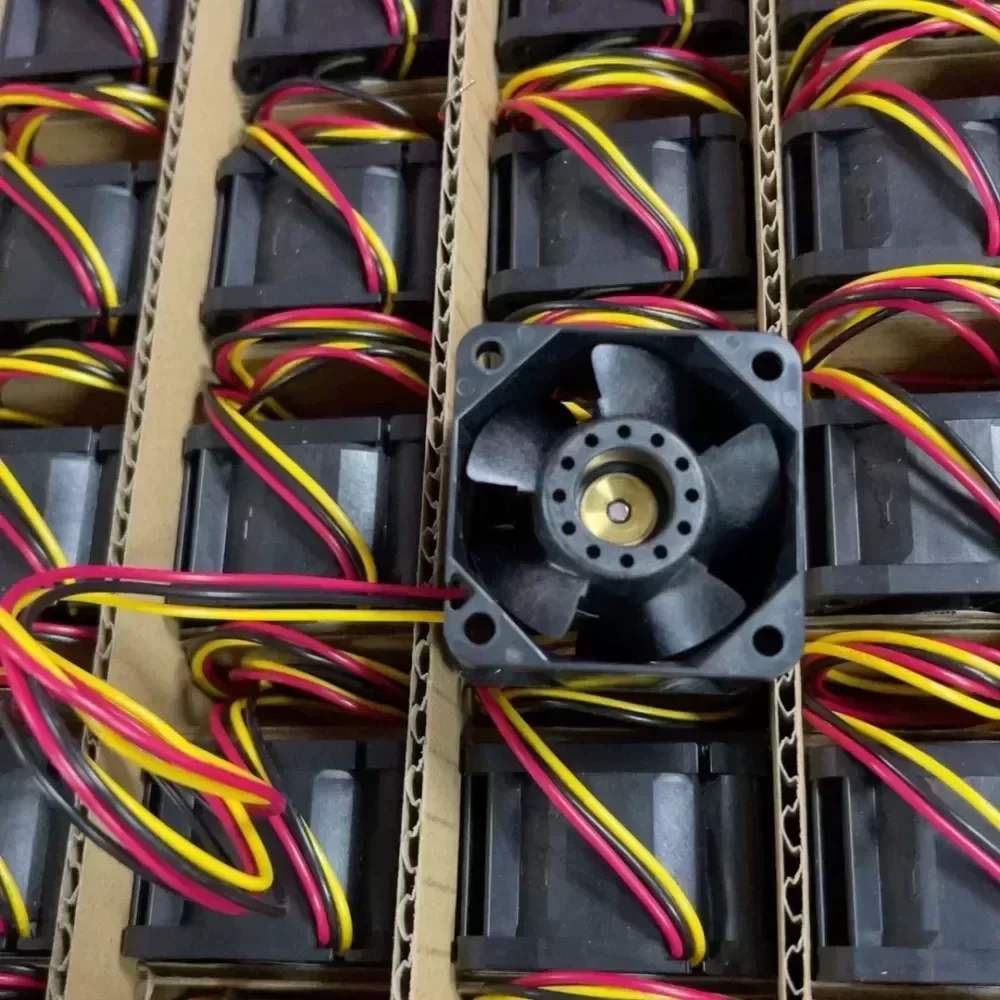

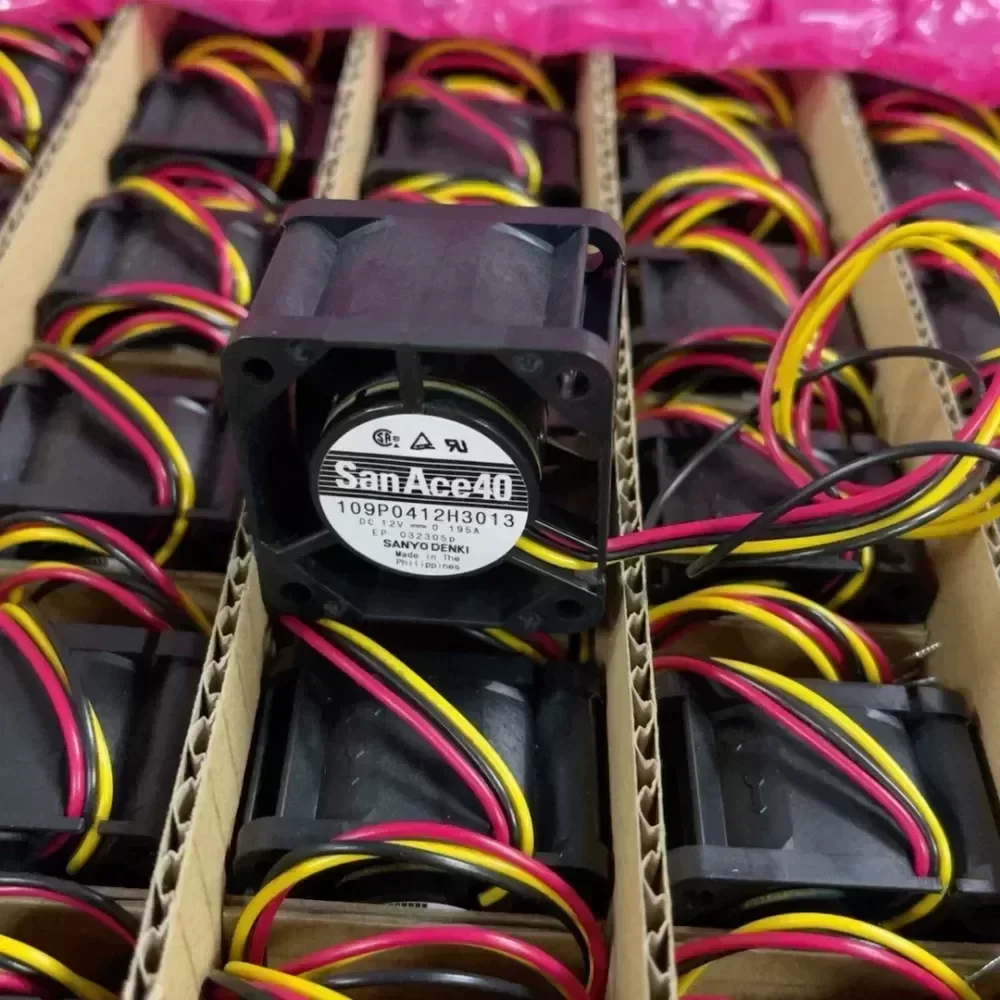

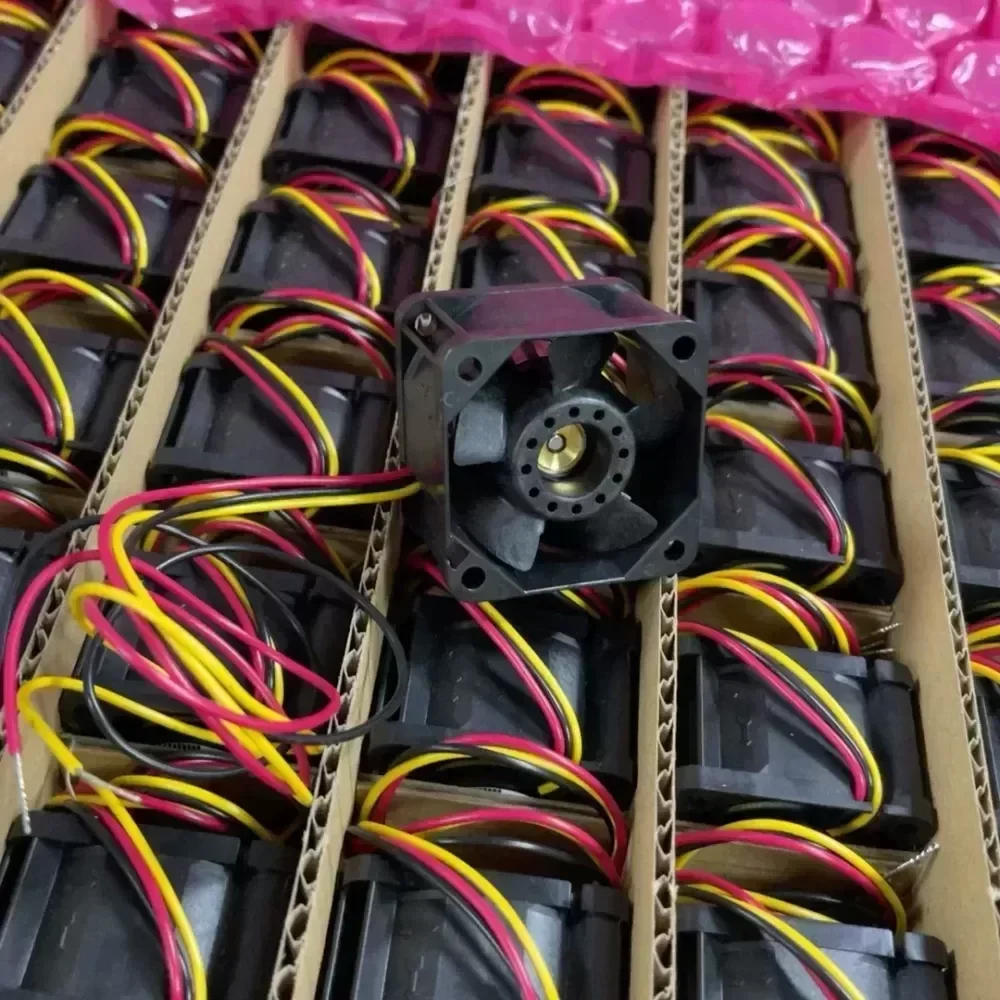

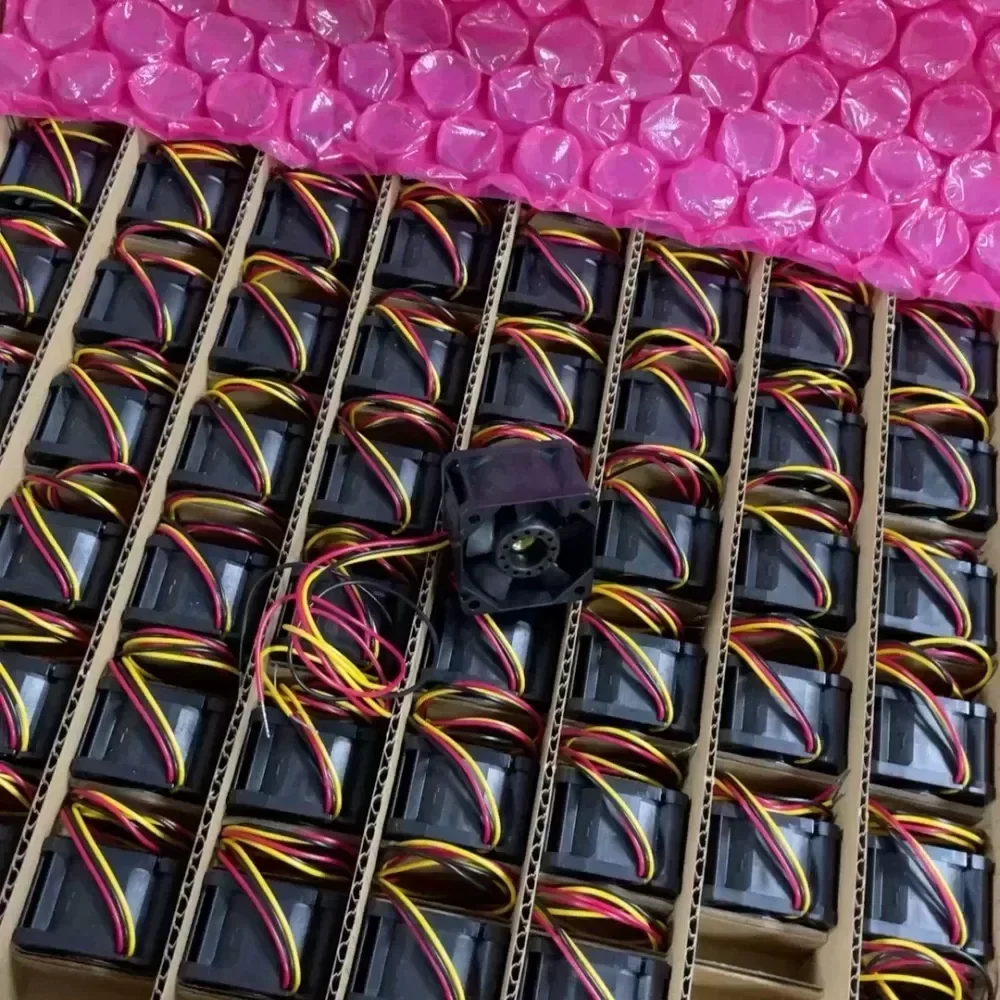

Sanyo Denki San Ace 40 (Model: 109P0412H3013) is a high-performance DC axial cooling fan engineered for continuous operation in dense electronic enclosures. Designed to deliver optimal thermal management, this 40x40x28mm component ensures stable airflow and static pressure for critical power supplies and chassis architectures.

Technical Specifications:
Brand: Sanyo Denki
Series: San Ace 40
Model Number: 109P0412H3013
Dimensions: 40mm x 40mm x 28mm
Rated Voltage: 12V DC
Operating Voltage Range: 10.2V to 13.8V DC
Rated Current: 0.195 A
Power Consumption: 2.34 W
Rotational Speed: 7400 RPM ± 10%
Maximum Airflow: 0.24 m³/min
Maximum Static Pressure: 45 Pa
Acoustic Noise: 32 dB(A)
Operating Temperature: -10°C to +70°C
Weight: 50 g

Engineering & Material Profile:
Frame Material: High-impact plastic (UL 94V-0)
Impeller Material: High-impact plastic (UL 94V-0)
Bearing System: Precision Dual Ball Bearing
Motor Protection: Locked rotor protection and reverse polarity protection
Termination: Lead wires

Industrial Application & Technical Compatibility:
The 109P0412H3013 is specifically engineered for 1U server chassis, industrial power supplies, telecommunications equipment, and compact automation controllers. Its high static pressure capability makes it ideal for forcing air through densely packed heat sinks and restrictive ventilation channels. Technical Compatibility is guaranteed for systems requiring standard 4028 form factors with 12V DC logic.

Procurement & Lifecycle Value:
Each unit undergoes rigorous pre-shipment testing to verify acoustic and aerodynamic performance, ensuring Original Engineering standards are met. With an optimized Lead Time, these brand-new, original components provide immediate drop-in replacement capability, minimizing downtime and extending the operational lifecycle of critical industrial infrastructure.

109P0412H3013 Sanyo SanAce40 fan

109P0412H3013 Sanyo SanAce40 fan

109P0412H3013 Sanyo SanAce40 fan

109P0412H3013 Sanyo SanAce40 fan

109P0412H3013 Sanyo SanAce40 fan

109P0412H3013 Sanyo SanAce40 fan

109P0412H3013 Sanyo SanAce40 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
