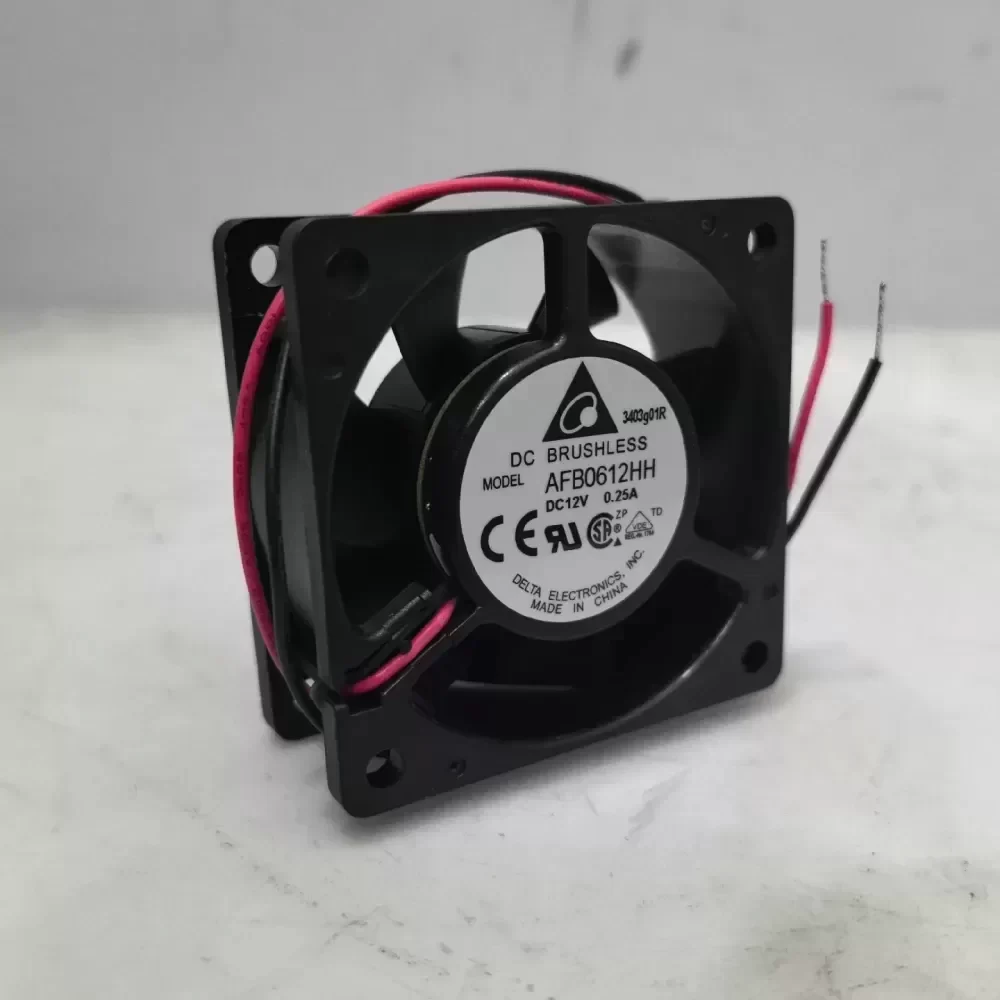

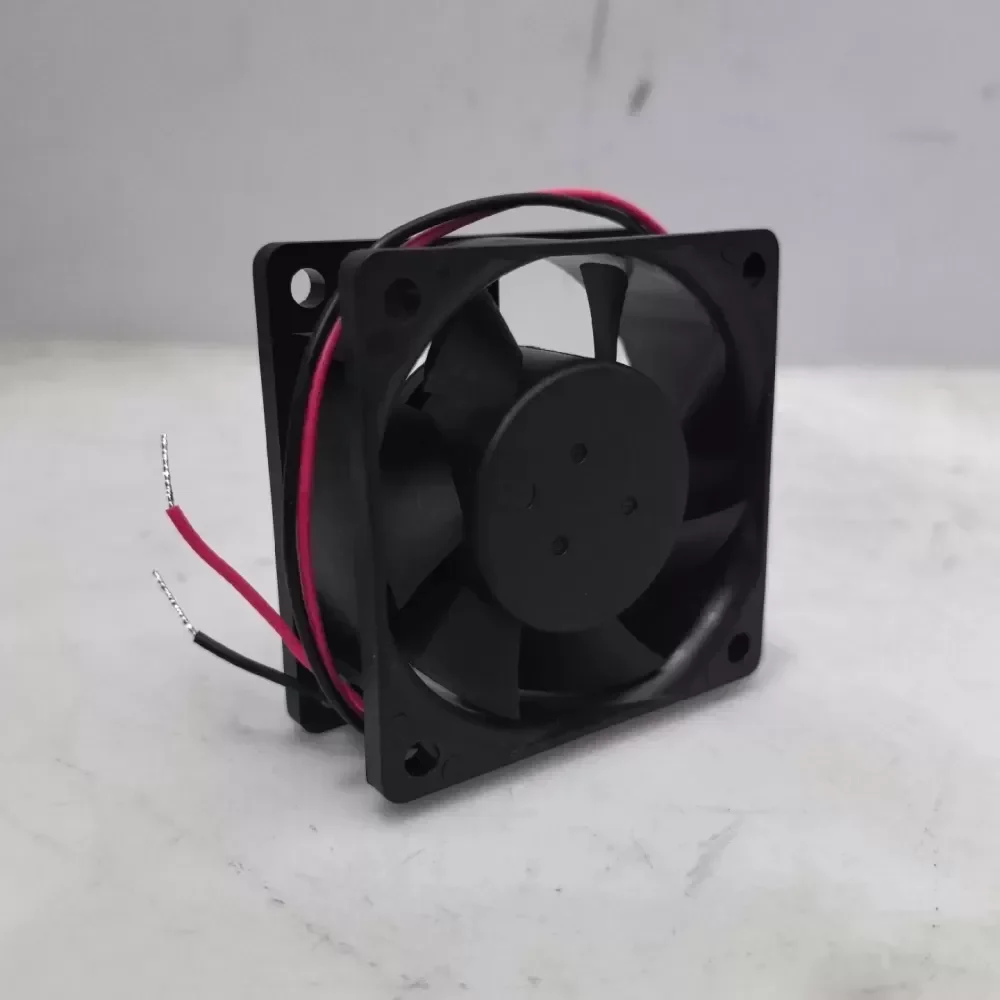

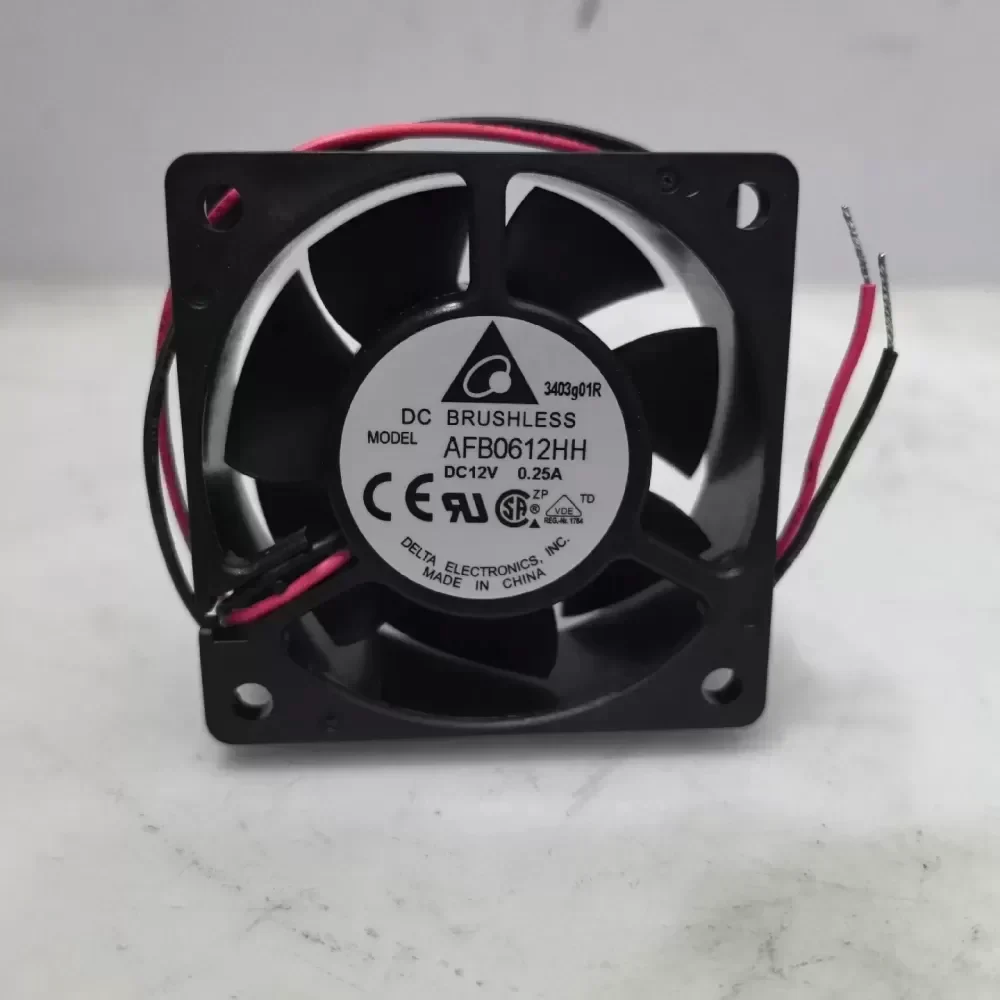

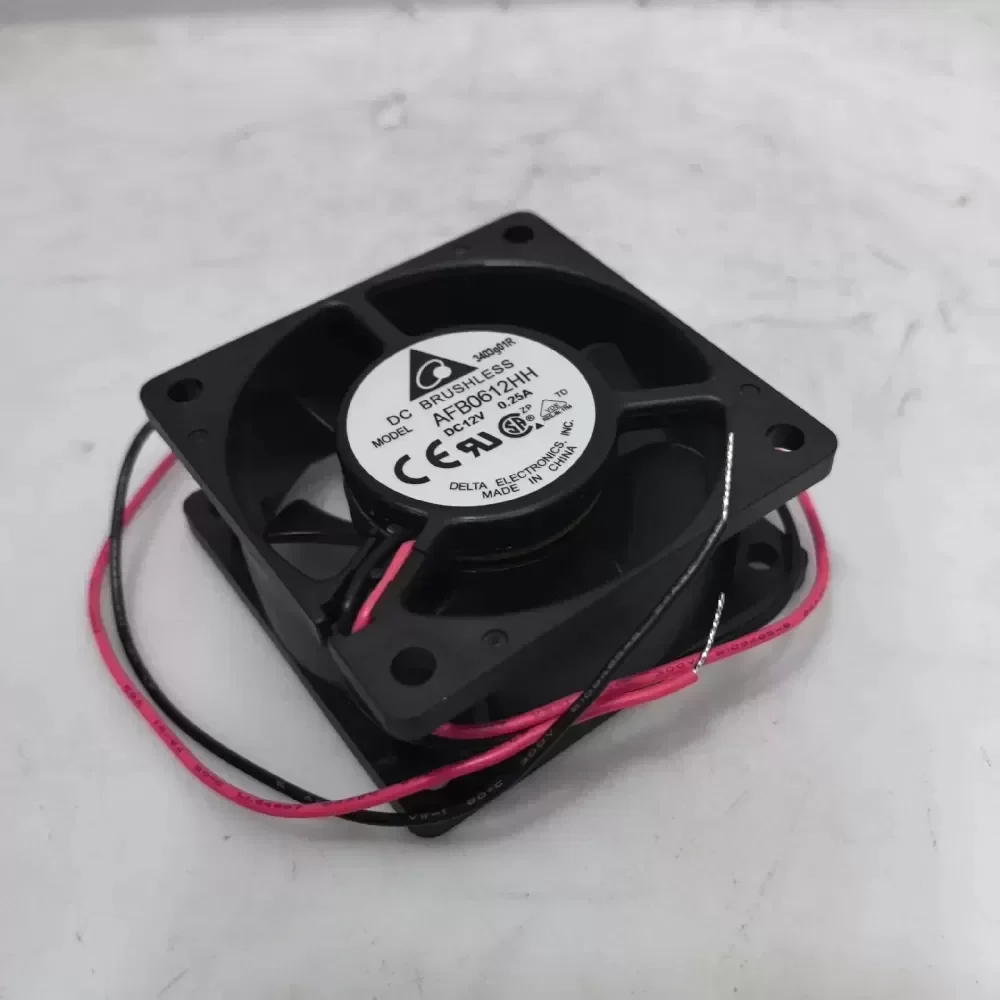

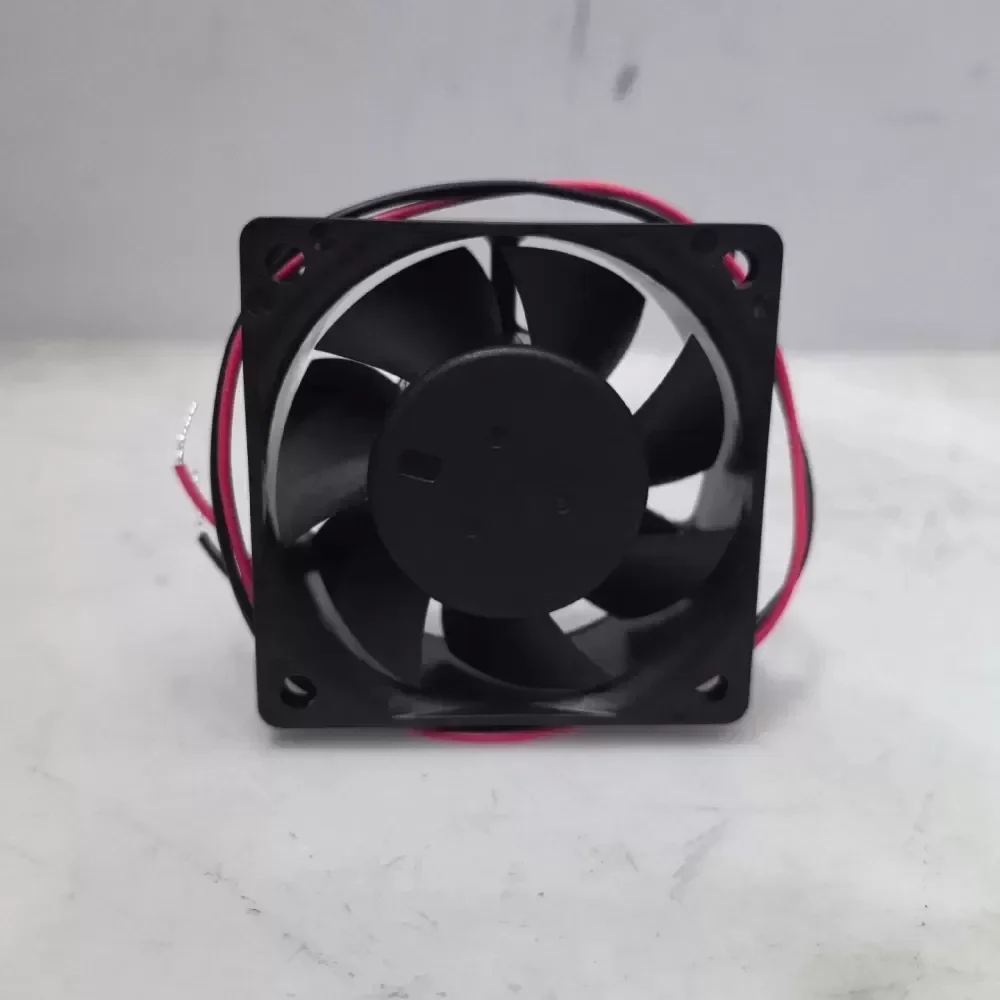

AFB0612HH Delta Fan 6025/12V silent fan
AFB0612HH Delta Fan 6025/12V silent fan
AFB0612HH Delta Fan 6025/12V silent fan
AFB0612HH Delta Fan 6025/12V silent fan
AFB0612HH Delta Fan 6025/12V silent fan
AFB0612HH Delta Fan 6025/12V silent fan

AFB0612HH Delta Fan 6025/12V silent fan

$3.14

SKU: 780824361671 Brand:

Description

The Delta Electronics AFB0612HH is a high-performance, industrial-grade DC axial cooling fan designed for continuous operation in thermally demanding environments. Engineered with a 60x60x25mm form factor, this component delivers optimal thermal management for compact electronic enclosures. Utilizing Original Engineering principles from Delta, the AFB series ensures maximum heat dissipation while maintaining structural integrity under continuous load.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: AFB0612HH
Dimensions: 60 x 60 x 25.4 mm (Ø 60mm)
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Input Current: 0.14A (0.20A Max)
Input Power: 1.68W
Rated Speed: 5000 RPM ± 10%
Maximum Airflow: 27.55 CFM (0.780 m³/min)
Maximum Static Pressure: 7.70 mmH2O
Acoustical Noise: 40.0 dB(A)
Bearing Type: Dual Ball Bearing
Material (Frame and Impeller): Plastic UL 94V-0
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 hours at 40°C
Weight: 80g

Industrial Application:
The AFB0612HH is specifically deployed in telecommunications routing equipment, industrial automation controllers, and compact server racks where localized heat buildup threatens system stability. The dual ball bearing architecture prevents lubricant degradation in high-temperature scenarios, ensuring a lifecycle that aligns with enterprise-grade maintenance schedules. Technical Compatibility is guaranteed for standard 12V DC headers on industrial motherboards and power supply units. With optimized supply chain logistics, we ensure minimal Lead Time for bulk procurement and emergency replacement of these critical thermal management components.

AFB0612HH Delta Fan 6025/12V silent fan

AFB0612HH Delta Fan 6025/12V silent fan

AFB0612HH Delta Fan 6025/12V silent fan

AFB0612HH Delta Fan 6025/12V silent fan

AFB0612HH Delta Fan 6025/12V silent fan

AFB0612HH Delta Fan 6025/12V silent fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
