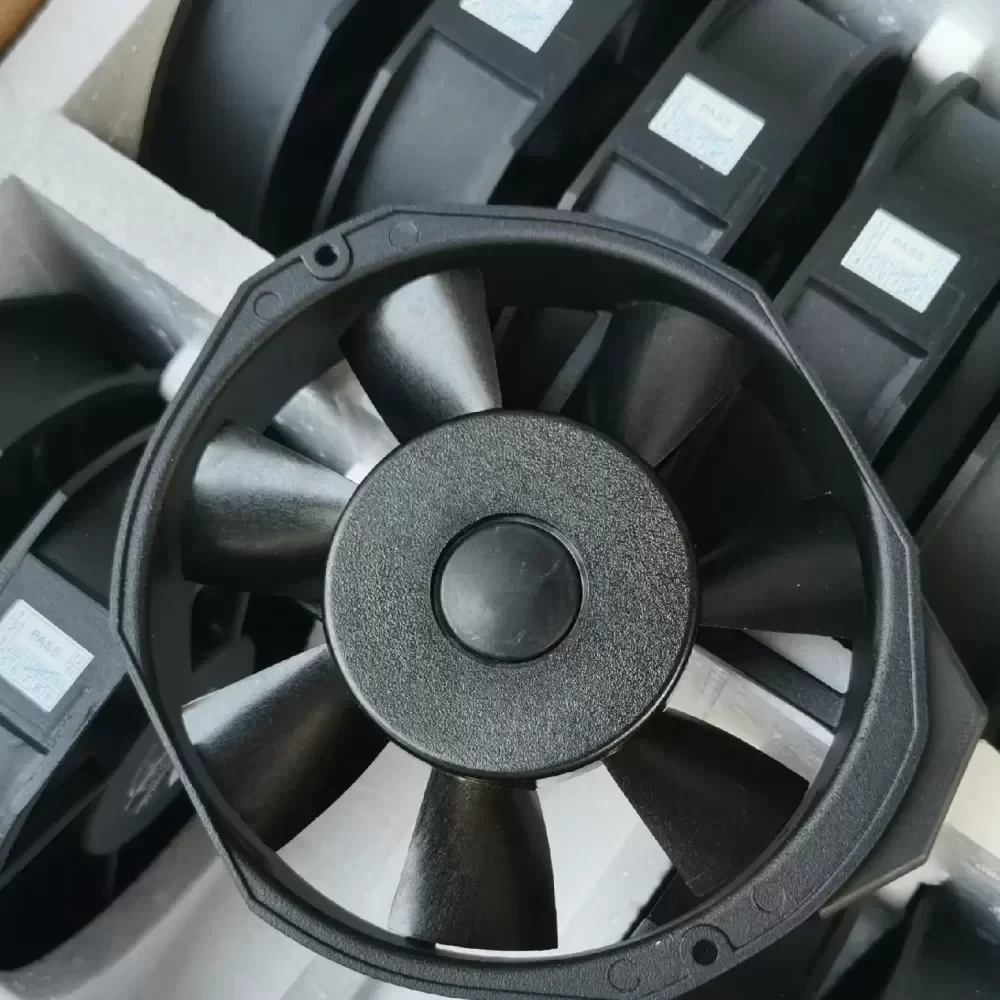

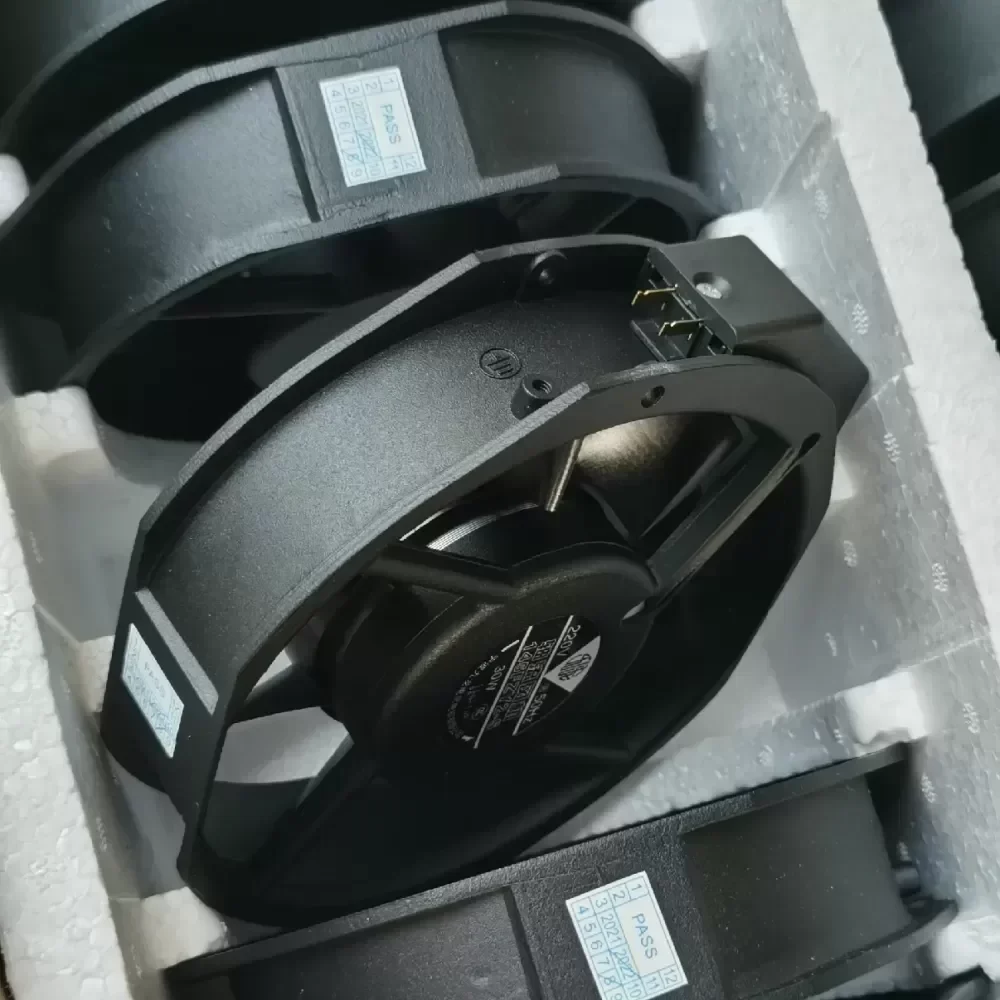

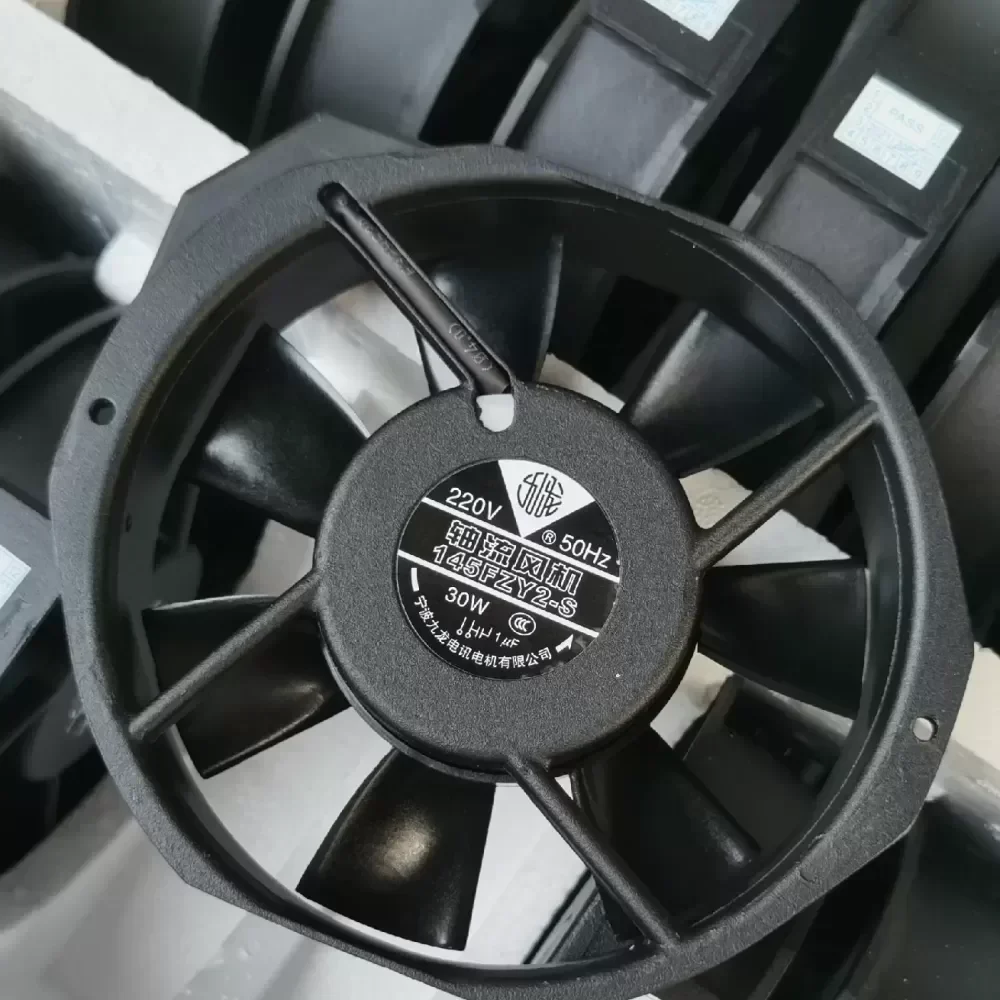

145FZY2-S Jiulong 17040/220V Welding machine fan
145FZY2-S Jiulong 17040/220V Welding machine fan
145FZY2-S Jiulong 17040/220V Welding machine fan
145FZY2-S Jiulong 17040/220V Welding machine fan

145FZY2-S Jiulong 17040/220V Welding machine fan

$7.86

SKU: 724815400000 Brand:

Description

The Jiulong 145FZY2-S is a heavy-duty AC axial cooling fan engineered for rigorous thermal management in industrial welding machines, CNC chassis, and electrical control cabinets. Utilizing original engineering principles, this 220V cooling unit delivers high-velocity airflow to prevent thermal degradation of critical power components such as IGBT modules, rectifiers, and high-frequency transformers.

Technical Specifications
Brand: Jiulong
Model Number: 145FZY2-S
Form Factor Code: 17040
Operating Voltage: 220V AC
Frequency: 50/60 Hz
Power Consumption: 35W
Nominal Current: 0.16A
Rotational Speed: 2600 ± 10% RPM
Maximum Airflow: 5.5 m³/min
Acoustic Noise Level: 50 dB(A)
Physical Dimensions: 170 x 150 x 40 mm
Mounting Hole Distance: Ø 162 mm
Motor Architecture: Single-phase shaded pole asynchronous motor (2-pole)
Bearing System: Industrial-grade bearing (S-type configuration)
Frame Material: Die-cast Aluminum Alloy with anti-corrosion finish
Impeller Material: Flame-retardant thermoplastic (UL94V-0)
Operating Temperature Range: -10°C to +65°C
Dielectric Strength: 1500V AC for 1 minute
Insulation Resistance: >500 Megohms at 500V DC
Weight: 0.85 kg

Industrial Application & Technical Compatibility
The 145FZY2-S is purpose-built for high-amperage inverter welding equipment (TIG/MIG/MMA) and densely populated automation chassis. In these harsh environments, rapid heat dissipation is critical to maintaining operational stability and preventing thermal throttling. The aerodynamic impeller design maximizes static pressure, effectively forcing ambient air through restrictive cabinet vents and dense aluminum heat sinks. Its exact 17040 dimension profile ensures seamless technical compatibility for direct drop-in replacement, minimizing equipment downtime during critical manufacturing cycles.

Procurement & Lifecycle Value
Sourced directly to guarantee original engineering integrity, this axial fan offers an extended operational lifecycle even in dust-prone, high-temperature manufacturing facilities. We provide a streamlined procurement process with an optimized lead time to support both urgent maintenance schedules and large-scale OEM assembly lines.

145FZY2-S Jiulong 17040/220V Welding machine fan

145FZY2-S Jiulong 17040/220V Welding machine fan

145FZY2-S Jiulong 17040/220V Welding machine fan

145FZY2-S Jiulong 17040/220V Welding machine fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
