Description

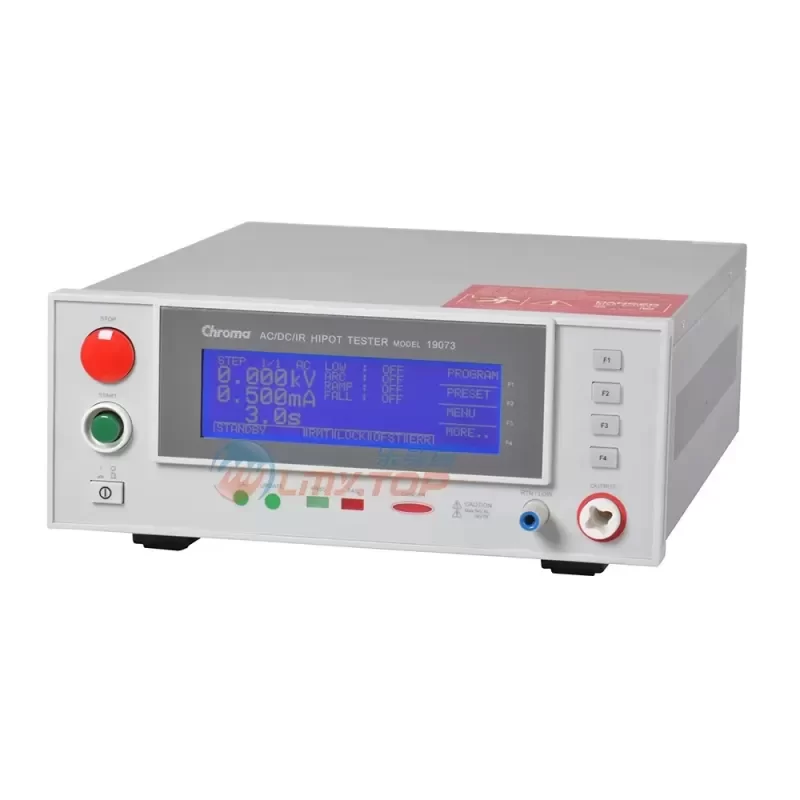

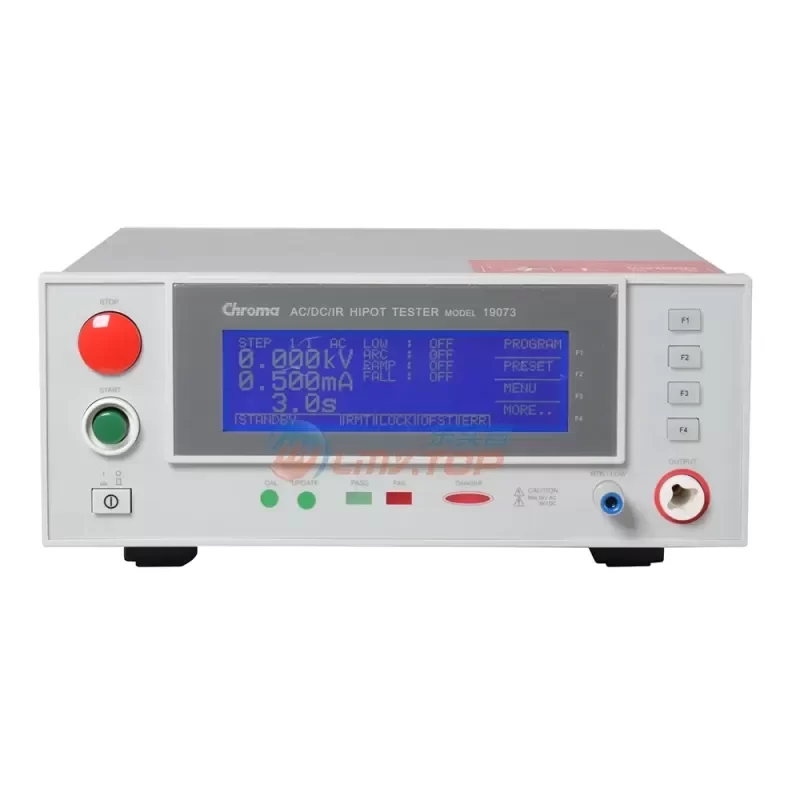

The Chroma 19073 and 19071 are advanced electrical safety compliance analyzers designed for rigorous quality assurance in manufacturing environments. The 19073 model is a comprehensive AC/DC/IR Hipot Tester, while the 19071 specializes in AC Hipot testing. Both units integrate Open Short Check (OSC) technology to prevent false passes caused by poor connections or damaged cables, ensuring absolute Technical Compatibility with automated production lines. Built with Original Engineering standards, these testers feature programmable voltage outputs, flashover detection, and Ground Fault Interrupt (GFI) to protect operators and sensitive components during high-voltage stress testing.
Technical Specifications:
Manufacturer: Chroma ATE
Model Series: 19073 (AC/DC/IR) and 19071 (AC)
AC Withstand Voltage Range: 0.05kV to 5.00kV AC
DC Withstand Voltage Range (19073): 0.05kV to 6.00kV DC
Insulation Resistance Range (19073): 1M Ω to 50G Ω
IR Test Voltage: 50V to 1000V DC
Voltage Resolution: 2V
Current Measurement Range: 0.001mA to 30.0mA (AC) / 10.0mA (DC)
Test Time Range: 0.3s to 999s
Display: High-contrast LCD

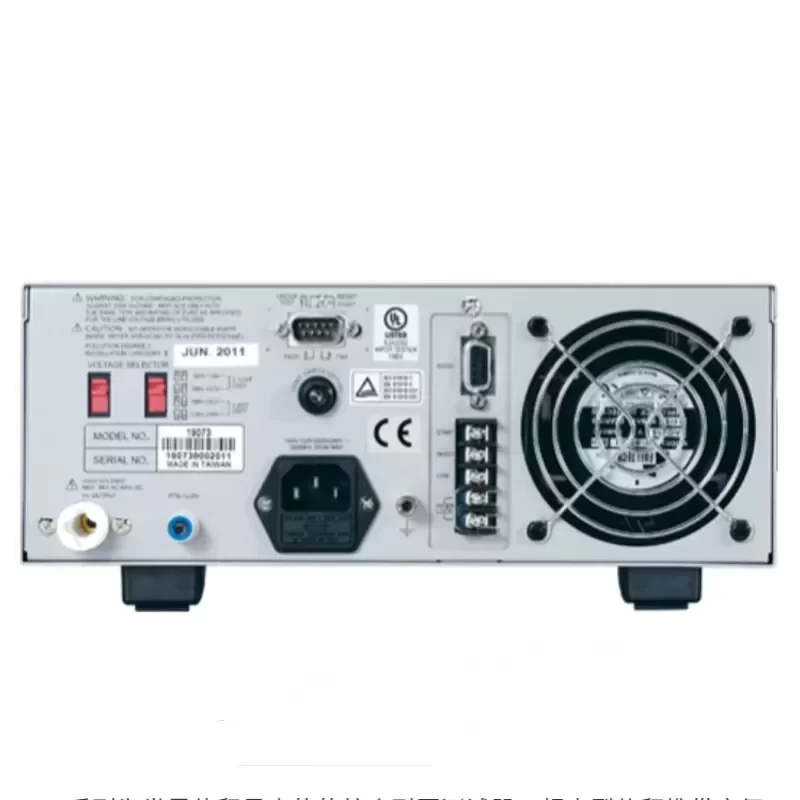

Communication Interface: RS-232, Handler, Optional GPIB
Operating Temperature: 0°C to 40°C
Input Power: 115V/230V AC ± 15%, 50/60Hz
Dimensions: 320mm x 105mm x 400mm
Weight: 14.0 kg
Industrial Application:
These electrical safety testers are engineered for end-of-line compliance testing of power transformers, medical devices, electric vehicle (EV) components, and consumer electronics. The integration of OSC and flashover detection solves the critical problem of transient dielectric breakdowns that standard testers miss, preventing field failures in high-reliability aerospace and medical hardware. Procurement of these units ensures minimized Lead Time for production scaling while maintaining strict adherence to IEC, UL, and TUV electrical safety standards.
Key Attributes
Place of origin: China
Customized support: OEM, ODM
Power: Electronic
Brand name: Chroma
Warranty: 1 years
Model number: 19073
Product name: Chroma Hipot Teste
Model: 19073
Output Voltage: AC : 0.05 ~ 5kV, DC : 0.05 ~ 6kV
Load Regulation: 26.4555(1%+5V)
Voltage Resolution: 2V
Voltage Accuracy: 1% of setting + 5 count
Cutoff Current: AC : 0.1~20mA, DC : 0.01 ~ 5mA
Current Resolution: AC : 1uA, DC : 0.1uA
Current Accuracy: ±(1.5% of reading + 5 counts)
Output Frequency: 50Hz / 60Hz
Packaging and Delivery
Packaging Details: Cardboard box
Port of dispatch: Shenzhen, China
Selling Units: Single item
