Description

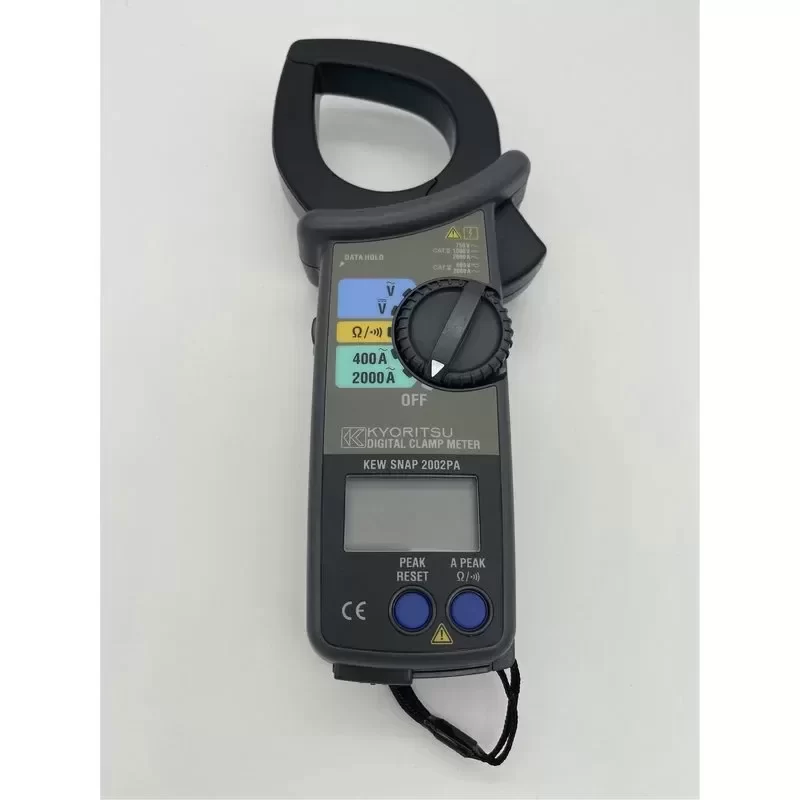

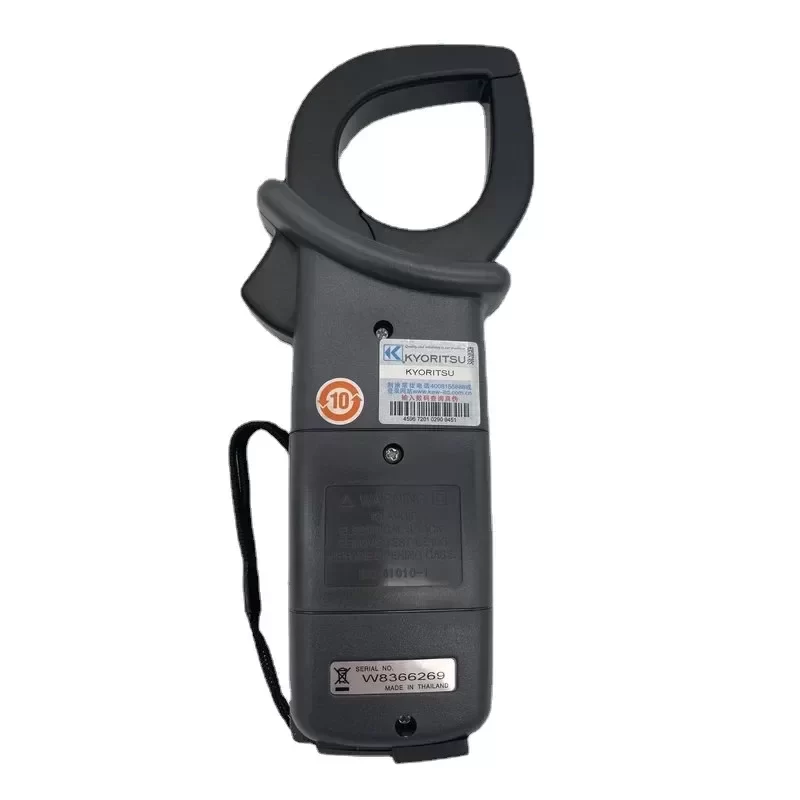

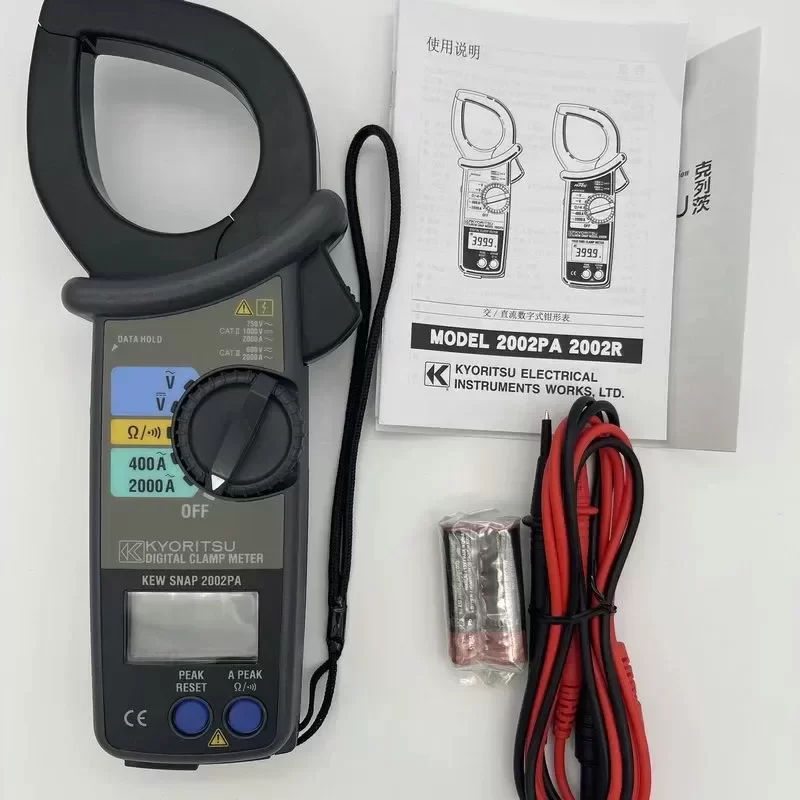

The Kyoritsu 2002PA is a professional-grade digital AC clamp meter engineered for heavy-duty electrical diagnostics and high-current industrial applications. Designed with Original Engineering principles, this instrument features a large tear-drop shaped jaw mechanism capable of accommodating conductors up to Ø55mm, ensuring Technical Compatibility with thick industrial cables and crowded distribution panels. It accurately measures AC current up to 2000A and handles both AC and DC voltage up to 1000V, making it an essential diagnostic tool for utility maintenance, HVAC systems, and large-scale manufacturing plant inspections. The unit includes a dynamic output terminal for direct connection to external recorders, facilitating long-term power monitoring. With an optimized Lead Time for global procurement, the 2002PA ensures minimal downtime for critical electrical maintenance operations.
Technical Specifications:
Measurement Type: AC Current, AC/DC Voltage, Resistance
Maximum AC Current: 2000A (Ranges: 400A / 2000A)
Maximum AC Voltage: 1000V
Maximum DC Voltage: 1000V
Resistance Range: 400 Ω to 4000k Ω
Maximum Conductor Size: Ø55mm
Safety Category: IEC 61010-1 CAT IV 600V, CAT III 1000V
Frequency Response: 40Hz to 1kHz
Continuity Buzzer: Active below 50 ± 35 Ω
Data Output: Analog output for chart recorders
Power Supply: 2 x R6 (AA) 1.5V Batteries
Dimensions: 247(L) x 105(W) x 49(D) mm
Weight: 470g
Application Scenario:
The Kyoritsu 2002PA is specifically deployed in heavy industrial substations and commercial power distribution grids. Its ability to safely clamp around Ø55mm busbars and cables while measuring up to 2000A allows maintenance engineers to perform live-load monitoring and fault diagnostics on high-capacity transformers and three-phase motor drives without interrupting critical facility operations.
Key Attributes
Measuring Voltage Range: 1000V
Place of Origin: Japan
Model Number: 2002PA
Brand Name: Kyoritsu
Dimensions: 116 x 68.5 x 30mm
Display Type: Digital Only
Measuring Capacitance Range: ,
Measuring Current Range: 20 A, 200 A, 200 A, 2000A
Measuring Inductance Range: ,
Measuring Resistance Range: 100 kΩ minimum
Operating Temperature: -10 to 50°C
Weight: 200g
Product name: Kyoritsu
Model: 2002PA
Current Ranges: Current Ranges 20 A, 200 A, 200 A , 2000A
Output Sensitivity (AC-coupled): 100 mV, 10 mV, 1 mV, 1 mV per A
Load Impedance: 100 kΩ minimum
Accuracy: At 25°C ±1%
Frequency Range: 10 Hz to 20 kHz (-3 dB)
Output Connection: Molded 4mm safety plugs (not integrated)
Dimensions: 116 x 68.5 x 30mm
Packaging and Delivery
Packaging Details: Cardboard box
Port of dispatch: Shenzhen, China
Selling Units: Single item
