UNI-T UT105+ UT107+ Automotive Multimeters

Description

The UNI-T UT105+ and UT107+ series are high-precision automotive digital multimeters engineered for professional vehicle diagnostics and electrical system maintenance. These instruments integrate standard multimeter functions with specialized automotive measurement capabilities, including Dwell angle and Tachometer (RPM) monitoring for internal combustion engines. The UT107+ model features a 6000-count display and VFC (Variable Frequency Control) for accurate measurement in complex electromagnetic environments. Both units are built with Original Engineering standards to withstand the rigors of industrial garage environments.

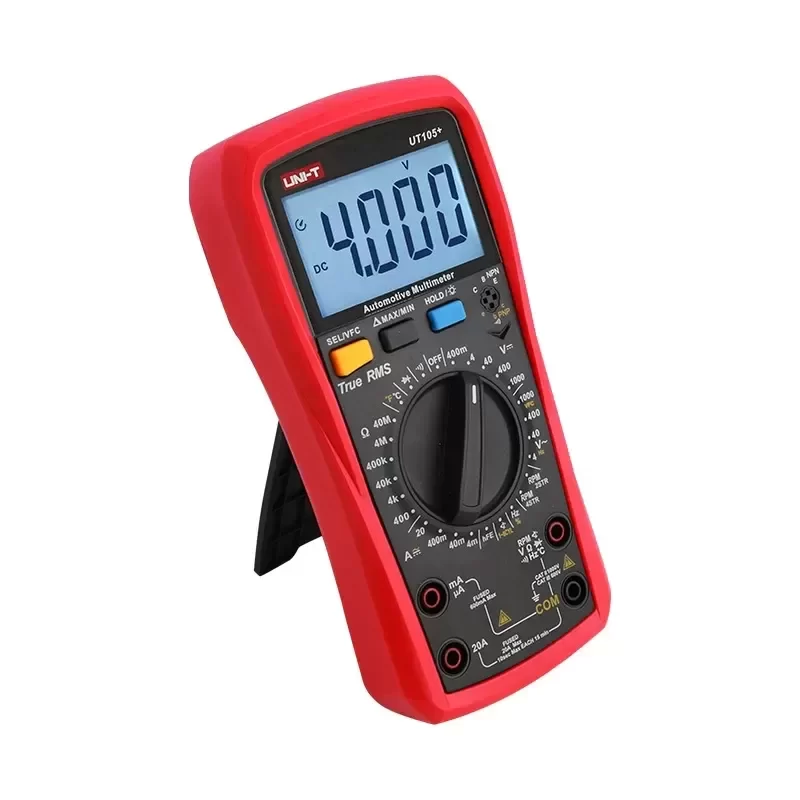

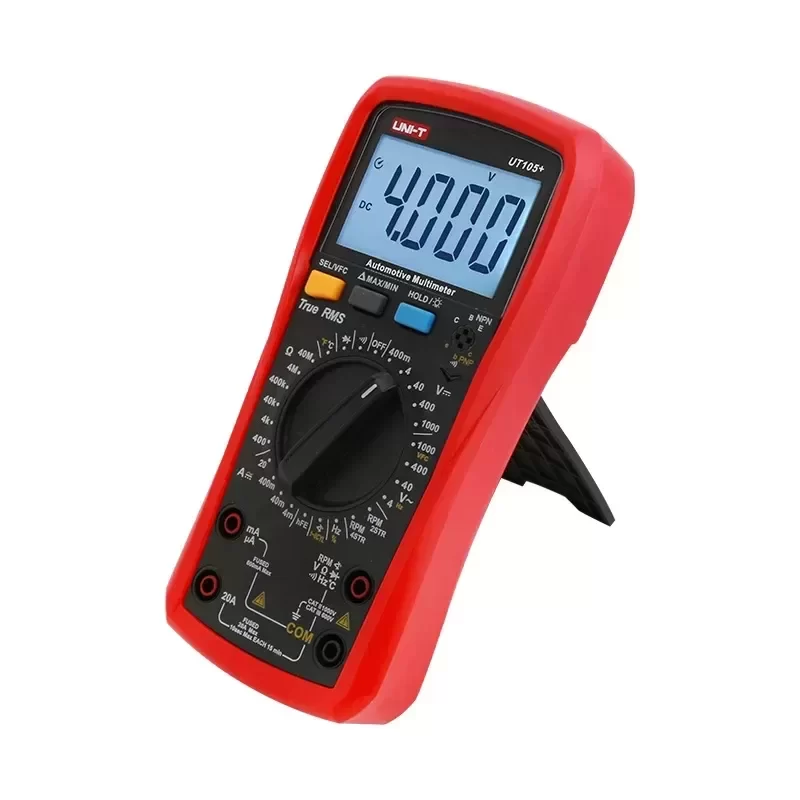

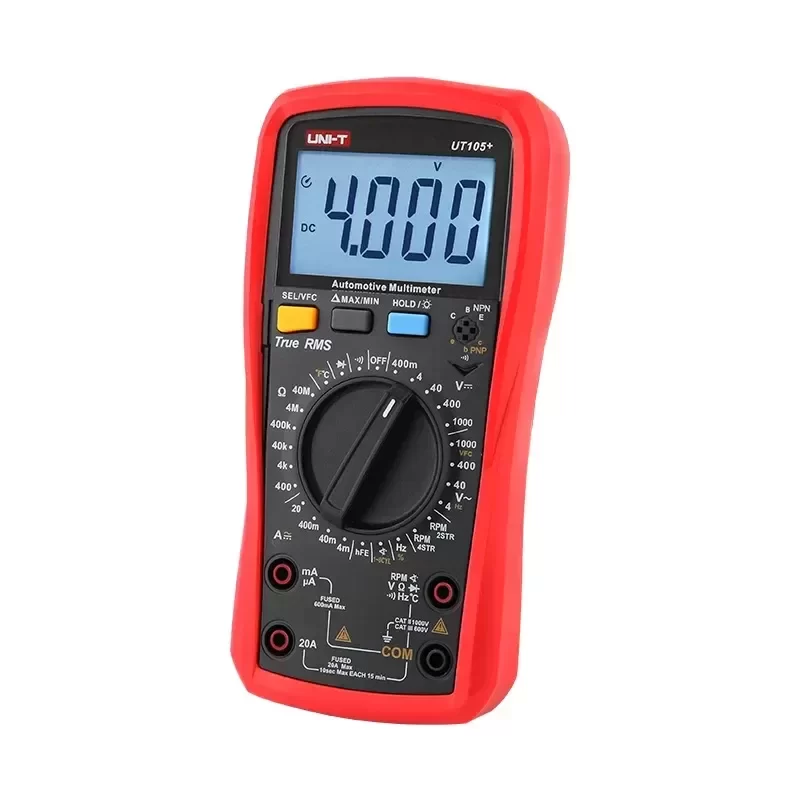

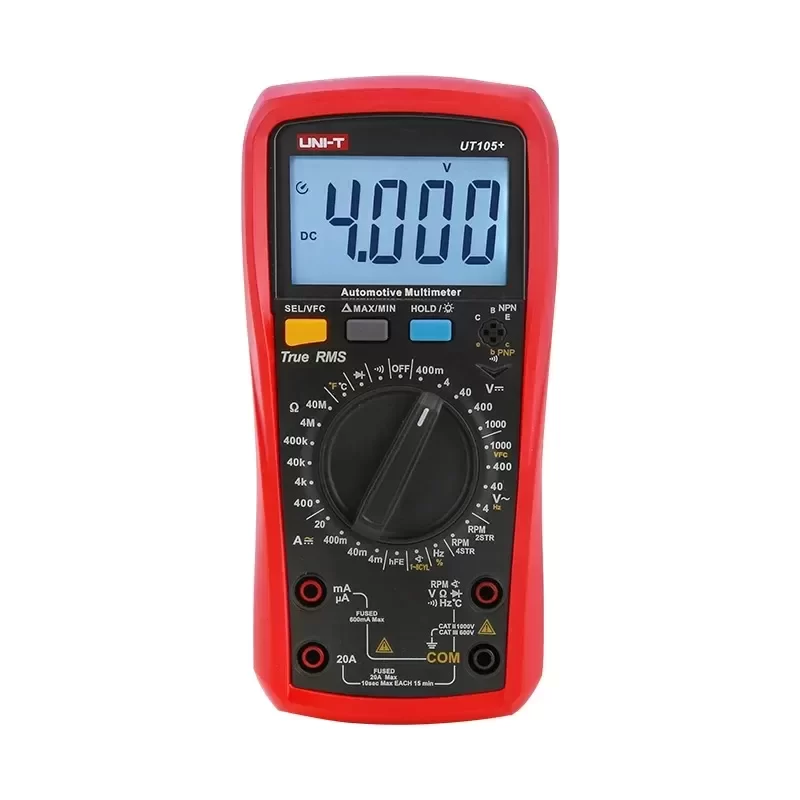

Technical Specifications UT105+
Display Count: 4000
DC Voltage: 400mV, 4V, 40V, 400V, 1000V (±0.5%+3)
AC Voltage: 4V, 40V, 400V, 1000V (±0.8%+3)
DC Current: 4mA, 40mA, 400mA, 10A (±1.0%+2)
Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (±0.8%+2)
Frequency: 10Hz to 1MHz (±0.1%+4)
Dwell Angle: 1CYL to 8CYL (±3.0%+5)
Tachometer: 2STR/4STR 600 to 12000 RPM (±3.0%+5)
Safety Rating: CAT II 1000V, CAT III 600V

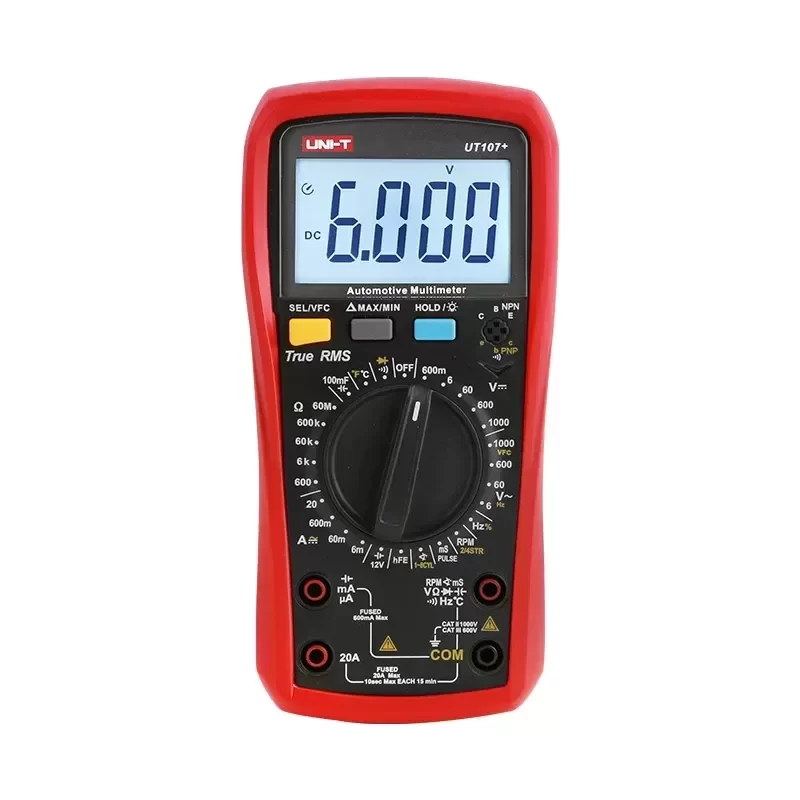

Technical Specifications UT107+
Display Count: 6000
DC Voltage: 600mV, 6V, 60V, 600V, 1000V (±0.5%+3)
AC Voltage: 6V, 60V, 600V, 1000V (±0.8%+3)
AC/DC Current: 600uA, 6000uA, 60mA, 600mA, 10A (±1.0%+3)
Resistance: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ (±0.8%+2)
Capacitance: 6nF, 60nF to 100mF (±3.0%+5)
Frequency: 10Hz to 10MHz (±0.1%+4)
Temperature: -40°C to 1000°C (±1.0%+3)
VFC Range: 600V (±2.0%+10)
Safety Rating: CAT II 1000V, CAT III 600V

Physical and Operational Parameters
Power Supply: 1.5V Battery (R03) x 2
Display Dimensions: 63mm x 52mm
Product Weight: 348g
Product Dimensions: 183mm x 88mm x 56mm
Operating Temperature: 0°C to 40°C
Storage Temperature: -10°C to 50°C
Technical Compatibility: Compatible with standard inductive pickups and K-type thermal probes
Data Hold: Included
Backlight: Included
Auto Range: UT107+ (Manual Range UT105+)

Industrial Application
These multimeters are essential for diagnosing parasitic battery drain, verifying alternator output stability, and calibrating ignition timing via Dwell and RPM measurements. The UT107+ VFC function is specifically designed for troubleshooting modern automotive systems utilizing pulse-width modulation (PWM) or variable frequency drives. Lead Time for procurement is subject to regional distribution availability. Each unit is calibrated to ensure high-fidelity data acquisition in mission-critical fleet maintenance scenarios.

Key Attributes
Measuring Current Range: 20A
Measuring Voltage Range: 1000V
Place of Origin: China
Model Number: UT105+
Brand Name: UNI-T
Dimensions: 183 x 88 x 56mm
Measuring Capacitance Range: 0-9999
Measuring Inductance Range: 6nF - 100mF
Measuring Resistance Range: 0-60MΩ
Operating Temperature: -25~45
Product Name: UNI-T
Model: UT105+
AC/DC voltage (V): 1000V
AC/DC current (A): 20A
Resistance (Ω): 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
Frequency (Hz): 10Hz~10MHz
Temperature (℃): -40℃~1000℃
Pulse width: 999.9mS
Product size: 183 x 88 x 56mm
Product net weight: 250g

Packaging and Delivery
Packaging Details: Cardboard box
Port of dispatch: Shenzhen, China
Selling Units: Single item
