$9.14

SKU: 855029643024 Brand:

Description

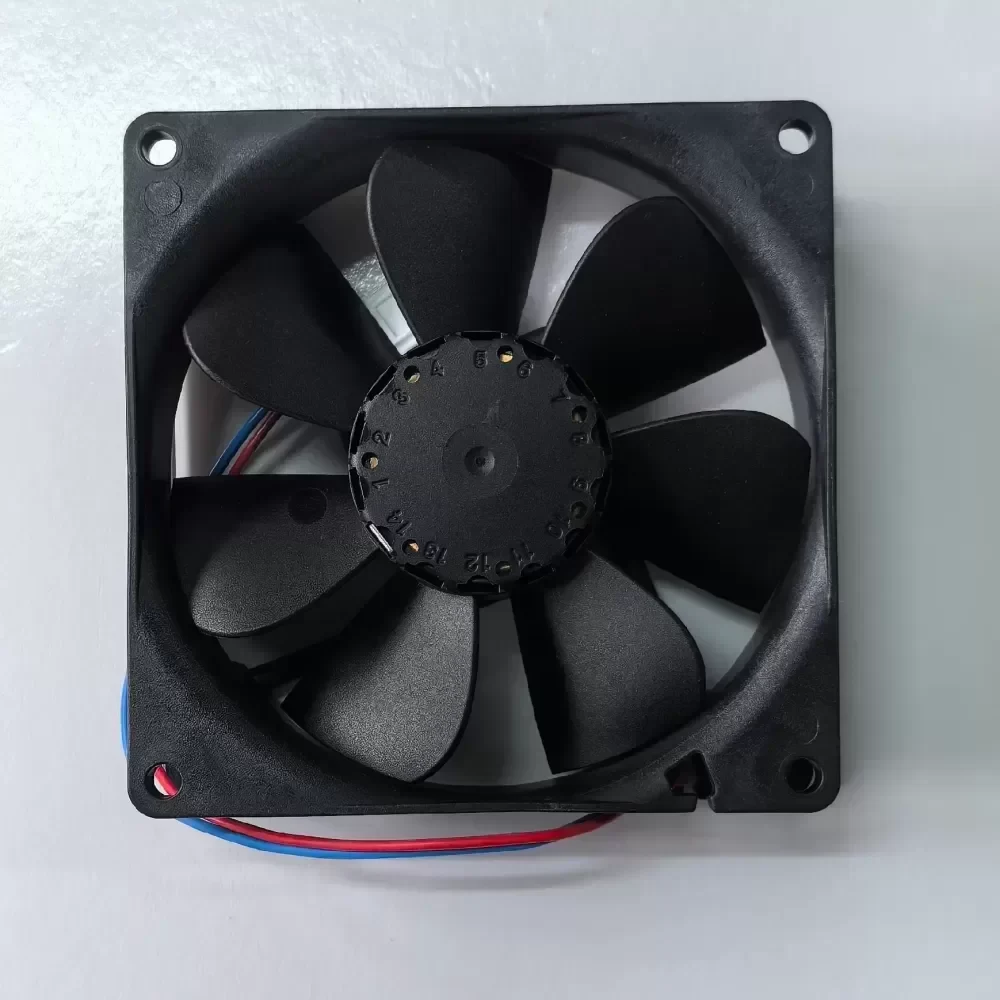

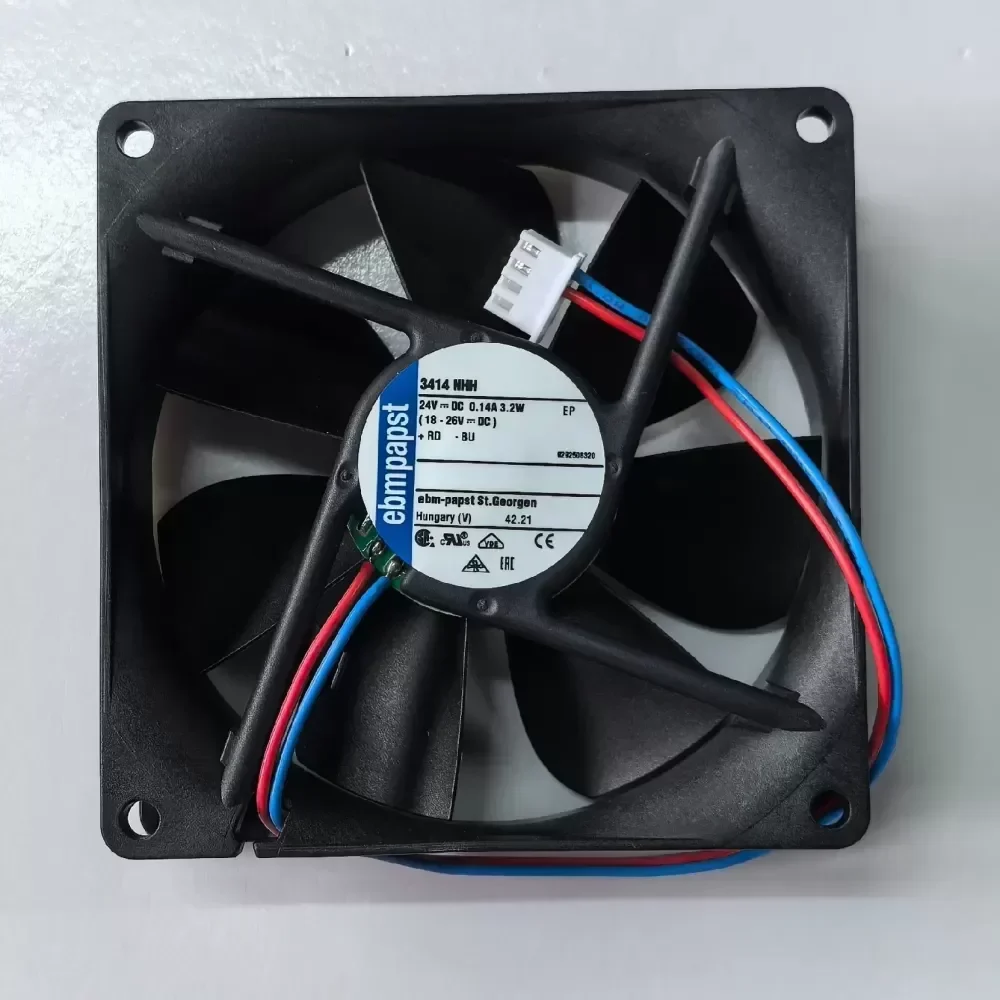

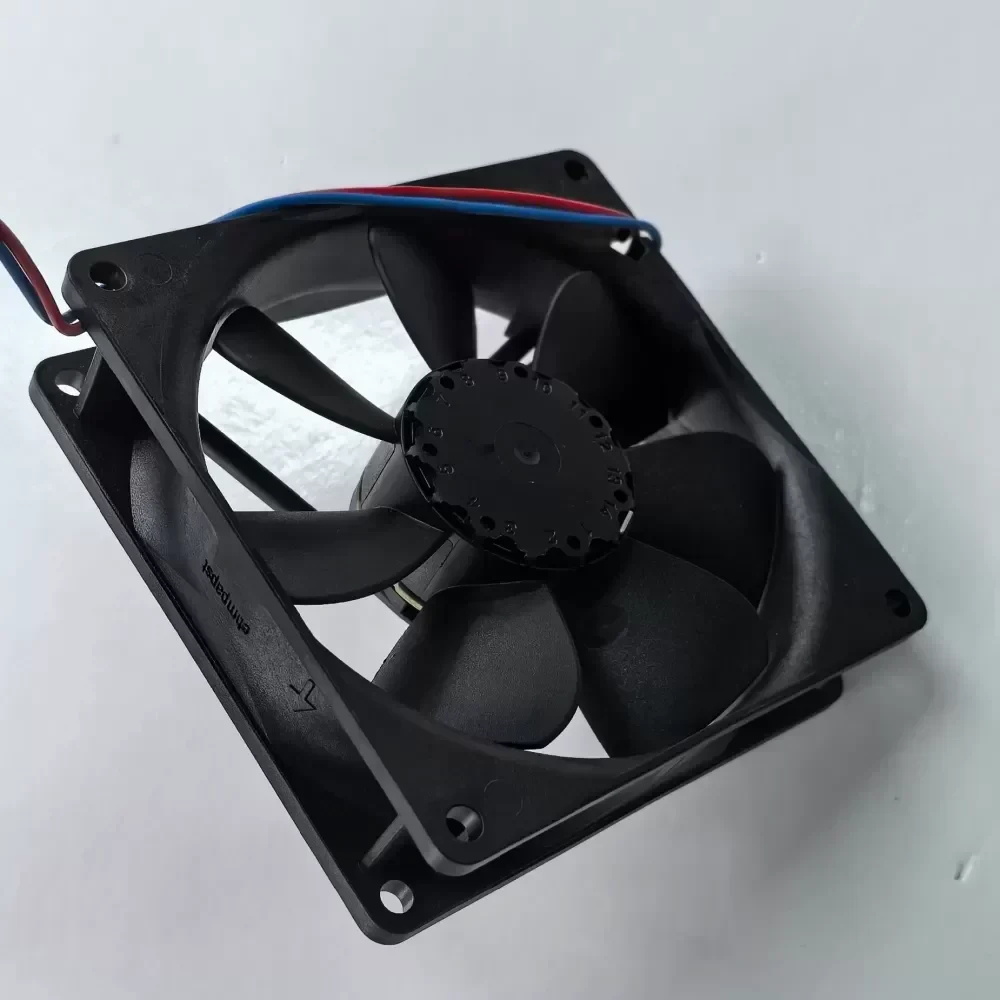

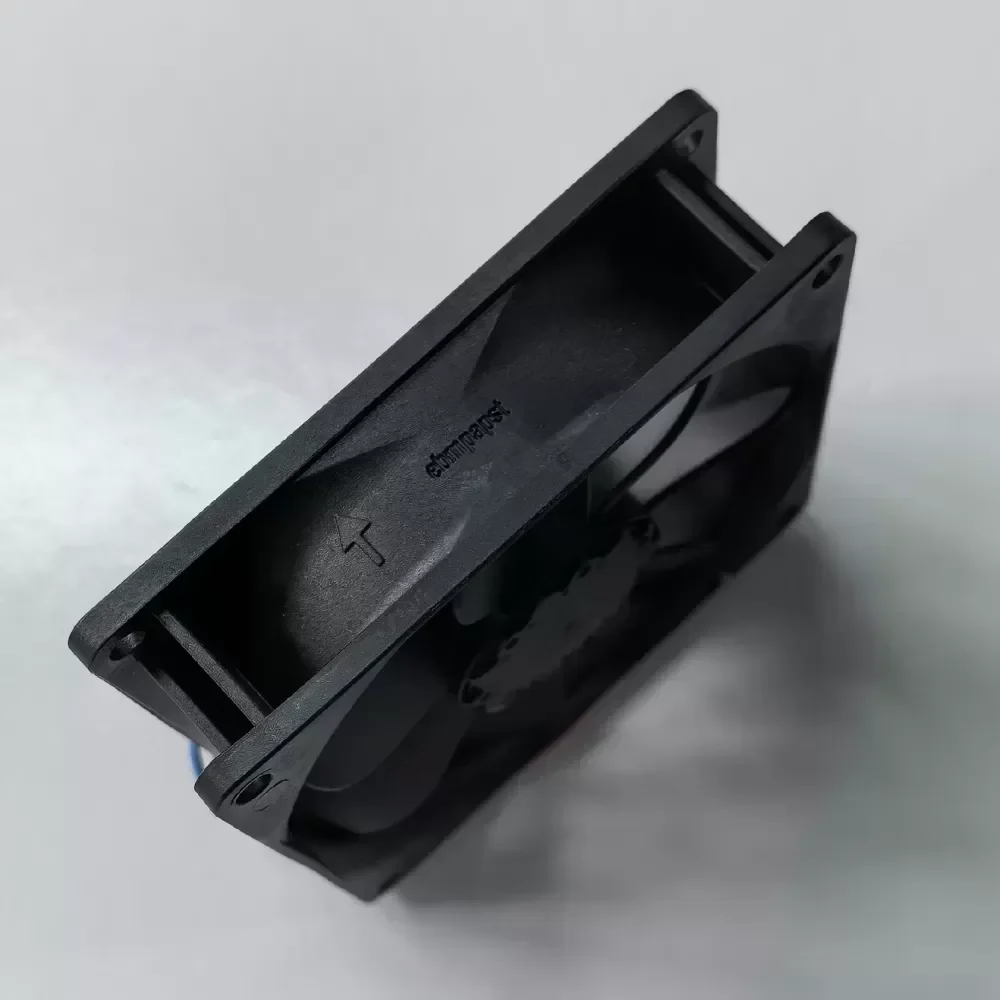

The EBM-Papst 3414NHH is a premium-grade DC axial fan engineered for high-efficiency thermal management in industrial automation and power electronics. Designed with Original Engineering standards, this 92x92x25mm compact cooling solution delivers exceptional airflow while maintaining an optimized acoustic profile, making it ideal for inverter cooling, telecommunications, and drive systems. Built with advanced aerodynamics and a robust electronically commutated external rotor motor, the 3414NHH ensures continuous, reliable operation in demanding environments.

Technical Specifications:
Brand: EBM-Papst
Model Number: 3414NHH
Fan Type: DC Axial Fan
Nominal Voltage: 24 VDC
Operating Voltage Range: 18 – 28 VDC
Dimensions: 92 x 92 x 25 mm
Airflow: 102 m³/h
Power Consumption: 3.2 W
Nominal Speed: 3250 RPM
Acoustic Noise: 39 dB(A)
Bearing System: Precision Ball Bearing
Housing Material: Fiberglass-reinforced PBT plastic
Impeller Material: Fiberglass-reinforced PA plastic
Weight: 0.100 kg
Operating Temperature Range: -20°C to +70°C
Protection Class: Reverse polarity and locked-rotor protection
Connection Type: Single-wire AWG 24, TR 64

Industrial Application and Lifecycle Value:
The 3414NHH is specifically designed to solve critical thermal bottlenecks in high-density electronic enclosures, variable frequency drives (VFDs), and solar inverters. Its precise Technical Compatibility with standard 92mm mounting profiles allows for seamless integration into existing system architectures. By utilizing wear-free electronic commutation and premium ball bearings, this fan significantly extends the maintenance intervals of the host equipment. We ensure a streamlined procurement process with optimized Lead Time, providing authentic components to minimize downtime and safeguard your critical infrastructure against thermal degradation.

3414NHH New EBM 9225/24V Fan

3414NHH New EBM 9225/24V Fan

3414NHH New EBM 9225/24V Fan

3414NHH New EBM 9225/24V Fan

3414NHH New EBM 9225/24V Fan

3414NHH New EBM 9225/24V Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
