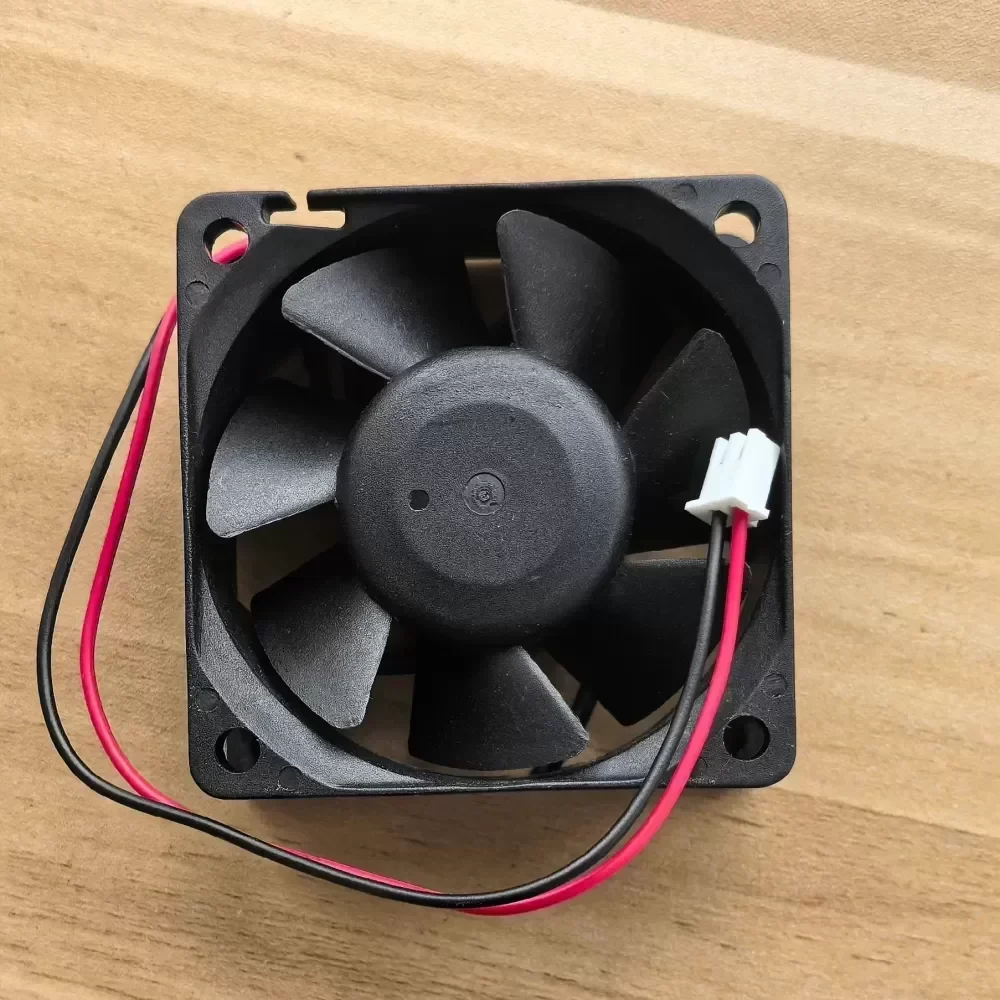

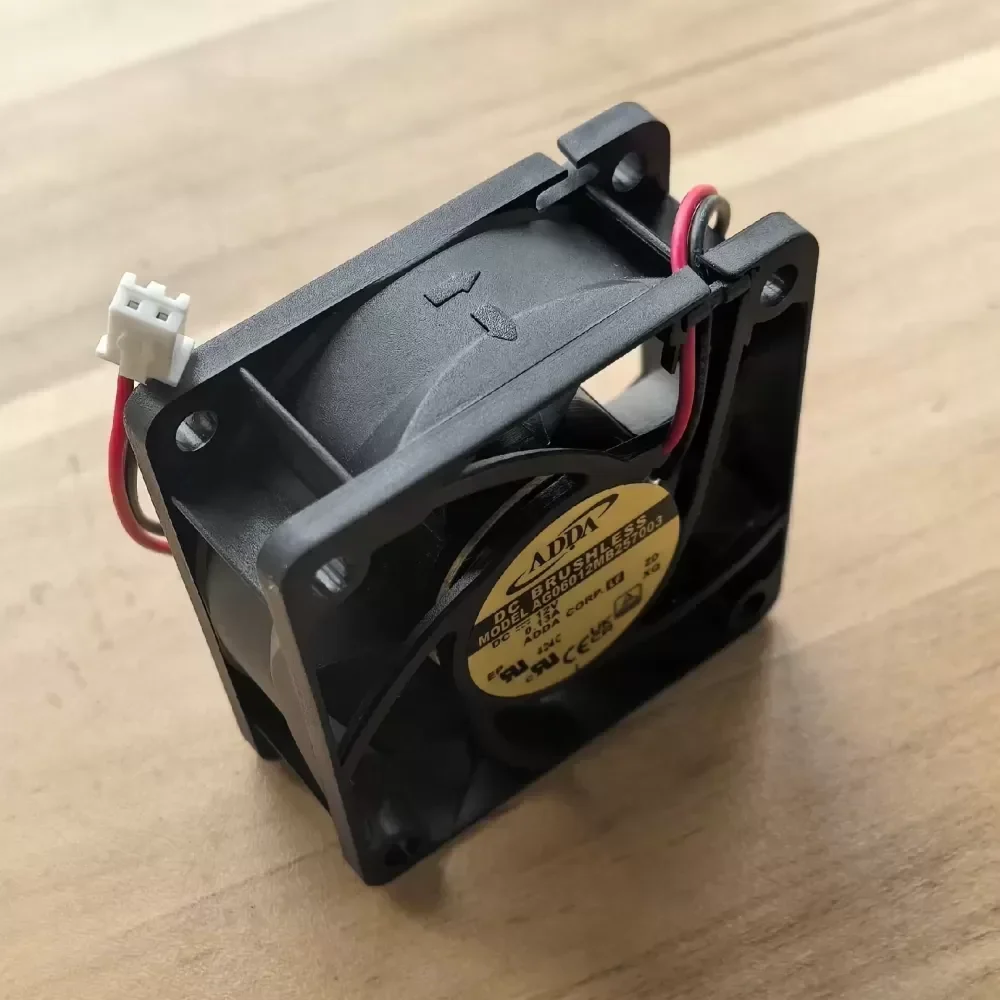

AG06012MB257003 New ADDA 6025/12V fan
AG06012MB257003 New ADDA 6025/12V fan
AG06012MB257003 New ADDA 6025/12V fan

AG06012MB257003 New ADDA 6025/12V fan

$2.57

SKU: 861399447544 Brand:

Description

The ADDA AG06012MB is a precision-engineered 60mm DC axial cooling fan designed for continuous-duty thermal management in compact industrial electronics. Manufactured under strict Original Engineering standards, this 6025 form factor (60x60x25mm) component utilizes a high-durability dual ball bearing system to ensure extended lifecycle performance and minimal friction degradation. Engineered for silent operation without compromising volumetric airflow, it provides optimal Technical Compatibility for telecommunications equipment, embedded computing, and automated control cabinets requiring reliable heat dissipation.

Technical Specifications:
Manufacturer: ADDA Corporation
Model Number: AG06012MB
Frame Dimensions: 60 x 60 x 25 mm (Ø 60mm)
Rated Voltage: 12V DC
Operating Voltage Range: 10.8V to 13.2V DC
Rated Current: 0.14 A
Power Consumption: 1.68 W
Nominal Speed: 3900 RPM ± 10%
Maximum Airflow: 0.51 m³/min (18.0 CFM)
Acoustic Noise: 28.0 dB(A)
Bearing Type: Dual Ball Bearing
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 hours at 40°C
Weight: 65 g
Termination: Wire Leads

Industrial Application:
The AG06012MB is specifically deployed in densely packed PLC enclosures and variable frequency drive (VFD) chassis where localized heat pooling threatens semiconductor stability. Its medium-speed, low-noise profile makes it ideal for medical diagnostic equipment and broadcast servers that require strict acoustic limits alongside continuous thermal regulation. With a streamlined supply chain, we ensure minimal Lead Time for both bulk integration and critical maintenance replacements.

AG06012MB257003 New ADDA 6025/12V fan

AG06012MB257003 New ADDA 6025/12V fan

AG06012MB257003 New ADDA 6025/12V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
