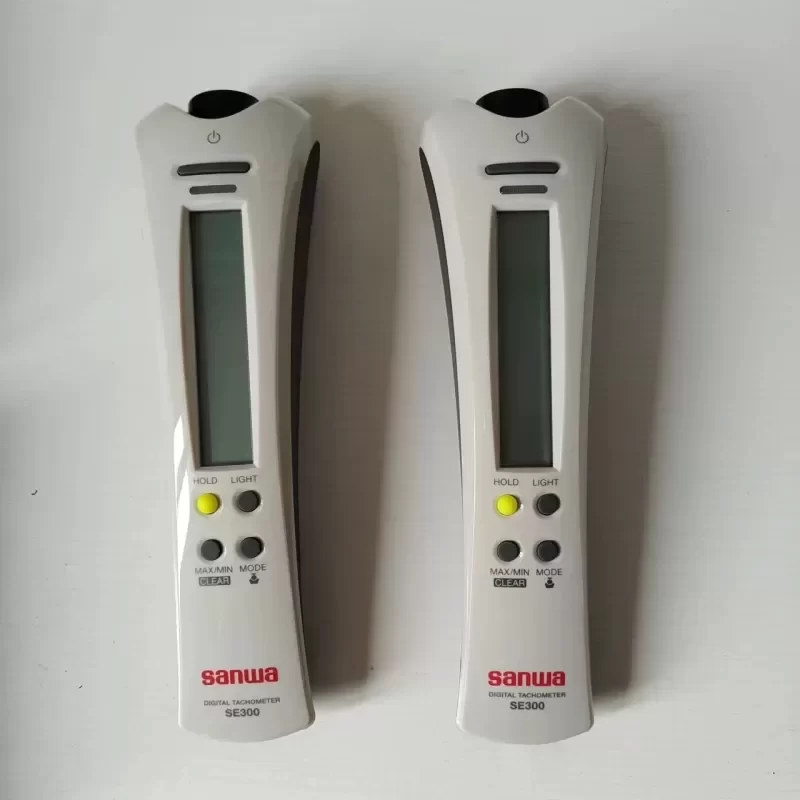

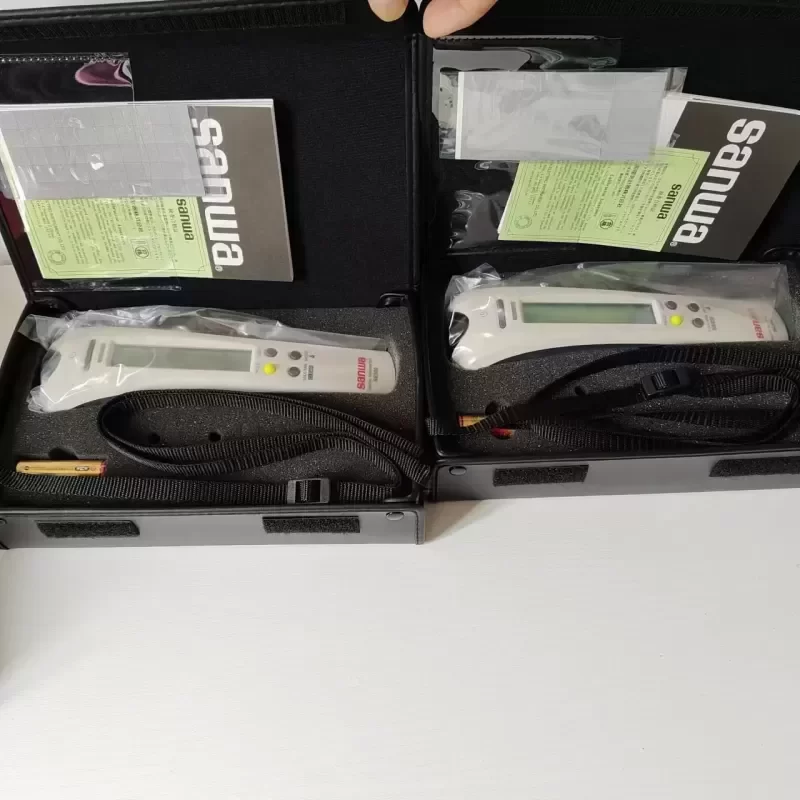

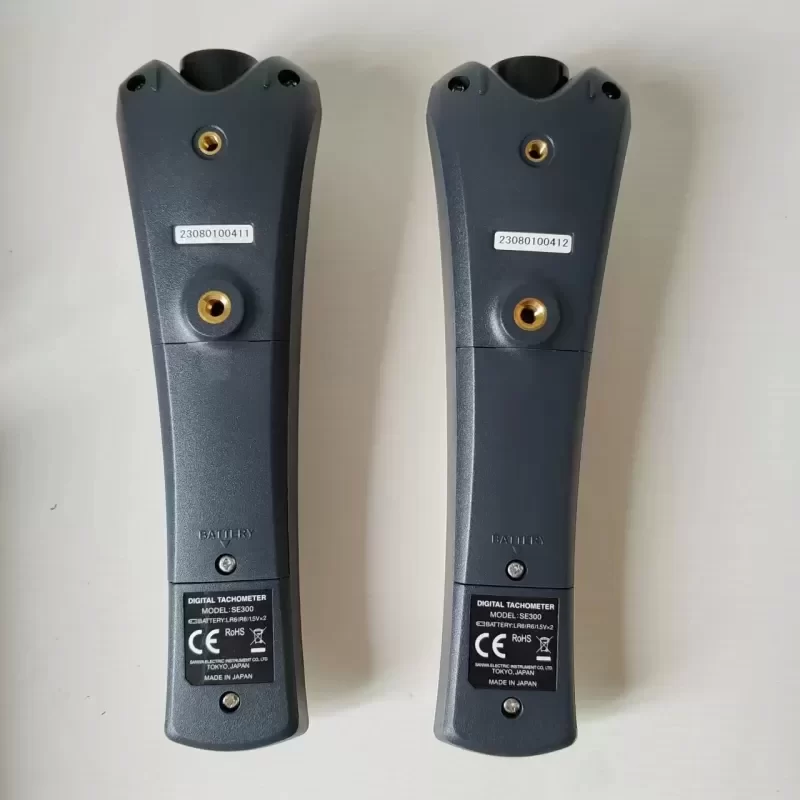

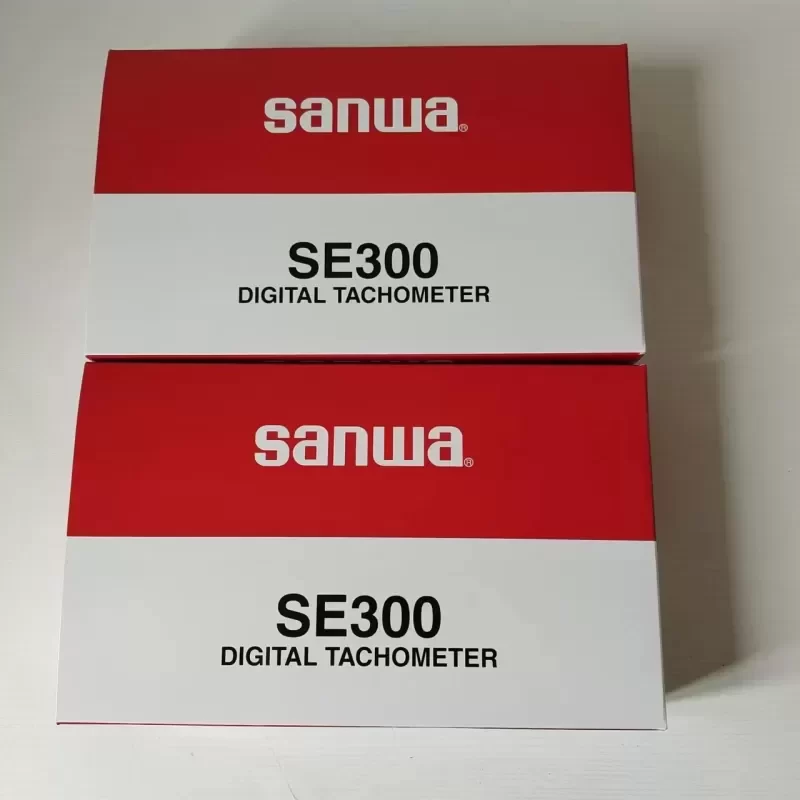

SANWA SE300 Digital Rotational Tachometer Contactless Speed Measuring Instrument

Description

Manufacturer: SANWA Electric Instrument Co., Ltd.
Model Number: SE300
Measurement Principle: Non-contact optical reflection
Rotational Speed Range: 30.0 to 99990 rpm
Measurement Accuracy: ±(0.03% + 1 digit)
Detection Distance: 50 mm to 500 mm
Sampling Period: 1.0 to 2.0 seconds
Display: 5-digit liquid crystal display with backlight
Memory Functions: Maximum, Minimum, Average, Data Hold
Power Source: Two AAA (LR03) alkaline batteries
Battery Life: Approximately 20 hours of continuous use
Operating Temperature: 0 to 50 °C
Operating Humidity: Maximum 80% RH
Storage Temperature: -10 to 60 °C
Dimensions: 121 mm x 58 mm x 28 mm
Weight: 110 g
Safety Compliance: IEC61010-1, CE, RoHS
Condition: Original Brand New

Application: The SANWA SE300 provides high-precision rotational speed verification for industrial maintenance and quality control. It is specifically designed for monitoring high-velocity components such as turbine shafts, centrifugal pumps, and automated assembly line motors where non-invasive measurement is required to maintain operational safety. The Original Engineering of the optical sensor allows for stable readings even at extended distances. This unit is currently in stock for reduced Lead Time in critical facility maintenance schedules. Technical Compatibility is guaranteed for all standard industrial reflective markers.

Key Attributes
Type: Digital Rotational Tachometer
Place of origin: Japan
Model number: SE300
Brand name: SANWA
Customized support: OEM, ODM
Warranty: 1 years
Product name: SANWA Digital Rotational Tachometer
Model: SE300
Rpm: 30.0~99999
Rps: 0.50~1600.0
Display: Rpm, rps, cycle, m/min, m/s
Accuracy: ±(0.03%+1)
Sampling: 1 sec
Dimensions/mass: H210*W60*D50 mm/Approx. 218 g

Packaging and Delivery
Selling Units: Single item
Single package size: 25X25X7 cm
Single gross weight: 1.000 kg
