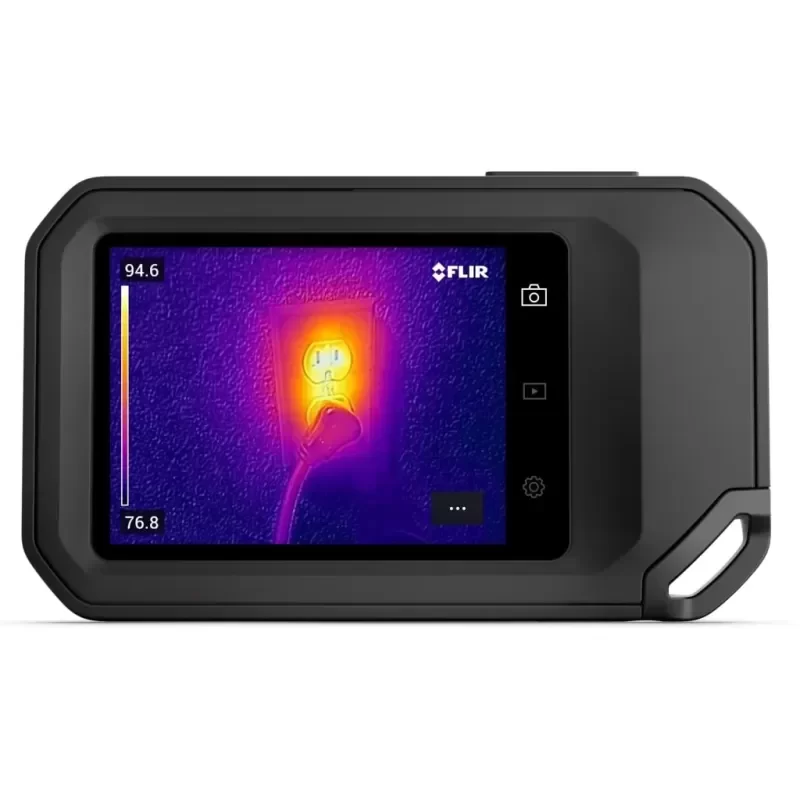

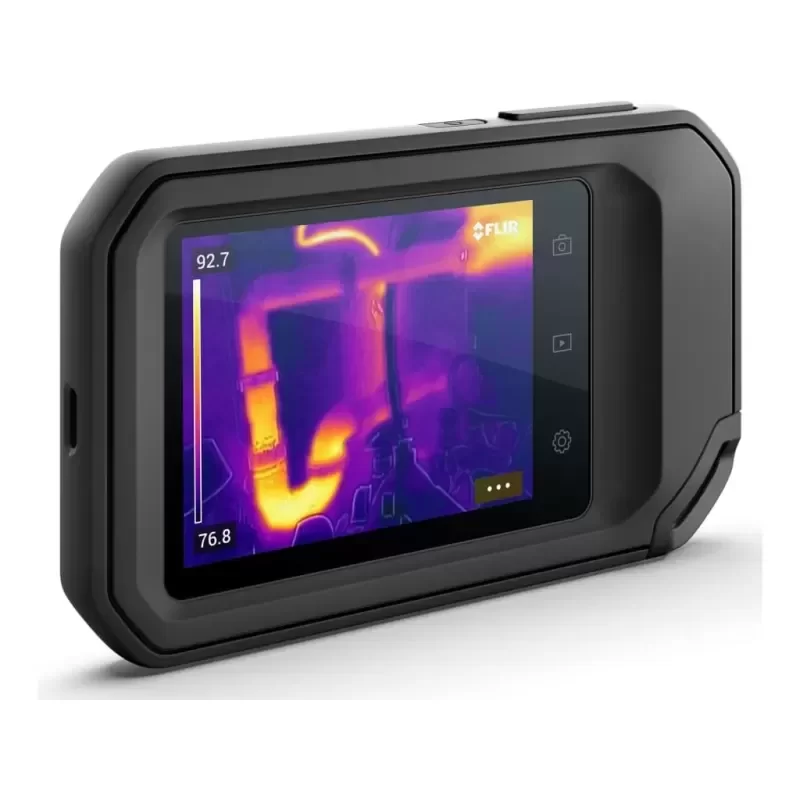

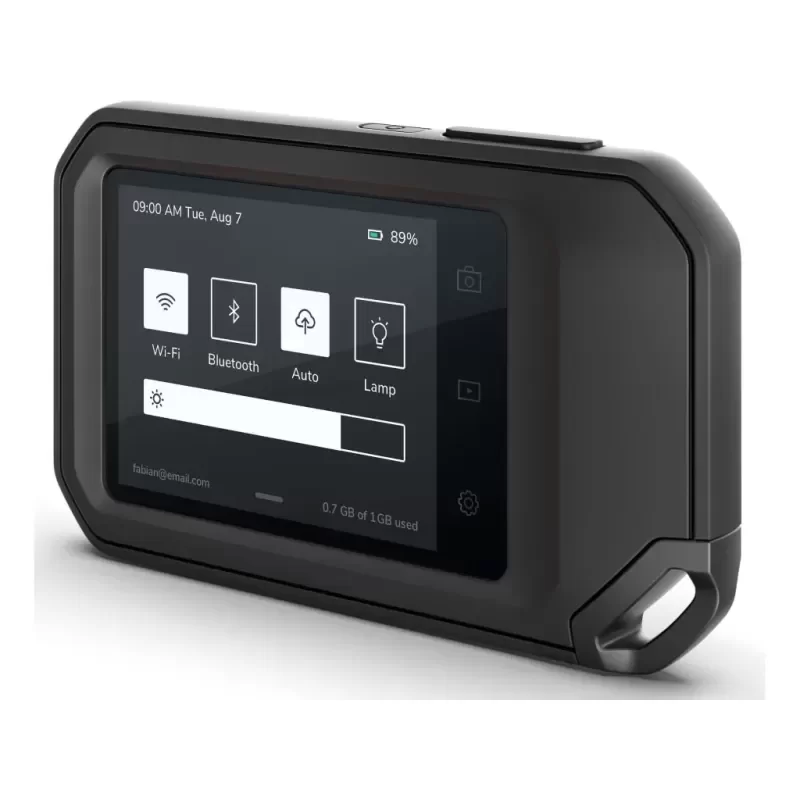

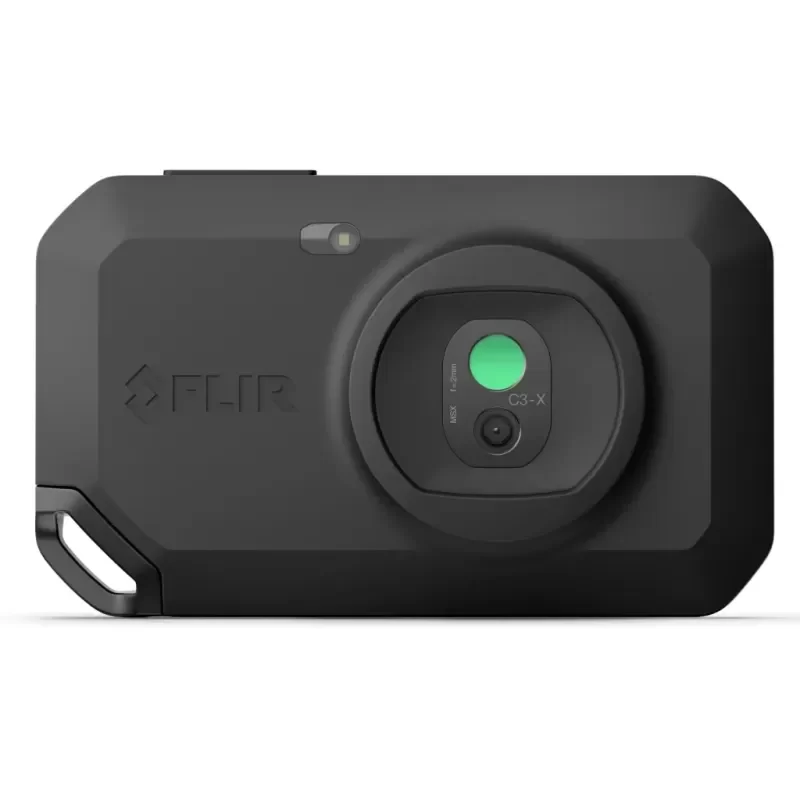

FLIR C3-X Compact Thermal Camera with Wi-Fi 128 X 96 Resolution

Description

The FLIR C3-X is a professional-grade compact thermal imaging system designed for rapid diagnostic inspections in industrial and building environments. This unit integrates a high-resolution 128 x 96 thermal sensor with FLIR MSX (Multi-Spectral Dynamic Imaging) technology to provide superior image clarity by embossing visual details onto the thermal profile.

Technical Specifications:
Manufacturer: FLIR Systems
Model: C3-X
IR Resolution: 128 x 96 (12,288 pixels)
Thermal Sensitivity/NETD: < 70 mK
Field of View (FOV): 54° x 42°
Image Frequency: 8.7 Hz
Spectral Range: 8 to 14 µm
Visual Camera: 5 MP
Focus: Fixed
Display: 3.5 inch Color LCD (640 x 480)
Touchscreen: Capacitive
Object Temperature Range: -20°C to 300°C (-4°F to 572°F)
Accuracy: ±3°C or ±3% of reading (at 25°C ambient)
Measurement Functions: Spot, Box with max./min.
Image Modes: Infrared, Visual, MSX, Picture-in-Picture
Connectivity: Wi-Fi, Bluetooth, USB 2.0 Type-C
Storage: Internal memory with FLIR Ignite cloud upload capability
Battery Type: Rechargeable Li-ion
Operating Time: 4 hours
Charging Time: 2 hours
Enclosure Rating: IP54
Drop Test: 2.0 m
Dimensions: 138 x 84 x 24 mm
Weight: 0.19 kg

Industrial Application:
The FLIR C3-X is engineered for facility maintenance and electrical troubleshooting. It excels in identifying overheating circuit breakers, localized thermal bridges in building envelopes, and air leakage in HVAC systems. The Technical Compatibility with the FLIR Ignite cloud ecosystem allows for immediate data synchronization, reducing the Lead Time between field detection and reporting. This Original Engineering solution ensures reliable performance in harsh environments where traditional non-contact thermometers lack the spatial resolution required for precise fault localization.

Key Attributes
Place of Origin: Estonia
Model Number: C3-X
Brand Name: FLIR
Product name: FLIR Thermal Imagers
Model: C3-X
IR Sensor: 128 x 96 (12,288 pixels)
Thermal Sensitivity/NETD: <70 mK
Field of View (FOV): 53.6°
Object Temperature Range: -4 to 572°F (-20 to 300°C)
Accuracy: ±3%
Battery Type: Rechargeable built-in lithium ion battery
Battery Operation Time: 4 hours
Dimensions: 138 x 84 x 24 mm

Packaging and Delivery
Packaging Details: Cardboard box
Selling Units: Single item
Single package size: 17X13X11 cm
Single gross weight: 0.600 kg
