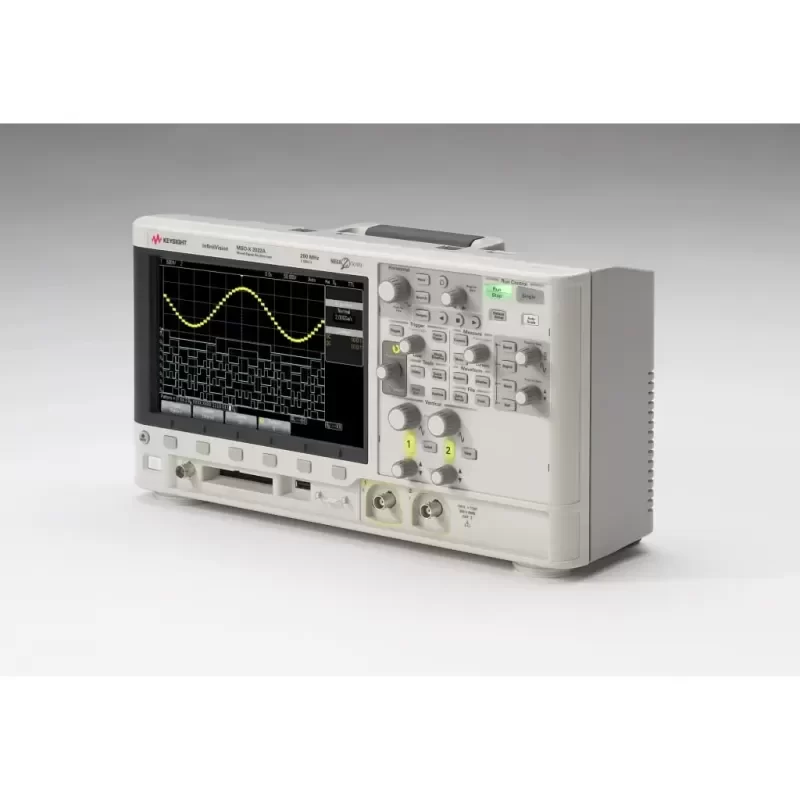

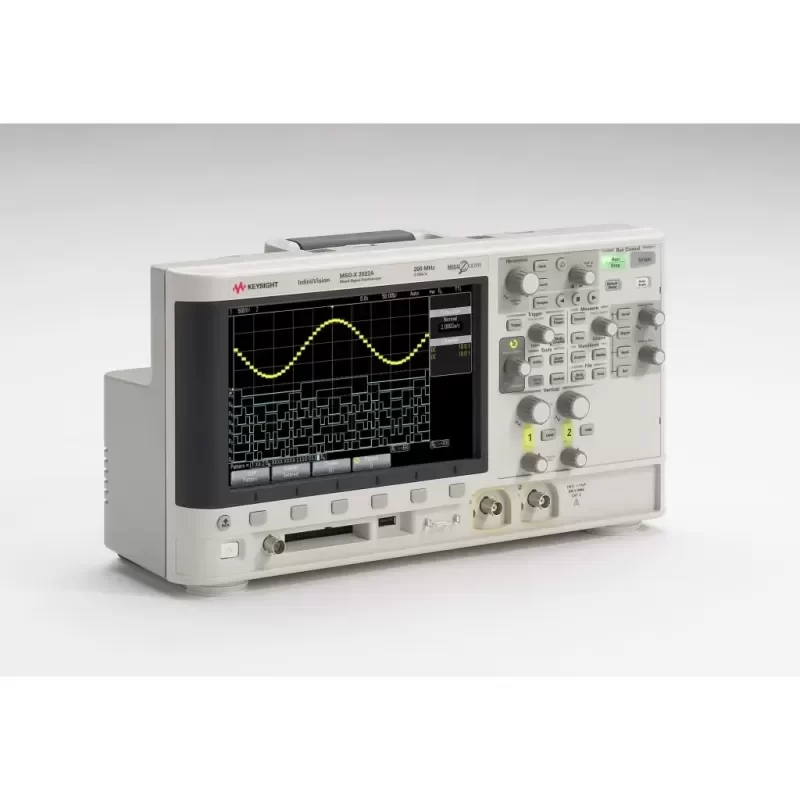

Keysight DSOX2022A Digital Oscilloscope 200 MHz 2 Channel

Description

Manufacturer: Keysight Technologies
Model: DSOX2022A
Series: InfiniiVision 2000 X-Series
Product Classification: Digital Storage Oscilloscope
Bandwidth: 200 MHz
Analog Channels: 2
Maximum Sample Rate: 2 GSa/s (half-channel), 1 GSa/s (all-channel)
Maximum Memory Depth: 100 kpts
Waveform Update Rate: 50,000 waveforms/sec
Vertical Resolution: 8 bits
Vertical Sensitivity: 1 mV/div to 5 V/div
DC Vertical Gain Accuracy: ± 3 percent full scale
Input Impedance: 1 MΩ ± 1 percent || 16 pF ± 3 pF
Maximum Input Voltage: 300 Vrms, 400 Vpk; Transient Overvoltage 1.6 kVpk
Timebase Range: 2 ns/div to 50 s/div
Display: 8.5-inch WVGA color LCD (800 x 480 resolution)
Trigger Modes: Edge, Pulse Width, Pattern, Video (PAL, SECAM, NTSC, HDTV)
Integrated Hardware: 5-digit Frequency Counter, 3-digit Digital Voltmeter (DVM)

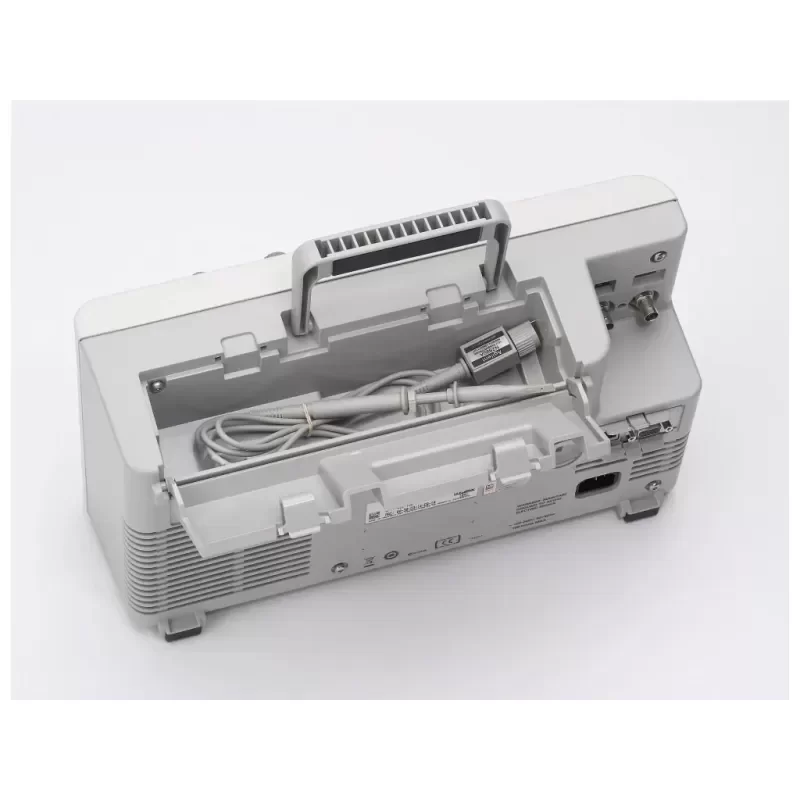

Interface Ports: USB 2.0 Hi-Speed Host (front), USB 2.0 Hi-Speed Device (rear)

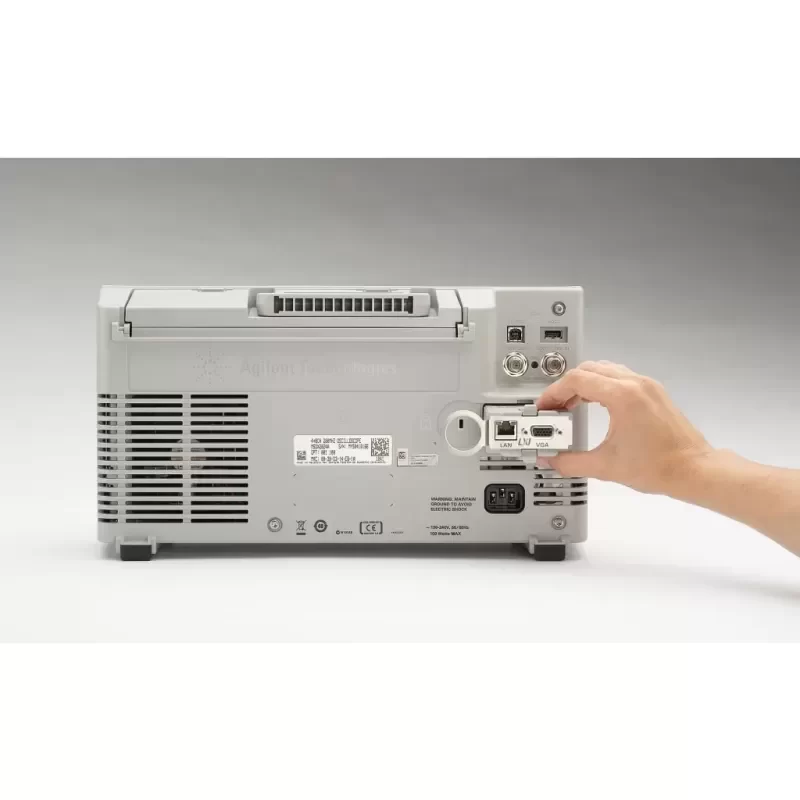

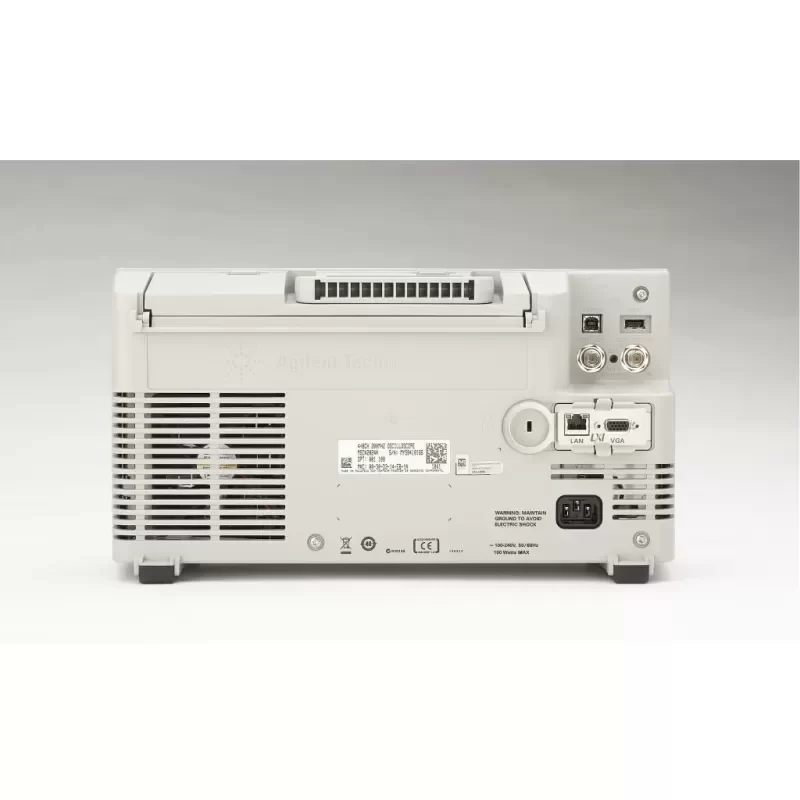

Optional Connectivity: LAN, GPIB, VGA Out
Operating Temperature: 0 °C to +55 °C
Operating Humidity: Up to 95 percent RH at +40 °C
Power Supply: 100-120 V (50/60/400 Hz), 100-240 V (50/60 Hz)
Power Consumption: 100 VA Max
Dimensions: 381 mm Width x 204 mm Height x 142 mm Depth
Weight: 3.85 kg
Certifications: IEC 61010-1:2001, EN 61010-1:2001, CAN/CSA-C22.2 No. 61010-1-04
Original Engineering: Keysight MegaZoom IV ASIC architecture
Technical Compatibility: Supports InfiniiVision standard probes and N2744A T2A interface
Lead Time: Standard stock item with expedited logistics availability

Industrial Application:
The DSOX2022A is optimized for the rigorous demands of industrial automation and power conversion testing. By utilizing the MegaZoom IV custom ASIC, this unit maintains high responsiveness even with deep memory active, allowing for the precise identification of high-frequency noise components in DC-to-DC converters. Its 200 MHz bandwidth ensures sufficient headroom for analyzing fast rise-time signals in CAN/LIN automotive bus architectures, providing the fidelity required for critical timing measurements and jitter analysis in complex embedded systems.
