$21.43

SKU: 913262190410 Brand:

Description

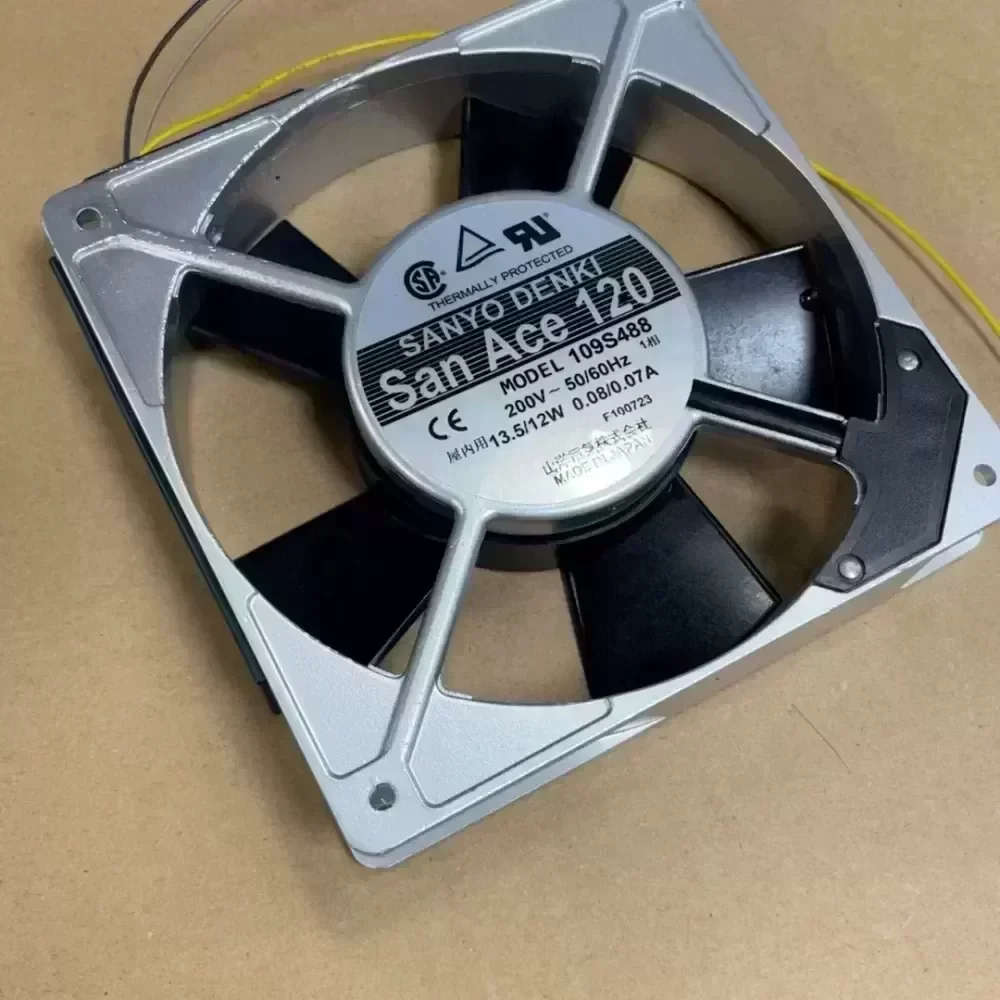

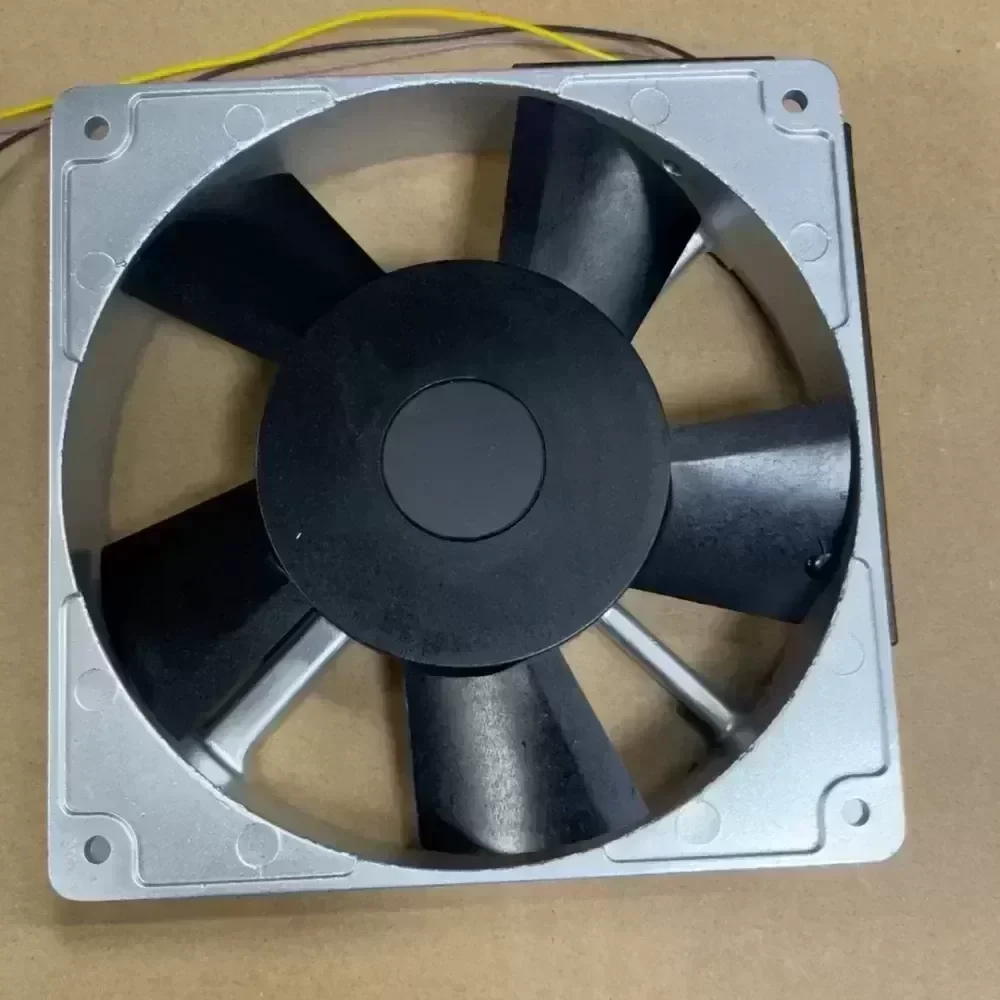

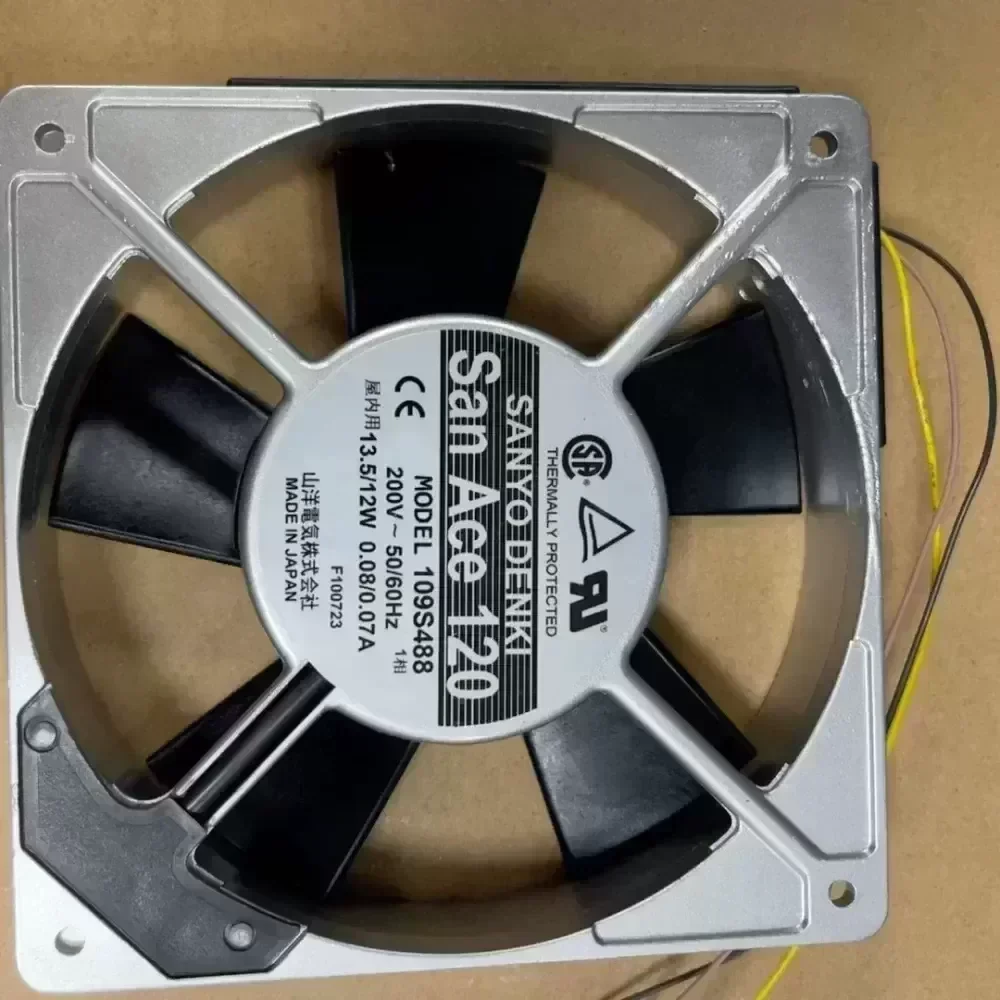

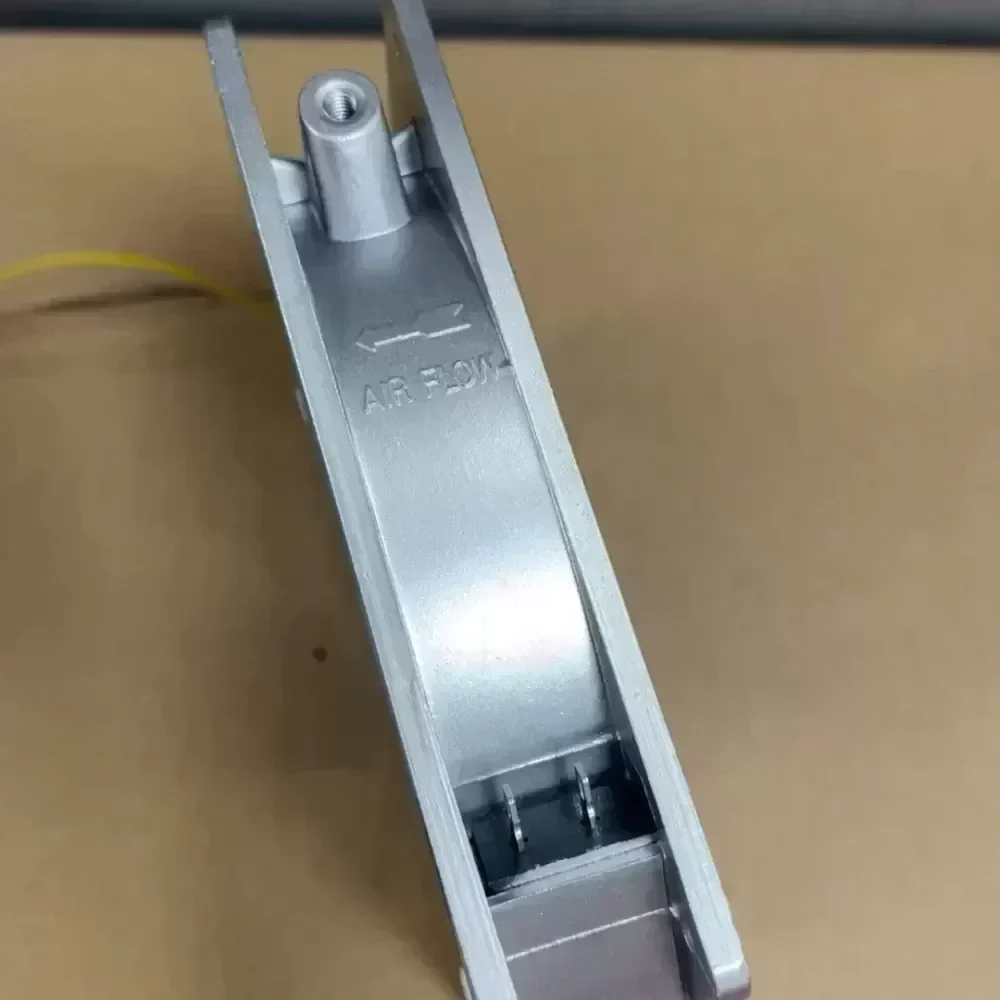

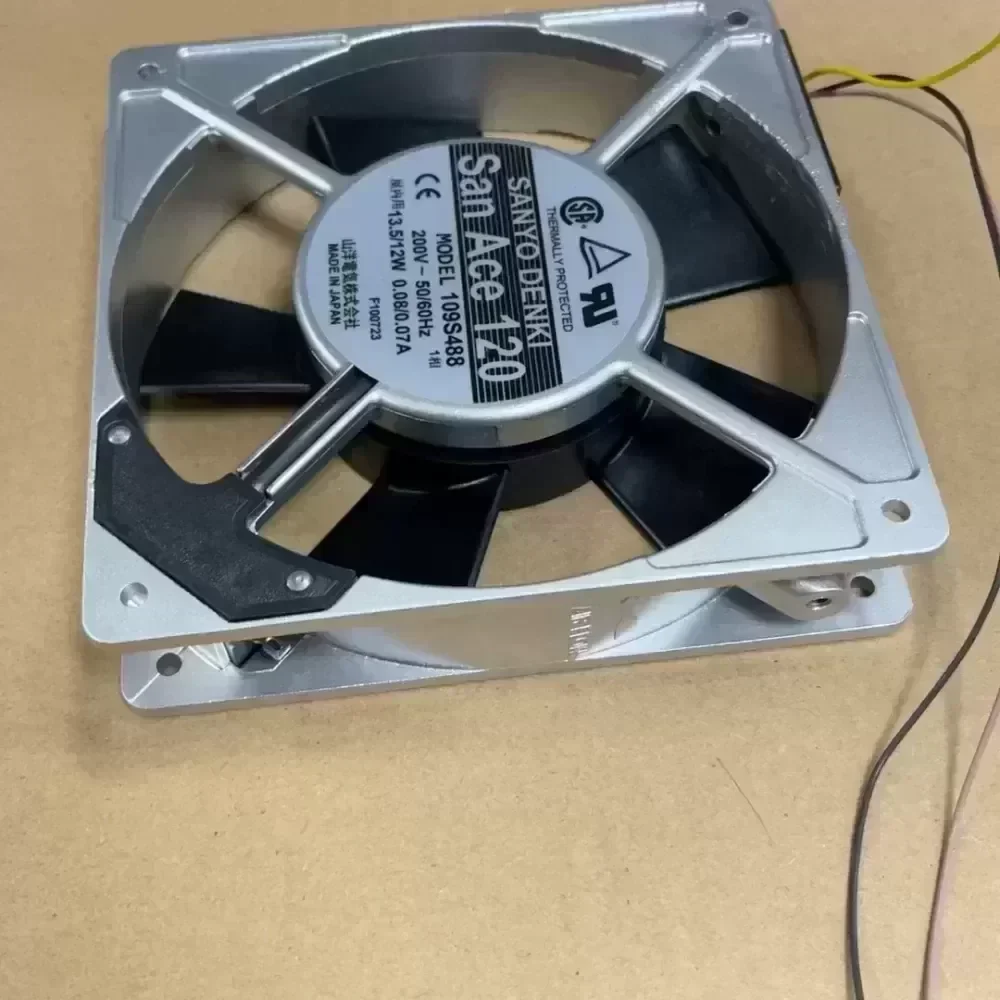

Sanyo Denki San Ace 120 Model 109S488 is a high-reliability AC axial cooling fan designed for continuous thermal dissipation in heavy-duty electrical enclosures and industrial automation infrastructure. Manufactured to Sanyo Denki Original Engineering standards in Japan, this unit provides consistent airflow dynamics, low electromagnetic interference, and extended operational lifespans across demanding factory-floor environments.

Technical Specifications:
Manufacturer: Sanyo Denki
Product Line: San Ace 120
Model Number: 109S488
Component Type: AC Axial Fan
Frame Size: 120 mm x 120 mm x 38 mm
Mounting Hole Spacing: 104.8 mm (Ø 4.3 mm through-holes)
Nominal Supply Voltage: 200V AC
Operating Voltage Range: 180V to 220V AC
Operating Frequency: 50/60 Hz
Power Consumption: 13.5W (50 Hz) / 12W (60 Hz)
Rated Current: 0.08A (50 Hz) / 0.07A (60 Hz)
Nominal Rotational Speed: 2600 RPM (50 Hz) / 2900 RPM (60 Hz)
Maximum Airflow: 2.4 m³/min (84.7 CFM) at 50 Hz / 2.7 m³/min (95.3 CFM) at 60 Hz
Static Pressure: 44.1 Pa (50 Hz) / 58.8 Pa (60 Hz)
Acoustic Noise Level: 38 dB(A) (50 Hz) / 41 dB(A) (60 Hz)
Bearing System: High-Precision Dual Ball Bearings
Motor Design: Single-Phase AC Shaded-Pole Induction Motor
Insulation Class: Class E / Class B
Dielectric Withstand Voltage: 1500V AC at 50/60 Hz for 1 minute
Insulation Resistance: 100 MΩ or higher at 500V DC
Operating Temperature Range: -30 °C to +60 °C (Non-condensing)
Storage Temperature Range: -30 °C to +70 °C
Frame Construction: Die-Cast Aluminum Alloy (Black Finish)
Impeller Material: Flame-Retardant Polycarbonate (UL94V-0 Rated)

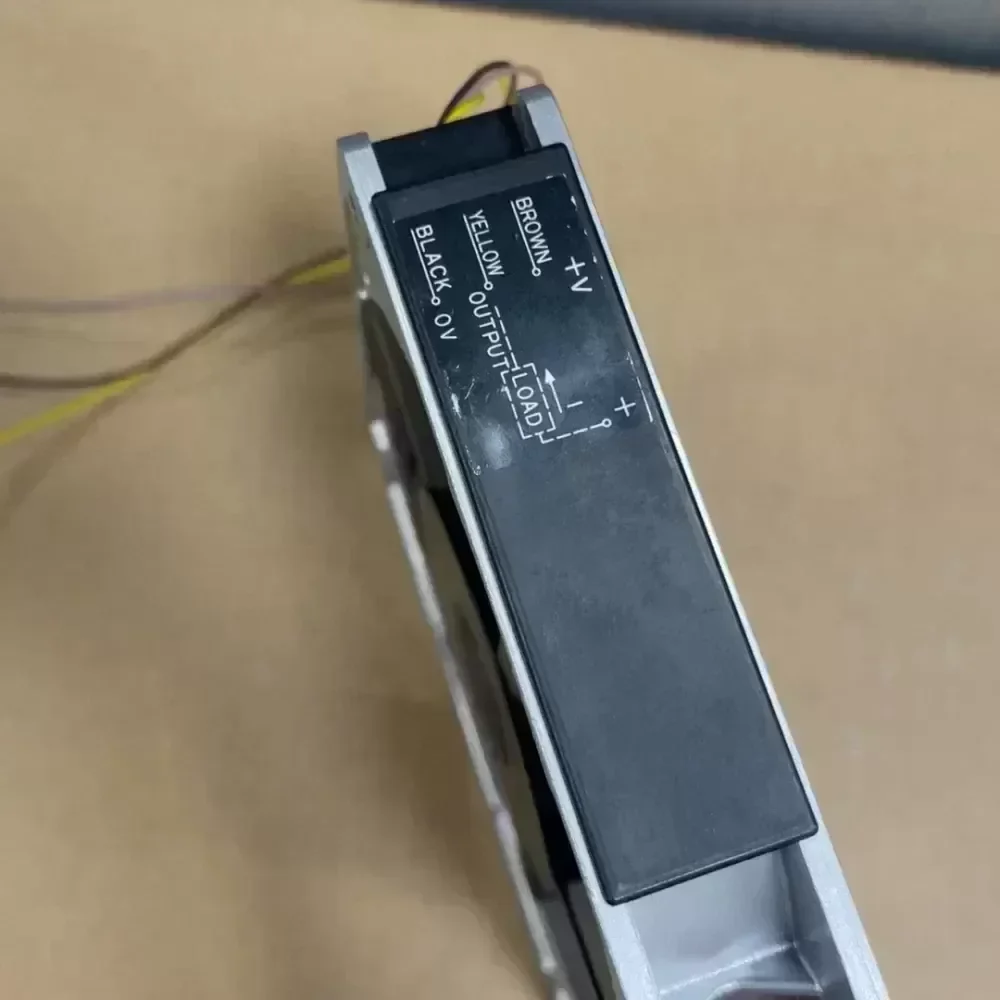

Termination: Integrated Solder Terminals / Faston Connectors
Protection Type: Impedance Protected
Expected Operating Life: 25,000 Hours continuous at 60 °C (L10)
Weight: 530 g
Country of Origin: Japan

Industrial Application & Problem Resolution:
The 109S488 is specifically engineered to resolve hotspot accumulation within sealed industrial control cabinets, CNC spindle drive enclosures, uninterruptible power supply (UPS) modules, and robotic power distribution racks operating on 200V standard three-phase/split-phase bus networks. Its rigid aluminum housing eliminates chassis flex and vibration resonance under high dynamic loads, maintaining balanced airflow and preventing premature semiconductor component failure in non-climate-controlled plant environments.

Integration & Procurement Details:
Original Engineering: Authentic Japanese production standard ensuring full electrical and acoustic conformance.
Technical Compatibility: Standard 12038 form factor provides direct drop-in replacement compatibility for legacy San Ace installations and universal DIN/rack-mount cutouts.
Lead Time: Rapid global fulfillment available with immediate dispatch options for critical plant maintenance and downtime mitigation.

109S488 Sanyo SanAce120 200V AC fan

109S488 Sanyo SanAce120 200V AC fan

109S488 Sanyo SanAce120 200V AC fan

109S488 Sanyo SanAce120 200V AC fan

109S488 Sanyo SanAce120 200V AC fan

109S488 Sanyo SanAce120 200V AC fan

109S488 Sanyo SanAce120 200V AC fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
