Description

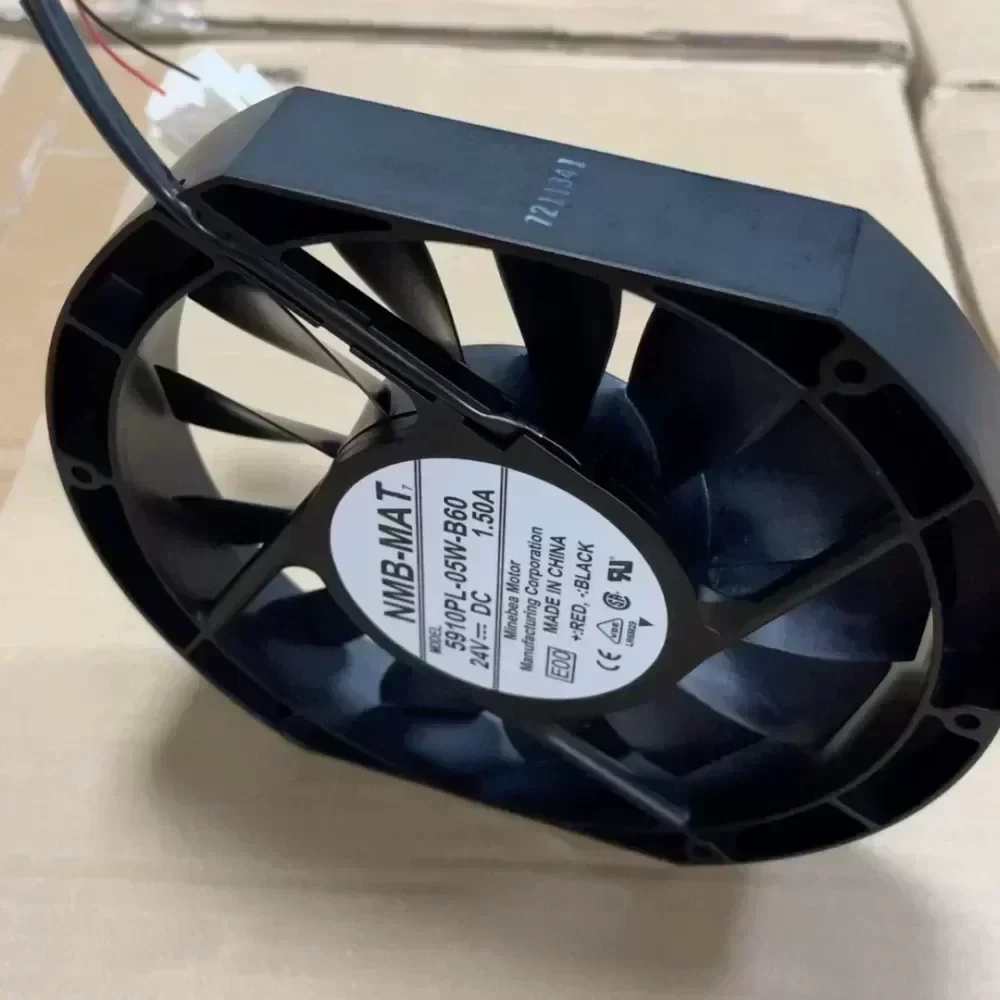

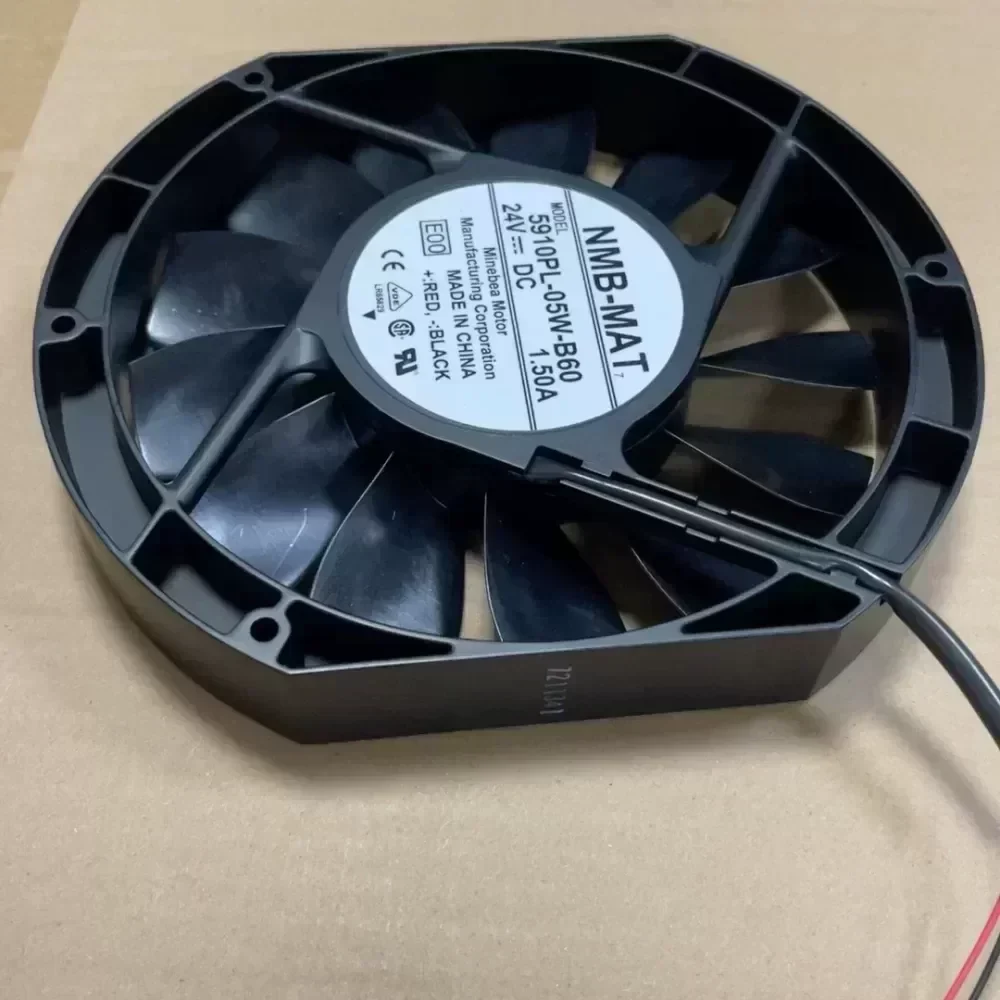

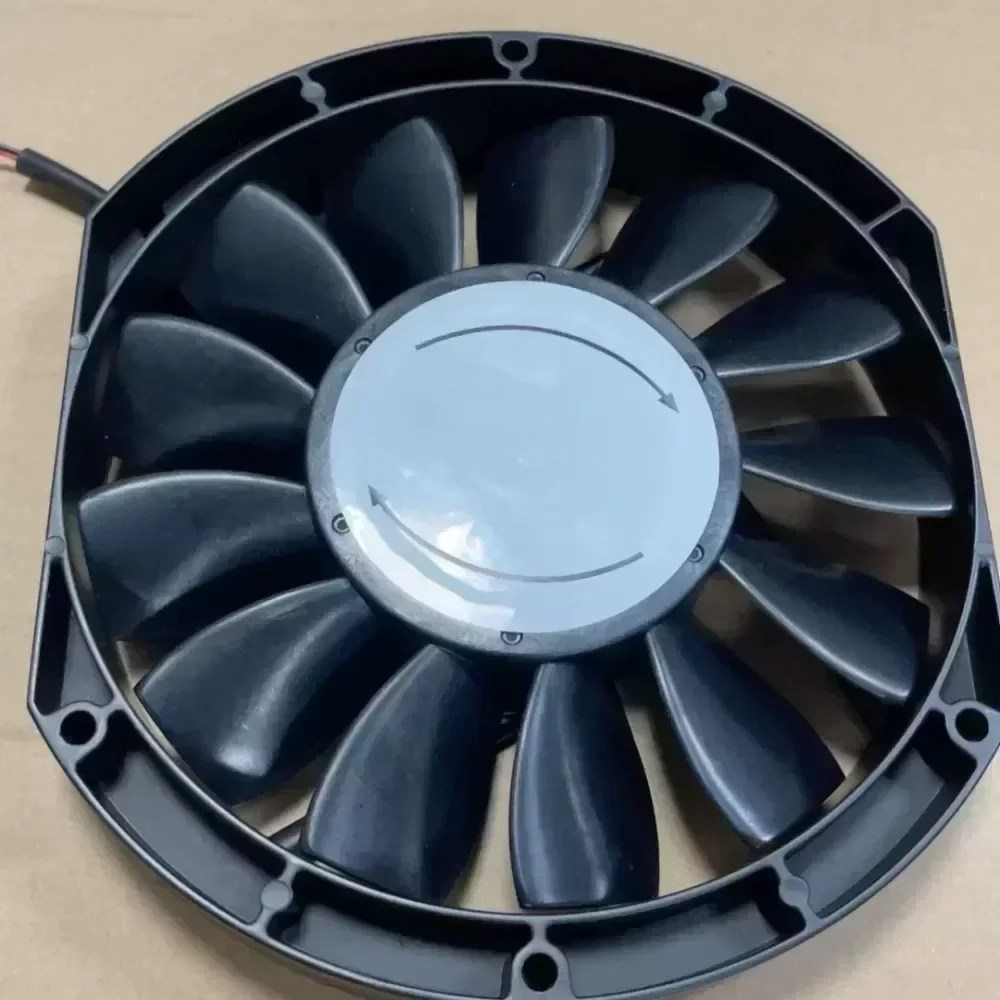

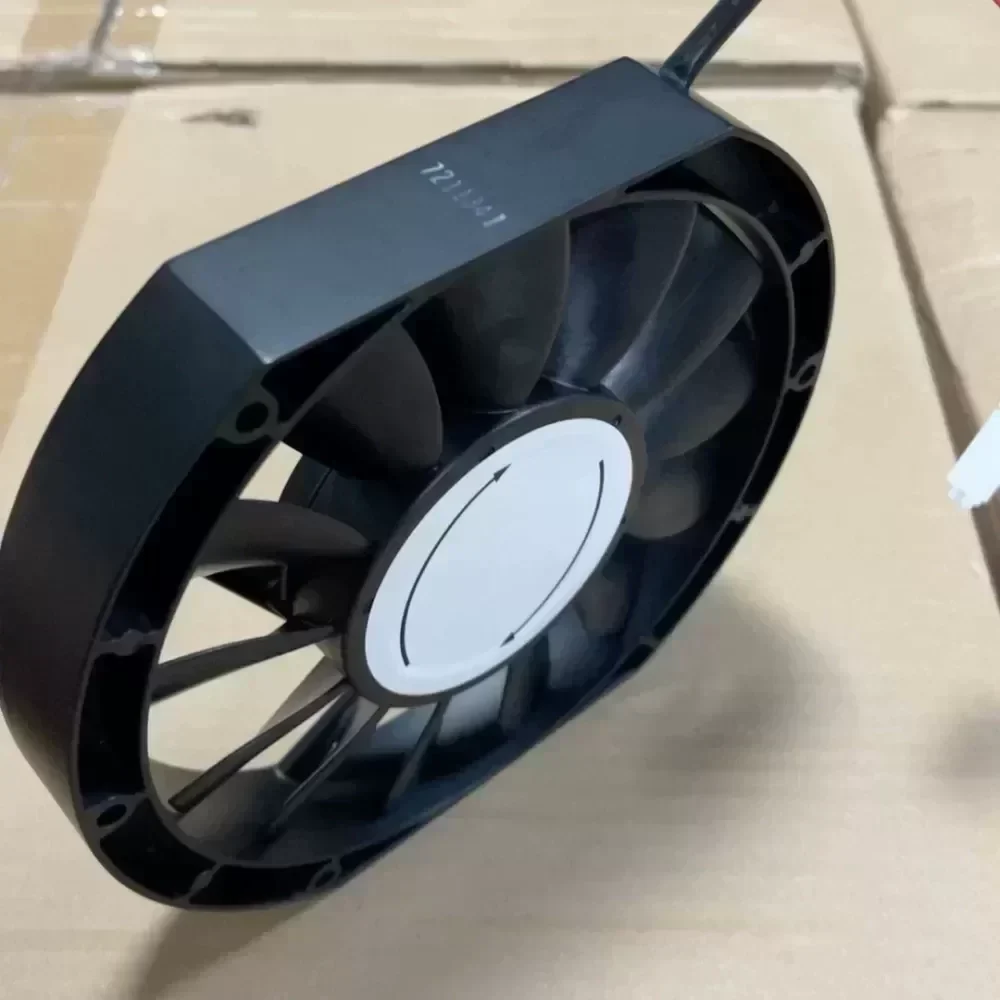

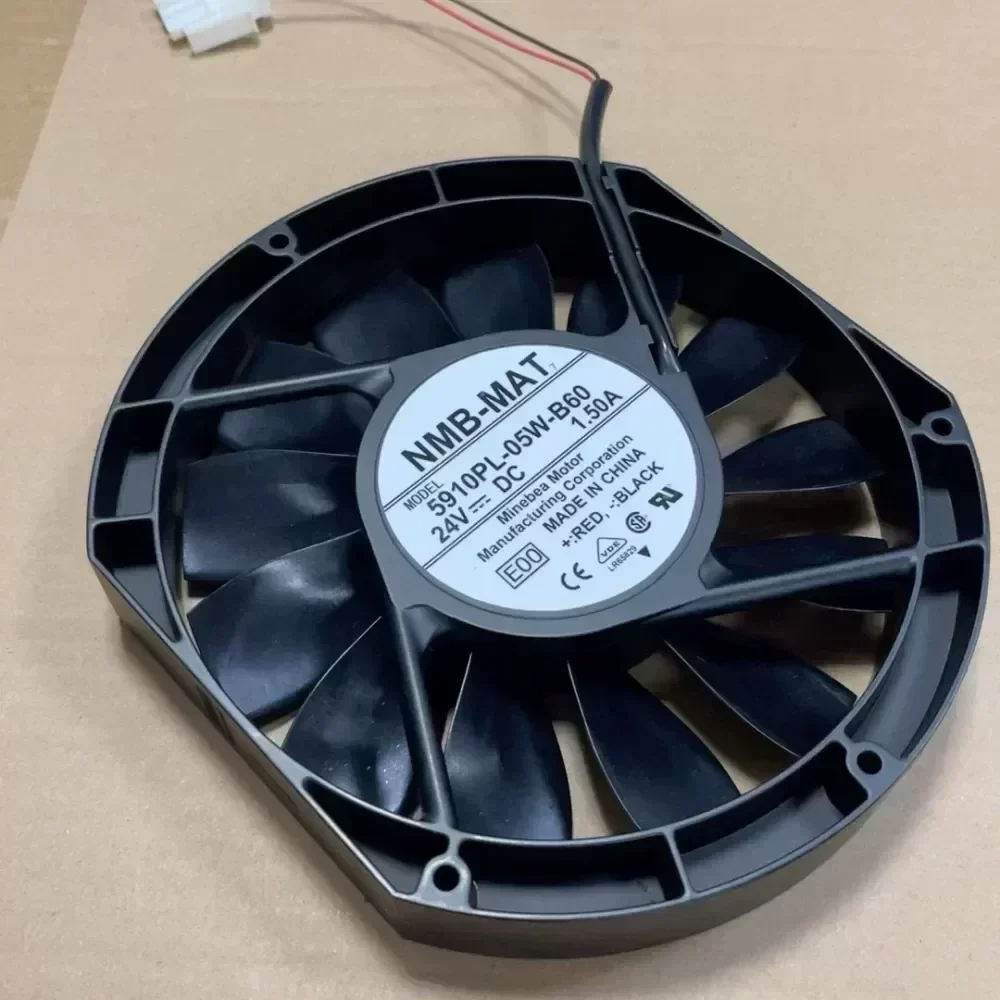

The NMB-MAT (MinebeaMitsumi) 5910PL-05W-B60 is a high-performance 24V DC industrial axial fan engineered for forced-air thermal management in heavy-duty electronic enclosures. Built with Original Engineering precision, this model integrates dual precision ball bearings with a rugged die-cast aluminum frame, delivering ultra-high airflow and robust static pressure resistance required for dense cabinet architectures and continuous-duty operating environments.
MODEL DECODING & SPECIFICATIONS
Manufacturer: NMB-MAT (MinebeaMitsumi)
Model Code: 5910PL-05W-B60
Frame Dimensions: 172 mm x 150 mm x 25.4 mm (Side-Cut Oval Flange)
Rated Voltage: 24 V DC
Operating Voltage Range: 12.0 V to 27.6 V DC
Rated Current: 1.50 A
Rated Input Power: 36.0 W
Nominal Rotational Speed: 4100 RPM
Maximum Airflow: 255.0 CFM (7.22 m³/min)
Maximum Static Pressure: 225.0 Pa (0.90 in H2O)
Acoustic Noise Level: 61.0 dB(A)
Bearing System: Dual Precision NMB Ball Bearings
Frame Material: Precision Die-Cast Aluminum (Black Coating)
Impeller Material: Fiber-Reinforced Thermoplastic (UL 94V-0 rated)
Termination: UL 1007 Lead Wires (Stripped and Tinned)
Insulation Resistance: Minimum 10 MΩ at 500 V DC
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -40 °C to +70 °C
Expected Service Life (L10): 100000 Hours at 25 °C / 40000 Hours at 60 °C
Weight: 610 g
Certifications: UL, CSA, VDE, CE, RoHS Compliant
INDUSTRIAL APPLICATIONS & TECHNICAL COMPATIBILITY
Engineered specifically to solve thermal throttling in high-impedance industrial setups, the 5910PL-05W-B60 delivers high static pressure to force cooling air through packed circuit boards, dense heatsinks, and dust-filtered enclosures. Key application fields include:
– Telecommunication base stations and optical network server chassis
– Industrial variable frequency drives (VFD) and high-power inverter modules
– Medical imaging equipment and diagnostic power supplies
– Factory automation CNC control cabinets and robotics controllers
Technical Compatibility covers direct drop-in replacement for legacy NMB 5910 and 17250 form-factor cooling units across automated industrial equipment.
QUALITY VERIFICATION & LOGISTICS
Condition: New, unused authentic inventory.
Inspection Support: All units undergo functional parameter testing prior to dispatch, with third-party technical inspection fully supported.
Lead Time: Immediate dispatch available for standardized industrial procurement workflows.
