3414NGH ebmpapst Fan Axial Fan ebmpapst TYPE:3414 NGH 24V
3414NGH ebmpapst Fan Axial Fan ebmpapst TYPE:3414 NGH 24V
3414NGH ebmpapst Fan Axial Fan ebmpapst TYPE:3414 NGH 24V

3414NGH ebmpapst Fan Axial Fan ebmpapst TYPE:3414 NGH 24V

$21.00

SKU: 62457271797 Brand:

Description

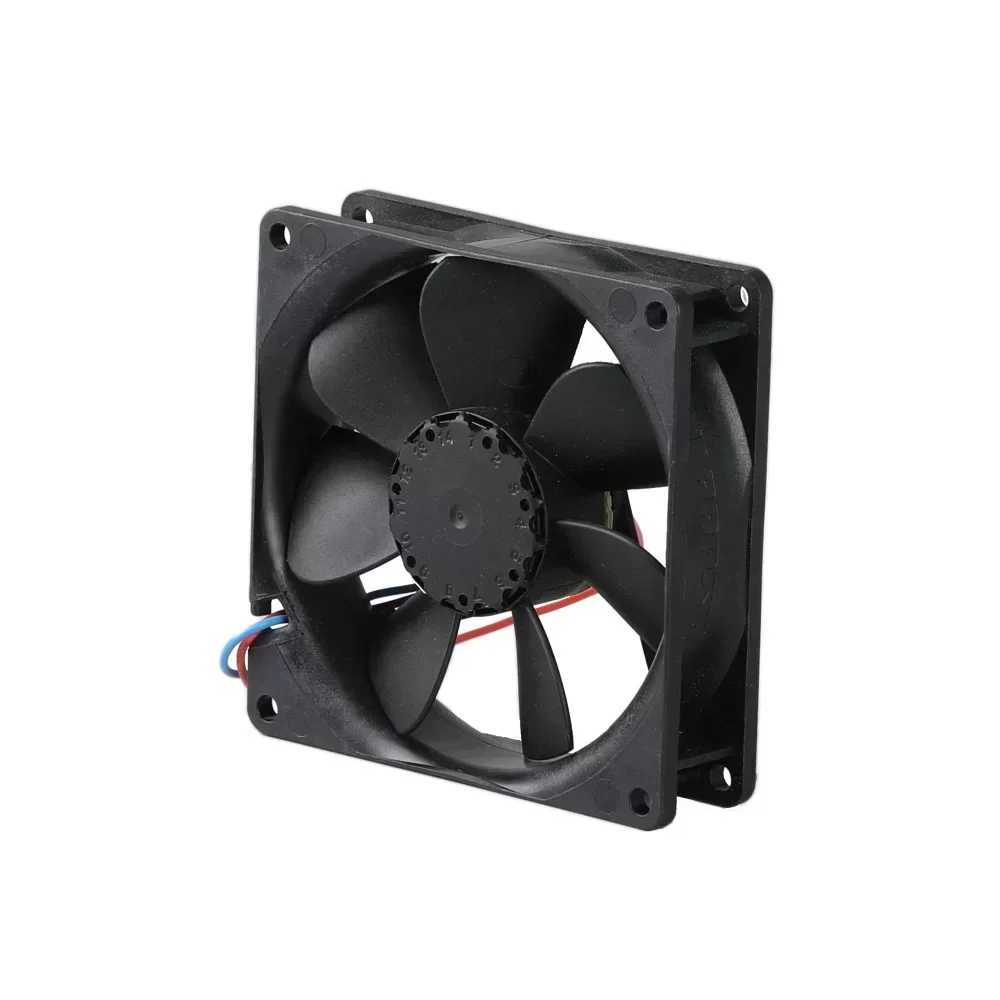

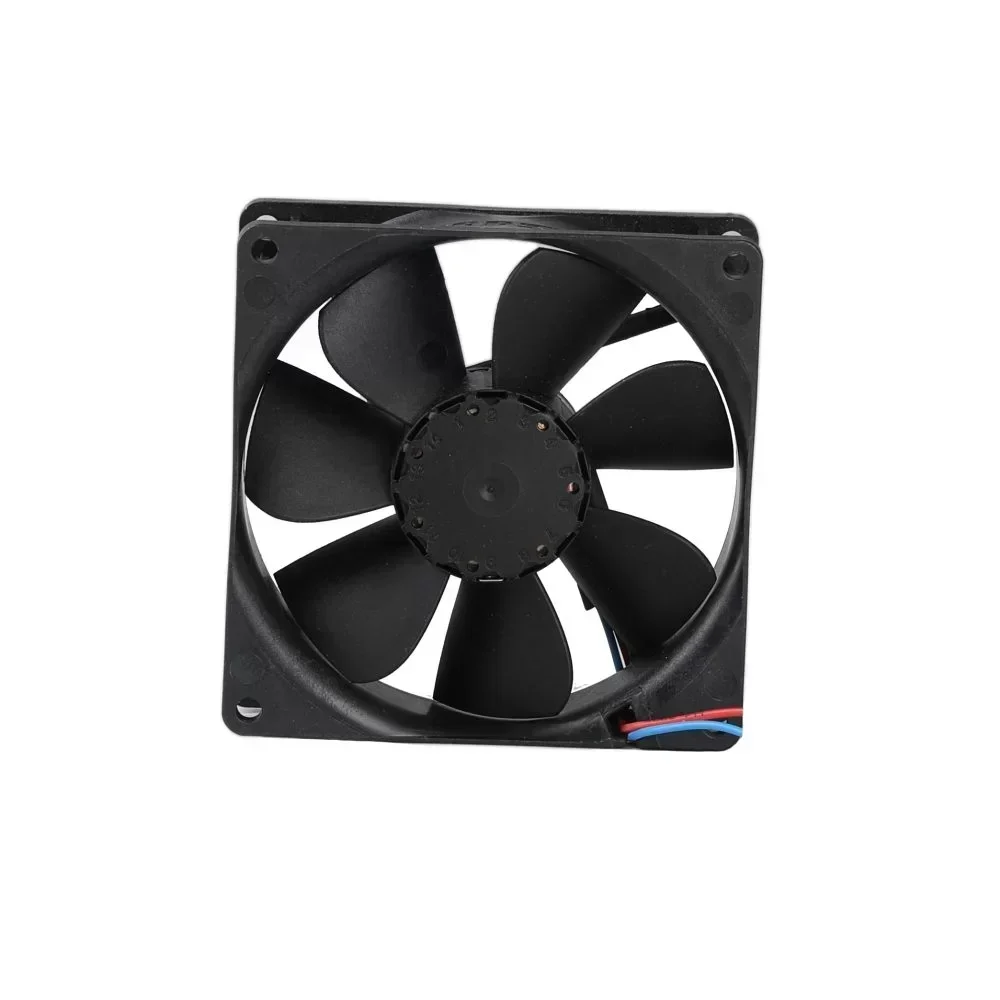

The 3414NGH is a high-performance industrial axial fan engineered by ebm-papst, designed for efficient thermal management in critical electronic and industrial enclosures. This model belongs to the 3400N series, characterized by its compact 92mm frame and robust DC motor technology.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: 3414NGH
Nominal Voltage: 24 VDC
Voltage Range: 18 to 28 VDC
Air Flow: 102.0 m³/h
Speed: 3250 RPM
Power Consumption: 3.2 W
Sound Pressure Level: 39 dB(A)
Bearing Type: Ball Bearing
Service Life (L10 at 40 °C): 70,000 hours
Service Life (L10 at maximum temperature): 35,000 hours
Weight: 0.100 kg
Dimensions: 92 x 92 x 25 mm
Direction of Airflow: Exhaust over struts
Direction of Rotation: Clockwise, viewed toward rotor
Motor Protection: Protection against reverse polarity and blocking
Approvals: VDE, CSA, UL, CE

Material and Construction:
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Electrical Connection: 2 single strands AWG 24, TR 64, bared and tin-plated
Environmental Rating: IP20
Operating Temperature Range: -20 °C to +70 °C

Industrial Application and Technical Compatibility:
The 3414NGH is optimized for high-density server racks, telecommunications power supplies, and industrial control cabinets where space is constrained but airflow requirements are high. Its ball-bearing construction ensures reliable operation in any mounting position, solving the critical problem of heat dissipation in 24V DC systems. The Original Engineering of the 3400N series provides superior pressure-vs-airflow characteristics compared to standard sleeve-bearing alternatives.

Logistics and Procurement:
Condition: New, Original Engineering
Lead Time: Available for immediate dispatch or standard factory lead time
Technical Compatibility: Direct replacement for standard 92mm 24V DC cooling units

Voltage: 24V
Electric current type: DC
Mounting type: Any
Warranty: 1 Year
Blade material: Fiberglass-reinforced PA plastic
After-sales service provided: Online support
Place of origin: Hungary
Brand name: Ebmpapst
Model number: 3414NGH
Product name: Ebmpapst axial fan
Bearing Type: Ball bearings
Color: Black
Weight: 0.100 kg
Housing material: Fiberglass-reinforced PBT plastic
Application: Industrial Equipment
Keyword: Large Air Flow Cooling Fan
Material: Plastic Blade
Selling Units: Single item

3414NGH ebmpapst Fan Axial Fan ebmpapst TYPE:3414 NGH 24V

3414NGH ebmpapst Fan Axial Fan ebmpapst TYPE:3414 NGH 24V

3414NGH ebmpapst Fan Axial Fan ebmpapst TYPE:3414 NGH 24V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
