Description

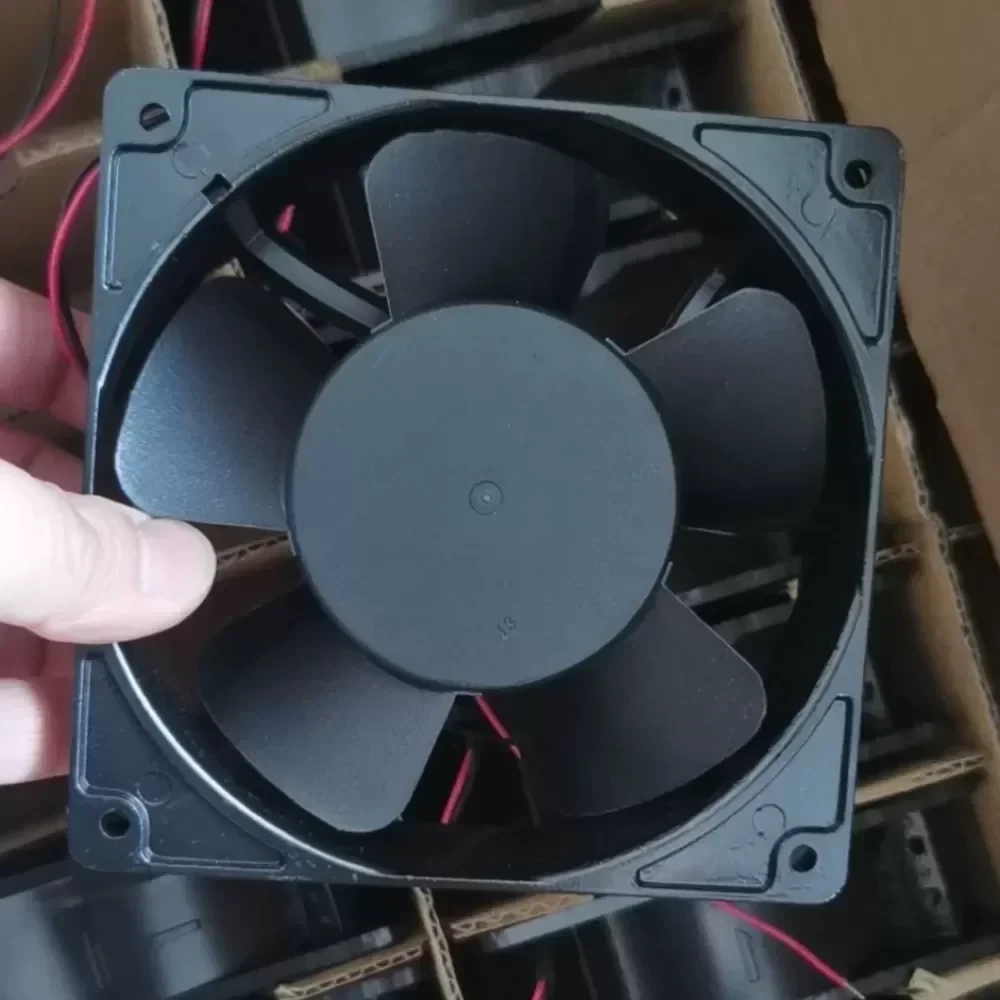

The ADDA AD1224UB-F51 is a heavy-duty, industrial-grade axial flow cooling fan engineered for high-thermal-load environments. Designed with a robust metal casing, this 120mm x 120mm x 38mm ventilator delivers exceptional static pressure and volumetric airflow, making it an essential component for inverter cooling, power supply ventilation, and continuous-duty radiating applications. Utilizing Original Engineering standards, this DC axial fan ensures maximum heat dissipation in critical control cabinets and automated machinery.

Technical Specifications:
Manufacturer: ADDA Corporation
Model Number: AD1224UB-F51
Fan Type: DC Axial Flow Fan
Dimensions: 120 x 120 x 38 mm (Ø 120mm)
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.40 A ± 10%
Power Consumption: 9.6 W
Rotational Speed: 3200 RPM ± 10%
Maximum Airflow: 120.0 CFM (3.39 m³/min)
Static Pressure: 0.35 In-H2O
Acoustic Noise: 48.0 dB(A)
Bearing System: Precision Dual Ball Bearing
Weight: 340 g

Material and Environmental Profile:
Housing Material: Die-cast Aluminum Alloy (Metal Casing)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Expected Lifecycle: 70,000 hours at 40°C
Safety Certifications: UL, CUL, TUV, CE

Industrial Application and Technical Compatibility:
The AD1224UB-F51 is specifically engineered for integration into high-frequency inverters, variable frequency drives (VFDs), telecom base stations, and industrial welding equipment. Its die-cast aluminum housing provides superior structural integrity against mechanical vibration and thermal stress compared to standard plastic frames. The dual ball bearing architecture guarantees Technical Compatibility with systems requiring vertical or horizontal mounting orientations without compromising lifespan. This fan effectively mitigates thermal throttling in densely packed electronic enclosures, ensuring uninterrupted operation of sensitive microprocessors and power semiconductors.

Procurement and Lead Time:
Supplied as a brand new, factory-original component. Standard Lead Time applies for bulk industrial procurement. Please verify exact wire termination requirements prior to installation to ensure seamless integration with your existing control circuitry.

AD1224UB-F51 ADDA 12038/24 Axial fan

AD1224UB-F51 ADDA 12038/24 Axial fan

AD1224UB-F51 ADDA 12038/24 Axial fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
