$11.14

SKU: 898164555566 Brand:

Description

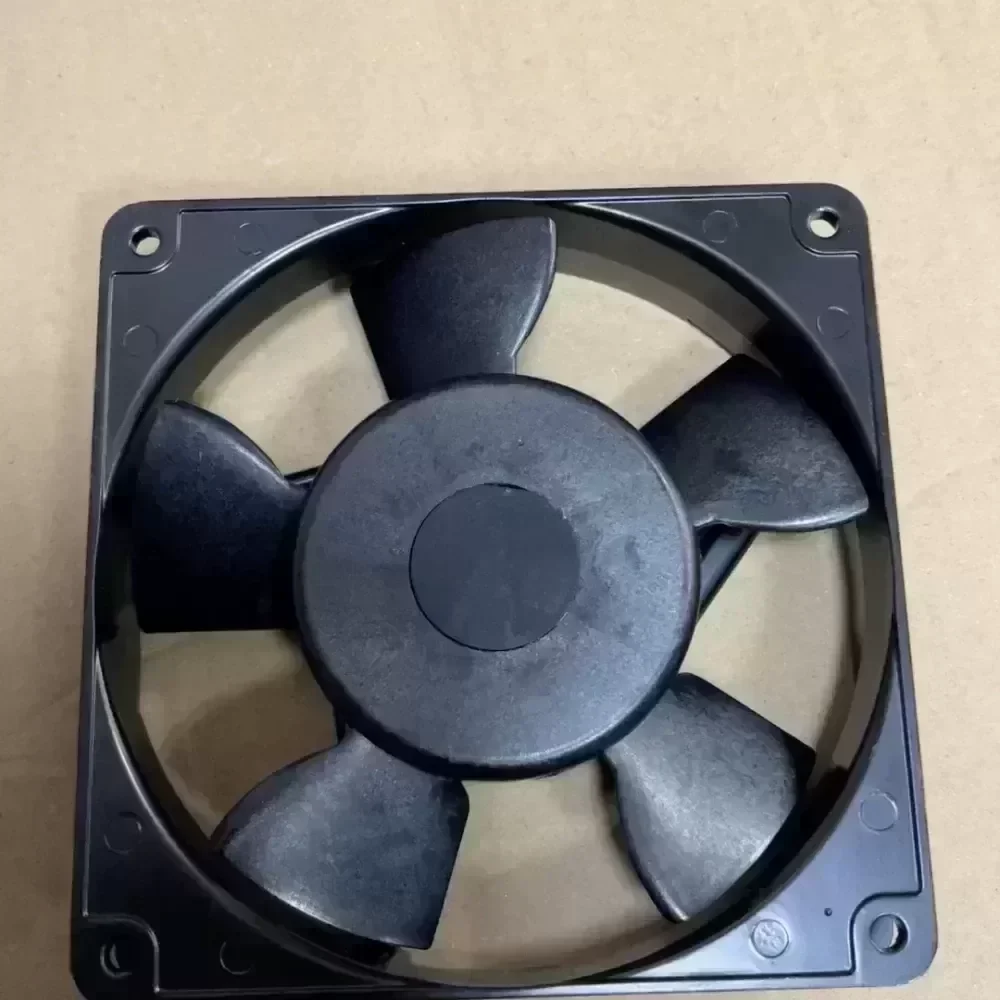

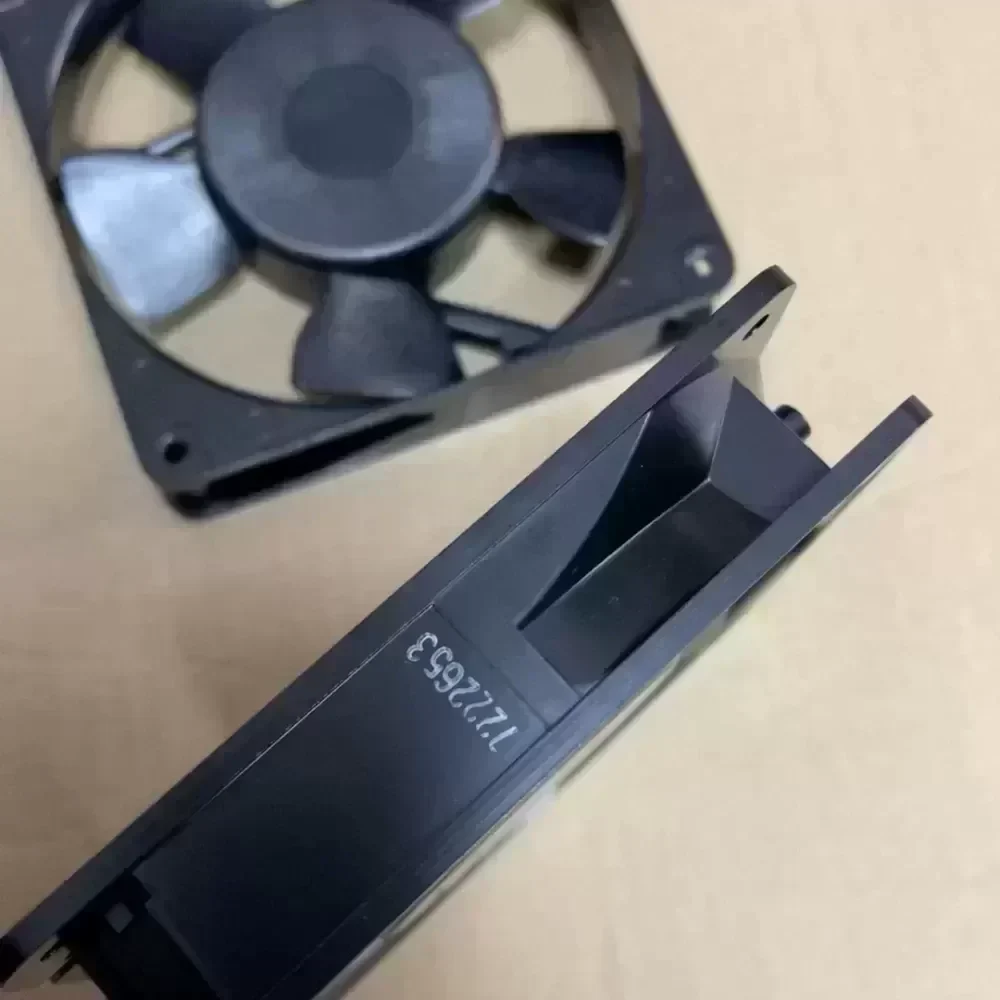

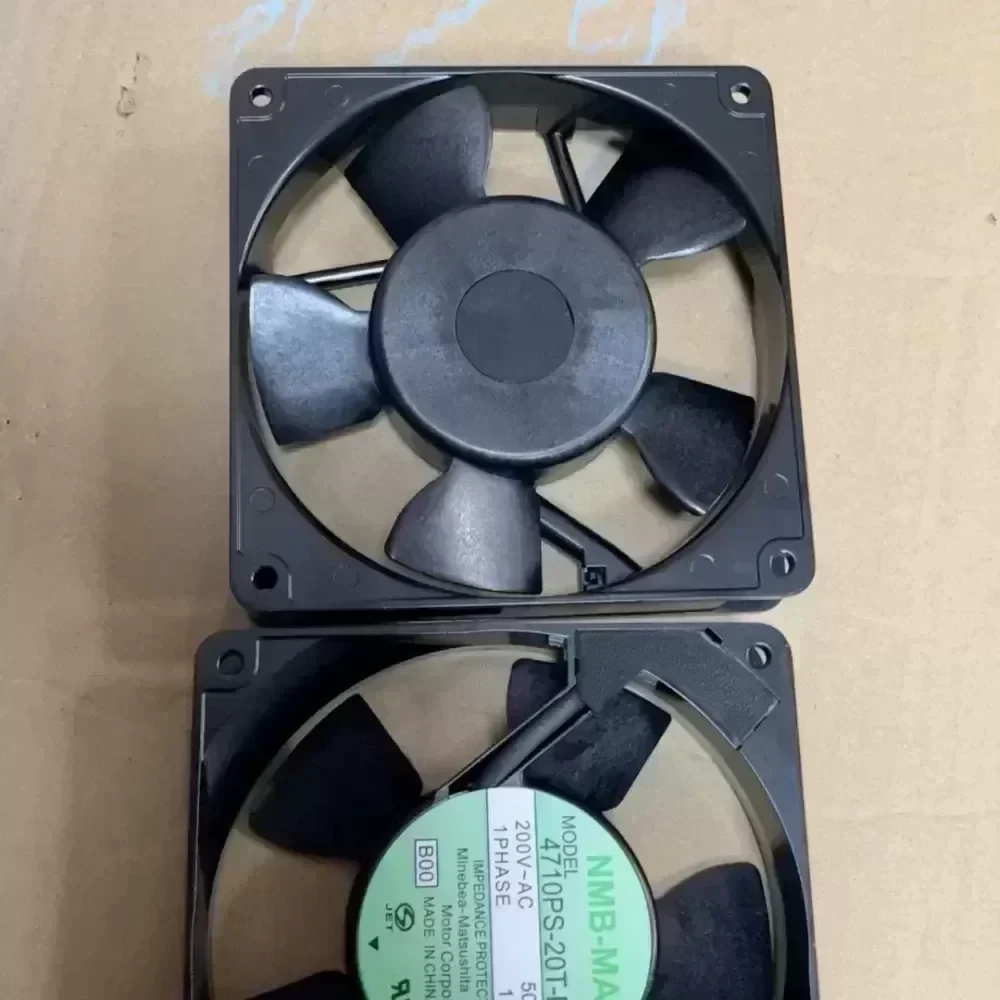

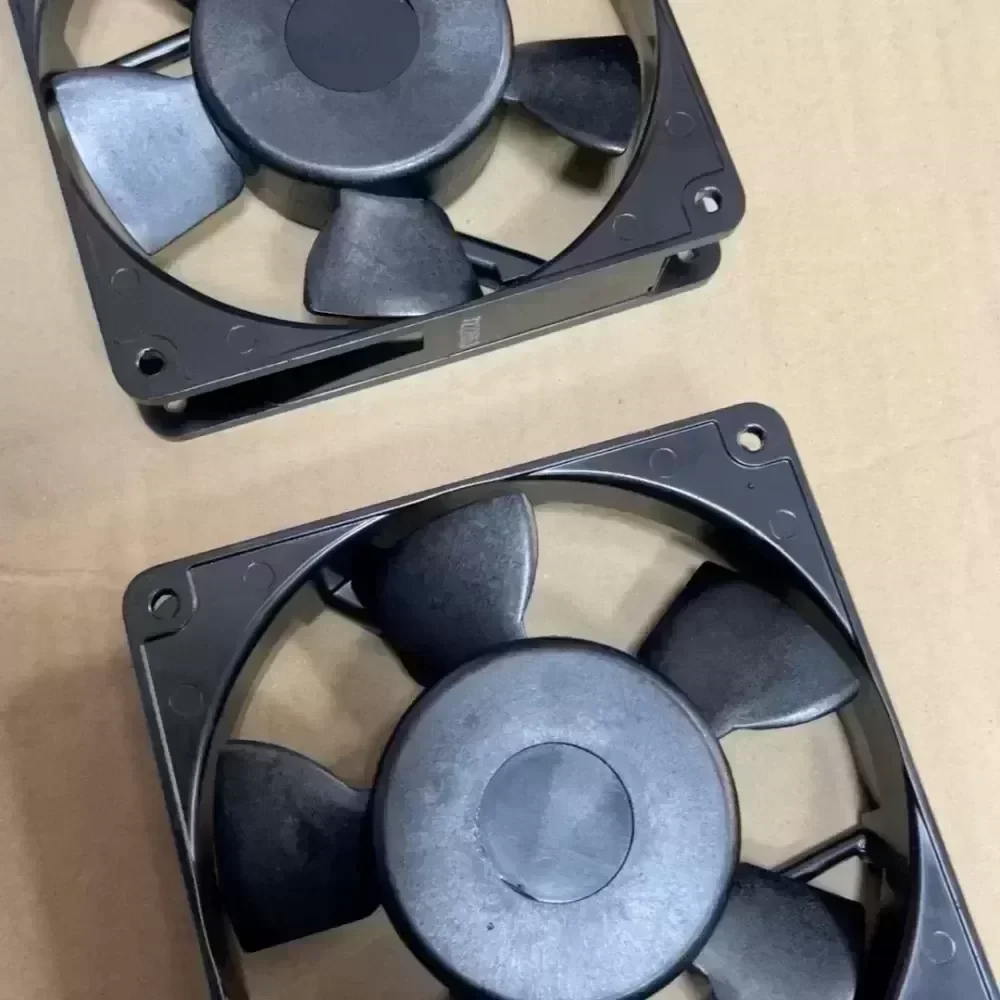

The NMB-MAT 4710PS-20T-B30 is an industrial-grade AC axial cooling fan engineered by MinebeaMitsumi. Built to OEM standards, this unit provides high-reliability thermal management for compact industrial electrical enclosures, power supplies, instrumentation, and rack-mount hardware requiring direct AC line power.

Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model: 4710PS-20T-B30
Designation: Industrial AC Axial Fan
Frame Size: 119 mm x 119 mm x 25 mm
Nominal Voltage: 200 V AC
Voltage Range: 180 V to 220 V AC
Phase: Single Phase
Frequency: 50 / 60 Hz
Input Power: 14.0 W (50 Hz) / 11.0 W (60 Hz)
Nominal Current: 0.09 A (50 Hz) / 0.08 A (60 Hz)
Rotational Speed: 2600 RPM (50 Hz) / 2950 RPM (60 Hz)
Airflow Volume: 1.80 m³/min (63.5 CFM) at 50 Hz / 2.15 m³/min (75.9 CFM) at 60 Hz
Static Pressure: 36.3 Pa (0.146 in H2O) / 44.1 Pa (0.177 in H2O)
Acoustic Noise: 37.0 dBA (50 Hz) / 40.0 dBA (60 Hz)
Motor Design: Shaded Pole Induction Motor
Motor Protection: Impedance Protected
Bearing System: Dual Precision Shielded Ball Bearings

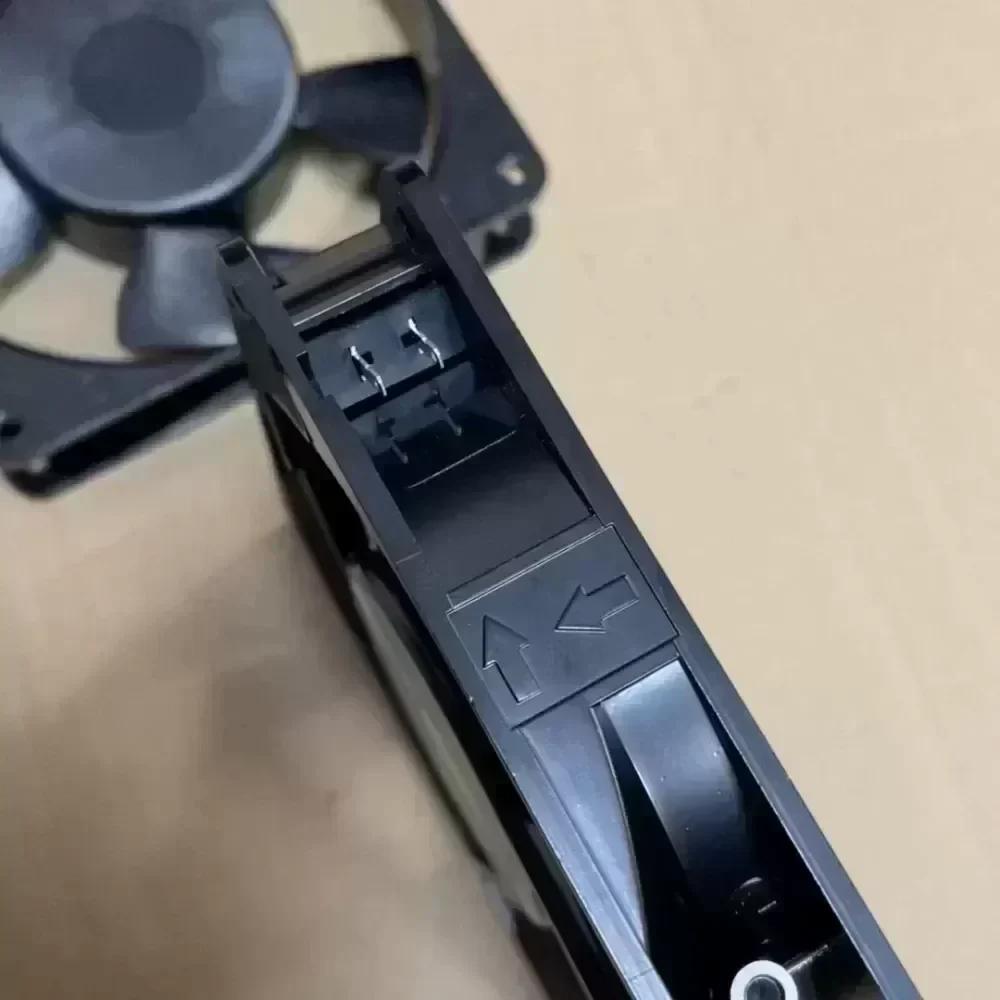

Electrical Connection: Faston / Solder Terminal Lugs
Frame Material: Die-Cast Aluminum Alloy (Black Finish)
Impeller Material: PBT Thermoplastic with Glass Fiber Reinforcement (UL94V-0)
Dielectric Strength: 1500 V AC for 1 minute
Insulation Resistance: 100 MΩ minimum at 500 V DC
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -40 °C to +70 °C
Operational Life Expectancy (L10): 50,000 hours at 25 °C
Weight: 380 g
Certifications: UL, CSA, CE, RoHS Compliant

Application and Technical Compatibility:
The 4710PS-20T-B30 is designed for environments where DC power rails are unavailable and standard line-level 200V AC power must directly drive thermal exhaust systems. With a shallow 25 mm profile, it fits restricted-depth chassis including CNC controller bays, variable frequency drive (VFD) heat sinks, server chassis, and medical laboratory equipment. The dual ball bearing design permits continuous operation in vertical, horizontal, or angled orientations without lubricating fluid leakage or premature mechanical wear.

Procurement & Quality Assurance:
This unit delivers Original Engineering structural integrity and operational compliance. Rapid dispatch protocols are maintained to ensure minimal Lead Time for planned maintenance schedules and critical line-down repairs. Direct Technical Compatibility verification is available based on existing mounting hole spacing (104.8 mm ± 0.3 mm) and terminal configuration.

4710PS-20T-B30 NMB-MAT 200VAC fan

4710PS-20T-B30 NMB-MAT 200VAC fan

4710PS-20T-B30 NMB-MAT 200VAC fan

4710PS-20T-B30 NMB-MAT 200VAC fan

4710PS-20T-B30 NMB-MAT 200VAC fan

4710PS-20T-B30 NMB-MAT 200VAC fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
