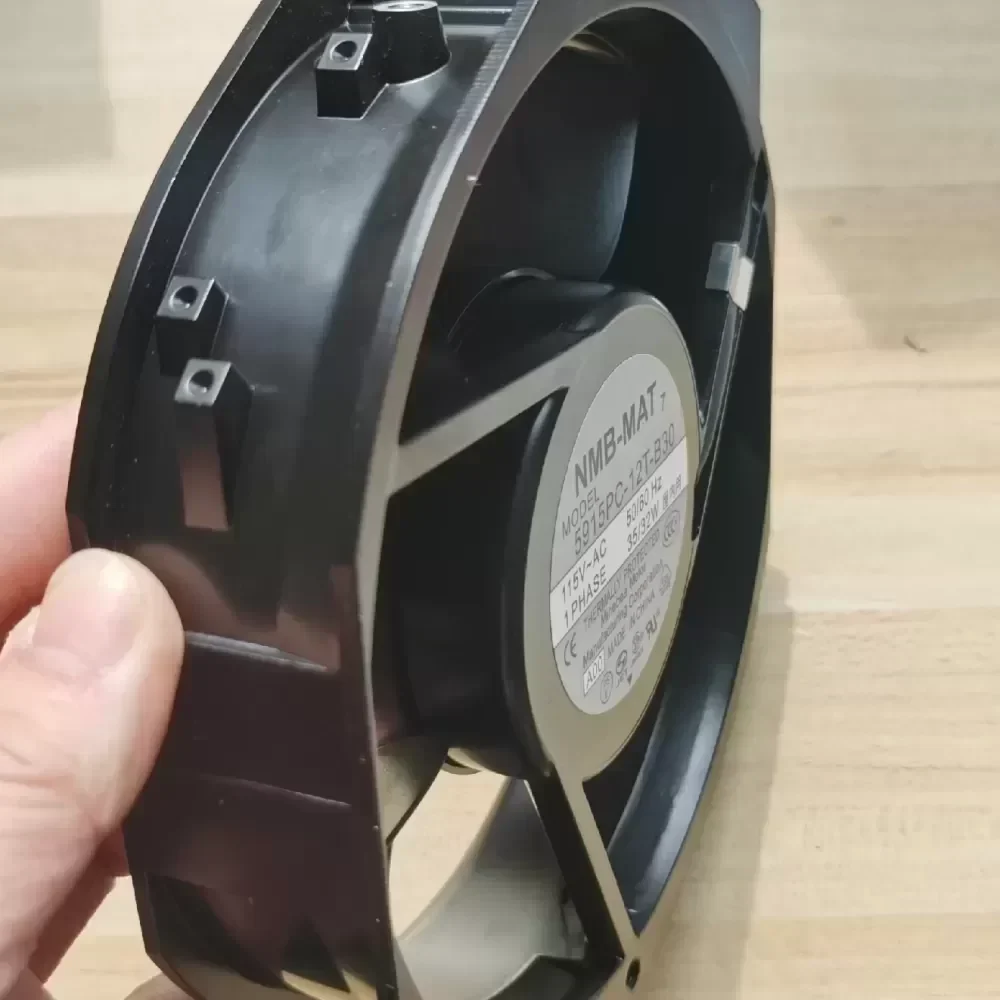

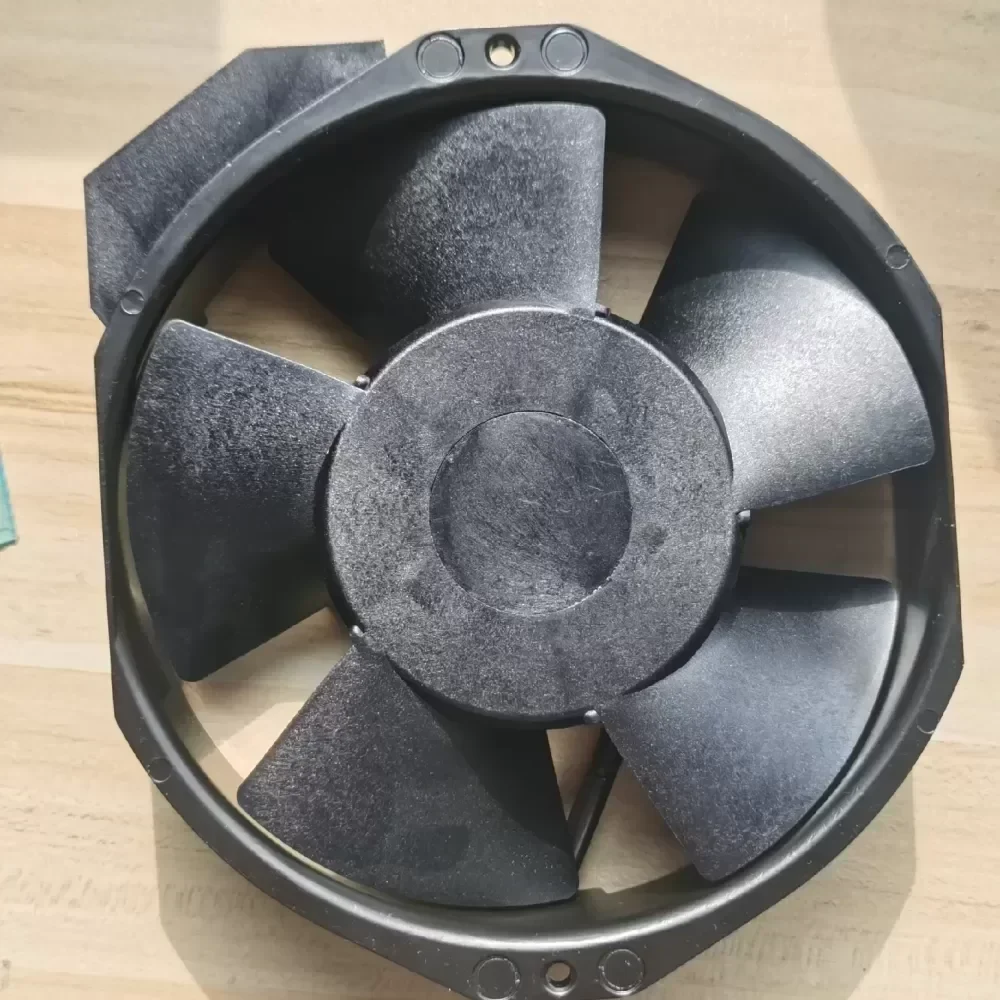

5915PC-12T-B30 New 17238/115V fan
5915PC-12T-B30 New 17238/115V fan
5915PC-12T-B30 New 17238/115V fan

5915PC-12T-B30 New 17238/115V fan

$31.43

SKU: 700221066557 Brand:

Description

The NMB Technologies 5915PC-12T-B30 is an industrial-grade AC axial flow fan engineered for high-reliability thermal management in demanding environments. Specifically recognized for its Technical Compatibility with Haas CNC machine tool chassis, this 115V cooling fan delivers exceptional airflow to maintain optimal operating temperatures for critical electronic components. Built with Original Engineering standards, it ensures extended lifecycle value and minimal maintenance downtime.

Technical Specifications
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Number: 5915PC-12T-B30
Fan Type: AC Axial Flow Fan
Dimensions: 172mm x 150mm x 38mm
Rated Voltage: 115 VAC
Frequency: 50/60 Hz
Operating Current: 0.35 A
Power Consumption: 35.0 W
Rotational Speed: 2700 / 3200 RPM
Maximum Airflow: 180.0 / 212.0 CFM (5.10 / 6.00 m³/min)
Static Pressure: 0.55 / 0.85 inH2O
Noise Level: 52.0 / 56.0 dB(A)
Termination: Quick Connect Terminals
Bearing System: Precision Dual Ball Bearing
Weight: 800 g

Material and Environmental Profile
Housing Material: Die-cast Aluminum
Impeller Material: Polycarbonate (Glass Fiber Reinforced, UL94V-0)
Operating Temperature Range: -10°C to +70°C
Insulation Resistance: 100 Megaohms minimum at 500 VDC
Dielectric Withstand Voltage: 1500 VAC for 1 minute
Certifications: UL, CSA, VDE, CE

Industrial Application and Integration
The 5915PC-12T-B30 is specifically deployed in the chassis cooling systems of Haas machine tools and high-density industrial control cabinets. In these environments, metal dust, continuous operation, and fluctuating thermal loads require a robust cooling solution. The die-cast aluminum housing prevents frame distortion under high mechanical stress, while the precision ball bearing system guarantees continuous 24/7 operation. By maintaining strict Technical Compatibility with OEM specifications, this fan prevents thermal throttling of CNC servo drives and spindle controllers. We maintain an optimized Lead Time for this component to ensure rapid deployment for critical machine tool maintenance and facility upgrades.

5915PC-12T-B30 New 17238/115V fan

5915PC-12T-B30 New 17238/115V fan

5915PC-12T-B30 New 17238/115V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
