$37.14

SKU: 677040075258 Brand:

Description

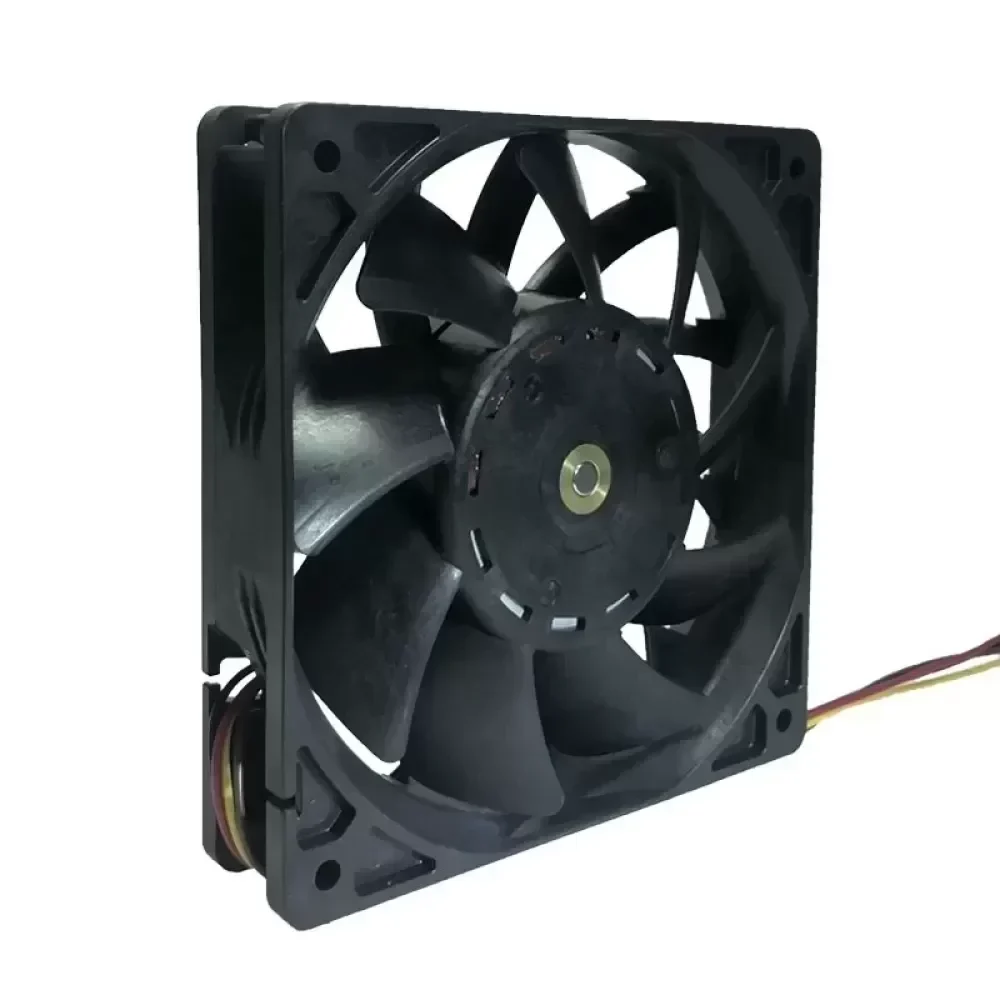

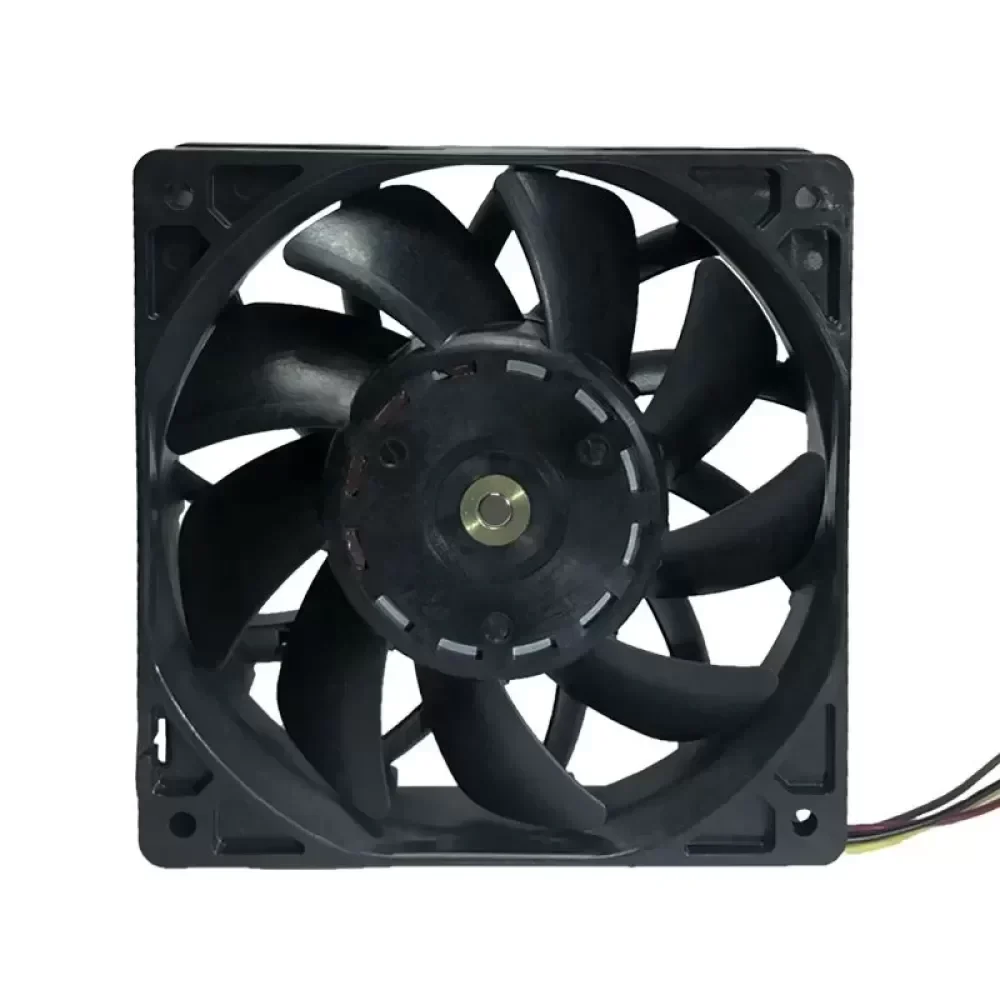

The Sanyo Denki San Ace 9GB1212P4G01 is a high-performance, industrial-grade axial cooling fan engineered for mission-critical thermal management. Designed with a 120x120x25mm form factor, this unit delivers exceptional airflow and static pressure, making it an indispensable component for high-density electronic enclosures. Utilizing precise Pulse Width Modulation (PWM), it allows for dynamic speed control, optimizing both acoustic performance and power consumption based on real-time system thermal demands.

Technical Specifications:
Manufacturer: Sanyo Denki
Series: San Ace 120
Model Number: 9GB1212P4G01
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.2 to 13.8 VDC
Rated Current: 1.1 A
Input Power: 13.2 W
Maximum Speed: 4500 RPM ± 10%
Maximum Airflow: 3.5 m³/min
Maximum Static Pressure: 135 Pa
Acoustic Noise: 51 dB(A)
Operating Temperature Range: -20°C to +70°C
Bearing Architecture: Precision Dual Ball Bearing
Termination: 4-Wire (V+, GND, Tachometer Sensor, PWM Control)
Frame Material: High-grade UL94V-0 Plastic
Impeller Material: UL94V-0 Plastic
Weight: 170 g

Application & Technical Compatibility:
This high-velocity cooling fan is specifically engineered for enterprise-grade servers, telecommunications equipment, and industrial chassis systems. In environments where thermal throttling can cause catastrophic system failure, the 9GB1212P4G01 provides rapid heat dissipation and maintains optimal operating temperatures. Its 4-wire PWM architecture ensures seamless Technical Compatibility with modern motherboard and server controller logic, allowing for automated RPM scaling.

Procurement & Lifecycle Value:
Sourced directly through Original Engineering channels, this authentic Sanyo Denki component guarantees maximum MTBF (Mean Time Between Failures) and operational reliability. Our optimized supply chain ensures a minimized Lead Time, providing rapid deployment capabilities for urgent maintenance, system upgrades, or large-scale OEM production runs.

9GB1212P4G01 Sanyo 12025/12V fan

9GB1212P4G01 Sanyo 12025/12V fan

9GB1212P4G01 Sanyo 12025/12V fan

9GB1212P4G01 Sanyo 12025/12V fan

9GB1212P4G01 Sanyo 12025/12V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
