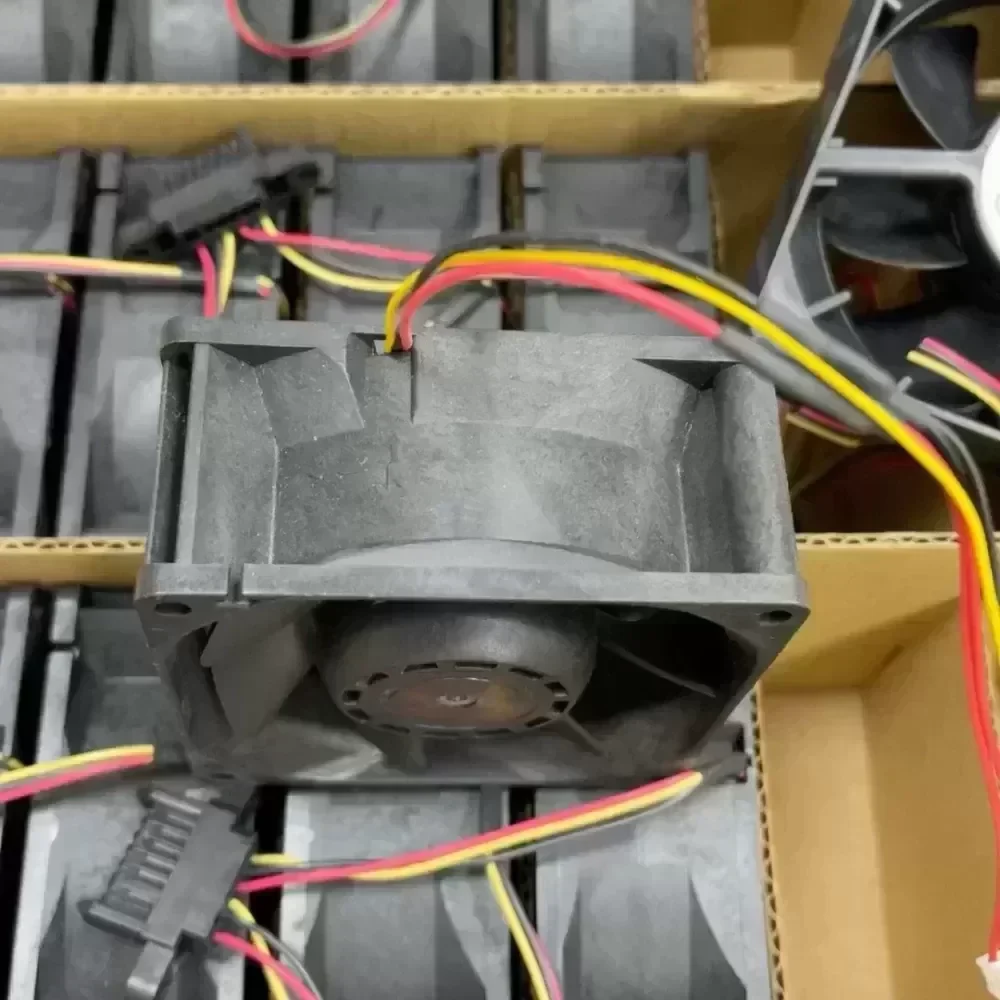

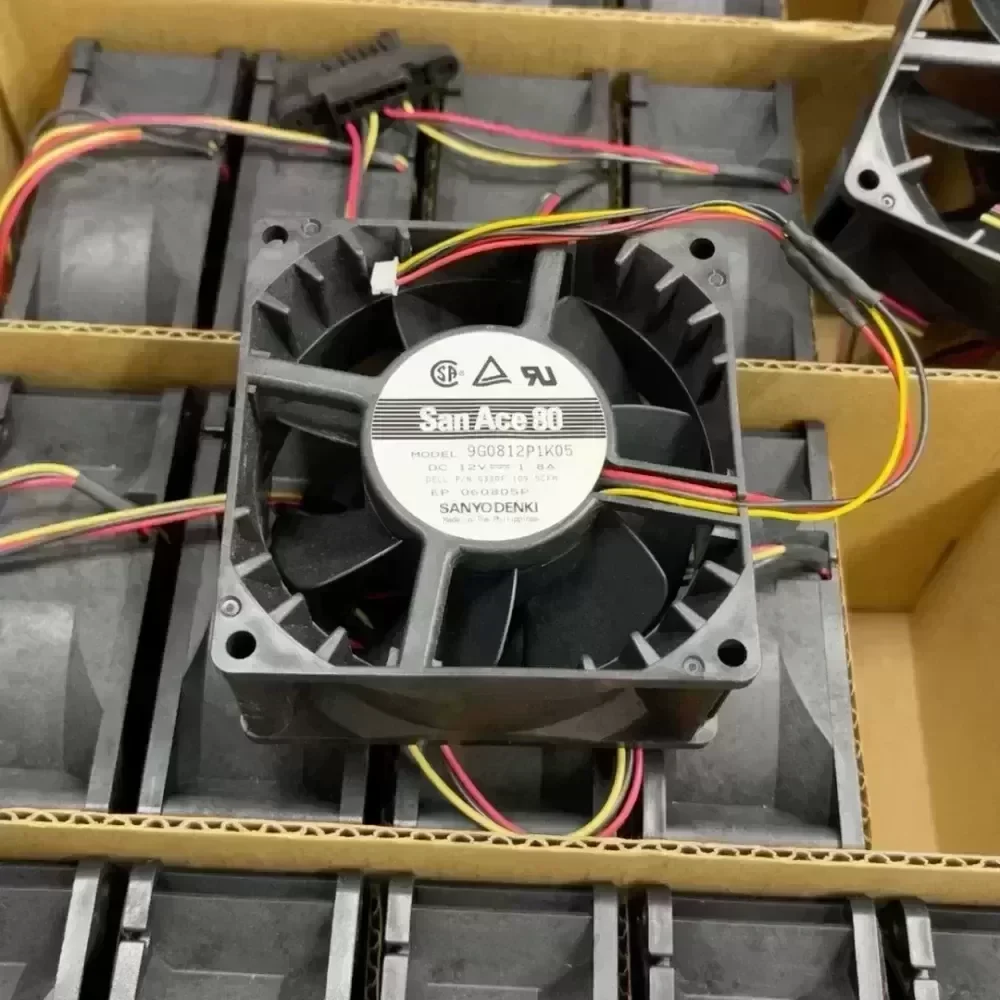

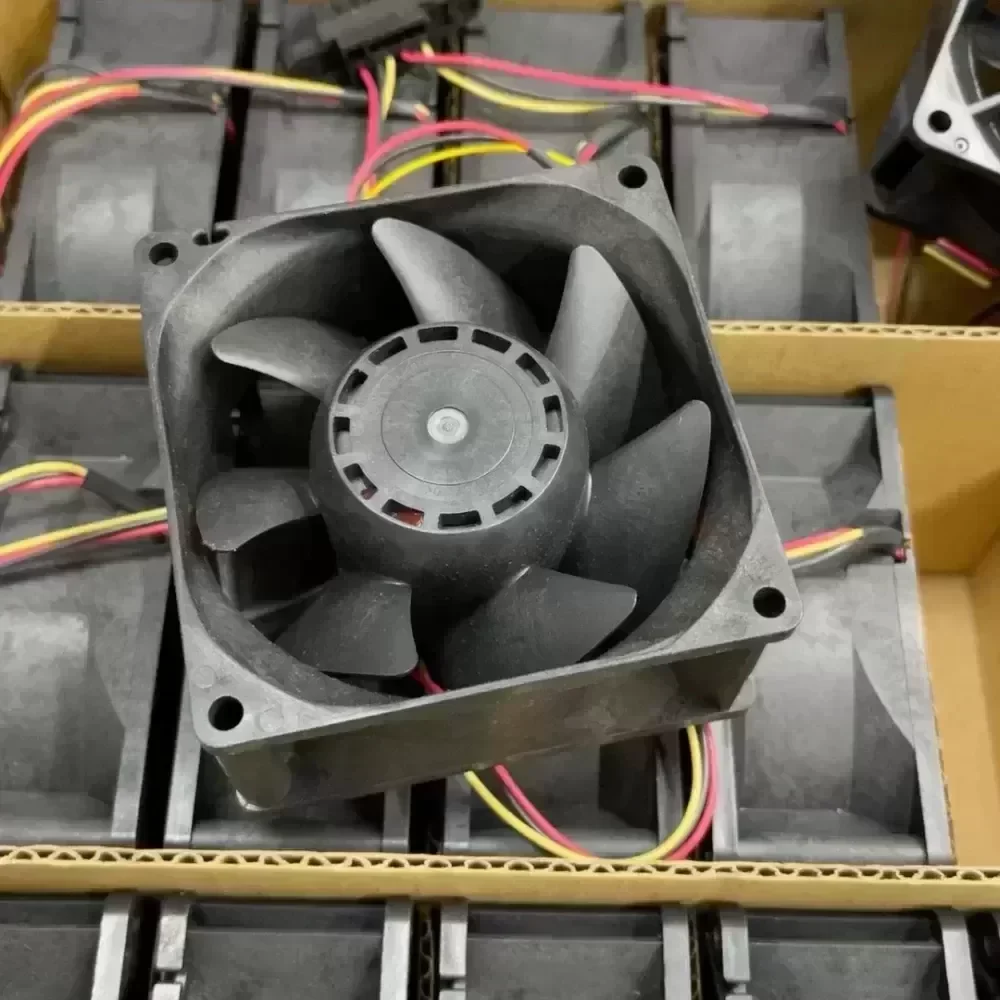

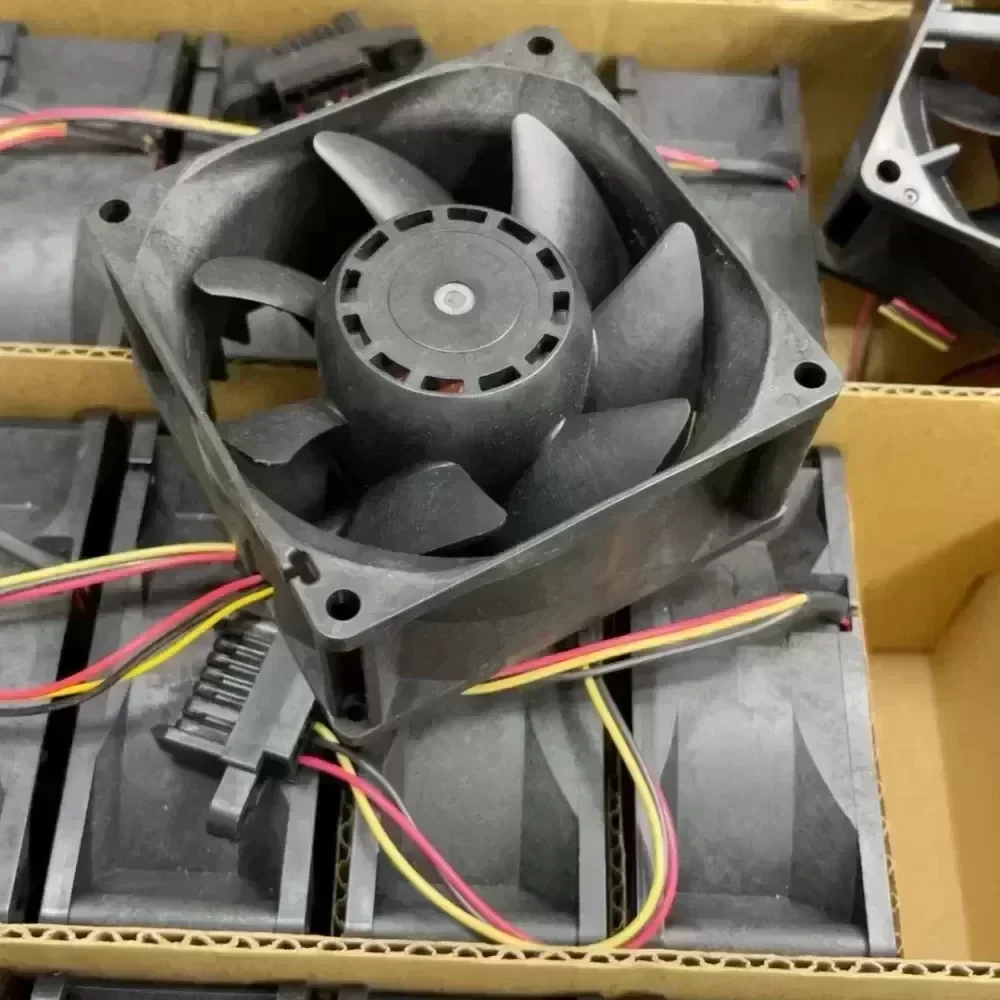

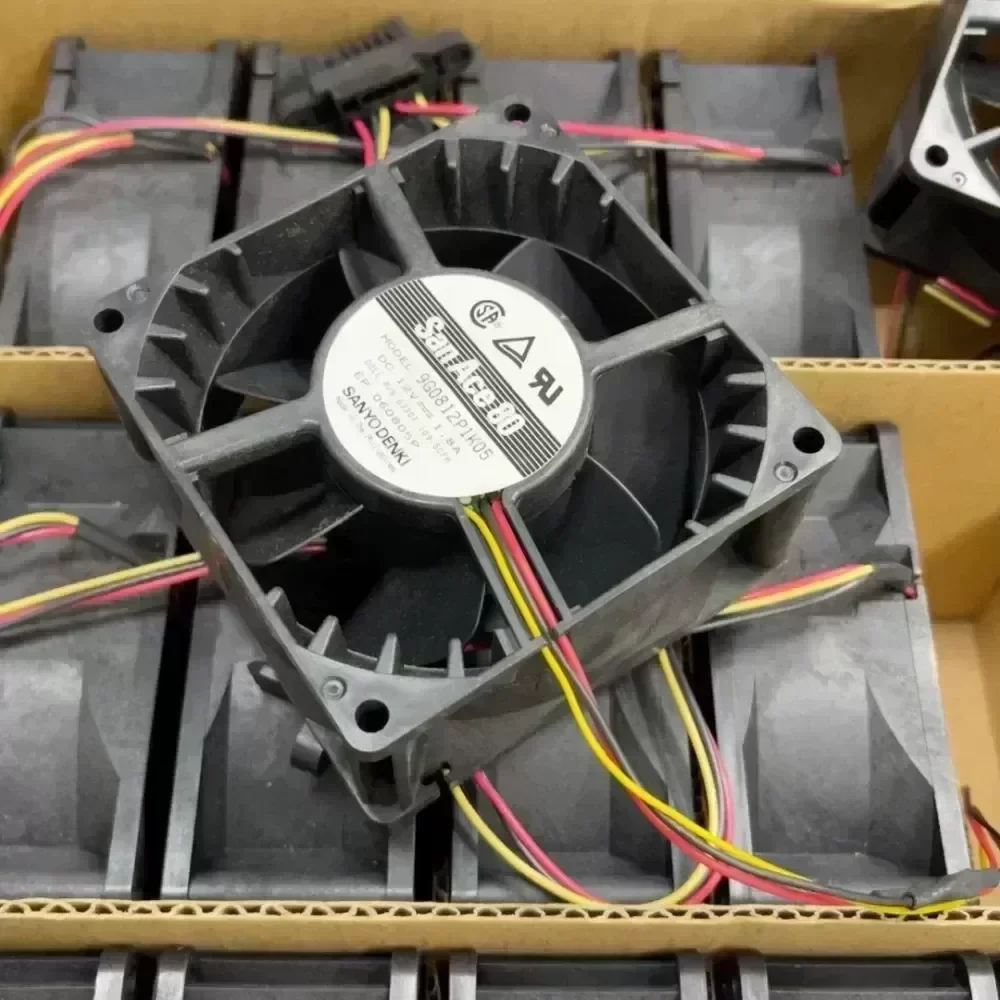

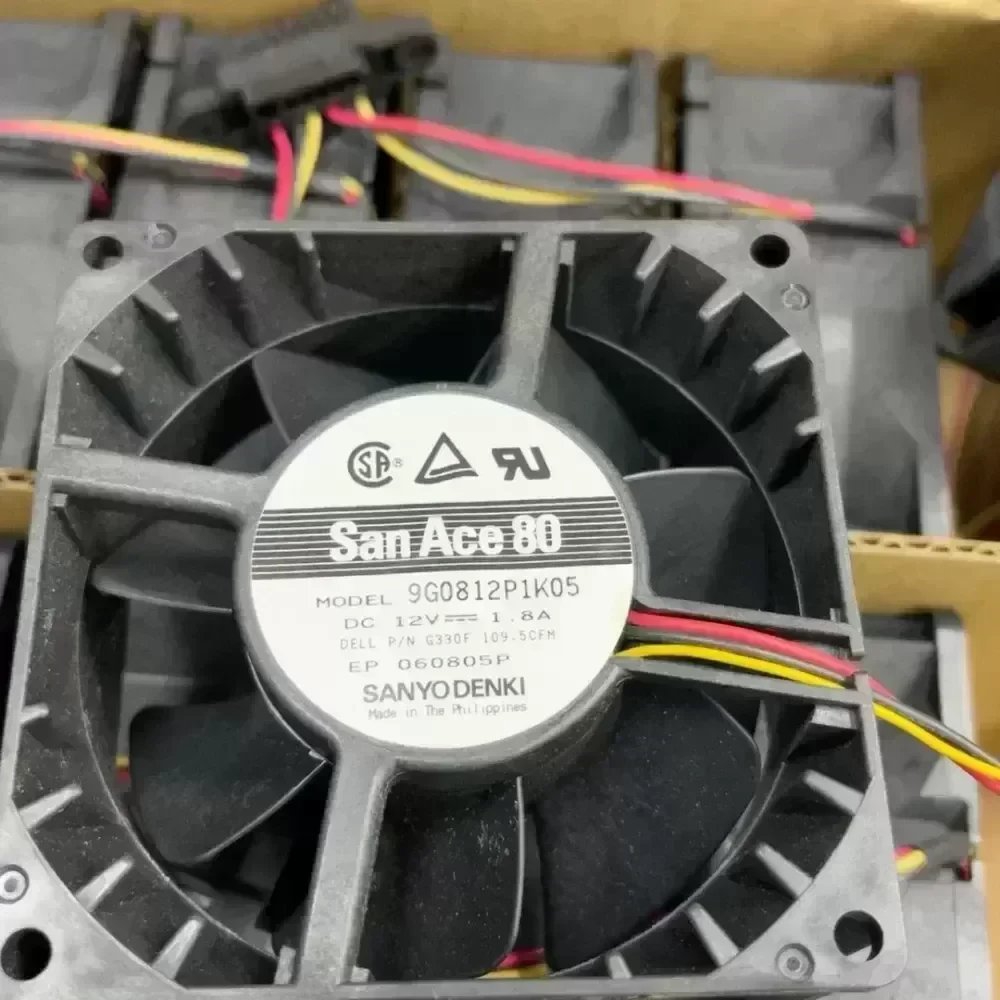

9G0812P1K05 Sanyo SanAce80 fan

Description

The San Ace 9G0812P1K05 is engineered specifically for high-impedance thermal management applications. Its high static pressure capability overcomes airflow resistance in densely populated computing racks, enterprise 2U servers, dynamic power supplies (SMPS), telecommunication switching nodes, and modular GPU acceleration enclosures where conventional axial fans experience aerodynamic stall.Manufacturer: Sanyo Denki
Brand: San Ace 80 (9G Series)
Model Number: 9G0812P1K05
Product Classification: High Static Pressure DC Axial Cooling Fan

MODEL NOMENCLATURE BREAKDOWN
Series Code (9G): San Ace High-Performance / High Static Pressure Design
Frame Size (08): 80 mm x 80 mm
Voltage Code (12): 12 VDC Rated Operation
Control Function (P): Pulse Width Modulation (PWM) Control with Speed Tachometer Output
Thickness Code (1): 38 mm Housing Depth
Custom Specifier (K05): High-RPM Performance Calibration

TECHNICAL SPECIFICATIONS
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.2 VDC to 13.8 VDC
Rated Current: 1.80 A
Rated Input Power: 21.6 W
Rotational Speed: 8,000 RPM (at 100% PWM Duty Cycle)
Maximum Airflow: 2.70 m³/min (95.3 CFM)
Maximum Static Pressure: 360 Pa (1.45 inch H2O)
Acoustic Noise Level: 58 dB(A)
Bearing Type: Dual Precision Ball Bearing System
Termination Type: 4-Wire Flying Leads (Pinout: +12V VCC, Ground, Tachometer Output, PWM Input)
PWM Control Frequency: 25 kHz Typical Operating Range
Frame Dimension: 80 mm x 80 mm x 38 mm
Housing Material: Glass-Fiber Reinforced PBT Thermoplastic (UL 94V-0 Rated)
Impeller Material: Glass-Fiber Reinforced PBT Thermoplastic (UL 94V-0 Rated)
Insulation Resistance: 10 MΩ minimum at 500 VDC
Dielectric Strength: 500 VAC at 50/60 Hz for 1 minute (between lead wires and frame)
Operating Temperature Range: -20 °C to +70 °C
Storage Temperature Range: -30 °C to +70 °C
Expected Lifetime (L10): 40,000 Hours at 60 °C continuous duty
Weight: 190 g
Certifications and Compliance: RoHS Compliant, CE, UL/cUL Recognized Component

COMMERCIAL, LOGISTICS AND TECHNICAL COMPATIBILITY
Technical Compatibility: Direct drop-in component replacement for enterprise server chassis and high-density computing backplanes utilizing standard 4-pin PWM headers.
Original Engineering: Manufactured to original OEM performance tolerances and verified for mission-critical thermal regulation.
Inventory Status: Available in bulk enterprise packaging.
Lead Time: Ex-stock availability with same-day dispatch capabilities for standard orders; regional freight routing and batch supply scheduling available.
