$240.00

SKU: 927027439598 Brand:

Description

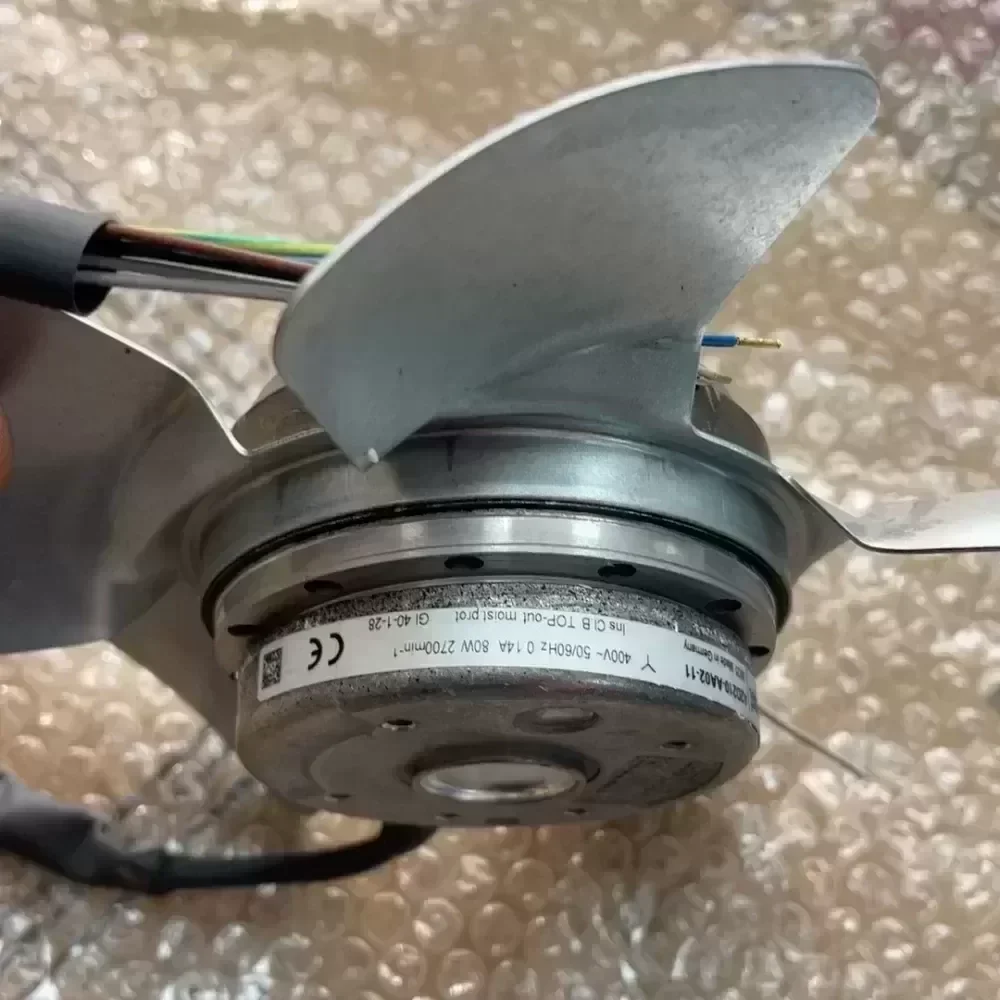

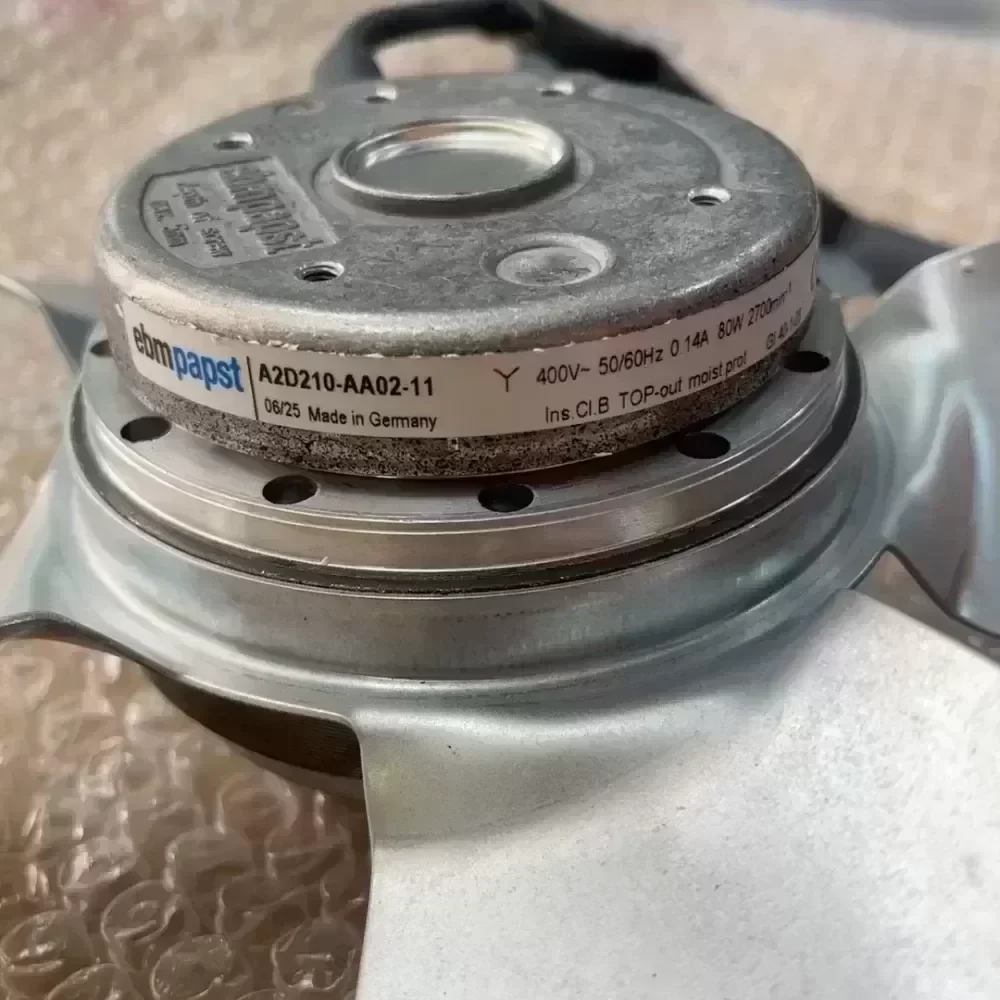

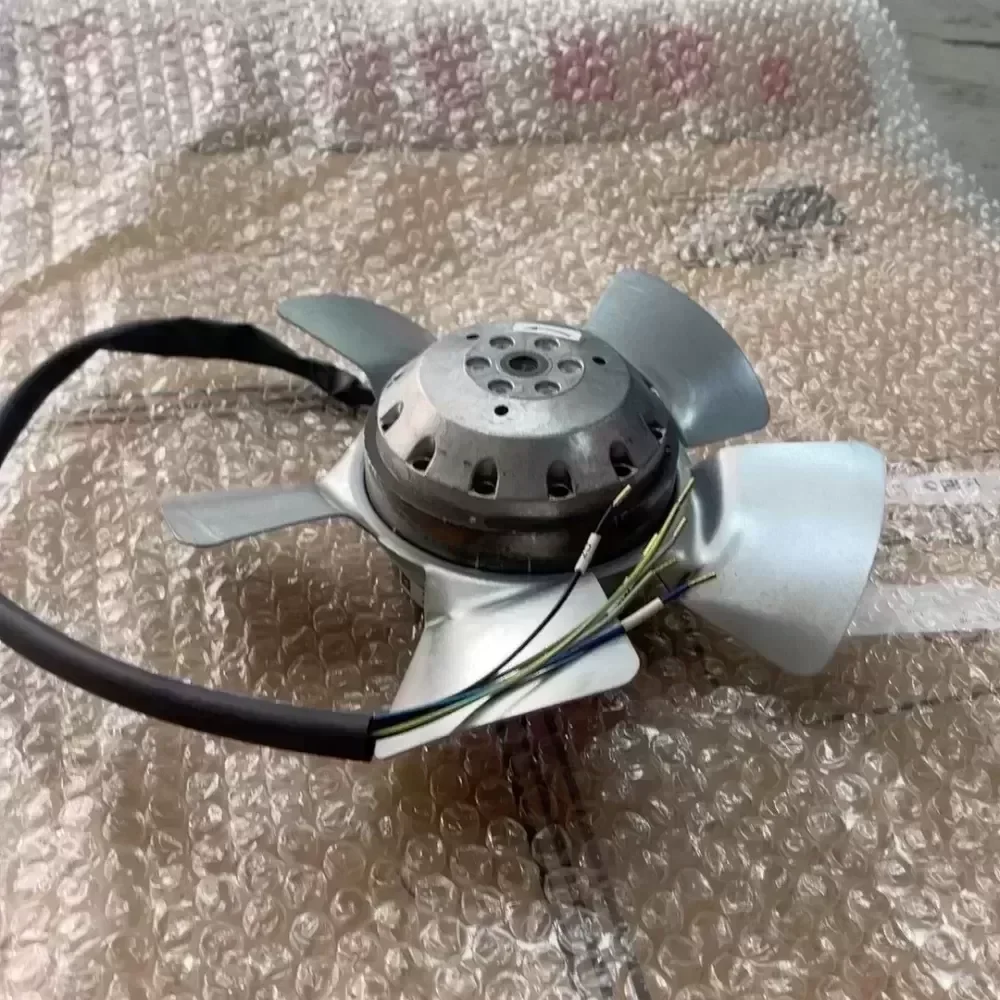

The ebmpapst A2D210-AA02-11 is an industrial-grade compact axial fan engineered for high aerodynamic efficiency and prolonged duty cycles under continuous thermal stress. Driven by an external rotor 3-phase AC motor, the 5-blade aerodynamically optimized metal impeller delivers high volumetric airflow against moderate to high system impedance. The all-metal construction provides high structural rigidity, eliminating blade deflection at 2700+ RPM and preventing premature thermal wear in harsh operating environments.

Manufacturer: ebmpapst
Model Designation: A2D210-AA02-11
Equipment Type: Industrial AC Axial Fan
Condition: Brand New OEM Surplus / Factory Stock
Engineering Standard: German Original Engineering

MODEL STRING DECODING
A: Axial fan design
2: 2-pole motor configuration (high-speed)
D: Three-phase AC motor (3~)
210: 210 mm nominal impeller diameter
AA: Mechanical design / basic mechanical structure
02: Specific mechanical variant / mounting pattern
11: Electrical variant and wiring terminal configuration

TECHNICAL SPECIFICATIONS
Nominal Voltage: 400 VAC
Phase: 3~
Frequency: 50 / 60 Hz
Nominal Speed: 2700 RPM (50 Hz) / 3000 RPM (60 Hz)
Power Consumption: 80 W
Current Draw: 0.18 A
Airflow Volume: 1050 m³/h (50 Hz) / 1150 m³/h (60 Hz)
Static Pressure Range: 0 – 160 Pa
Direction of Airflow: Air exhaust over struts (Direction V)
Direction of Rotation: Counter-clockwise, viewed toward rotor

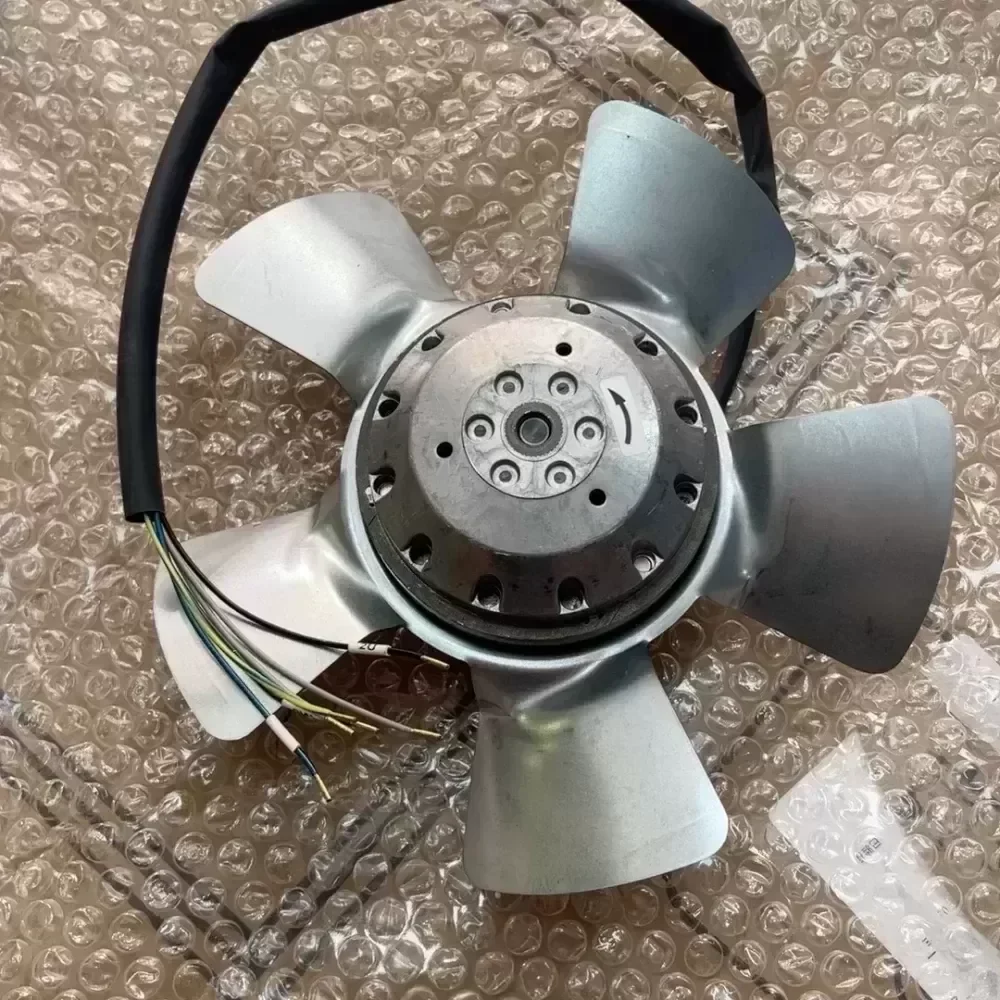

Number of Blades: 5
Impeller Material: Sheet steel, coated in black
Rotor Surface: Die-cast aluminum / painted black
Bearing System: Dual maintenance-free deep groove ball bearings
Motor Protection: Integrated thermal overload protector (TOP)
Insulation Class: Class B / F
Ingress Protection: IP44
Operating Temperature Range: -25 °C to +70 °C

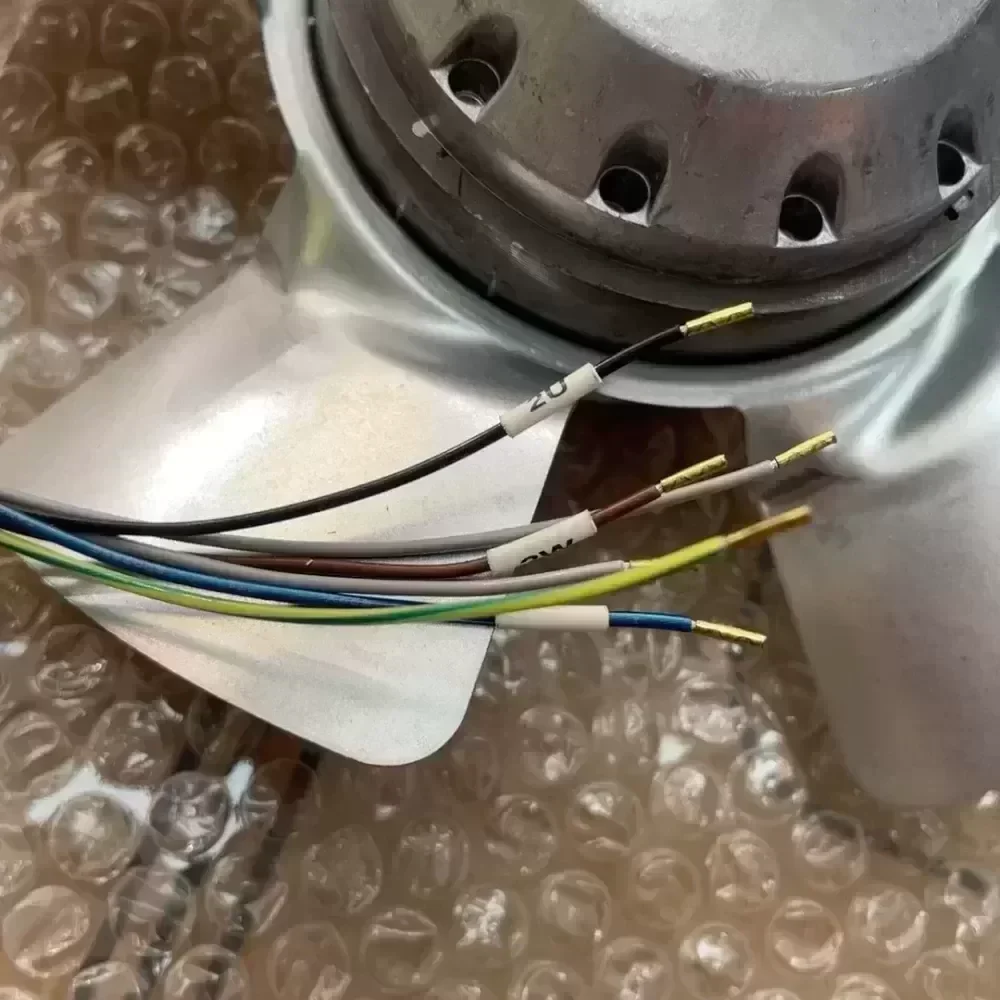

Electrical Connection: Flying leads / integrated terminal cable
Mass / Weight: 2.1 kg
Certifications: CE, EAC, VDE, UL/CSA Technical Compatibility

TARGET APPLICATIONS & RETROFIT COMPATIBILITY
Specifically configured for demanding industrial thermal management environments, including:
– Electrical control cabinet ventilation and switchgear enclosures
– Variable frequency drive (VFD) and inverter forced-air cooling channels
– Industrial chiller condensers and heat exchangers
– Automation machinery, welding power sources, and laser power module cooling

PROCUREMENT & LOGISTICS
Availability: In stock for immediate dispatch
Original Engineering Guarantee: Genuine ebmpapst industrial component
Lead Time: Immediate domestic dispatch via express courier; 3-5 business days international standard
Technical Compatibility Support: Wiring schematics and dimensional verification available upon request

A2D210-AA02-11 ebmpapst fan

A2D210-AA02-11 ebmpapst fan

A2D210-AA02-11 ebmpapst fan

A2D210-AA02-11 ebmpapst fan

A2D210-AA02-11 ebmpapst fan

A2D210-AA02-11 ebmpapst fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
