$25.71

SKU: 926483883299 Brand:

Description

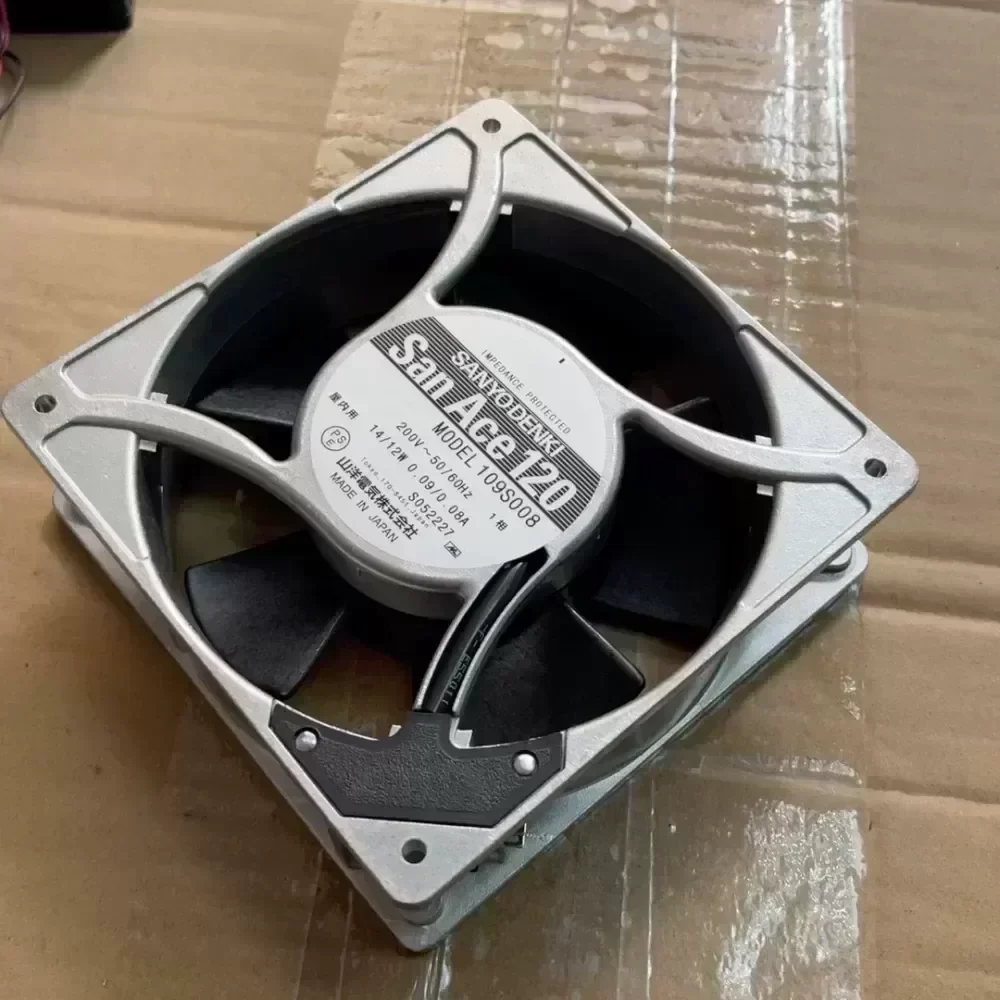

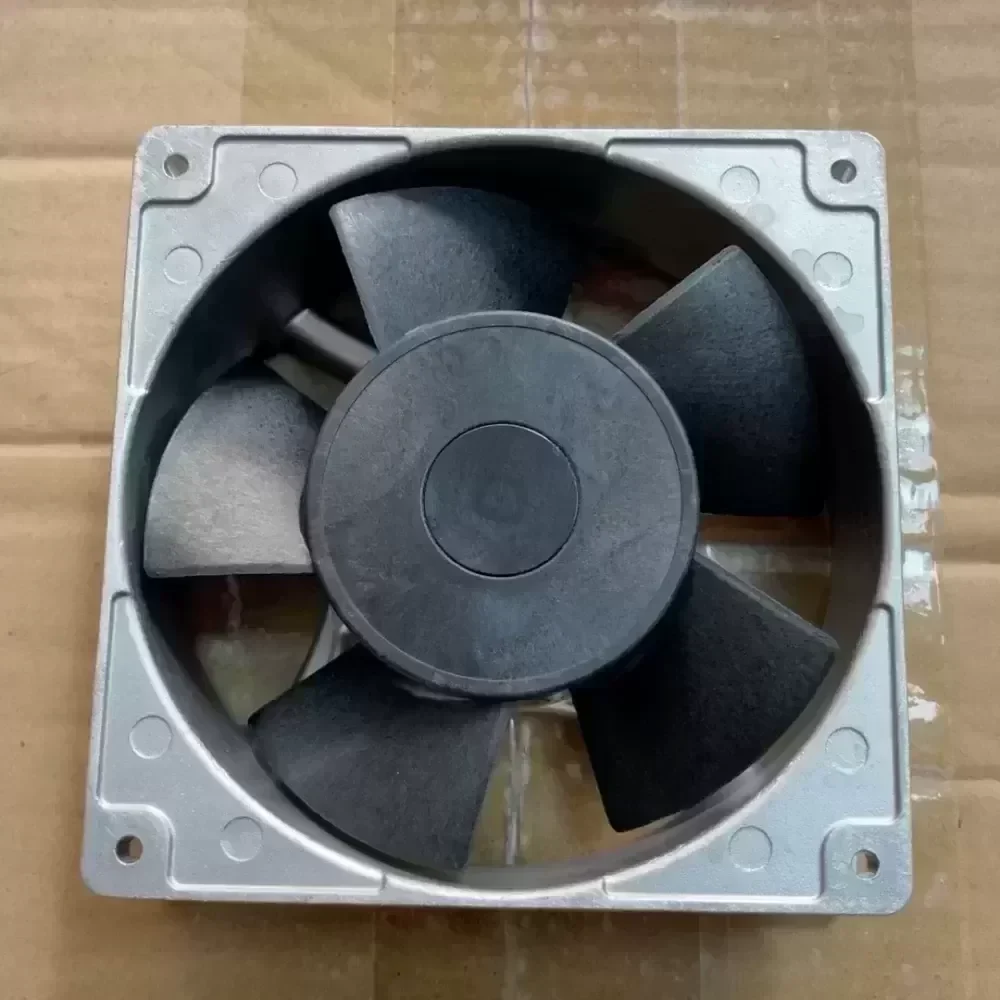

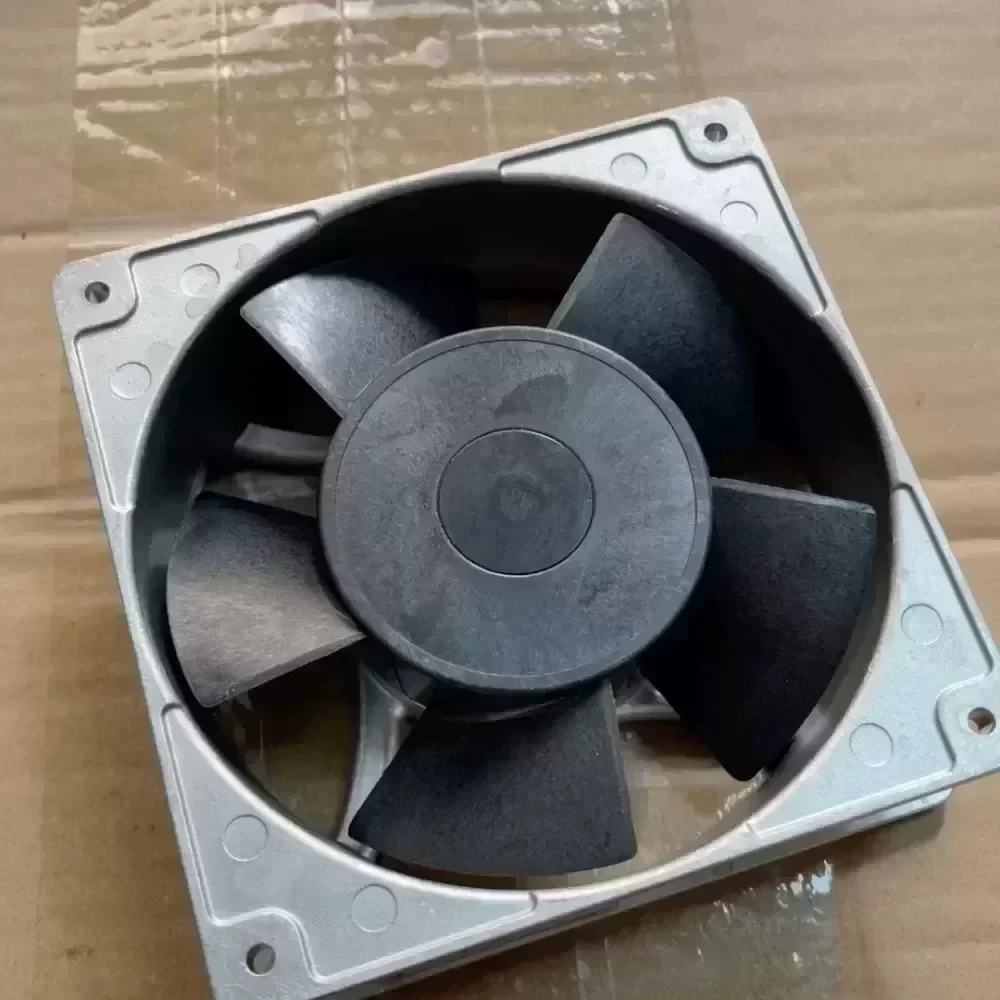

The Sanyo Denki San Ace 120 Model 109S008 is a heavy-duty AC axial cooling fan designed for mission-critical thermal regulation in industrial automation enclosures, inverter systems, and robotic controllers. Incorporating genuine Original Engineering from Sanyo Denki, this unit features a rugged die-cast aluminum housing paired with dual precision ball bearings to deliver continuous, non-degrading airflow under demanding operating conditions.

TECHNICAL SPECIFICATIONS

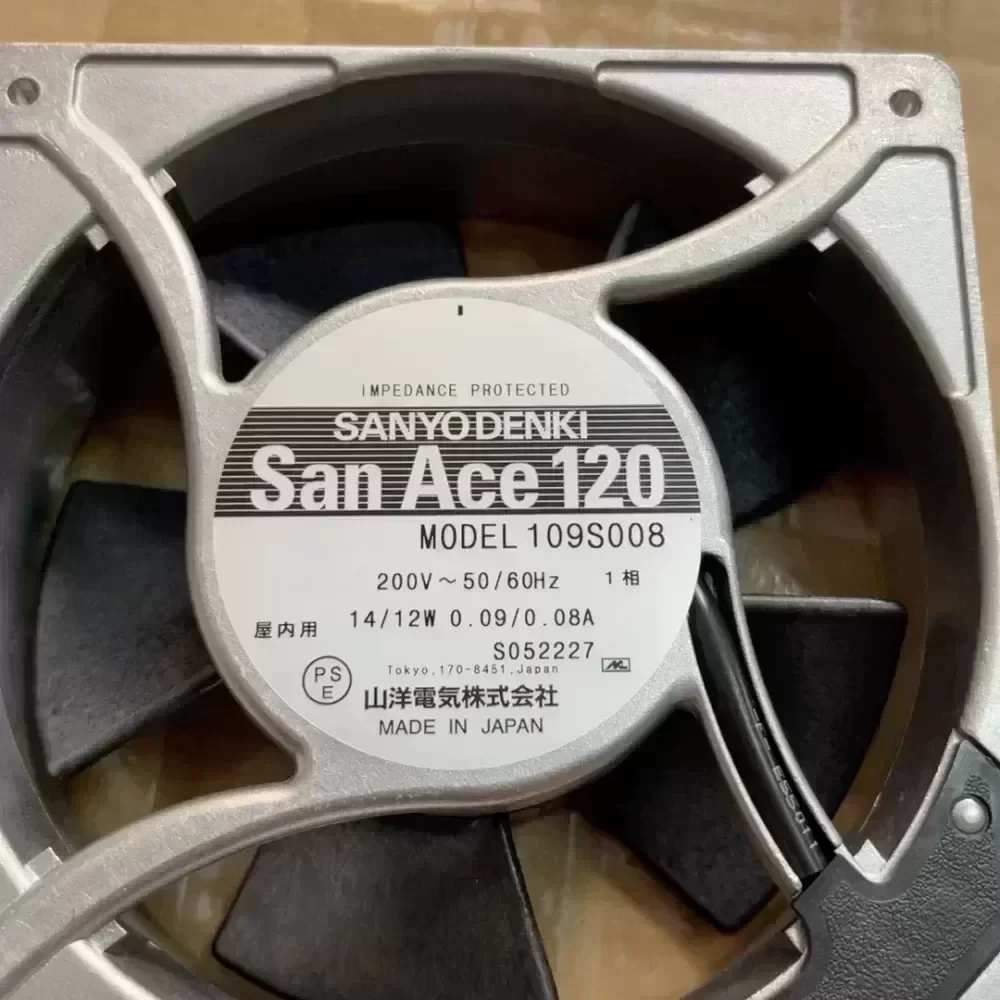

Manufacturer: Sanyo Denki
Series: San Ace 120
Model Number: 109S008
Rated Voltage: 220V AC (Operating Range: 198V to 242V AC)
Operating Frequency: 50/60 Hz
Power Consumption: 12 W
Frame Dimensions: 120 mm x 120 mm x 38 mm
Mounting Hole Diameter: Ø 4.3 mm
Mounting Hole Pitch: 104.8 mm ± 0.3 mm

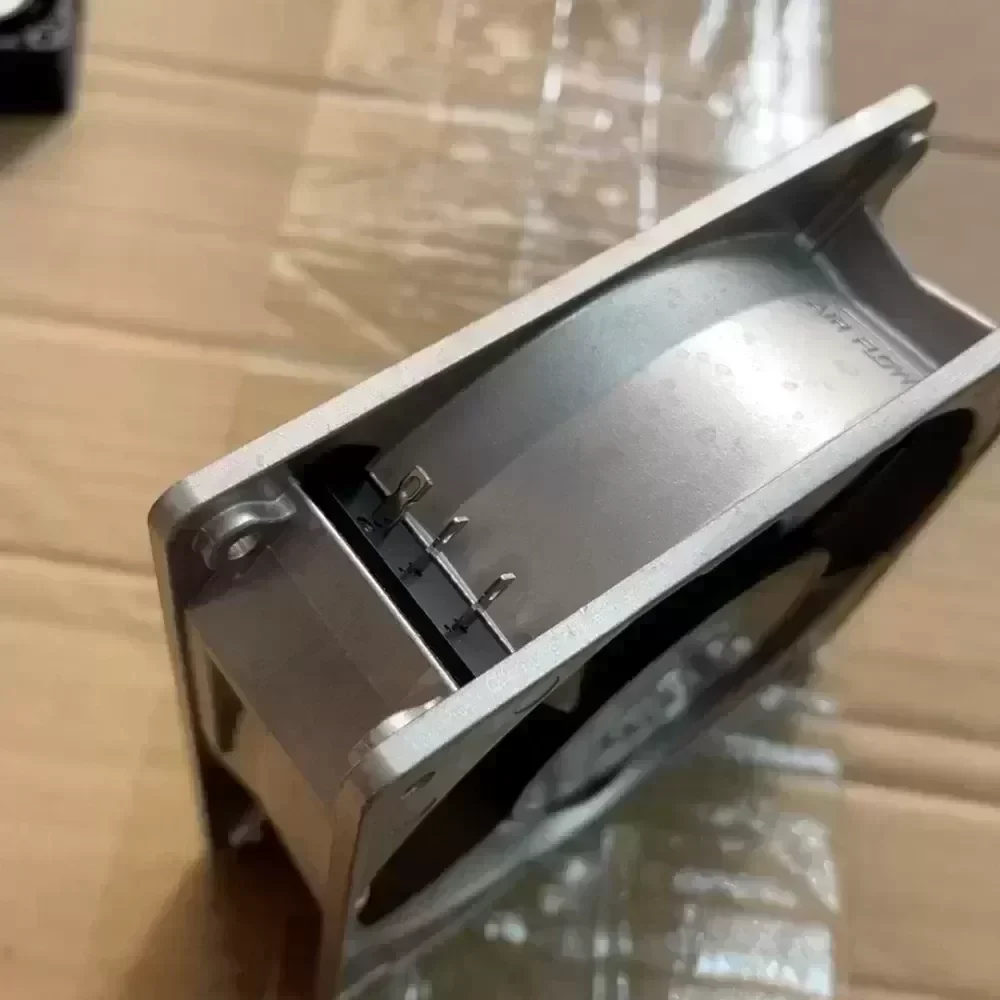

Frame Material: Die-Cast Aluminum
Impeller Material: Flame-Retardant Thermoplastic Resin (UL94V-1)
Bearing Type: Dual High-Precision Ball Bearings
Airflow Capacity: 2.55 m³/min (90 CFM)
Static Air Pressure: 63.7 Pa
Rated Speed: 2700 RPM
Acoustic Noise Level: 40 dB(A)
Motor Protection: Impedance Protected
Operating Temperature Range: -30 °C to +60 °C
Storage Temperature Range: -30 °C to +70 °C
Expected Service Life: 50,000 Hours at 60 °C
Weight: 530 g
Certifications and Compliance: CE, UL, RoHS

SYSTEM INTEGRATION AND TECHNICAL COMPATIBILITY
The 109S008 is optimized for drop-in Technical Compatibility across industrial machinery requiring high static pressure cooling in confined cabinets. It serves as a direct thermal maintenance component for automated welding cells, particularly Panasonic welding robot control units and power modules. In robotic arc welding environments, high ambient temperatures, electromagnetic interference, and fine particulate matter present severe operational challenges. The cast aluminum frame acts as an auxiliary thermal conductor and structural shield, preventing cabinet hotspot development, protecting IGBT inverter circuits, and mitigating downtime caused by thermal shutdown.

PROCUREMENT AND LIFECYCLE MANAGEMENT
Supply Assurance: Verified industrial replacement component with guaranteed baseline performance specifications.
Lead Time: Stock units ship within 24 to 48 hours; project-level quantities subject to standard procurement scheduling.
Lifecycle Value: High MTBF rating minimizes maintenance frequency and maximizes operational uptime in automated production lines.

109S008 Sanyo SanAce120 fan

109S008 Sanyo SanAce120 fan

109S008 Sanyo SanAce120 fan

109S008 Sanyo SanAce120 fan

109S008 Sanyo SanAce120 fan

109S008 Sanyo SanAce120 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
