Description

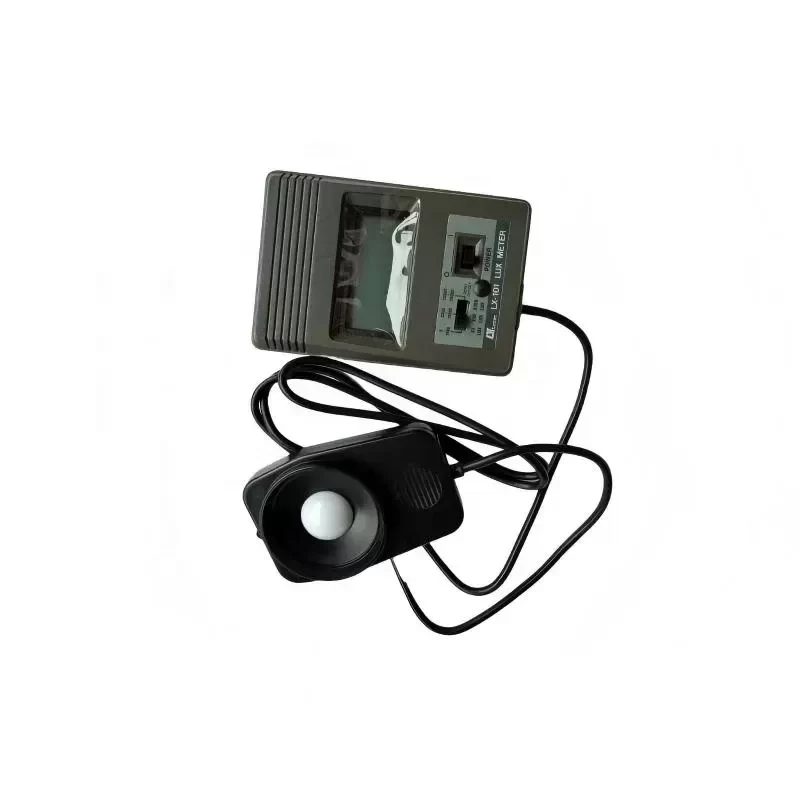

The Lutron LX-101 is a highly accurate, pocket-sized digital light meter engineered for precision optical measurement across industrial, commercial, and laboratory environments. Utilizing Original Engineering from Lutron, this instrument features a separate light sensor probe that allows operators to capture illumination data at optimal angles while maintaining clear visibility of the LCD display.
Technical Specifications:
Measurement Range: 0 to 50,000 Lux (3 ranges: 2,000 / 20,000 / 50,000 Lux)
Sensor Type: Exclusive photo diode with color correction filter
Spectrum Compatibility: Meets C.I.E. photopic standard
Accuracy: ±5% + 2 digits
Display: 13 mm (0.5 inch) LCD
Sampling Time: 0.4 seconds
Operating Temperature: 0°C to 50°C
Operating Humidity: Maximum 80% RH
Power Supply: DC 9V battery
Instrument Dimensions: 108 x 73 x 23 mm
Sensor Dimensions: 82 x 55 x 7 mm
Weight: 160 g
Industrial Application:
The LX-101 is critical for validating workplace illumination levels to ensure compliance with occupational safety standards. Its precise C.I.E. photopic spectrum matching makes it indispensable for quality control in LED manufacturing, architectural lighting audits, and greenhouse environmental monitoring. The separate probe design ensures Technical Compatibility with tight-space measurements where integrated sensor units cannot be positioned accurately.
Procurement and Lifecycle Value:
Designed for long-term reliability, this unit minimizes calibration drift over its lifecycle. Contact our technical sales team to confirm current Lead Time and secure authentic Lutron instrumentation for your facility.
Key Attributes
Place of origin: China
Model number: LX-101
Brand name: Lutron
Customized support: No
Material: Plastic
Power: Battery powered
Resolution: 1%
Voltage: 1.5V
Warranty: 1 years
Accuracy: 5%
Measuring range: 0 to 50,000 Lux
Packaging and Delivery
Selling Units: Single item
Single package size: 28X16X14 cm
Single gross weight: 0.600 kg
