$9.29

SKU: 891779151772 Brand:

Description

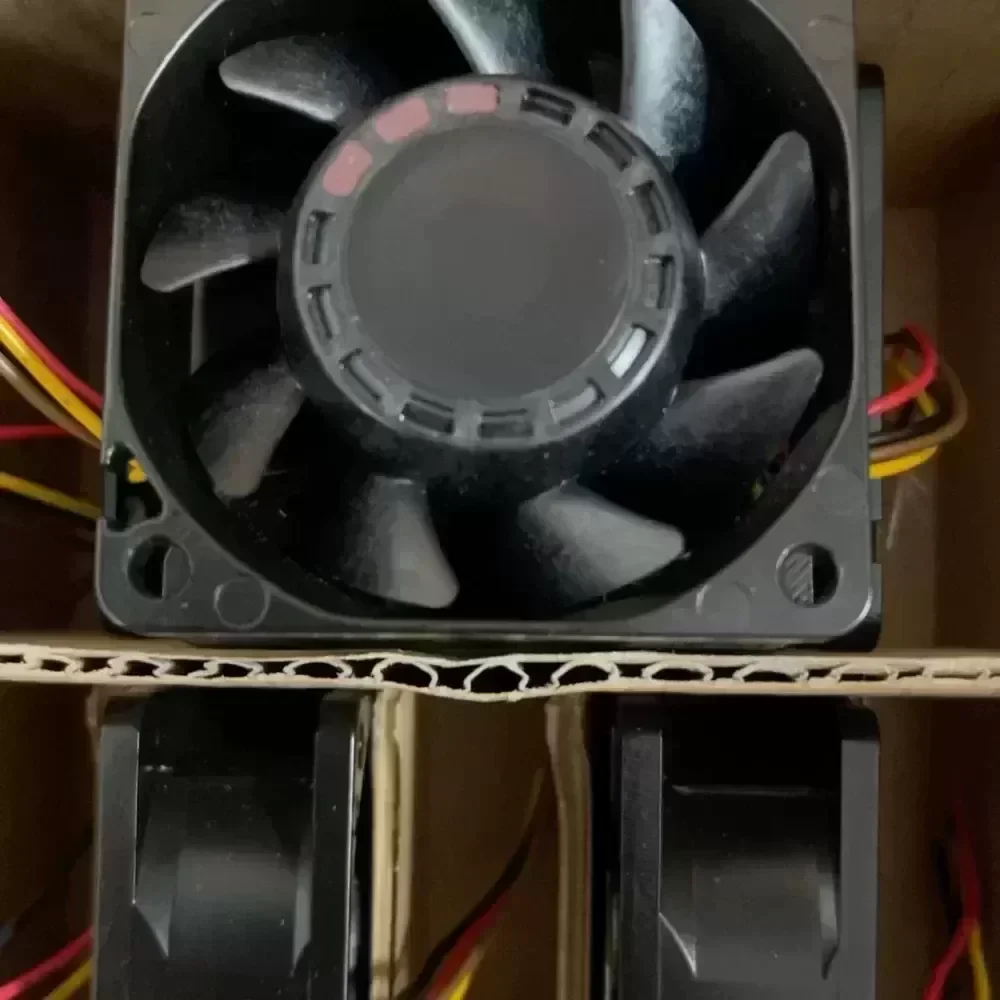

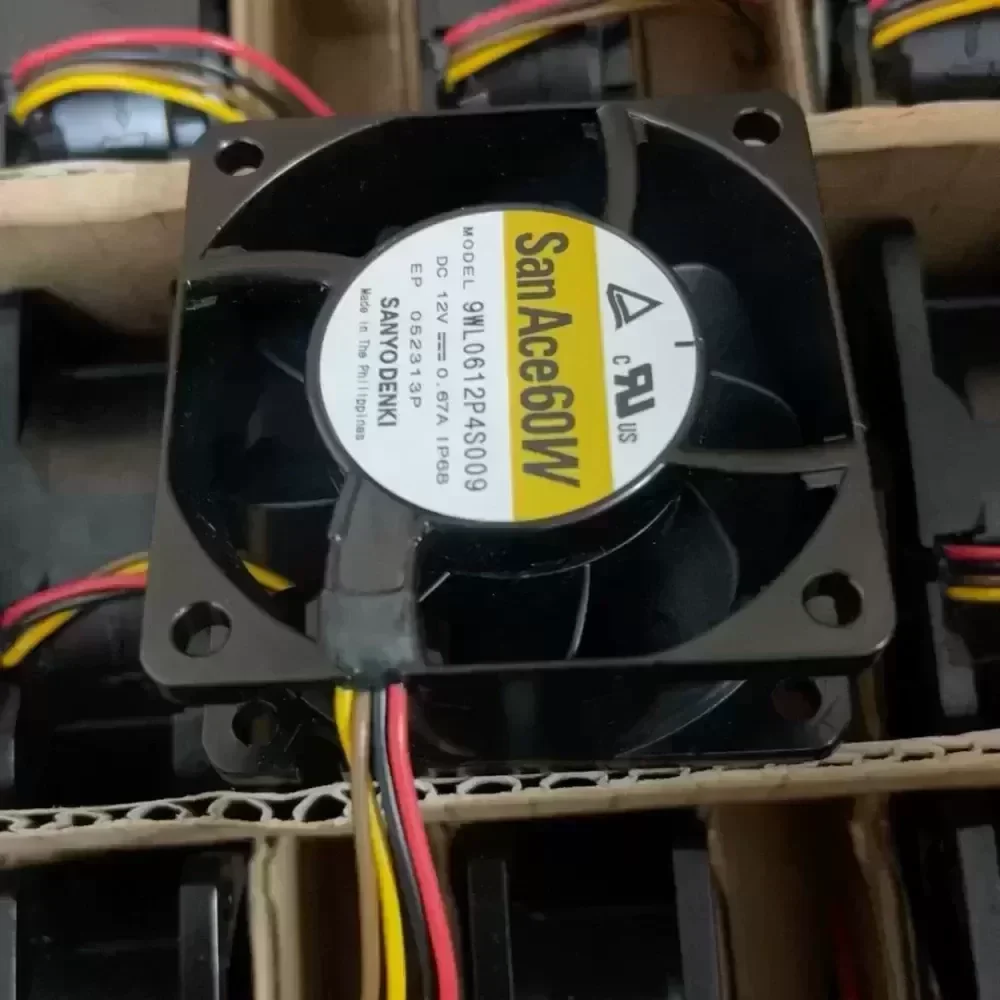

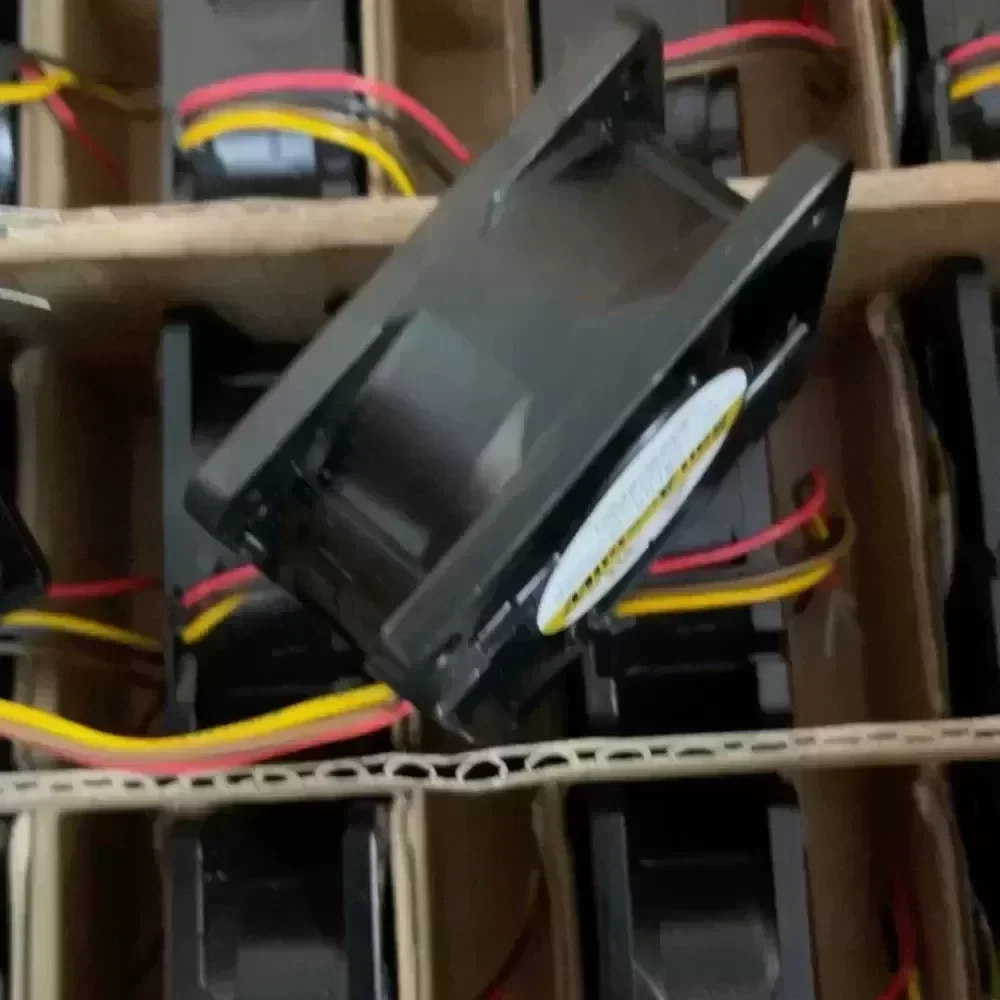

The Sanyo Denki 9WL0612P4S009 is an industrial-grade, high-performance DC axial cooling fan engineered for harsh operational environments requiring absolute protection against water ingress and particulate contamination. Built with original engineering standards, this San Ace 60 splash-proof unit integrates a sealed brushless DC motor, advanced aerodynamic impeller geometry, and complete motor electronics encapsulation to achieve true IP68 ingress protection rating.

TECHNICAL SPECIFICATIONS
Manufacturer: Sanyo Denki Co., Ltd.
Series: San Ace 60 9WL Type (Splash Proof / Water & Dust Resistant)
Model Number: 9WL0612P4S009
Frame Dimensions: 60 mm x 60 mm x 25 mm
Rated Voltage: 12 V DC
Operating Voltage Range: 10.2 V to 13.8 V DC
Rated Current: 0.67 A
Rated Input Power: 8.04 W
Speed Control Type: Pulse Width Modulation (PWM)
Signal Output: Tachometer Pulse Sensor (Frequency Generator)
Bearing System: Dual Precision Ball Bearings
Ingress Protection Rating: IP68 (IEC 60529 certified – Dust-tight and continuous water submersion)
Frame Material: Flame Retardant PBT Thermoplastic (UL 94V-0)
Impeller Material: Flame Retardant PBT Thermoplastic (UL 94V-0)
Lead Wire Interface: 4-Wire Configuration (Power, Ground, Tachometer Output, PWM Speed Control Input)
Operating Temperature Range: -20 °C to +70 °C
Storage Temperature Range: -30 °C to +70 °C
Expected Service Life (L10): 180,000 Hours at 40 °C / 100,000 Hours at 60 °C
Dielectric Strength: 50/60 Hz, 500 V AC for 1 minute
Weight: 100 g
Certifications: RoHS Compliant, UL Recognized, CE Marked, TÜV

CRITICAL INDUSTRIAL APPLICATIONS & TECHNICAL COMPATIBILITY
Standard cooling fans rapidly degrade in outdoor telecommunication enclosures, industrial automation cabinets, renewable energy inverters, and commercial refrigeration systems due to moisture condensation, salt spray, and particulate buildup. The 9WL0612P4S009 solves premature component failure in extreme environments by fully sealing all active electronic components in silicone potting resin. Its high static pressure capability ensures continuous, unobstructed thermal dissipation across densely packed heat sinks and compact enclosures under high ambient humidity and direct washdown conditions.

PROCUREMENT, QUALITY, AND LOGISTICS

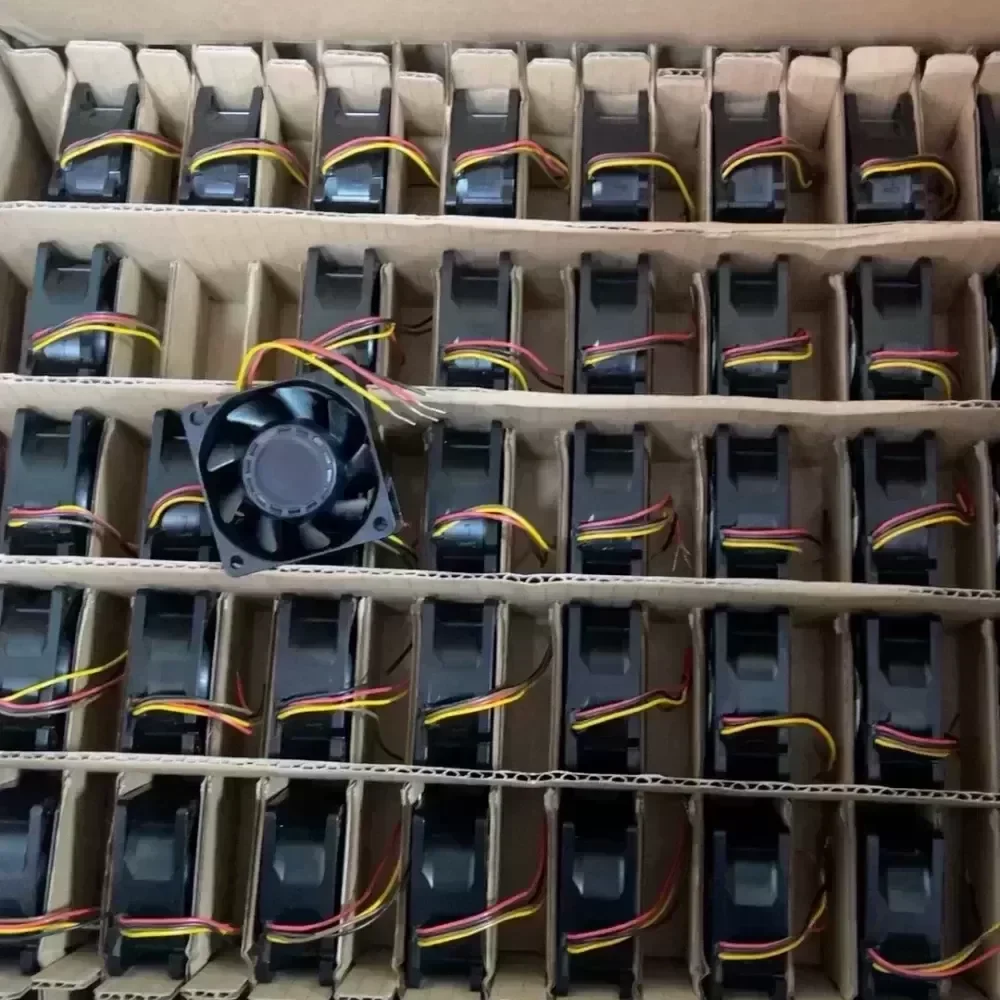

Condition: Factory New, Original Packaging, Unopened Surplus Lot
Inventory Availability: 800 Units
Traceability: 100% Verified Original Engineering Standard
Lead Time: Immediate dispatch within 24 to 48 hours for global express air cargo
Quality Assurance: Pre-shipment batch inspection supported; full compatibility validation and standard return policy on non-conforming parameters.

9WL0612P4S009 Sanyo fan

9WL0612P4S009 Sanyo fan

9WL0612P4S009 Sanyo fan

9WL0612P4S009 Sanyo fan

9WL0612P4S009 Sanyo fan

9WL0612P4S009 Sanyo fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
