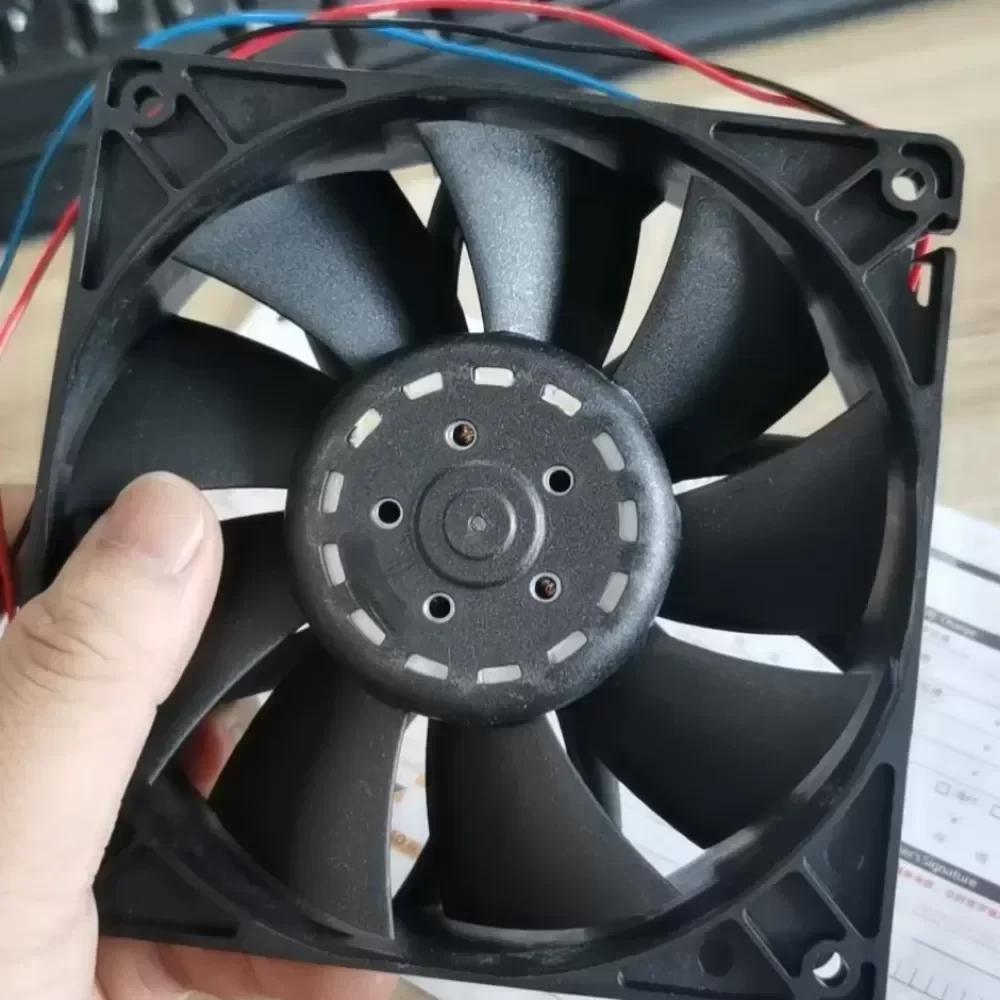

AS12024HB389B00 ADDA 12038/24V fan
AS12024HB389B00 ADDA 12038/24V fan

AS12024HB389B00 ADDA 12038/24V fan

$10.71

SKU: 676424616375 Brand:

Description

The ADDA AS12024HB389B00 is engineered for high-density thermal management in demanding industrial environments. Its high-speed, high-static pressure profile is specifically designed to overcome the impedance caused by dense heat sinks and dust filters in high-power frequency inverters, server racks, and telecommunications power supplies. This model ensures Technical Compatibility with heavy-duty industrial machinery requiring consistent airflow to prevent thermal throttling of power electronics.

Manufacturer: ADDA Corporation
Model Number: AS12024HB389B00
Product Category: DC Axial Fan / High-Performance Inverter Cooling Fan

Technical Specifications:
Frame Size: 120 x 120 x 38 mm (12038)
Rated Voltage: 24V DC
Operating Voltage Range: 20.4V to 27.6V
Rated Current: 2.10 A
Input Power: 50.4 W
Bearing Type: Dual Ball Bearing (High Durability)
Rated Speed: 5500 RPM ± 10%
Airflow Volume: 235.0 CFM (6.65 m³/min)
Static Pressure: 1.15 in-H2O (286.4 Pa)
Noise Level: 65.0 dB(A)
Termination: 2-Wire (Lead Wire)
Weight: 310 g

Material and Construction:
Frame Material: Reinforced Thermoplastic PBT (UL 94V-0)
Impeller Material: Reinforced Thermoplastic PBT (UL 94V-0)
Motor Type: Brushless DC Motor with Auto-Restart Protection
Insulation Resistance: 10M Ohm at 500V DC between lead and frame
Dielectric Strength: 5mA Max at 500V AC for 1 minute

Environmental and Certifications:
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Expected Life (L10): 70,000 Hours at 40°C
Compliance: CE, UL, TUV, RoHS

Procurement Information:
Condition: Original Engineering New
Lead Time: Immediate Dispatch Available
Quality Assurance: 100% Authentic Factory Stock

AS12024HB389B00 ADDA 12038/24V fan

AS12024HB389B00 ADDA 12038/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
