$3.57

SKU: 684455900601 Brand:

Description

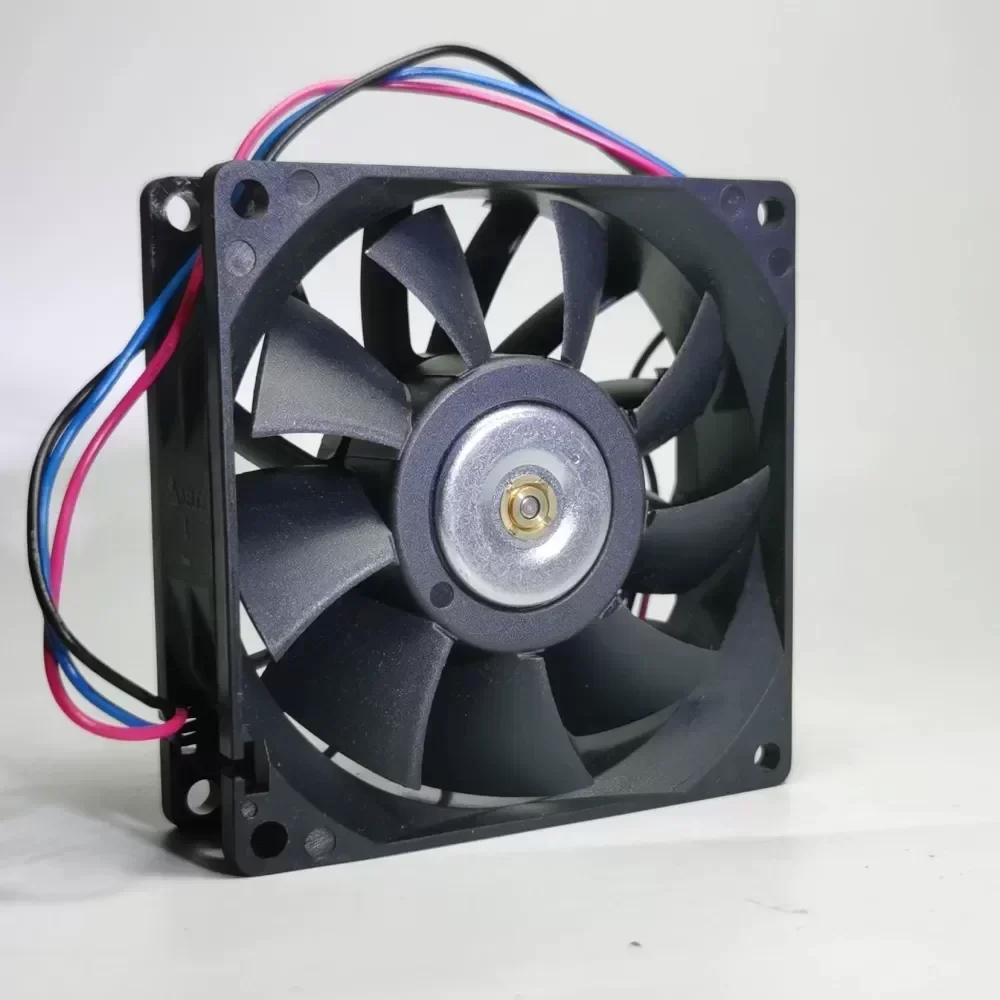

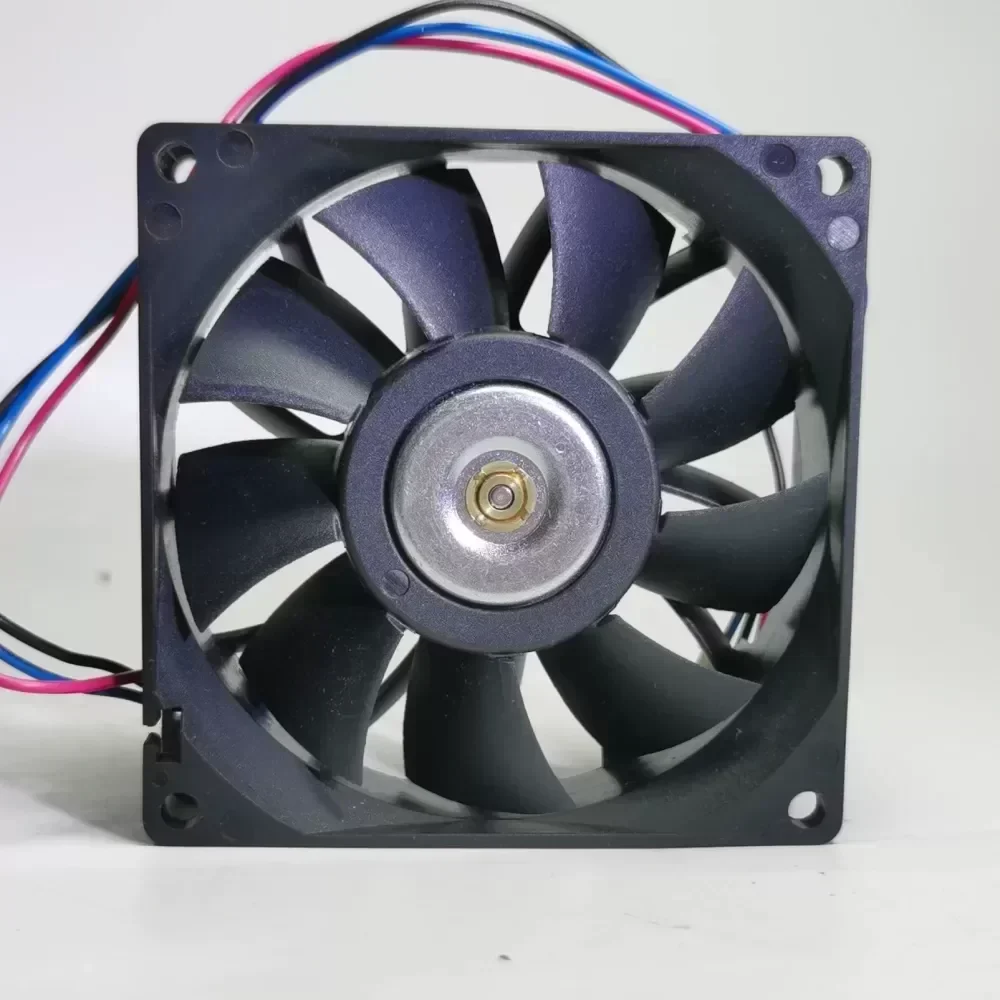

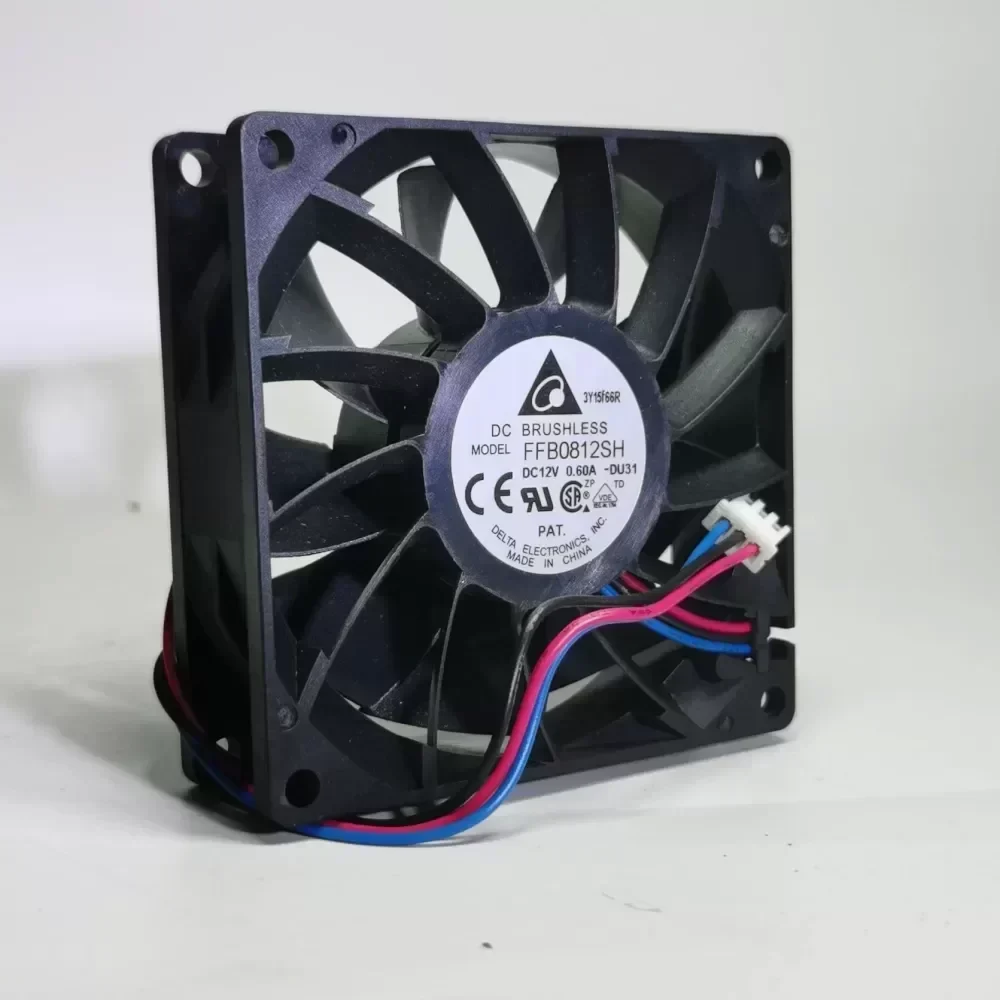

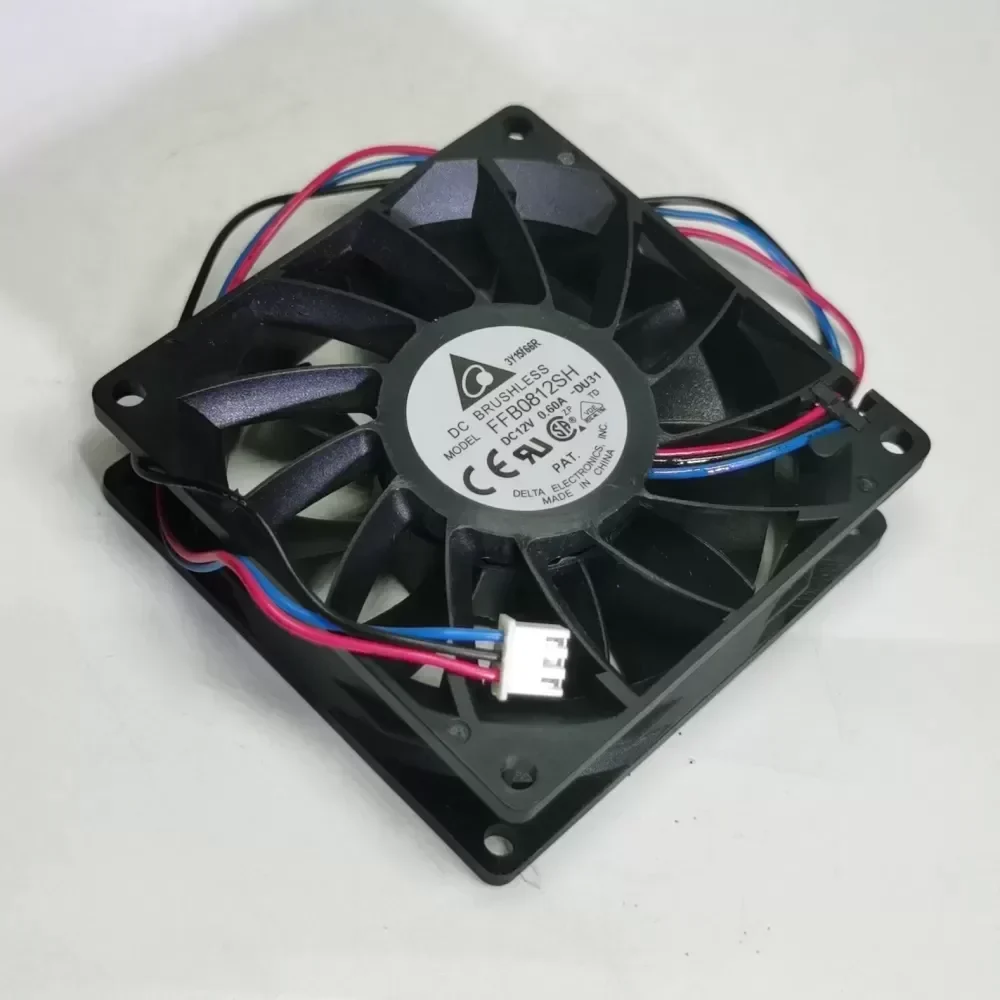

The Delta Electronics FFB0812SH is a high-performance, industrial-grade DC axial cooling fan designed for critical thermal management applications. Engineered with a compact 80x80x25mm footprint, this unit delivers exceptional volumetric airflow and static pressure to mitigate heat accumulation in densely packed electronic enclosures. Leveraging Delta’s Original Engineering, the FFB series integrates advanced aerodynamic blade geometry and a robust dual ball bearing system to ensure prolonged operational longevity and continuous reliability in demanding environments.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: FFB0812SH
Dimensions: 80 x 80 x 25 mm
Nominal Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Input Current: 0.60A Max
Input Power: 7.2W
Rated Speed: 4500 RPM ± 10%
Maximum Airflow: 67.02 CFM (1.89 m³/min)
Static Pressure: 9.96 mmH2O
Acoustic Noise: 48.6 dB(A)
Bearing System: Dual Ball Bearing
Termination: 3-Wire Lead (Power, Ground, Tachometer/Alarm)
Housing Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10°C to +60°C
Weight: 115 g
Certifications: CE, UL, CSA, RoHS

Industrial Application and Integration:
The FFB0812SH is specifically optimized for high-density server chassis, telecommunications equipment, and industrial automation control cabinets where rapid heat dissipation is mandatory. The integrated 3-wire tachometer output provides real-time rotational speed monitoring, allowing system controllers to trigger immediate alarms during thermal events or fan failure. This ensures Technical Compatibility with advanced motherboard diagnostics and automated thermal regulation systems. By maintaining strict adherence to standard 8025 form factors, this fan facilitates seamless drop-in replacement for legacy cooling modules, minimizing system downtime. Contact our procurement team to verify current Lead Time and secure authentic Delta components for your production or maintenance requirements.

New FFB0812SH Delta 8025/12V III

New FFB0812SH Delta 8025/12V III

New FFB0812SH Delta 8025/12V III

New FFB0812SH Delta 8025/12V III

New FFB0812SH Delta 8025/12V III

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
