Description

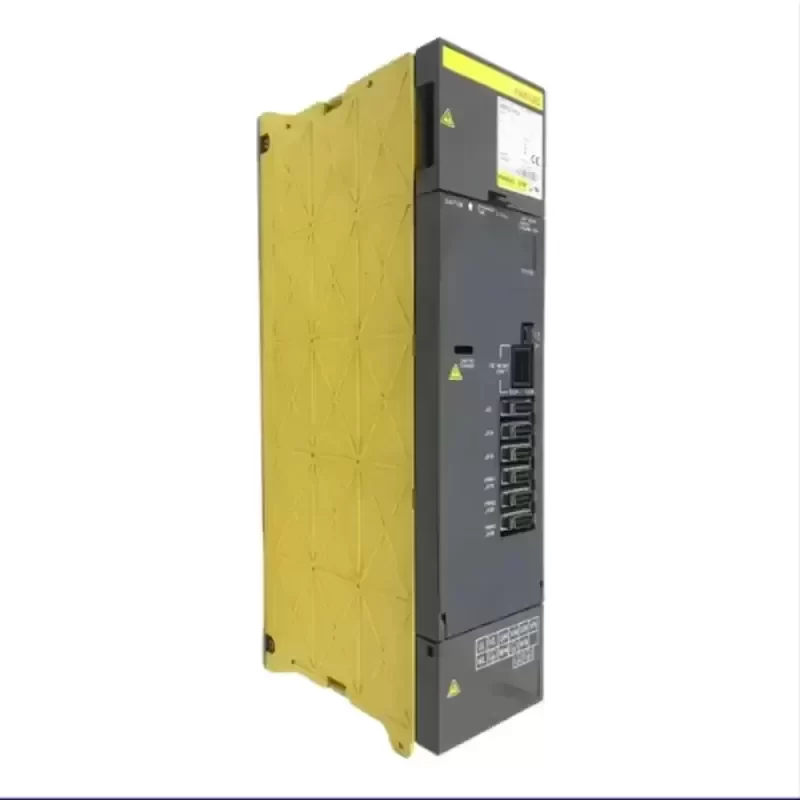

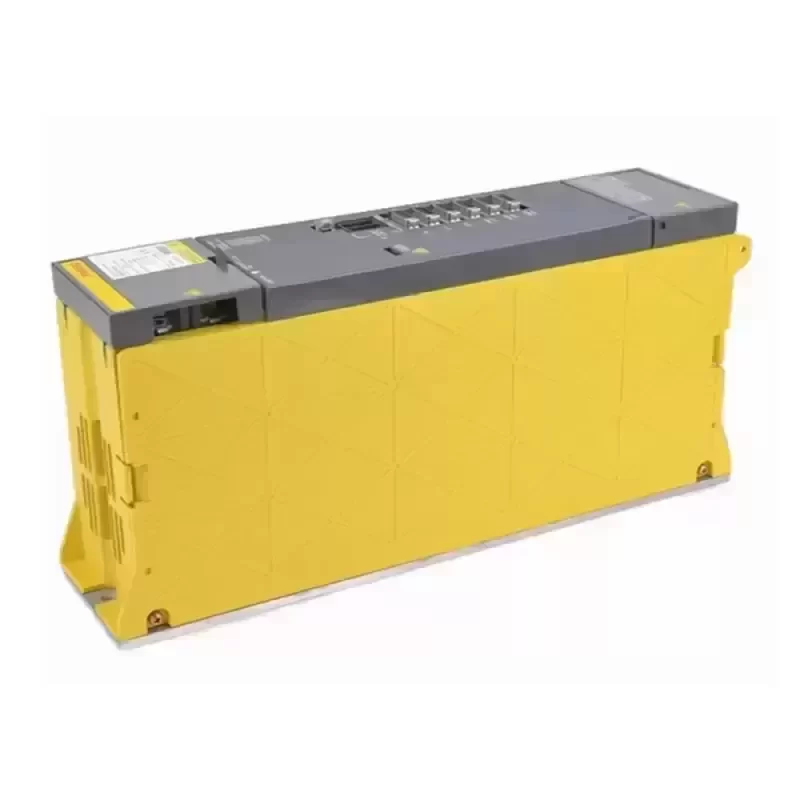

The FANUC A06B-6079-H304 is a high-performance 3-axis Alpha Series Servo Amplifier Module (SVM3) engineered for precision control in advanced CNC machinery. Manufactured with Japan Original Engineering standards, this drive module ensures optimal power distribution and precise motor synchronization across three independent axes. Designed for seamless Technical Compatibility with FANUC Alpha series servo motors and CNC controllers, the A06B6079H304 delivers exceptional dynamic response and operational stability in demanding industrial environments.
Technical Specifications:
Manufacturer: FANUC
Model Number: A06B-6079-H304
Product Series: Alpha Series SVM3
Number of Axes: 3-Axis Control (L, M, N)
Input DC Link Voltage: 283 to 325 VDC
Control Power Supply: 24 VDC ± 10%
Rated Output Voltage: 230 VAC 3-Phase
Rated Output Current: 12.5 A per axis
Interface Type: PWM / Fiber Optic Type A/B
Cooling Method: Forced air cooling via integrated fan
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Humidity Tolerance: 95% RH non-condensing
Weight: 5.5 kg
Country of Origin: Japan
System Integration and Lifecycle Value:
The A06B-6079-H304 servo drive acts as the critical power amplification stage within the FANUC CNC architecture, receiving low-voltage command signals from the main CPU and converting them into high-current outputs to drive the servo motors. Its modular design allows for rapid installation and integration with adjacent Power Supply Modules (PSM) and Spindle Amplifier Modules (SPM) via standard DC link busbars. Maintaining standard Lead Time protocols for replacement units minimizes machine downtime and ensures continuous production cycles.
Industrial Application Scenario:
This 3-axis servo amplifier is specifically utilized in multi-axis CNC milling centers and complex turning machines where simultaneous interpolation of the X, Y, and Z axes is required. By providing synchronized, high-fidelity current loops to three separate motors, the A06B-6079-H304 eliminates positioning lag and contouring errors during high-speed machining of aerospace-grade titanium or hardened steel components, ensuring strict adherence to micro-level dimensional tolerances.
Key Attributes
Application: Power Station, Industrial Equipment, Building, Electronic Equipment, Electric Power Transmission, Cnc Machine, Automation
Material: Aluminum, Steel
Motor Type: Servo
Place of Origin: Japan
Model Number: A06B-6079-H304
Brand Name: FANUC
Product name: A06B-6079-H304
Condition: Original new
Warranty: 12 Months
Stock: Available
Payment terms: All terms are accepted
Lead Time: 1-2 Days
Delivery Time: 3-5 Days
Package: Carton packing
MOQ: 1 Piece
Packaging and Delivery
Selling Units: Single item
