Description

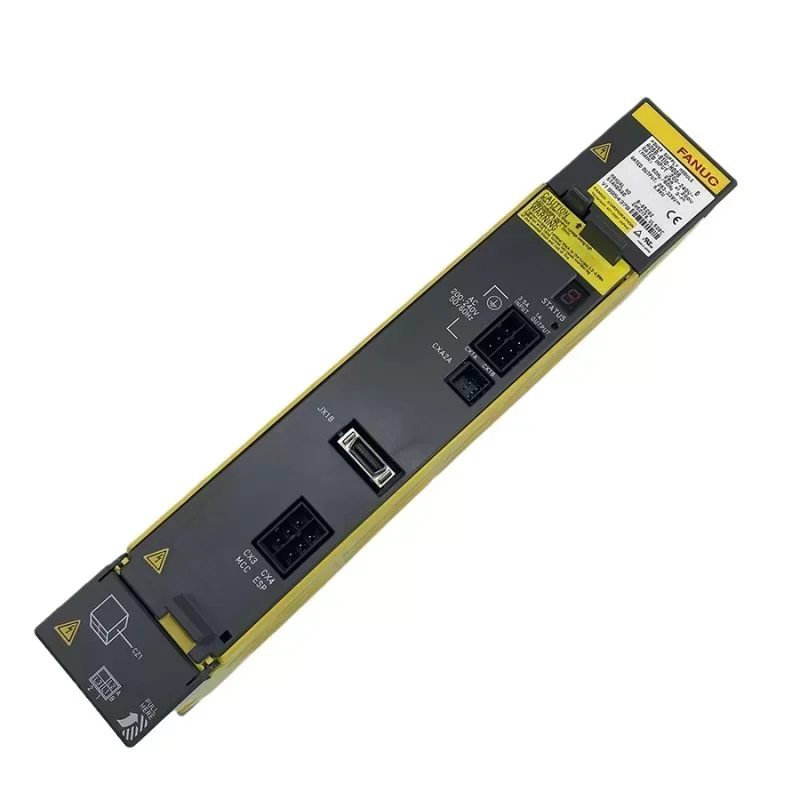

The Fanuc A06B-6110 Series Alpha i Power Supply Module (PSM) represents the core energy management architecture for advanced CNC machining centers. Engineered for high-efficiency AC to DC power conversion, this series provides stable DC link voltage to servo and spindle amplifiers while utilizing regenerative discharge technology to return braking energy directly to the facility power grid. This Original Engineering ensures maximum thermal efficiency and precise power delivery under heavy dynamic loads.
Technical Specifications
Manufacturer: Fanuc
Series: Alpha i Power Supply Module (PSM)
Input Voltage: 200 – 240 VAC ± 10%
Input Frequency: 50/60 Hz ± 2 Hz
Input Phases: 3-Phase
Output Voltage: 283 – 325 VDC

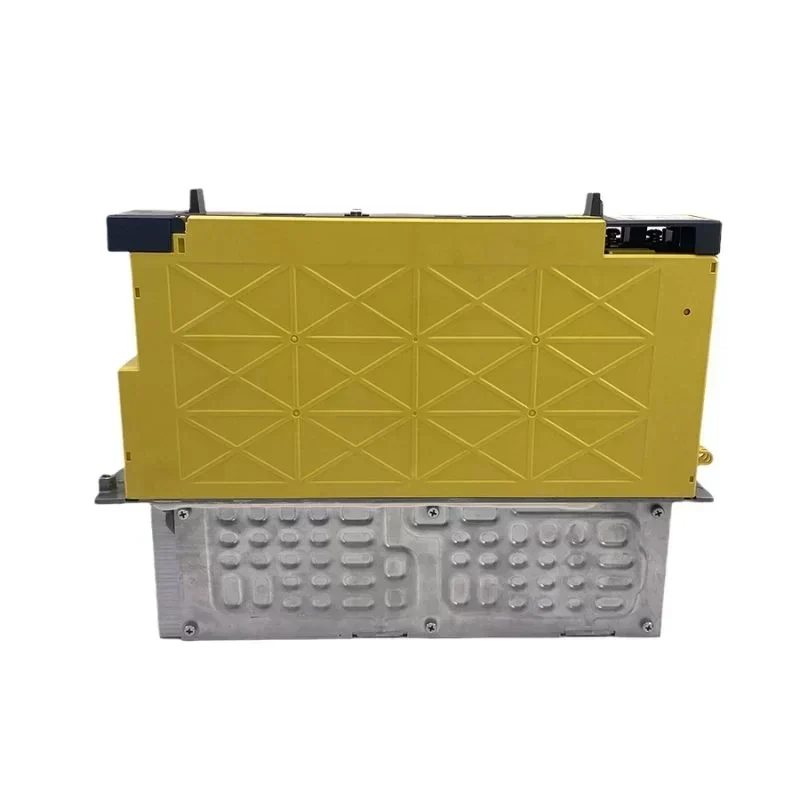

Cooling Method: Forced air cooling with integrated heat sink
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Humidity Tolerance: 10% to 90% RH (non-condensing)
Protection Rating: IP20
Mounting: Cabinet panel mount (vertical)
Model-Specific Power Ratings
A06B-6110-H006: PSM-5.5i (Rated Output: 5.5 kW, Weight: 4.5 kg)
A06B-6110-H015: PSM-15i (Rated Output: 15.0 kW, Weight: 6.0 kg)
A06B-6110-H026: PSM-26i (Rated Output: 26.0 kW, Weight: 9.5 kg)
A06B-6110-H037: PSM-37i (Rated Output: 37.0 kW, Weight: 13.0 kg)
System Architecture and Integration

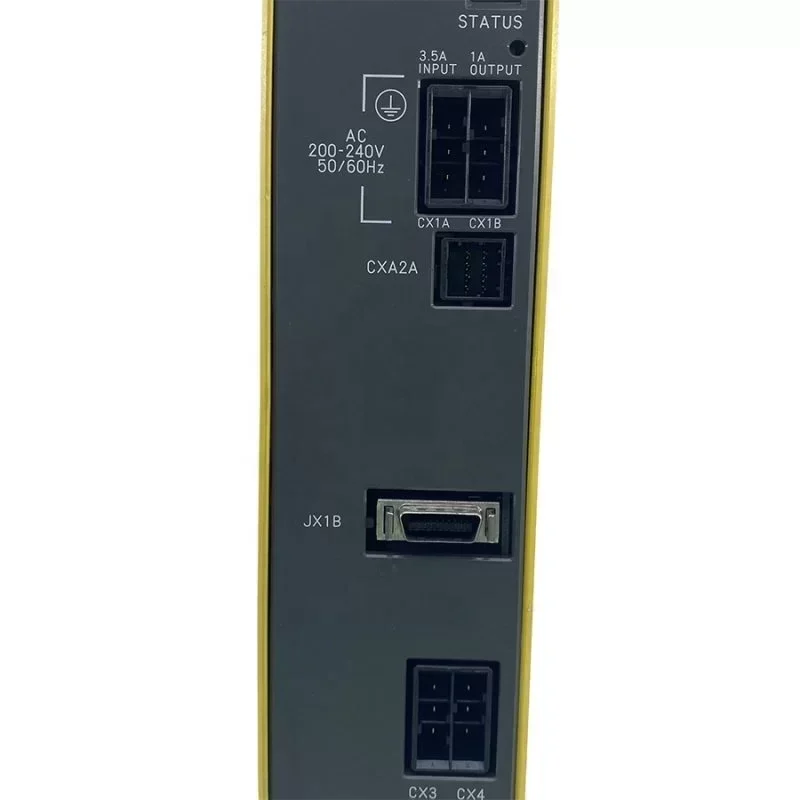

The A06B-6110 series operates as the primary power gateway in the Fanuc Alpha i drive system. It utilizes a modular plug-and-play architecture with CX1A/CX1B communication interfaces for seamless Technical Compatibility with downstream SVM (Servo Amplifier Module) and SPM (Spindle Amplifier Module) units. The internal logic monitors phase loss, overcurrent, and DC link overvoltage, triggering immediate safety protocols via the CNC controller to prevent catastrophic drive failure.
Industrial Application
These power supply units are critical for high-speed, multi-axis CNC milling and turning centers operating in continuous production environments. In automotive and aerospace manufacturing, where spindle deceleration times directly impact cycle times, the regenerative braking capability of the A06B-6110 series dissipates kinetic energy efficiently. Procuring these modules with a verified short Lead Time ensures minimal downtime during critical machine tool retrofits or emergency maintenance interventions.
Key Attributes
Application: Cnc Machine, Electronic Equipment, Industrial Equipment
Motor Type: Servo, AC
Place of Origin: Japan
Model Number: A06B-6110-H006
Brand Name: Fanuc
Product Name: Fanuc power supply module
Condition: Original new
Warranty: 12 Months
Stock: Available
Shipping terms: All terms are accepted
Payment terms: All terms are accepted
Lead Time: 1-2 Days
Delivery Time: 3-5 Days
Package: Carton packing
MOQ: 1 Piece
Packaging and Delivery
Selling Units: Single item
Single package size: 58X38X17 cm
Single gross weight: 7.000 kg
